Lot of Single Auction Locknut Hydraulic Cylinders, 50 MT jack capacity

Price: $18,000 USD

For Sale by Irizar Heavy Industries Inc

Surplus Record Dealer Since 2015
Gold Level Dealer
Location: Edmonton, AB Canada
Contact Juan Irizar
Let the seller know you found their listing on Surplus Record!
$18,000 USD
Finance for as low as $365/mth financing info

Description

Here is the text extracted from the image for easy copy-pasting:

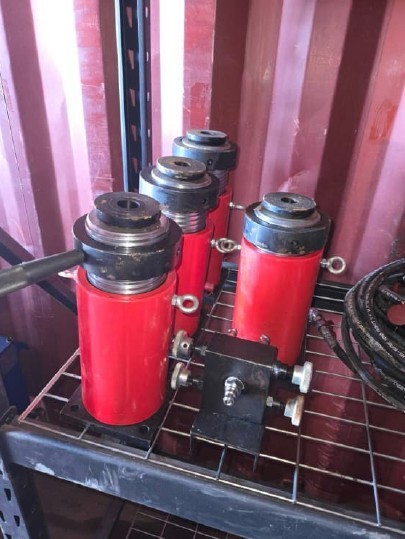

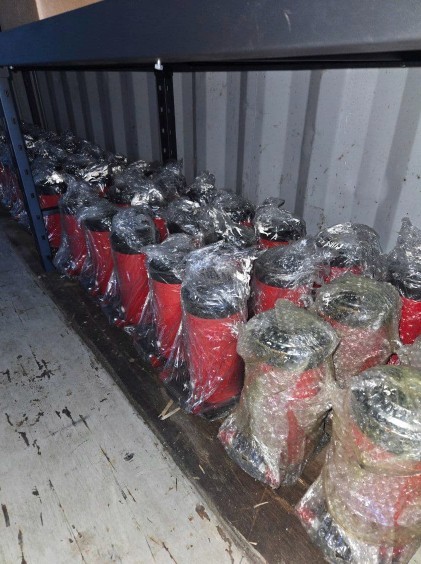

Single Action Lock Nut Hydraulic Cylinder x 70 units

  • Jack capacity: 50 MT
  • With mechanical load holding for extended periods of time
  • Working pressure: 630 BAR [9,000 PSI]
  • Max operation pressure: 700 BAR [10,000 PSI]
  • Stroke: 150 mm
  • Collapsed height: 280 mm
  • Out-side diameter: Ø 125 mm
  • Inner diameter: Ø 100 mm
  • Include:
    a) Flange size 140 x 140 mm with 4 holes of Ø ½”
    b) Two lifting lugs
    c) Tilt saddle
    d) “T” connection port with M16 X 1.5 with TWO MALE quick couplers @ 10,000 PSI

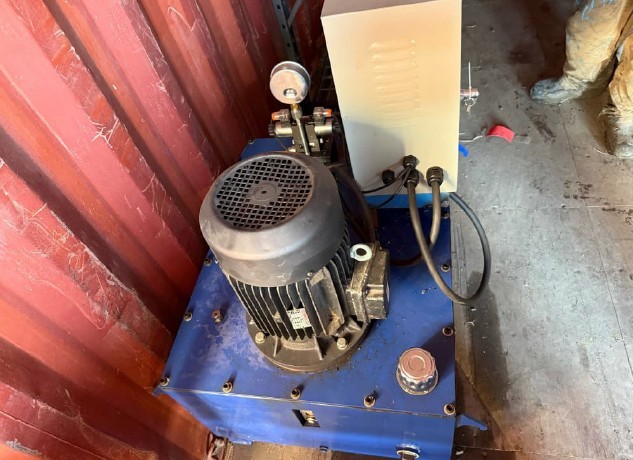

Single Action Power Pack 7.50 HP [5.50 kW] x 2 units

  • For max 70 jacks of 50 MT
  • Working pressure: 630 BAR [9,000 PSI]
  • Max operation pressure: 700 BAR [10,000 PSI]
  • Valve type: Manual
  • Flow: 5 to 10 L/minute
  • Oil tank capacity: 200 liters
  • Input Power: 380 V, 50 Hz, 3 P
  • Include:
    a) Lifting hooks 4x
    b) Forklift access on bottom of tank (4” height)

Hydraulic Hose of 7.0 m length @ 10,000 PSI x 120 units

  • Include: TWO FEMALE quick couplers on both ends, M16 X 1.5

Inquire Further with Irizar Heavy Industries Inc!

Buyers Who Viewed This Listing Also Viewed:

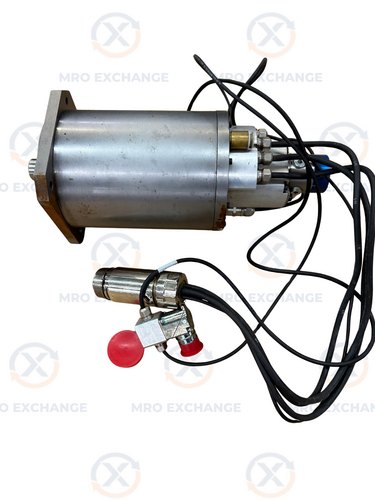

Rhm Rotary Chuck Actuating Cylinder 000.666.956
