Irizar Heavy Industries Inc
Edmonton, AB T6W0V4 Canada
Gold Level Dealer
Surplus Record Dealer Since 2015
Contact
Juan Irizar
About
Irizar Heavy Industries Inc. is a Canadian company based in Edmonton. We take pride in manufacturing and offering the world's largest stock of Welding Rotators (up to 2,400 MT), Welding Manipulators (up to 9 m effective vertical column reach), and Tank Lifting Jacks for welded and bolted field erected tanks (up to 3,000 MT).
Product Range:
- Conventional Welding Rotators from 1 to 3,000 MT. Also known as Tank Rollers, Welding Rollers, Tank Rotators, Weld Rotators, Pipe Rotators, Welding Rolls, Welding Rotators, Vessel Rollers, Tank Rolls and Turning Rolls
- Anti-Drift (Anti-Creep) from 250 to 3,000 MT
- Self-Aligned Rotators from 5 to 500 MT. Also known as Self Aligning, Self Adjusted, Self Alignment and Self Adjustment Rollers
- Track Welding Rotators 5 & 20 MT
- Pipe Rotators from 1 to 25 MT
- Welding Positioners from 0.6 to 100 MT
- Head & Tail Stock from 1 to 100 MT
- Welding Manipulators from 2 x 2 m to 9 x 6 m (vertical x horizontal). Also known as Welding Booms and Welding Columns
- Girth Welders: AGW-1, AGW-2, LNG AGW-1 & Shell Buggies. Also known as 3 O’Clock Welders and Automatic Girth Welders
- Tank Lifting Jacks: Model 12 MT & 25 MT. These jacks are suitable for lifting any tank; we have successfully lifted tanks weighing up to 3,000 MT. They can be used for Field Erected Tanks API-650, LNG API-620 Welded Tanks, and Bolted Tanks. These jacks are also called Hydraulic Tank Jacks, Tank Erection, and Tank Lifting.
Products & Services
- Welding Equipment
- Welding Manipulators, Positioners, & Turning Rolls
Associations & Affiliations
11 listings in 4 categories
Air and Hydraulic Cylinders
1 Result

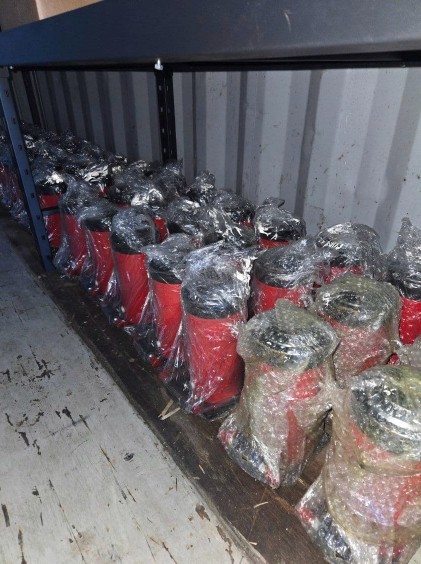

Lot of Single Auction Locknut Hydraulic Cylinders, 50 MT jack capacity
Category: Air and Hydraulic Cylinders
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Here is the text extracted from the image for easy copy-pasting:, Single Action Lock Nut Hydraulic Cylinder x 70 units, Jack capacity: 50 MT With mechanical load holding for extended periods of time Working pressure: 630 BAR [9,000 PSI] Max operation pressure: 700 BAR [10,000 PSI] Stroke: 150 mm Collapsed height: 280 ...more
Power Tank Turning Rolls
6 Results
44 Ton, Irizar #FUR-40, Fit Up Rollers, For Sale or Rent, 3 sets available
Category: Power Tank Turning Rolls
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: FUR40
Fit-Up Rollers are used during the assembly process of shells for wind towers, large pressure vessels, Tanks, and Pipes. These rollers assist in aligning the shells and tack-welding them up to a 30-meter section. Once the section is complete, transfer cars move it parallel to a welding station. If necessary, two ...more
275 Ton, Irizar #WR-250, tank turning rolls, 10 sets available
Category: Power Tank Turning Rolls
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: WR-250
, Power Rotator Max Rotation Capacity: 250 MT, Power Rotator Max Load Capacity: 125 MT, Idler Rotator Max Load Capacity: 125 MT, Vessel Diameter Range: From 550 mm up to 9,000 mm, Variable Speed: From 100 up to 1,000 mm/minute, Remote Control Box with 6 m cable:, Forward/Stop/Reverse/Variable speed adjustment with ...more
440 Ton, Irizar #WR-400, tank turning rolls, 2 sets available
Category: Power Tank Turning Rolls
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: WR400
Power Rotator Max Rotation Capacity: 400 MT, Power Rotator Max Load Capacity: 200 MT, Idler Rotator Max Load Capacity: 200 MT, Vessel Diameter Range: From 1,200 mm up to 9,000 mm, Variable Speed: From 100 up to 1,000 mm/minute, Wireless remote control with 60 m reach: Forward/Stop/Reverse/Variable speed adjustment ...more
880 Ton, Irizar #WR-800, tank turning rolls, Anti Drift Option Available, For Sale or Rent, 2 sets available
Category: Power Tank Turning Rolls
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: WR-800
The Anti-Drift Turning Rolls minimize the screw effect [longitudinal displacement] during the rotation of the workpiece. They achieve an axial vessel accuracy of ± 3.0 mm through a PLC and a Sensor Automatic Anti-Drift Controller. Anti-Drift Turning Rolls, also known as Anti-Creep Rotators, Anti-Drift Rotators ...more
1322 Ton, Irizar #WR-1200, tank turning rolls, Anti Drift Available, For Sale or Rent, 2 sets available
Category: Power Tank Turning Rolls
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: WR1200
The Anti-Drift Turning Rolls minimize the screw effect [longitudinal displacement] during the rotation of the workpiece. They achieve an axial vessel accuracy of ± 3.0 mm through a PLC and a Sensor Automatic Anti-Drift Controller. Anti-Drift Turning Rolls, also known as Anti-Creep Rotators, Anti-Drift Rotators ...more
2756 Ton, Irizar #WR-2500, tank turning rolls, Anti Drift Option Available, For Sale or Rent
Category: Power Tank Turning Rolls
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: WR2500
, Power Rotator Max Rotation Capacity: 2,500 MT, Power Rotator Max Load Capacity: 1,250 MT, Idler Rotator Max Load Capacity: 1,250 MT, Vessel Diameter Range: From 2,000 up to 12,000 mm, Rotation Variable Speed: From 125 up to 1,250 mm/minute, Anti-Drift Precision: ± 3.0 mm, Power: 24.0 kW @ 2 + 30 kw, Wheel ...more
Welding Manipulators
1 Result
30' x 20' Irizar #HD WM 9060, Welding Manipulator, For Sale or Rent
Category: Welding Manipulators
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
, Effective expansion:, Boom vertical effective expansion (up-down): 9.0 m, Boom horizontal effective expansion (in-out): 6.0 m Maximum load at boom extremity: 400 kilos @ 12” GC Speed:, Boom vertical speed: 0.80 m/minute, Boom horizontal speed: From 0.20 to 1.5 m/minute, Column rotation (± 180 ͦ ): ...more
Welding Positioners
3 Results
22000 lb. Irizar #HT-10, head and tailstock, 27.5" stroke, motorized
Category: Welding Positioners
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: HT-10
Maximum load capacity, Head & Tail Stock: 10 Metric Tons @ Maximum 200 mm ECC, Head Stock only (overhung): 5.0 MT @ Maximum 200 mm ECC, 5.00 MT @ 250 mm GC, 3.50 MT @ 350 mm GC, 2.70 MT @ 450 mm GC, 2.20 MT @ 550 mm GC, 1.90 MT @ 650 mm GC, 1.60 MT @ 750 mm GC, 1.40 MT @ 850 mm GC, GC: Center of Gravity in mm ...more
22000 lb. Irizar #WP-10, welding positioner, for rent or sale, (2 available)
Category: Welding Positioners
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: WP-10
Load Capacity:, 10.0 MT @ 400 mm GC, 8.00 MT @ 500 mm GC, 6.60 MT @ 600 mm GC, 5.70 MT @ 700 mm GC, 5.00 MT @ 800 mm GC, 4.40 MT @ 900 mm GC, 4.00 MT @ 1000 mm GC, 3.30 MT @ 1200 mm GC, 2.80 MT @ 1400 mm GC, 2.50 MT @ 1600 mm GC, 2.20 MT @ 1800 mm GC, Eccentricity: 200 mm, Rotation speed: From 0.05 to 0.50 RPM, Tilt ...more
44000 lb. Irizar #WP-20, welding positioner, For Sale or Rent
Category: Welding Positioners
Seller: Irizar Heavy Industries Inc
Location: Edmonton, AB
Mfr: Irizar
Model: WP-20
Load Capacity:, 20.00 MT @ 600 mm GC, 17.10 MT @ 700 mm GC, 15.00 MT @ 800 mm GC, 13.30 MT @ 900 mm GC, 12.00 MT @ 1000 mm GC, 10.00 MT @ 1200 mm GC, 8.50 MT @ 1400 mm GC, 7.50 MT @ 1600 mm GC, 6.60 MT @ 1800 mm GC, Eccentricity: 200 mm, Rotation speed: From 0.05 to 0.50 RPM, Tilt speed: From 0.01 to 0.10 RPM, Table ...more
