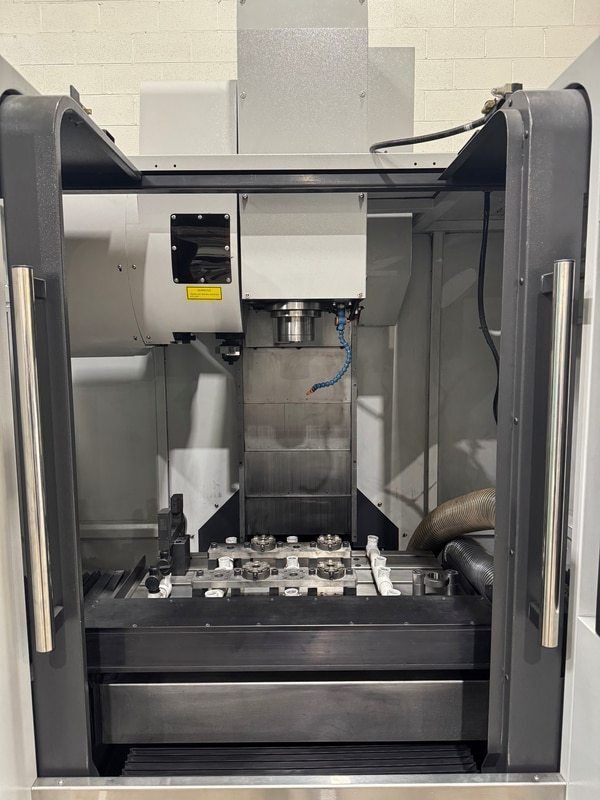

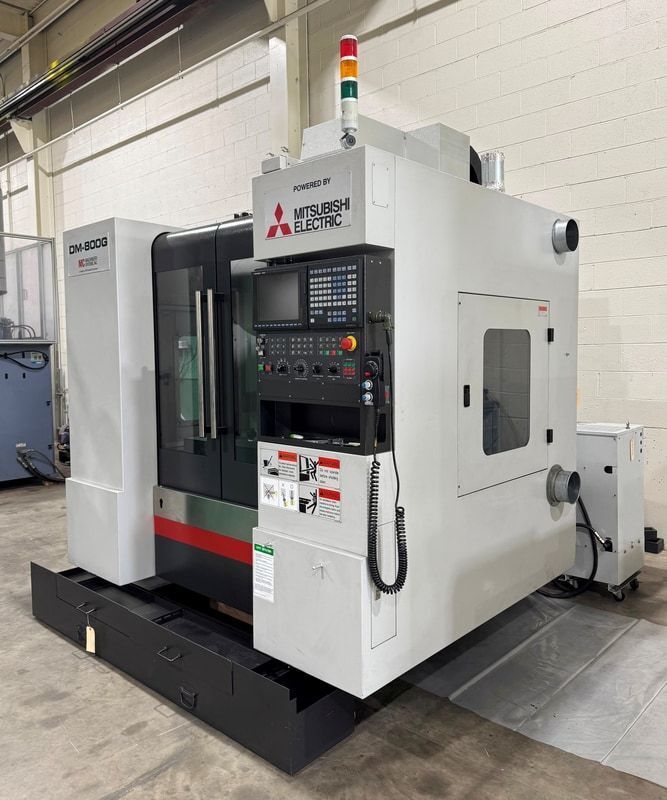

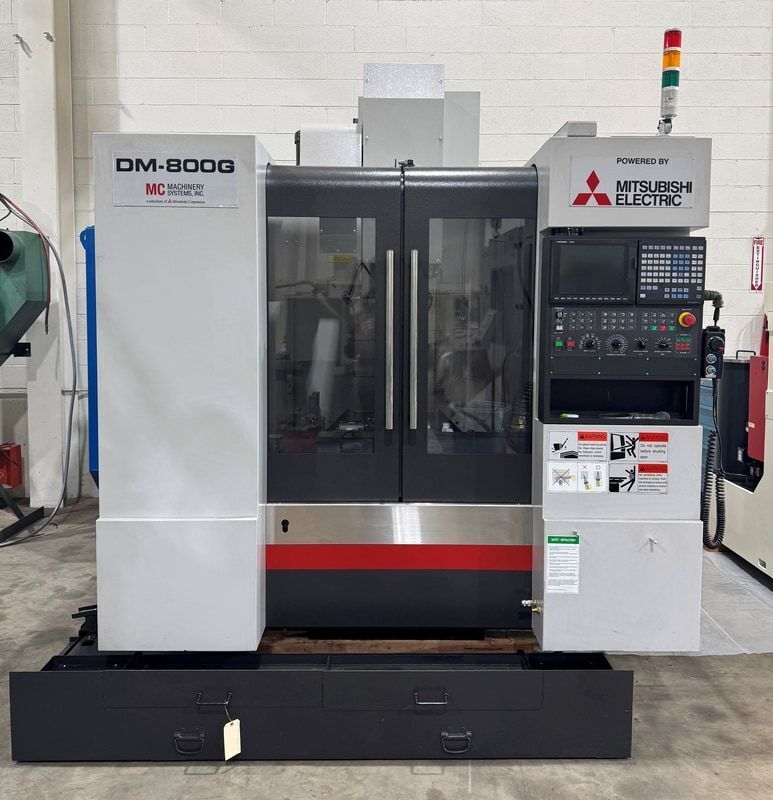

Litz Hitech Mitsubishi #DM-800G, 31.5" X, 19.7'Y, 21.3" Z, 24 automatic tool changer, 20000 RPM, Graphite machining package, 2015

Year Built - 2015
Serial No. 61MM00075
SPECIFICATIONS:
Travels:
- X-Axis............31.5"
- Y-Axis............19.7"
- Z-Axis….........21.3"
Spindle Speed….........20,000
Tool Weight - Maximum….........11 Lbs
Cutting feedrate….........0.04 – 787 in/min
Table:
- Size….........35.8 x 19.6
- Weight Cap….........1100 Lbs
- Table to Spindle Nose Distance….........5.9" - 27.2"
Spindle Motor….........10 HP

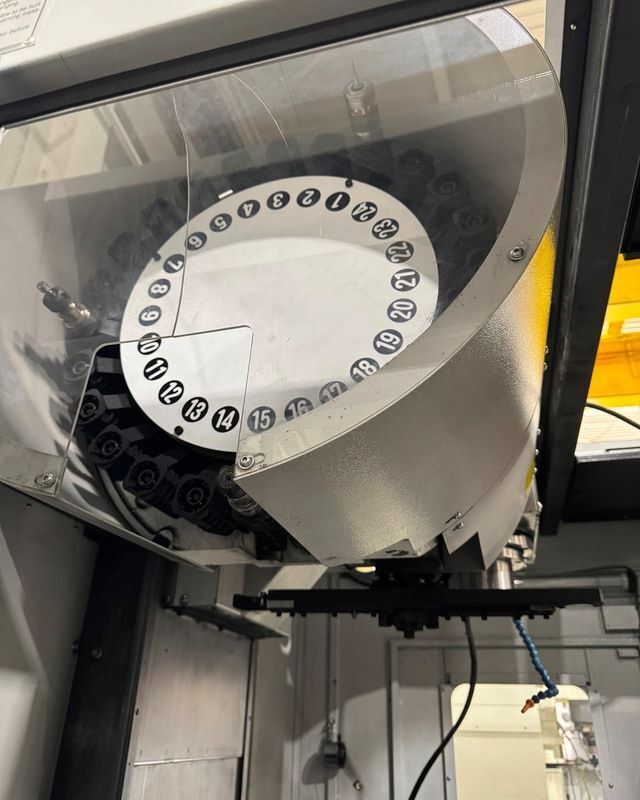

Arm Type ATC:
- Tool Count............24
- Tool Taper............HSK-E40
- Tool Diameter - Maximum............3.1" (full)
- Tool Diameter - Maximum….........3.9" (adjacent empty)
- Tool Length - Maximum............7.9"
- Tool Weight - Maximum............11 Lbs
Rapid Travers - XYZ….........1417 ipm
Coolant Tank Capacity….........77 gal.
Weight - Catalog….........11,700 Lbs
Dimensions - Catlog….........76.2"L x 82.6"W x 100.7"H
Electrics............220V/60Hz
Power Requirements KVA….........15
EQUIPPED WITH:

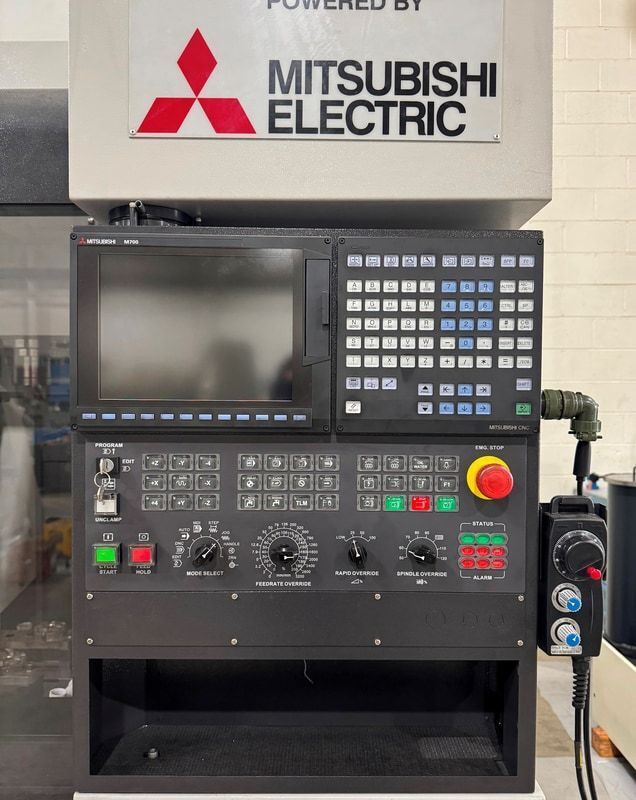

Mitsubishi M700 CNC Control w/Pendant

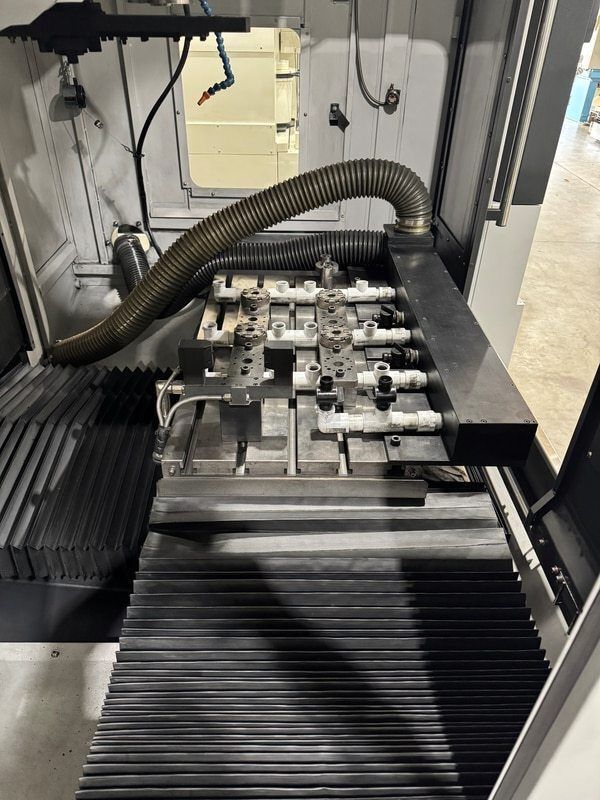

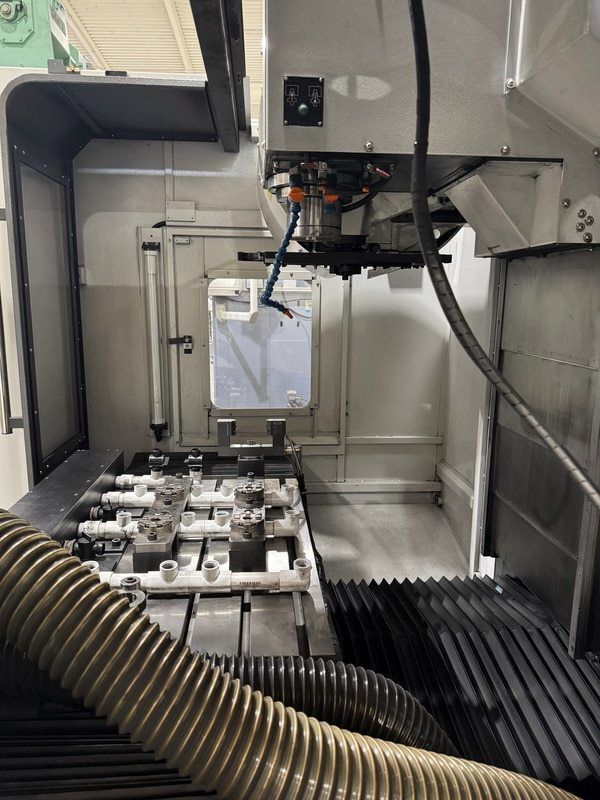

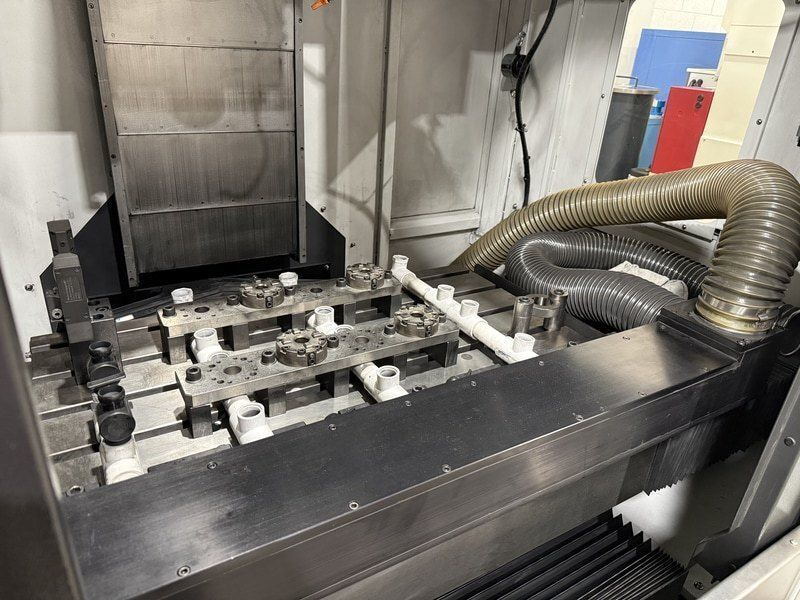

Factory Installed Graphite Machining Package
Blum Model TC52 Spindle Probe w/Blum IF59-2 Interface Module

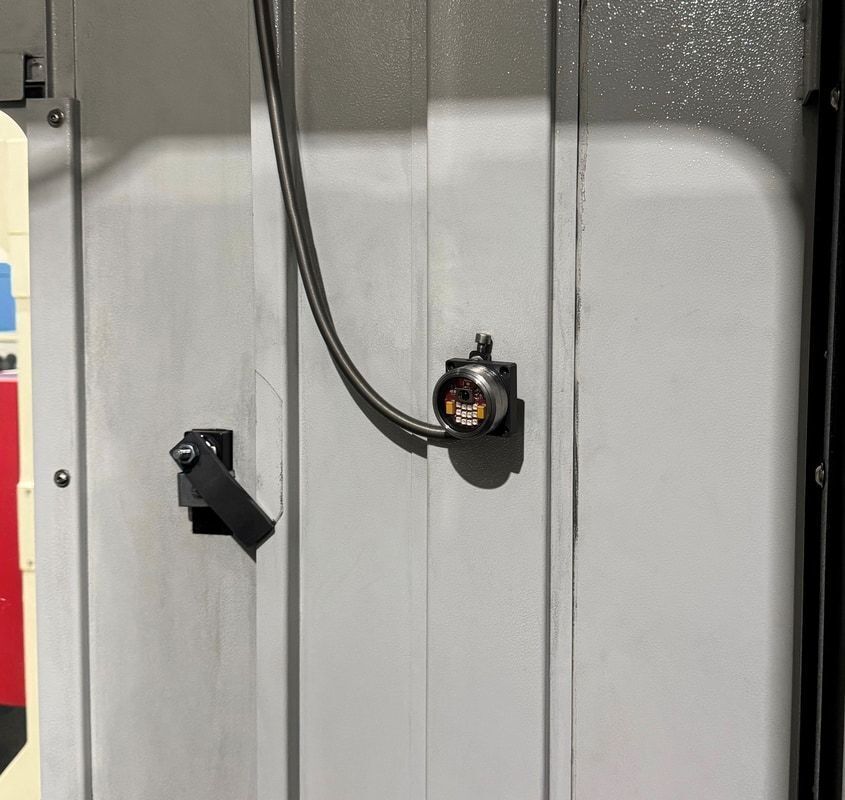

Blum Model IC56 Infrared Receiver w/Blum IF70-1 Interface Module
Donaldson Torit Model DFO2-2 Dust Collector
"Brand New & Never Used" Coolant Filtration System w/Disc Type Oil Separator
Habor Model HBO-400PTSB3 Oil Chiller (for Spindle)
Chip Auger w/Bucket
Air Blow Off Gun
Work Lights
*Preliminary Specifications, Pending Confirmation
