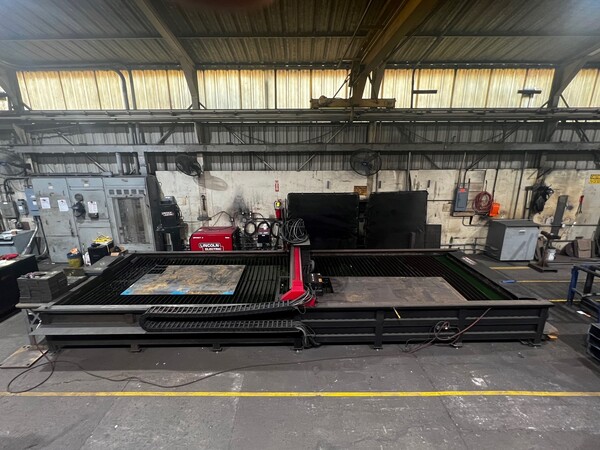

Lincoln Electric #Torchmate, plasma cutter, 6' x 22', Burny Phantom II controls, DXF, DWG direct import, 2019

Model Features
DXF, DWG Direct Import
Adjustable water height on water table
Low backlash 5:1 gearboxes
Standard Equipment
Water table, Gantry, and Arc Voltage Height Control
Full cable carrier system
Visual Machine Designer Touchscreen Interface
Construction

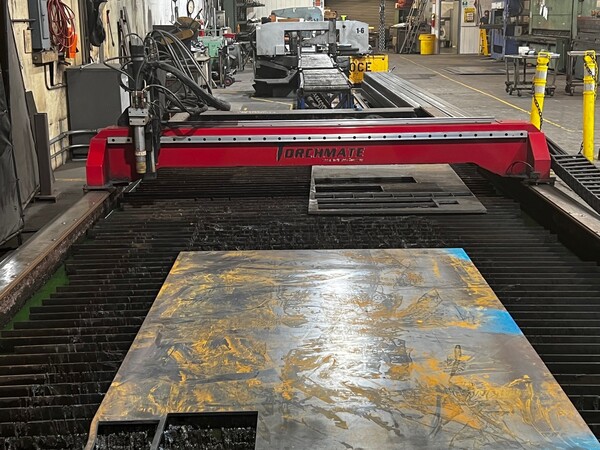

Steel fabricated gantry with dual y-axis drive
Precision x-axis linear guidethe ultimate in accuracy and durability
Precision ground y-axis guide rails to within .001 tolerances, 63 Micro finish, custom made in the USA
Electronics/Motion System
Two Y-axis 380 oz. in. stepper motors
One X-axis 380 oz. in stepper motor
8 amp micro stepping drives
Motion Controller
User Controls

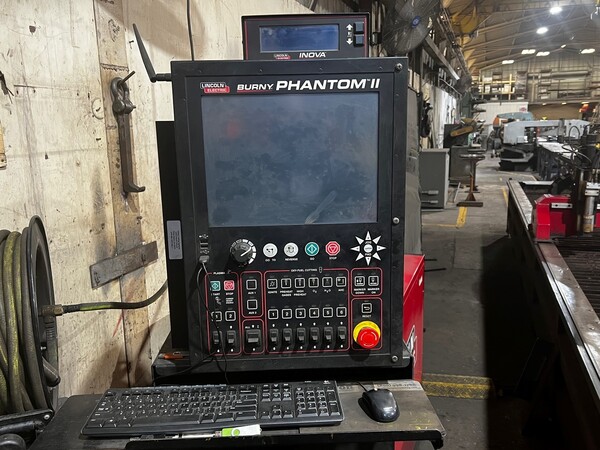

Burny PHANTOM II
Weight
Approximately 4,739 lbs for 6 x 22 system with no water
Input Power
Torchmate X machine requires 15 amp/ 110 volt AC service of 8amp/220v AC service
Input Air
8 SCFM @ 90 PSI, dry air filtered to minimum 5 micron
Cutting Area
6'x22'
Cutting Capacity
275 AMP
Drive System
Rack and pinion X/Y-Axis 5:1 Reduction
Ball Screw/Linear Stage Z-Axis
Traverse Speed
Up to 572 ipm
Cut Speed
Up to 572 ipm
Standard Software
SIGMANEST
