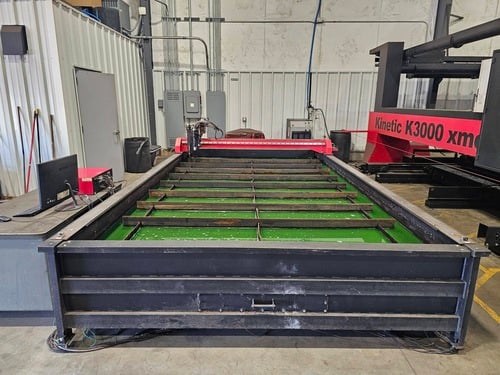

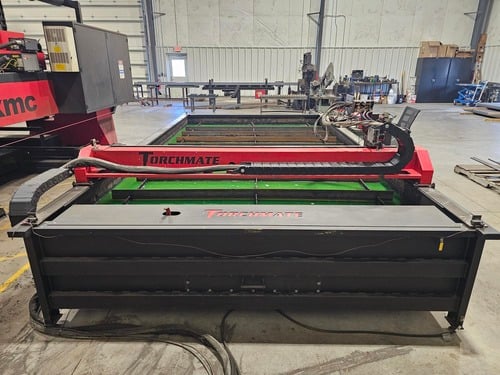

Lincoln #Torchmate, Plasma Table, 130A, 5' x 10' table, Hypertherm Hyspeed HSD130, Rebuilt In 2019, 2009

Table size: 5’x10′
Water Table
Rebuild Information:
– (2012) Upgraded it from servo motors to larger, more powerful stepper motors through Torchmate.

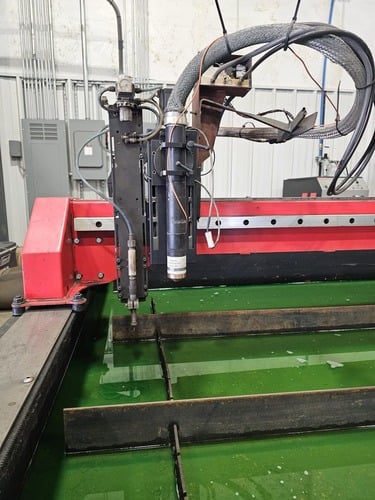

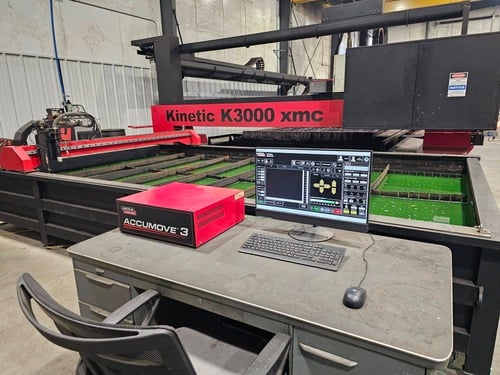

– (2018) Upgraded to the Accumove 3 w/ VMD, Lifter station & torch breakaway, larger motors (from 1/4″ shaft to 3/8” shaft) through Lincoln/Torchmate.
– (2019) rebuilt/replaced all spur gears, gear racks, precision rails, cables, cassettes, and upgraded the lifter station again to the newest version available.

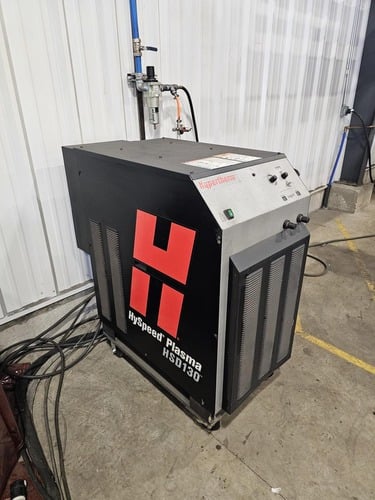

Hypertherm Hyspeed Specifications:
Output Current Range: 130 A
Duty Cycle: 100% at 40 °C (19.5 kW)
Open Circuit Voltage: 311 VDC
Dimensions: 42.25″ L × 22.5″ W × 44″ H
Weight: 631 lbs (286 kg)
Cutting Capacity:
– Mild Steel:
-Dross-Free: up to 5/8″ (16 mm)
-Pierce: up to 1″ (25 mm)
-Max Edge Start: up to 1.5″ (38 mm)
– Stainless Steel: up to 1″ (25 mm)
-Aluminum: up to 1″ (25 mm)
