Description
| KB 20 S | KB 32 SF | KB 20 SV | KB 32 SFV | |
|---|---|---|---|---|
| Working Area | ||||
| Drilling capacity | 0.79 in | 1.26 in | 0.79 in | 1.26 in |
| Tapping capacity (max.) | M 20 | M 24 | M 16 | M 24 |
| Table set up area | 10x10 in | 13x13 in | 10x10 in | 15x16 in |
| Spindle nose-to-table surface distance | 14 in | 32 in | 14 in | 32 in |
| Spindle nose-to-foot distance | 27 in | 49 in | 27 in | 49 in |
| Throat | 9 in | 10 in | 9 in | 10 in |
| Column diameter | 3 in | 4 in | 3 in | 4 in |
| Quill stroke | 5 in | 6 in | 5 in | 6 in |
| Headstock | ||||
| Speed range | (5) 320 - 1,820 rpm | (8) 320 - 1,820 rpm | 205 - 2,045 rpm | (2) 140 - 2,250 rpm |
| Spindle mount | MT 2 | MT 3 | MK2 | MK3 |
| Drive Capacity | ||||
| Motor rating main drive | 1.5 Hp | 2 Hp | 1.5 Hp | 2 Hp |
| Measures and Weights | ||||
| Overall dimensions (length x width x height) | 38x20x55 in | 40x24x83 in | 40x23x56 in | 36x24x75 in |
| Weight | 374 lbs | 759 lbs | 394 lbs | 682 lbs |
- Modern design, high-quality cast-iron, and excellent workmanship combined with superior rigidity, function and appearance
- Heavy, precision-ground work table with diagonal T-slots
- Very smooth height adjustment of drill table, even under high loads
- Large base plate with ground setup area and parallel T-slots
- Forward and reverse, plus automatic reversal of direction for thread cutting
- Spindle shank and spindle are hardened and ground
- Robust belt drive and quiet, powerful motor
- Integrated LED work lamp is standard
- Infinitely variable speed adjustment via potentiometer

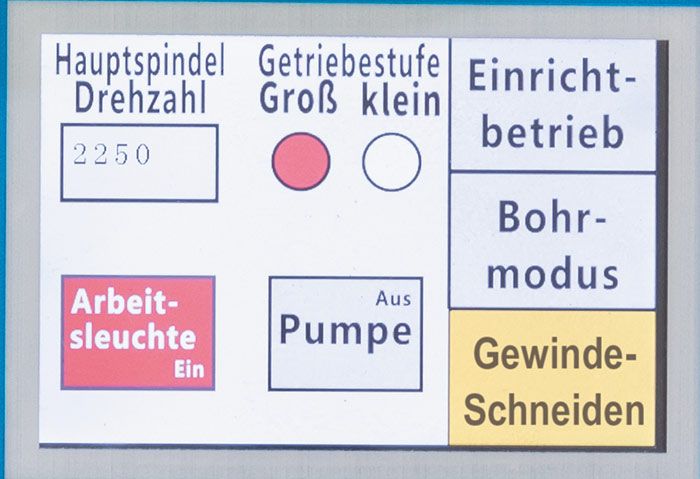

- Touchscreen with comfortable selection of functions, like drilling, thread-cutting, and setup operations
- The control unit allows querying of all limit switches and shows all functionalities, like coolant system, rpm and work lamp
- LED work lamp
- coolant system
- drill chuck
- tool-holder bits
- drill press vice
- tapping unit
- operating tools
- operator manual
