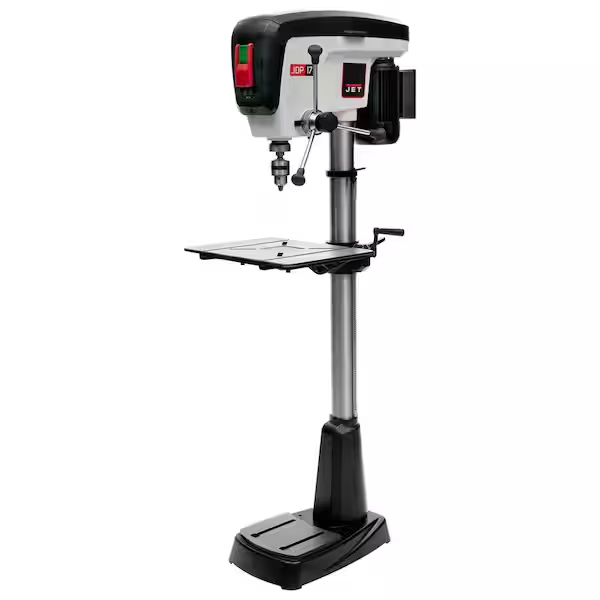

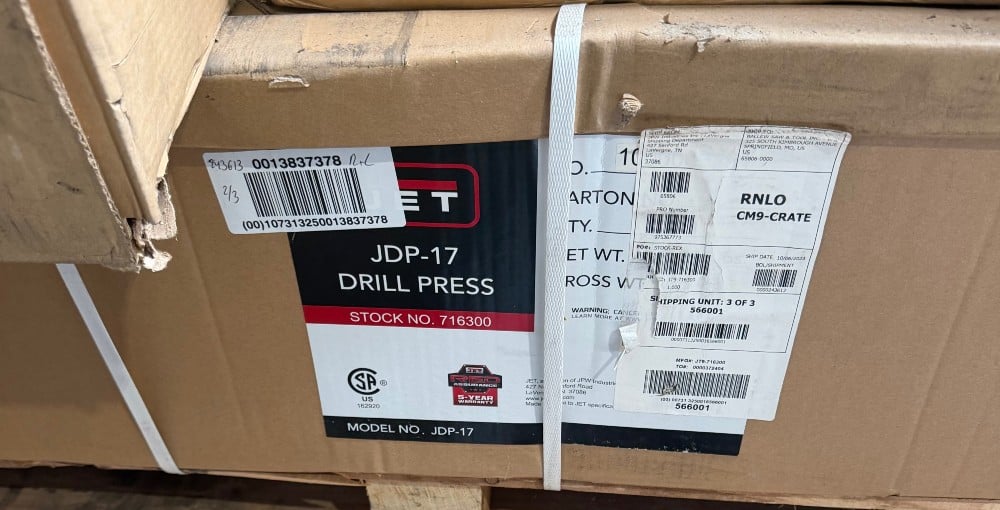

Jet #JDP-17, industrial smart drill press, digital depth system, New In Crate (NIC)/New Old Stock (NOS)

Shipping Available!

Specs:

• Swing (In.) – 16-7/8
• Spindle Travel (In.) – 5
• Style (Type) – Floorstanding Model
• Number of Spindle Speeds – 16
• Table Size (L x W) (In.) – 14 x 19
• Spindle Distance to Base (In.) – 46-1/2
• Spindle Distance to Table (Max.) (In.) – 30
• Chuck Distance to Base (In.) – 42-7/8
• Chuck Distance to Table (In.) – 25-7/8
• Chuck Size (In.) – 5/8
• Motor Power (HP)3/4
• Column Diameter (In.) – 3-5/32
• Recommended Circuit Size (Amps.) – 15

Features:

• CSA Certified
• Integrated depth stop makes repetitive drilling quick and easy
• Large 12-1/2″ x 17″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• Large cast iron base provides stability
• Long-lasting, built-in LED work light reduces shadows
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• Replaceable MDF table insert
• Spindle travels a full 3-1/8” with one revolution of the handle
• Table edge lip designed to make clamping easy
• Xacta-X laser system easily identifies the drill center
