Name: Knuth #BO, Large Capacity Drilling Machine
Brand: Knuth
Availability: InStock

Manufacturer: Knuth

Model: BO

Stock # 16183

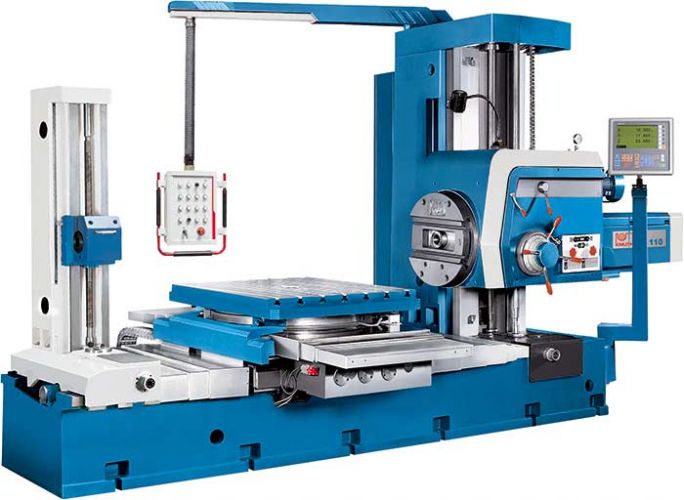

Knuth #BO, Large Capacity Drilling Machine - Image 1

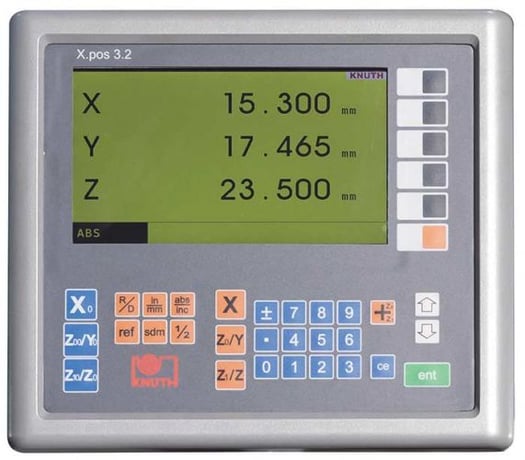

Knuth #BO, Large Capacity Drilling Machine - Image 2

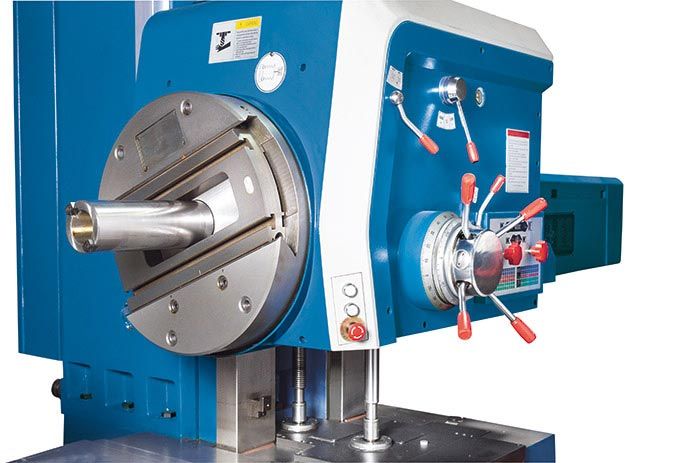

Knuth #BO, Large Capacity Drilling Machine - Image 3

1 / 3

For Sale by Blumberg Machinery Co

Surplus Record Dealer Since 1971

Location: Bannockburn, IL

Contact Jerry/ Ryan

Phone Number: 847...> Show Phone Number 847-580-6800

Let the seller know you found their listing on Surplus Record!

See all listings from this seller

Description

	BO 110	BO 130
Working Area
Drilling capacity	1.97 in	2.36 in
Table set up area	43x38 in	63x71 in
Table load capacity	5,500 lbs	22,000 lbs
Spindle axis-to-table surface distance	0 - 35.43 in	0 - 70.87 in
Rotation speed of rotary table	1 rpm	1.2 rpm
Travels
Travel X-axis	35.4 in	78.7 in
Travel Y-axis	35 in	71 in
Travel Z-axis	24 in	35 in
Travel W-axis	39 in	79 in
Facing slide travel	7 in	10 in
Headstock
Speed range	(22) 8 - 1,000 rpm	(24) 4 - 800 rpm
Spindle diameter	4 in	5 in
Spindle Torque (max.)	10,841 ft.lb.	27,754 ft.lb.
Spindle mount	Taper 50
Facing slide speed	(18) 4 - 200 rpm	(18) 2.5 - 125 rpm
Feed force, axial (max.)	12	31
Facing slide torque (max.)	17,346 ft.lb.	43,365 ft.lb.
Rapid Feed
Rapid Feed X-axis	98.43 in/min
Rapid Feed Y-axis	98.43 in/min
Rapid feed W-axis	98 in/min
Feed
Feed X-axis	(36) 0.00039 - 0.23622 in/R
Feed Y-axis	(36) 0 - 0.24 in/R
Feed Z-axis	(36) 0.00039 - 0.23622 in/R
Feed W-axis	(36) 0 - 0.24 in/R
Facing slide feed	(18) 0 - 0 in/min
Accuracies
Read-out accuracy (optic)	0.0004 in	0.0002 in
Counter-bore accuracy	H7 Ra-1.6 m	H7 Ra-1,6 m
Drive Capacity
Motor rating main drive	10.1 Hp	20.1 Hp
Motor rating, rapid reed	4 Hp
Motor rating hydraulic pump	0.5 Hp
Motor rating servo drive	7.4 Hp
Measures and Weights
Overall dimensions (length x width x height)	193x97x109 in	277x184x150 in
Weight	25,300 lbs	64,460 lbs

Rigid, hardened and precision-ground square guides ensure many years of accurate operation
Mechanical functions that may not be run simultaneously are provided with interlocks
Headstock and feed gears are equipped with an overload clutch
Lever-operated shift gears for positioning of the wheels in the desired position
Faceplate and drill spindle with different task-specific speed ranges according to the various functions
Table rotates 360
Telescoping steel cover protects the guides from chips and dirt
BO 110 incl. tailstock (optional on BO 130)

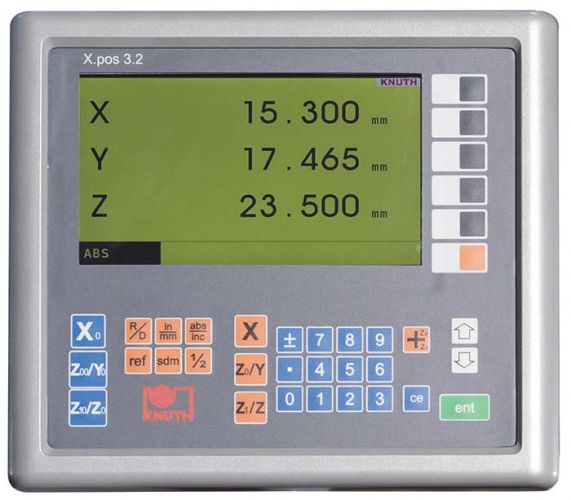

3-axis position indicator

More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation

3-axis position indicator
alignment wedges
central lubrication
work lamp
foundation bolts
operating tools
operator instructions
