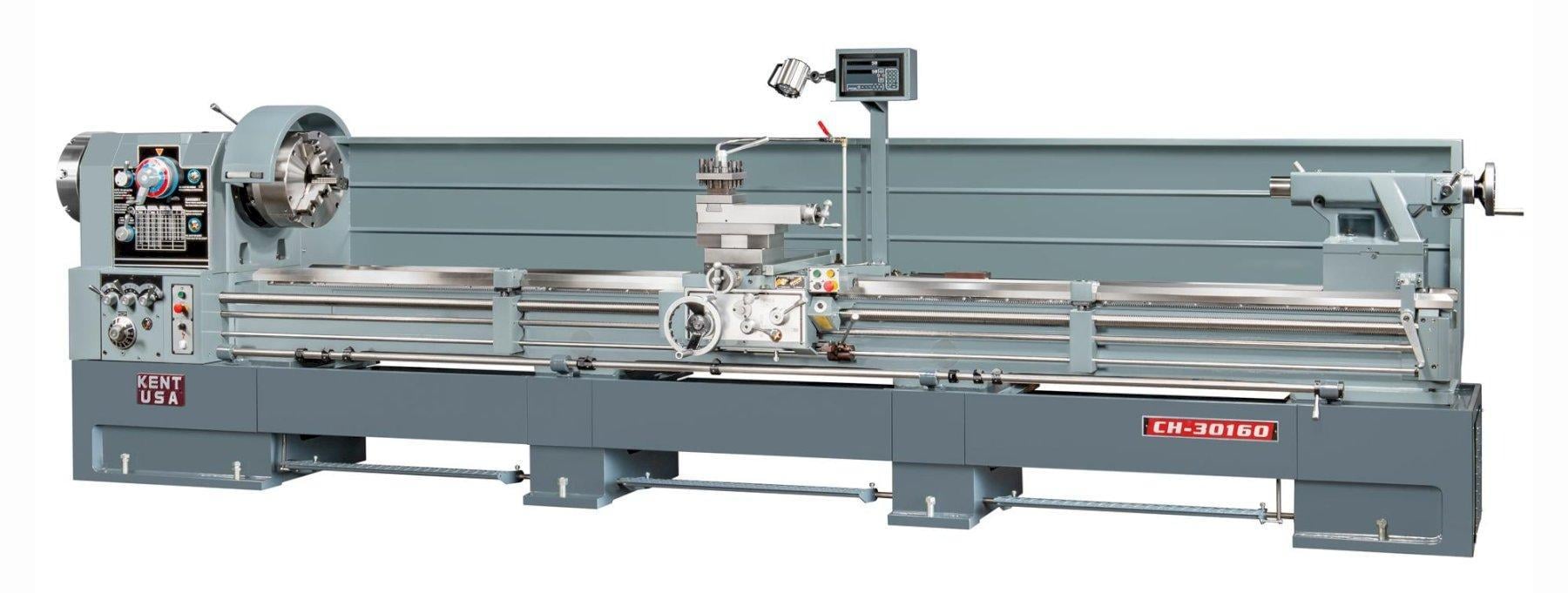

Description
Outstanding Features:
· 15 HP Spindle Motor, 12-Speeds
·
4.1” (104mm)Spindle Through Hole
· Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
· Spindle Jog Button Control
· One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
· Dual Inch/Metric Calibrated Tailstock
· Dual Inch/Metric Dials
PRICE INCLUDES:
3-jaw chuck (16”, made in Taiwan), Steady rest(10”, roller), follow rest(40-184mm), Thread chasing dial, 4 position tool post, Coolant system with full-length splash guard, 4 position carriage stop, 2 speed tailstock, Z-axis Rapid travel, Dead center x 2 pcs, LED worklight
Capacity | Swing over bed ways | 30” (760mm) |
Swing over cross slide | 21.4” (445mm) | |
Swing over gap | 39” (892mm) | |
Gap length (w/ face plate) | 10.63” (270mm) | |
Bed width | 15.75” (400mm) | |
Distance between centers | 90”/120”/160” (2300/3000/4000mm) | |
Headstock | Spindle hole | 4.1” (104mm) |
Spindle nose camlock | D1-11 | |
Spindle to sleeve taper | MT#7 | |
Spindle bore | 4.1”(104mm) | |
Spindle speed | 12 Steps, | |
Carriage | Cross slide travel | 15.75” (400mm) |
Top slide (compound) travel | 8.98” (228mm) | |
Feed Box | Thread capacity (inches) | 44, 2 - 72 TPI |
Thread capacity (metric) | 39, 0.2 - 14 MM | |
Leadscrew Diameter | 1.77”(45mm) | |
leadscrew pitch | 4 TPI | |
Longitudinal feeds | 0.0012 – 0.039 IPR | |
Cross feeds | 0.0004 – 0.0117 IPR | |
Tailstock | Quill diameter with tang | 3.15” (80mm) |
Quill travel | 10” (250mm) | |
Quill taper | MT#5 | |
Power | Main motor | 15 HP (Opt.:20HP) |
Coolant pump motor | 1/8 HP | |
Control circuit voltage | 115 V | |
Dimension | Shipping dimension (LxWxH) | 160”/187”/227”x45”x76” (4055/4755/5755x1150x1950mm) |
Weight | Net weight (approx) | 7,678/8195/9526 lbs (3490/3725/4330 Kgs) |
Gross weight (approx) | 1,178/8795/10,228 lbs |
* Please note: All pricing, features, and specifications are subject to change without prior notice. Pricing based FOB Tustin, California.
Power Requirement: 230 volts, 3-phase, 60 Hz, 50 Amp or
460 volts, 3-phase, 60 Hz, 25 Amp
