For Sale by Norman Machine Tool Ltd
Surplus Record Dealer Since 2025
Location: Baltimore, MD
Contact Mike Diblasi
Phone Number: 410...> Show Phone Number 410-210-4690
Let the seller know you found their listing on Surplus Record!
$2,150 USD
Description
Description

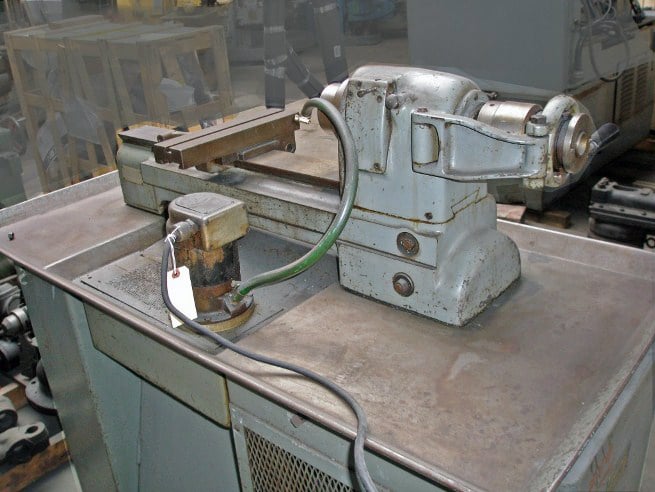

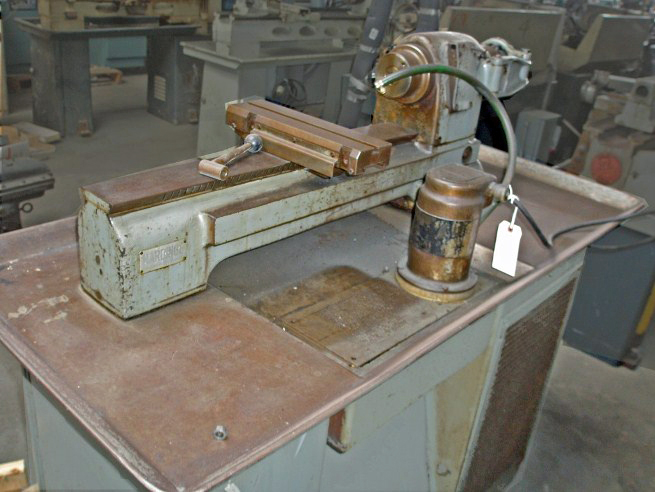

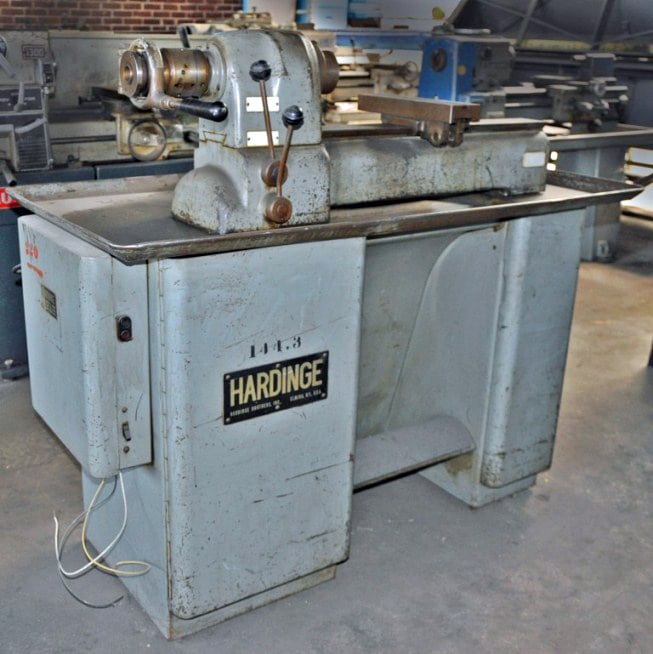

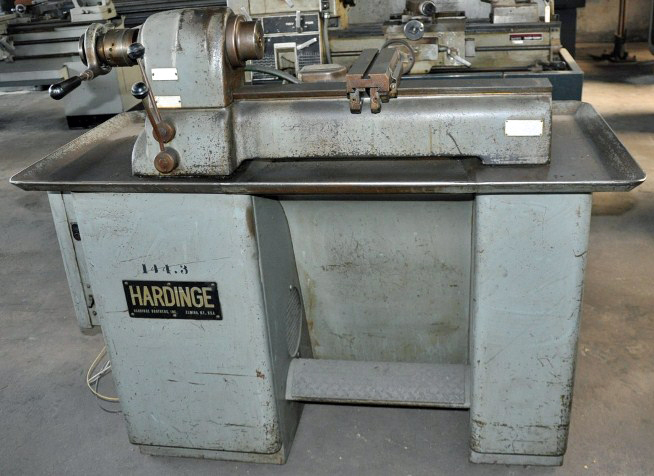

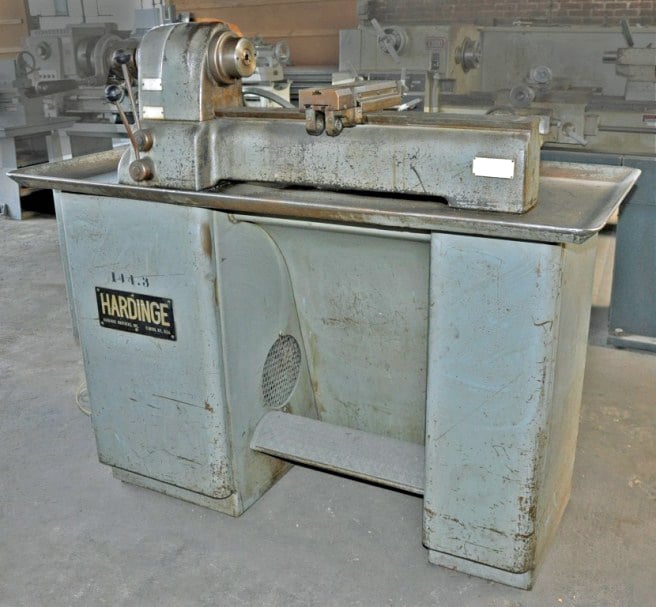

HARDINGE 36″ x 9″ VBS SECOND OPERATION LATHE
INVENTORY # 0784
MODEL: VBS
S/N: V59-3731-3
SPECIFICATIONS:
SPINDLE CAPACITY:
ROUND HARDINGE 21SC COLLETS: 63/64″
HEXAGON HARDINGE 21SC COLLETS: 27/32″
SQUARE HARDINGE 21SC COLLETS: 11/16″
STEP CHUCKS: 1 1/16″ – 6″
JAW CHUCKS: 5″
LENGTH OF BED: 36″
SWING OVER BED: 9″
TRAVEL OF TURRET SLIDE: 4″
SPINDLE SPEED RANGE:
230 TO 3,500 RPM (8) SPEEDS
TRAVEL OF DOUBLE TOOL CROSS SLIDE: 3 3/4″
MOTOR: 1 HP/ 3 PH / 220 V
APPROXIMATE WEIGHT: 1,000 LBS
EQUIPMENT INCLUDED:
DOVETAIL BED
DOUBLE TOOL CROSS SLIDE
LEVER OPERATED COLLET CLOSER
COOLANT SYSTEM
GOOD CONDITION
PRICE: $2,750.00
SALE PRICE: $2,150.00
FOB OUR BALTIMORE, MD WAREHOUSE
Inquire Further with Norman Machine Tool Ltd!
