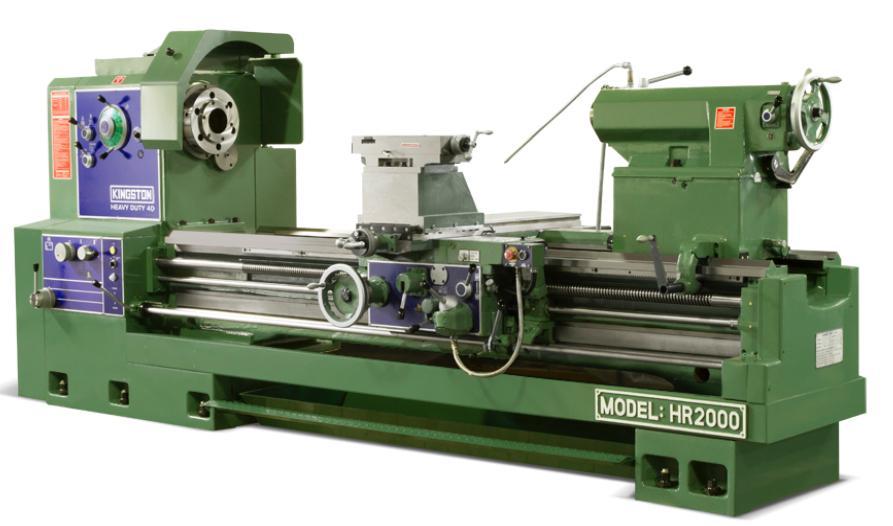

Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Swing Over Bed | 34 inches |
| Swing Over Cross Slide | 25.1 inches |
| Swing Over Gap | 45.6 inches |
| Distance Between Centers | 80 inches |
| Width of Bed | 22 inches |
| Height from floor to work center | 48.6 inches |
| Spindle Bore | 4.09 inches |
| Taper of Spindle Bore & Center | ASA #450 x M.T. #6 |
| Type of Spindle Nose | D1-11 |
| Number of Spindle Speeds | 16 |
| Spindle Speed | 8 800 RPM (12 1200 Optional) |
| Number of Feed Changes | Fine (20), Normal (40), Course (30) |
| Range of Feeds per Revolution | 0.0024-0.0337 |
| Longitudinal Cross | 1/2 of Longitudinal Feed |
| Leadscrew Diam. & Threads per Inch | 1.9 / 2 TPI |
| Threading range (Whitworth) | 2 to 28 TPI (40) / Coarse 5/8 to 8 Pitch (16) |
| Threading range (Metric) | 1 to 14 mm (31) / Coarse 16 to 200 mm Pitch (61) |
| Threading range (Module) | 0.5 to 7 M (20) / Coarse 8 to 56 M (30) |
| Threading range (D.P.) | 56 to 4 D.P. (40) / Coarse 3.5 to .5 D.P. (30) |
| Maximum Travel of Compound | 9.4 inches |
| Maximum Travel of Cross Slide | 21.2 inches |
| Tailstock Quill Travel | 11.8 inches |
| Tailstock Quill Diameter | 5.1 inches |
| Tailstock Center | M.T. #6 |
| Main Drive Motor | 20 HP (25 HP, 30 HP Optional) |
| Coolant Pump Motor | 1/4 HP |
| Floor Space | W: 82 1L: 193 |
| Weight | 10450 pounds |
Equipped With
Equipped With
STANDARD EQUIPMENT & ACCESSORIES:
• Main Motor: 20 HP, 230V / 460V, 3 Phase, 60 Cycle,
Switch and Wiring Complete
• 4.09” Spindle Bore
• Spindle Nose: D1-11 Camlock
• Headstock Spindle Adapter ASA#450 to MT#6
• Chuck Guard
• Set of Change Gears for Special Leads
• Hardened and Ground Bedways
• Tool Slide with T-Slot
• 4-Way Rapid Traverse
• Thread Chasing Dial
• Tailstock Safety Locking Chock
• 2-Speed Drive Tailstock Quill
• Coolant System with Pump and Piping
• Pull Drawer Chip (Coolant) Pan
• UL Electrical Components & Cables
• Tool Box with Necessary Wrenches & Spanners
• Instruction Manual and Parts List
OPTIONAL ACCESSORIES:
OPTIONAL ACCESSORIES:
11.9” Steady Rest with Roller Jaws (Min. Capacity 1.25”) $ 4,800
19.7” Steady Rest with Roller Jaws (Min. Capacity 11.1”) $ 5,850
23.5” Steady Rest with Roller Jaws (Min. Capacity 11.9”) $ 8,250
7.9” Follow Rest (Min. Capacity 0.75”) $ 3,400
Roller Bracket (34”: 15.75” – 27.5” / 40”: 20” – 33.5”) $ 9,350
25 HP Main Motor Upgrade [Factory Installation Only] $ 2,450
30 HP Main Motor Upgrade [Factory Installation Only] $ 3,550
Lower RPM Modification: 0.4 – 40 RPM [Factory Installation Only] $ 1,320
Higher RPM Modification: 12 – 1200 RPM [Factory Installation Only] $ 1,320
Telescopic Taper Attachment (Hardened & Ground) $ 7,500
Drilling Attachment $ 3,550
Micrometer Carriage Stop $ 940
Turret Carriage Stop $ 940
LED Work Light $ 325
Bison Super Precision Live Center MT#6 (8140 lbs, 0.0002 max runout) $ 950
Add Limit Switch to Chuck Guard $ 185
Add Limit Switch to Chuck Guard $ 185
Aloris DA Tool Post Only $ 1,600
Aloris DA Tool Post + 6 Holders (Set #5) $ 3,200
Aloris EA Tool Post Only $ 2,550
Aloris EA Tool Post + 6 Holders (Set #6) $ 5,050
Newall 2-Axis Digital Readout + Installation (Net):
HR-2000 $4,900 + $550 (includes freight)
HR-3000 $6,000 + $600
HR-4000 $7,500 + $700
HR-5000 $9,750 + $800
HR-6000 $10,500 + $900
HR-7000 $13,200 + $1,000
HR-8000 $13,950 + $1,100
HR-2000 $4,900 + $550 (includes freight)
HR-3000 $6,000 + $600
HR-4000 $7,500 + $700
HR-5000 $9,750 + $800
HR-6000 $10,500 + $900
HR-7000 $13,200 + $1,000
HR-8000 $13,950 + $1,100
Chip Conveyor Upon Request
Toolpost Guard $ 1,500
Full Length Splash Guard Upon Request
NRTL / UL Certification Net $ 6,500
WORKHOLDING:
WORKHOLDING:
Bison 20” 3-Jaw Forged Steel Scroll Chuck (D1-11, 7.48” hole, 2pc jaws) $ 15,400
Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11, 4.92” hole, 2pc jaws) $ 9,125
Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws) $ 4,950
Bison 25” 3-Jaw Forged Steel Scroll Chuck (D1-11, 7.48” hole, 2pc jaws) $ 20,750
Bison 25” 4-Jaw Forged Steel Independent Chuck (D1-11, 6.3” hole,2pc jaws) $ 12,350
26” Face Plate $ 2,500
Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11, 4.92” hole, 2pc jaws) $ 9,125
Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws) $ 4,950
Bison 25” 3-Jaw Forged Steel Scroll Chuck (D1-11, 7.48” hole, 2pc jaws) $ 20,750
Bison 25” 4-Jaw Forged Steel Independent Chuck (D1-11, 6.3” hole,2pc jaws) $ 12,350
26” Face Plate $ 2,500
30” Face Plate $ 3,000
Other Chucks [i.e. Bison, Toolmex, Pratt Burnerd] Upon Request
Get Your Price from Smith Machinery Co!
