Description

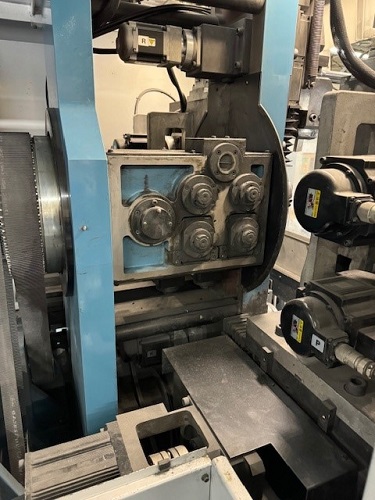

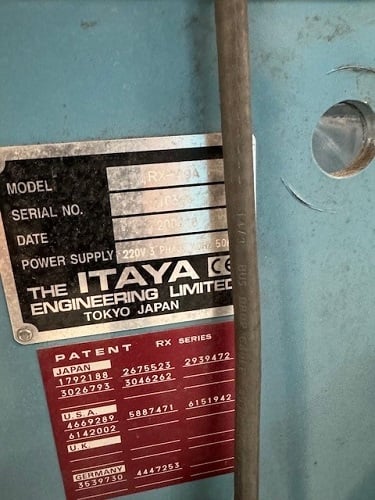

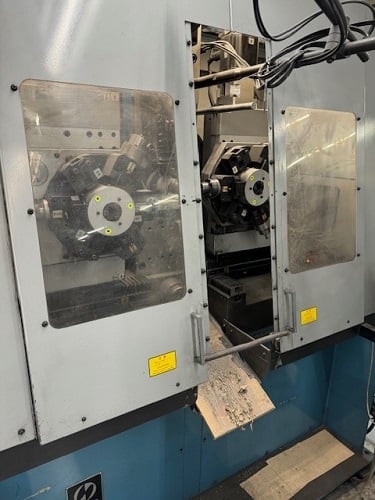

ITAYA #RX-40A CNC SPRING COILER
WIRE DIAMETER- 1.5 - 4.0 MM
WIRE FEED AXIS (F) - MIN 0.02 MM
ROTARY FEED AXIS (G) - 360 - 0.01 DEGREES
ROTARY WIRE GUIDE AXIS (R) - 360 - 0.01 DEGREES
CUT AND AUX. AXIS (J, K) - 360 - 0.01 DEGREES
SLIDE L/R AXIS (X, U) - 150 - 0.01 MM
SLIDE U/D AXIS (Y,V) - 40.00-0.01 MM
SLIDE F/B AXIS (Z, W)- 150 - 0.01MM
SPINNER AXIS (P,Q) - MIN .001 REV
TOOL CHANGER AXIS (S,T) - MIN .001 REV
NET WEIGHT 4100 KG
INCLUDES:

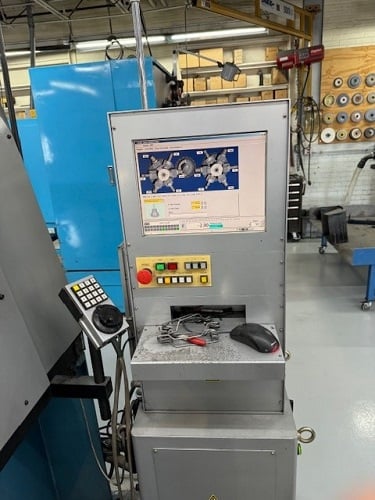

ITAYA SYSTEM 11 COMPUTER
LASER POSITION PROBE

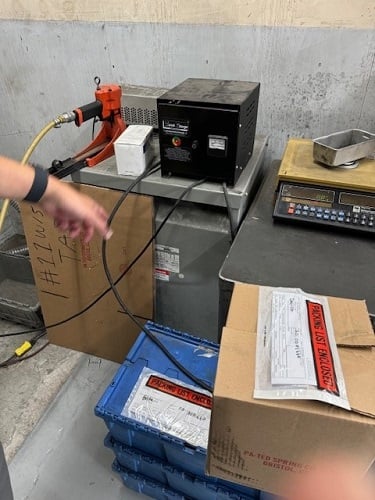

SCD STATIC CAPACITY SENSOR WITH SORTING CHUTE
