For Sale by Victory Machinery Exchange
Surplus Record Dealer Since 1957
Neal Hoffenberg
847-91...> Show Seller's Phone Number 847-918-9797 Let the seller know you found their listing on Surplus Record!
Description
Catalog Specs:

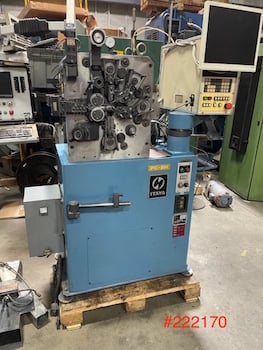

Forming Capacity: Wire Diameter: .004" - .031" (.1-.8 mm) Outside Diameter: .954" (25 mm) max. Feed Axis: Minimum Increment: .002" (.05 mm) Maximum Increment: 393.698" (9999.95 mm) Maximum Wire Speed: 4429.125"/min (112.5 ,m/min) Pitch Axis: Minimum Increment: .0004" (.01 mm) Maximum Rotation: 500 rpm Cut Axis: Maximum Rotation: 500 rpm Servo Motor: Feed Axis: 1.0 kw Pitch Axis: .80 kw Diameter Axis: .80 kw Cut Axis: .80 kw Peripheral Device: Input: 8 Ports Output: 8 Ports Power Source: AC 200V, 3 Phase, 10 Amp Floor Space: 44" (1139 mm) W x 28" (721 mm) D 61" (1556) H Installation Area: 65" (1652 mm) W x 32" (815 mm) D Weight: 1587 lbs. (720 kg) Computer Characteristics: Control Unit: 32 Bit Micro Processor Internal Memory: 600 Step (5 Year Lithium Battery Backup) External Memory: 3.5" Floppy Disk Display: 10" Color CRT Operating Temperature: 0-45° C
Equipped With:
Location: Lake Forest
Forming Capacity: Wire Diameter: .004" - .031" (.1-.8 mm) Outside Diameter: .954" (25 mm) max. Feed Axis: Minimum Increment: .002" (.05 mm) Maximum Increment: 393.698" (9999.95 mm) Maximum Wire Speed: 4429.125"/min (112.5 ,m/min) Pitch Axis: Minimum Increment: .0004" (.01 mm) Maximum Rotation: 500 rpm Cut Axis: Maximum Rotation: 500 rpm Servo Motor: Feed Axis: 1.0 kw Pitch Axis: .80 kw Diameter Axis: .80 kw Cut Axis: .80 kw Peripheral Device: Input: 8 Ports Output: 8 Ports Power Source: AC 200V, 3 Phase, 10 Amp Floor Space: 44" (1139 mm) W x 28" (721 mm) D 61" (1556) H Installation Area: 65" (1652 mm) W x 32" (815 mm) D Weight: 1587 lbs. (720 kg) Computer Characteristics: Control Unit: 32 Bit Micro Processor Internal Memory: 600 Step (5 Year Lithium Battery Backup) External Memory: 3.5" Floppy Disk Display: 10" Color CRT Operating Temperature: 0-45° C
Equipped With:
Location: Lake Forest
