For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
Description

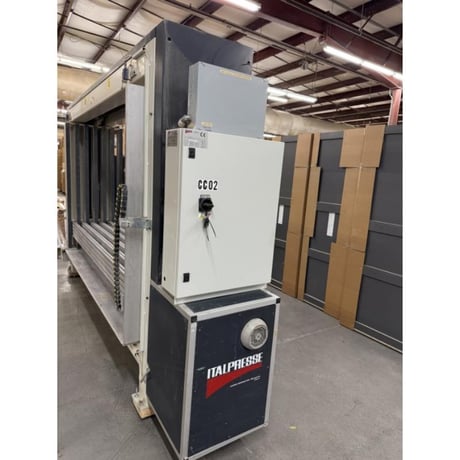

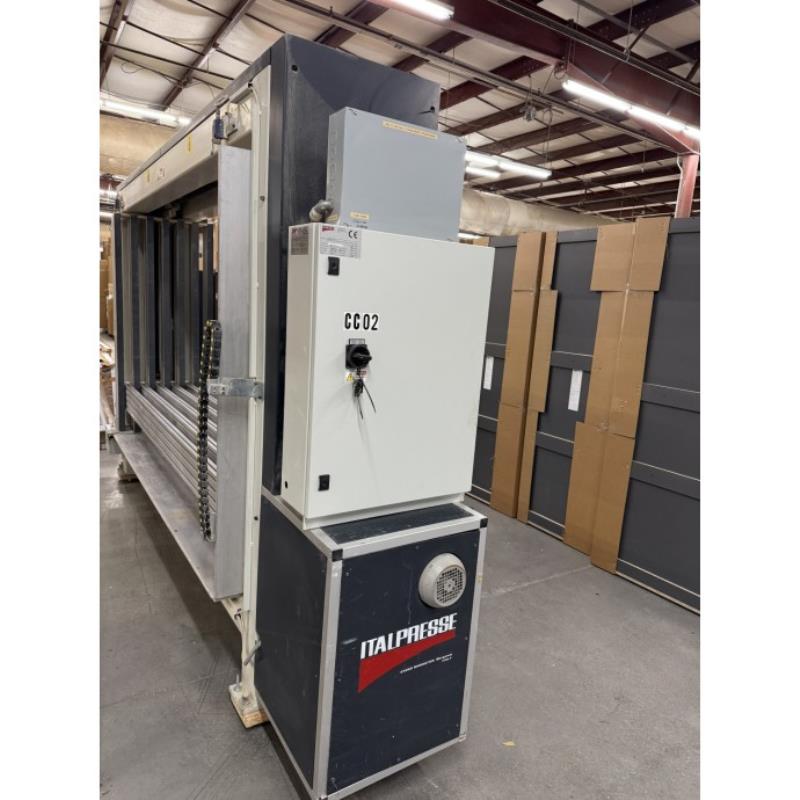

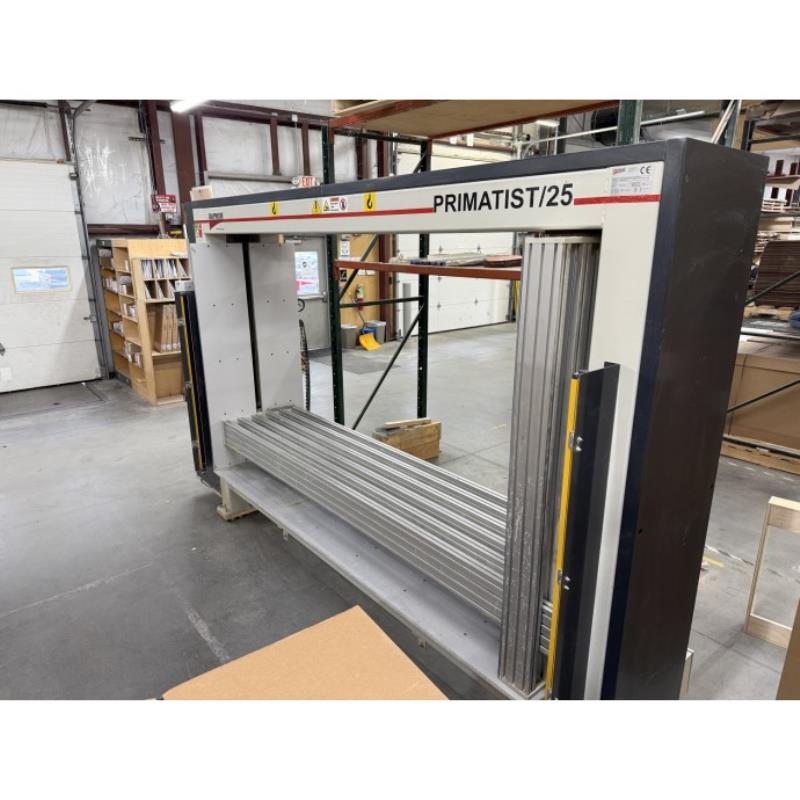

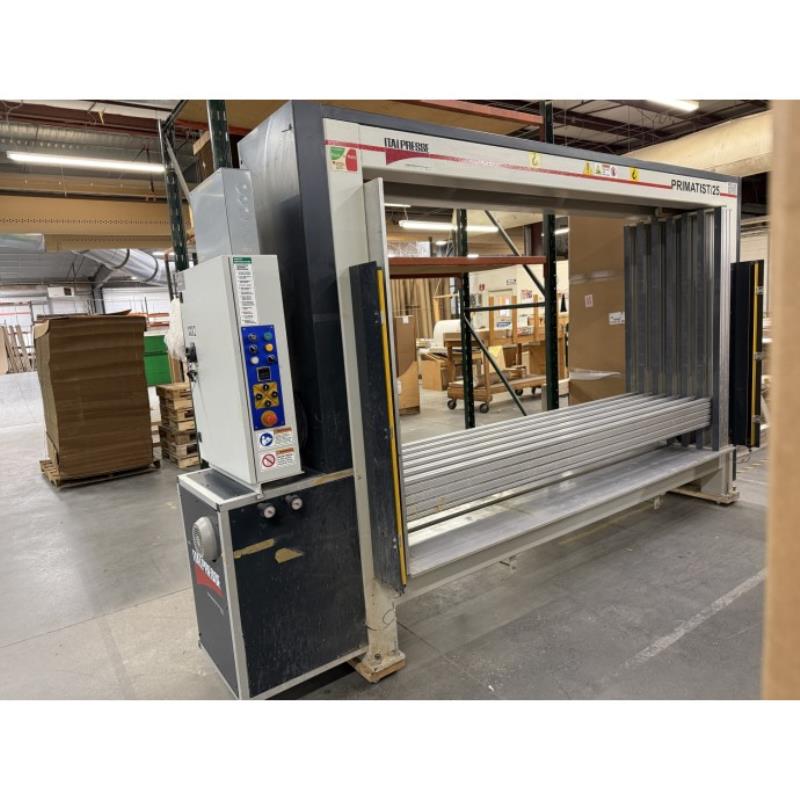

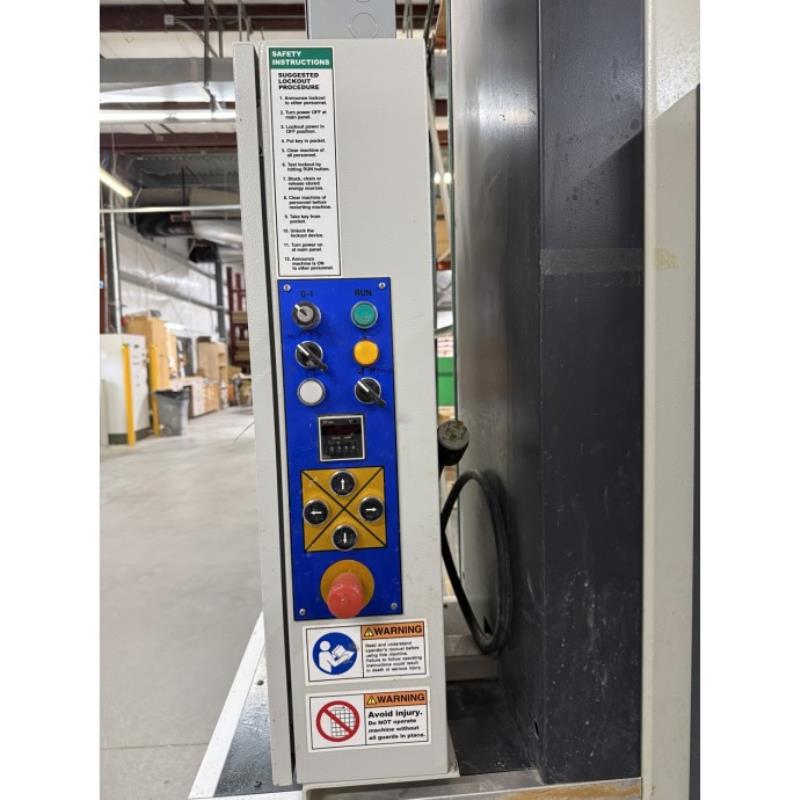

ITALPRESSE - Primatist 25-A: Case Clamp (Semi-Automatic) -- SpecificationsMax. clamping cap.: 98" (2,489 mm) Long x 27-1/2" (699 mm) wide x 51" (1,295 mm) high.Min. clamping cap.: 9.8" (250 mm) Long x 9.8" (250 mm) high min. clamping cap.; 15.7" (400 mm) working height off floor. -- Clamping SystemMotorized; PVC coated horizontal & vertical beams move simultaneously or individually at: 13 FPM (4 MPM); vertical & horizontal interlocking pressure walls; each with: Beams that move parallel & square to the Clamp frame's side wall.Max. pressure: 3,300 Lbs/Pressure beam; adjustable pressure sensor stops beam at preset pressure; timer opens clamp automatically. -- Operator InterfaceBuilt into: LH Side of Clamp frame; features a manual switch setting with: LED Readout for input of cabinet sizes; switches for 3-level pressure setting: 70% - 85% & 100%; cycle timer; function buttons; control lights. -- Actual Model: ITALPRESSE - Primatist 25-A
Get Your Price from Ex-Factory!
