Description

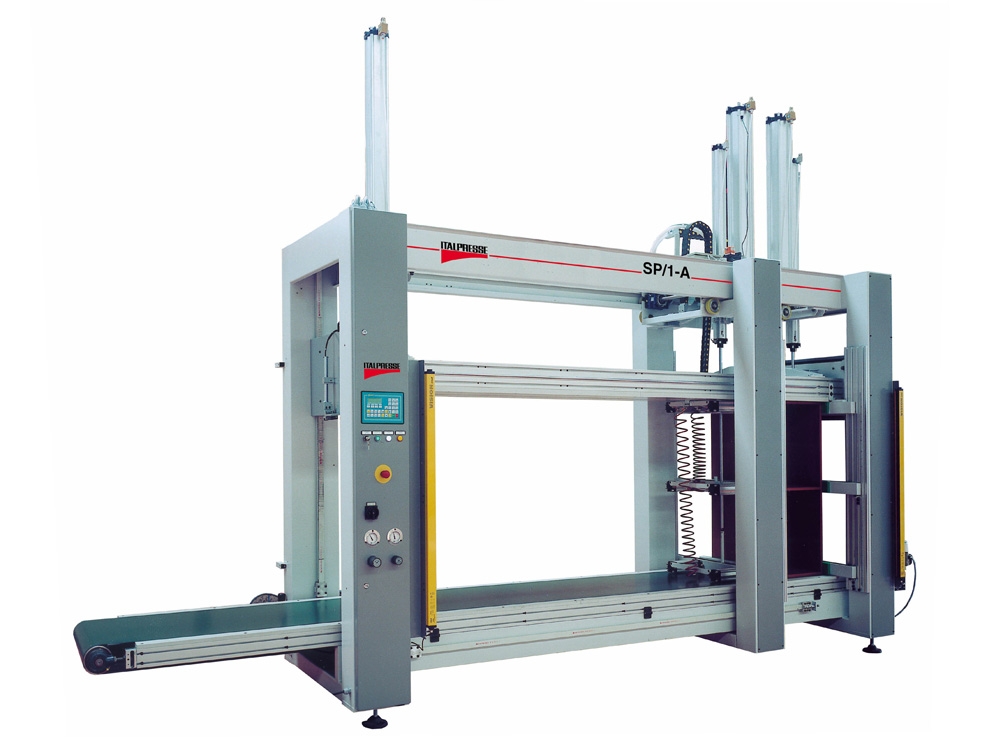

- Italpresse Model SP/1-A Automatic Through Feed Case Clamp
- Maximum working depth: .700 mm (27.6")
- Minimum working depth: 250 mm (9.8")
- Maximum working length: 2,500 mm (98")
- Minimum working length: 300 mm (11.8")
- Maximum working height: 1,220 mm (48")
- Minimum working height: 300 mm. (11.8")
- Maximum through-feed clearance: 750 mm (29.5")
- Air consumption @ 6 bar pressure: 100 liters/cycle (3.53 cu. ft./cycle)
- Total loading belt length: 5,500 mm (18')
- Loading belt drive power: 0.5 hp.
- Maximum loading belt speed: 30 m/min (92 fpm)
- Automatic loading and unloading of cabinet boxes by inverter controlled motorized conveyor belt
- Electronic reading of cabinet dimensions with full automatic adjustment of the vertical and horizontal clamping beams
- Pneumatic activated clamping action with adjustable control of the clamping speed and pressure
- Two torsion bars controlled by four heavy-duty toothed belts maintain the parallelism of the top platen during movement and clamping
- The side clamping bars at the out-feed end are installed on the fixed frame of the machine to assure perfect squaring of the cabinet during the clamping cycle
- Three operation modes - manual, semi-automatic (requires the operator to press a foot pedal to initiate loading / unloading after the automatic clamping cycle is complete), and automatic (automatic loading / unloading without input from the operator)
- Automatic cycle timer
- Adjustable pressure controls
- Safety light barrier on the front side and fixed safety screens on the rear side
- 480 volts / 3 phase / 60 hz
- UL approved electrical components
