Description

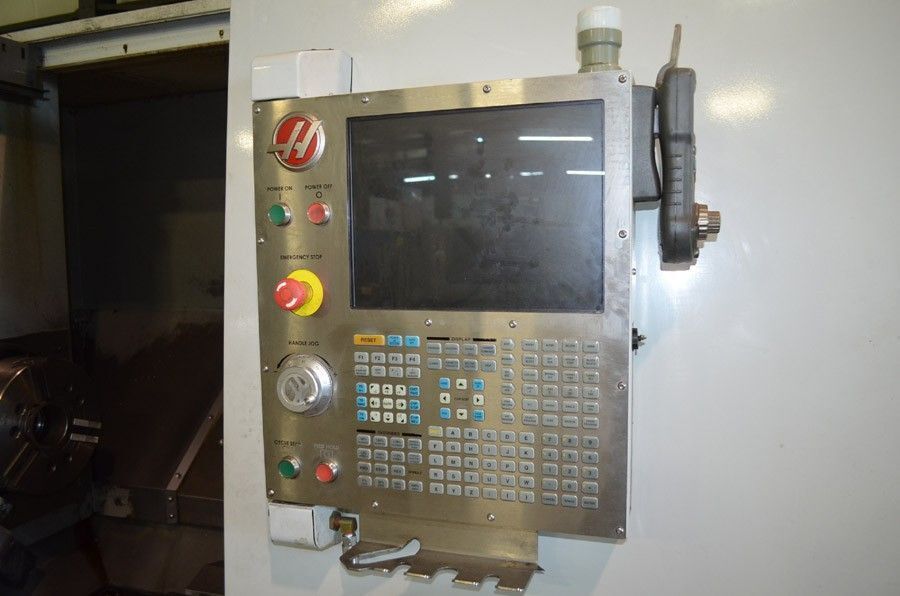

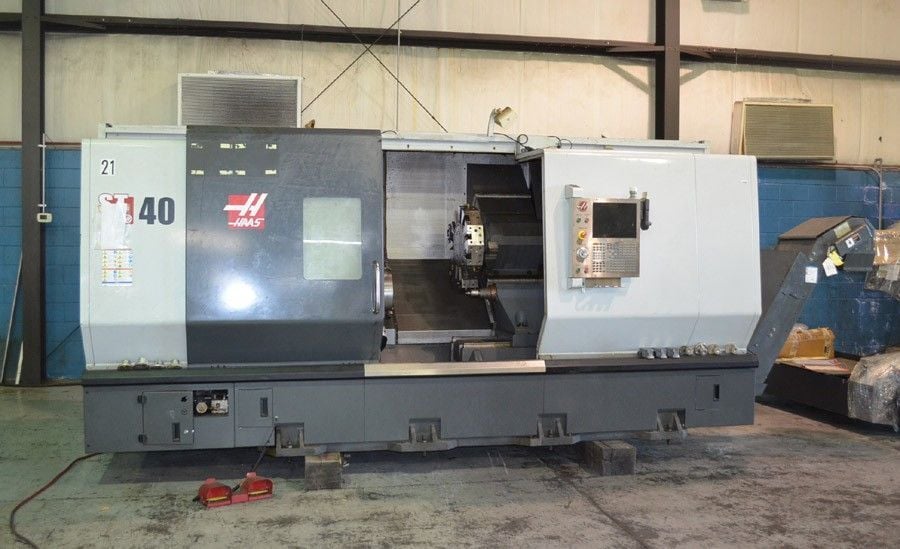

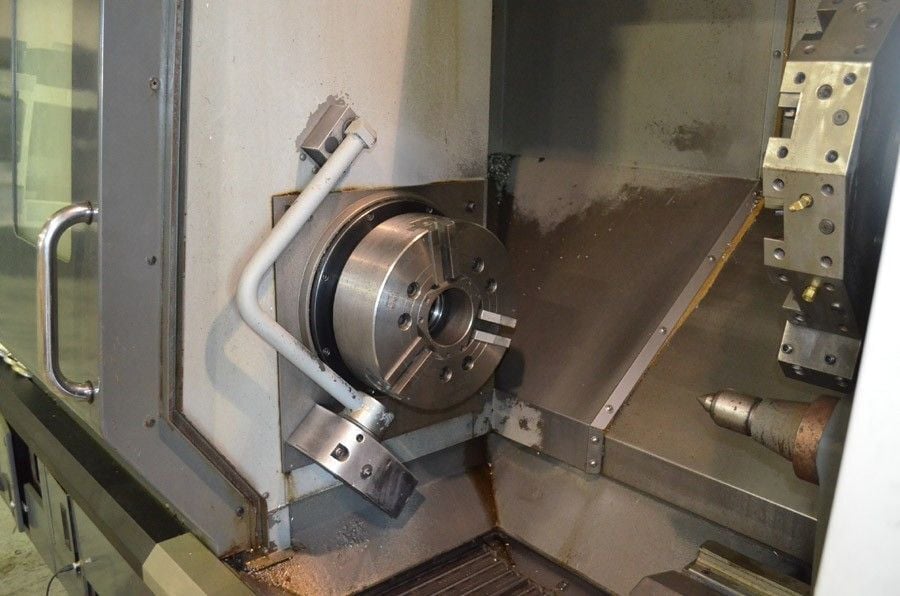

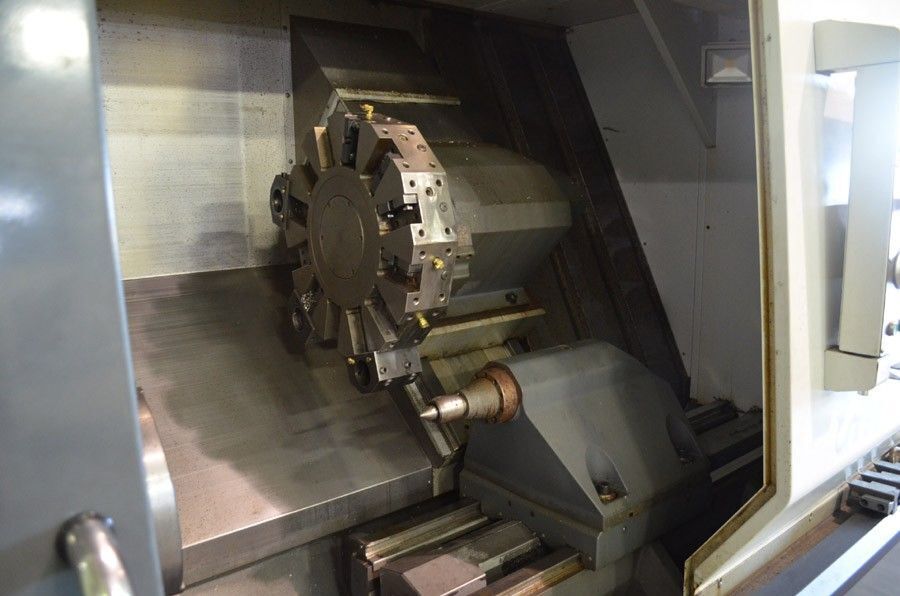

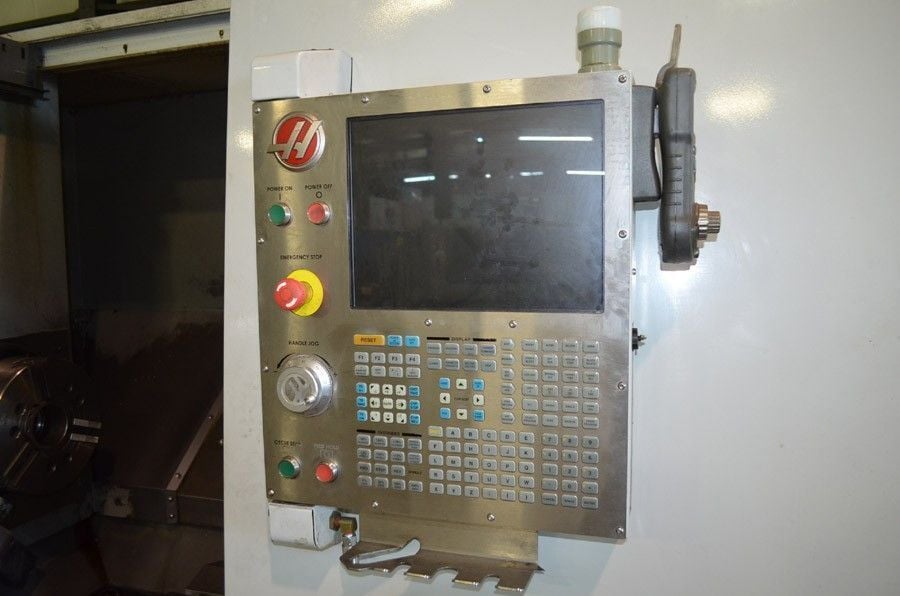

2014 HAAS ST-40 CNC Turning Center #8386 Specifications (subject to buyer verification): SWING DIAMETER Over Front Apron 34.5 " Over Cross Slide 25.5 " Over Tailstock 25.5 " CAPACITIES Max Cutting Diameter (varies with turret) 25.5 " Max Cutting Length (without workholding) 44 " Bar Capacity 4.0 " TRAVELS & FEEDRATES X Axis 17 " Z Axis 44 " Rapids on X 710 in/min Rapids on Z 710 in/min Max Thrust X 5500 lb Max Thrust Z 9000 lb SPINDLE Max Rating 55 hp Max Speed 2400 rpm Max Torque 2100 ft-lb @ 150 rpm Spindle Nose A2-8 Spindle Bore 4.62 " TURRET Number of Tools 12 Stations OD vs ID Tools Any Combination (will vary with turret style) Boring Bar Rear Clearance (from back of turret ) 4.37 " GENERAL Air Required 4 scfm, 100 psi Equipped With (subject to buyer verification): Haas CNC Control Kitagawa B-15 3-Jaw Hydraulic Chuck Programmable Servo MT5 Tailstock Rigid Tapping Tool Presetter Chip Conveyor Remote Jog Handle Extra Performance Option 55HP Spindle Drive 2 Speed Gear Box Bolt-On Style Turret Extended Tool Pocket up to 33 (ETP-40)
2013 HAAS ST-40 CNC Lathe for sale. s include a 34.5" swing, 1118.0 mm machining length, 15.0" chuck size, 4.0" bar capacity, and 40.0 HP power. Max RPM of 2400.0 and 25.5" turning diameter. Tailstock not included., Chuck Size: 15", Max Part Swing: 35", Max Cutting Diameter: 30", Max Cutting Length: 44", Bar Capacity: ...more
Used CNC Lathe: unused, zero cutting hours. s a 15" hydraulic chuck, 2-speed gearbox, 12-station BOT turret, Ethernet, HaasConnect, and high-intensity lighting., Swing Diameter Over Front Apron 34.5 in, Swing Diameter Over Cross Slide 25.5 in, Swing Diameter Over Tailstock 25.5 in, Chuck Size 15.0 in, Max Cutting ...more
35.5” X 44” CNC Lathe with Haas CNC Control, 15” 3 - Jaw Hydraulic Chuck, Toolsetter, 12 Position Turret and Chip Conveyor., Max Swing: 35.5”, Max Cutting Diameter: 30”, Max Cutting Length: 44”, X - Axis Travel: 20”, Z - Axis Travel: 44”, Chuck Size: 15”, Bar ...more
HAAS ST40 CNC CHUCKER Lathe, Chuck Size 15.0″, Max Part Swing 35.5″, Max Cutting Diameter (with BOT turret) 30.00″, Max Cutting Length (varies with workholding) 44.0″, Bar Capacity 4.00″, X Axis 20.00″, Z Axis 44.00″, Rapids on X 710 ipm, Rapids on Z 710 ipm, Spindle Nose ...more
