Gold Crown #GC-200, centerless grinder, 4.5" diameter work capacity, 24" x 10" x 12" grinding wheel, 30 HP, 1996

Goldcrown GC-250 Centerless Grinder, Non Twin Grip, 24" x 10" x 12" Grinding Wheel, 14" x 10" x 6" Reg Wheel

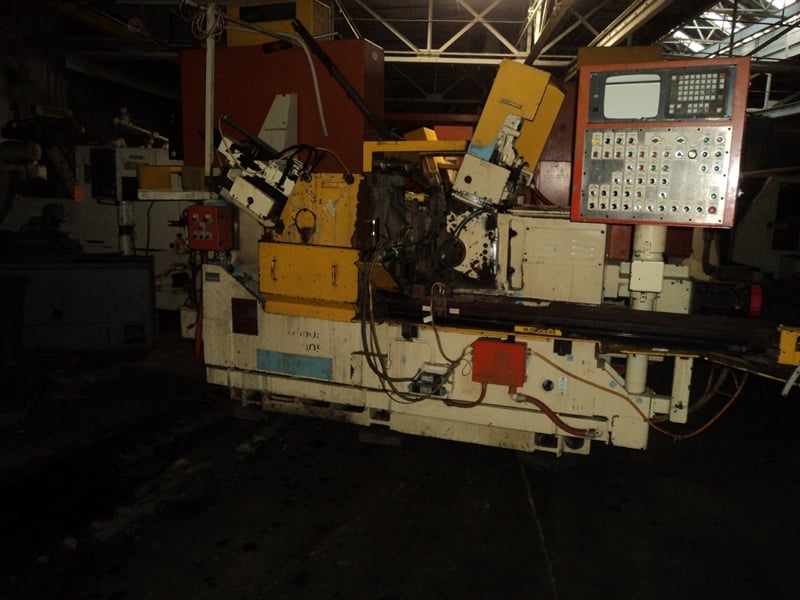

GOLD CROWN GC-250 CENTERLESS GRINDER
S/N GC25095-01 Year: 1996
STANDARD SPECIFICATIONS
Grinding wheel size……………………………………… 24” x 10” x 12”
Regulating wheel size……………………………………. 14” x 10” x 6”
Work O.D. range…………………………………………. 1/16” to 4 1/2
Grinding wheel drive……………………………………... 30 HP AC Motor
Spindle lubrication pump…………………………………. 1 HP AC Motor
Regulating wheel drive……………………………………. 187 in. lb AC Motor
Machine weight……………………………………………. 18,000 lbs.
AB Servo dual slide in feed.
Fanuc O-M Controls.
Wheel diameter…………………………………………… 24”
Wheel width………………………………………………. 10”
Fanuc Servo Dual slide in feed lower (x axis) and upper (u axis).
Trabon lubrication.
Fanuc Servo motor regulating wheel transmission.
External hydraulic tank.
Coolant pump back unit.
Grinding wheel dresser Fanuc 2 Axis.
Regulating wheel dresser hand diamond advance with DC right angle drive for traverse.
Attached electrical.
Specifications are deemed accurate, however, subject to verification or prior sale.
