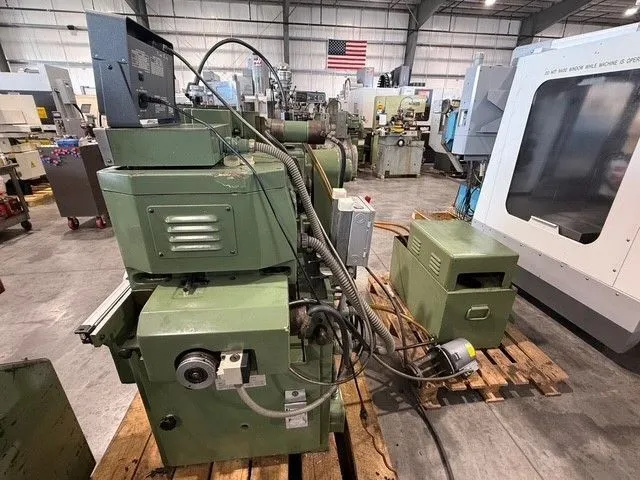

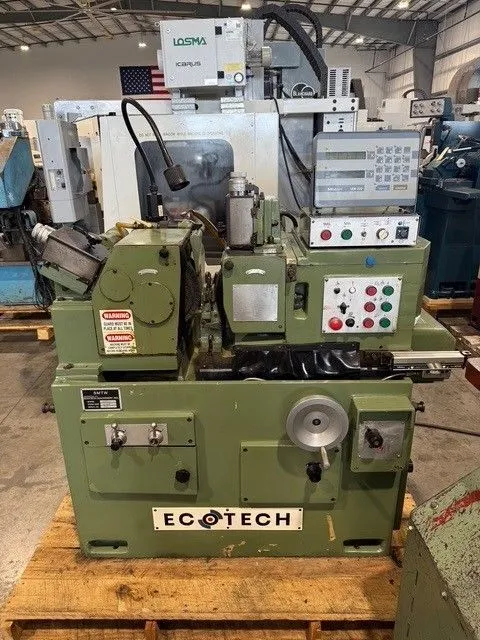

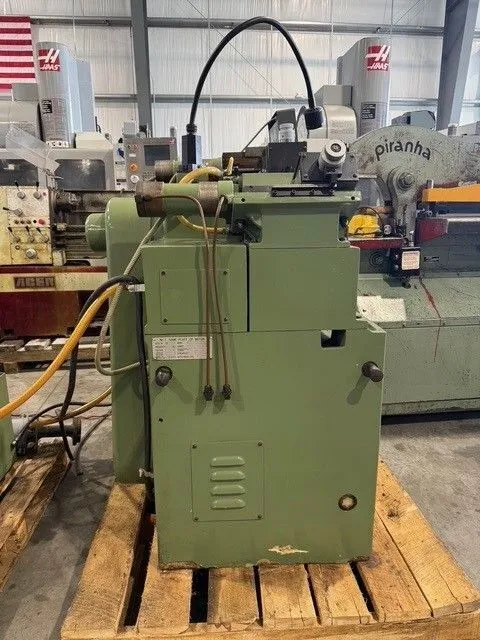

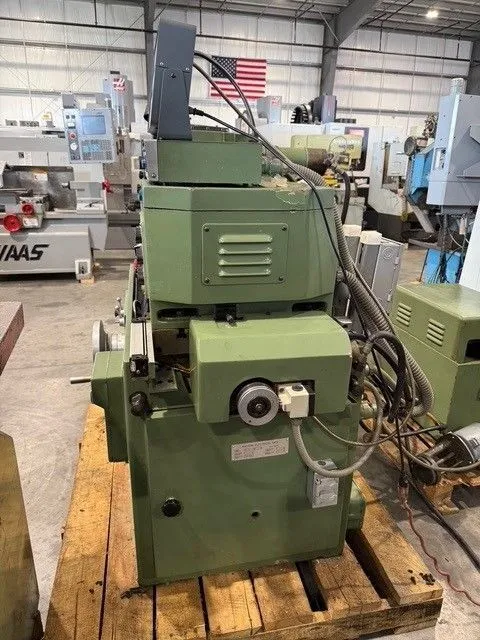

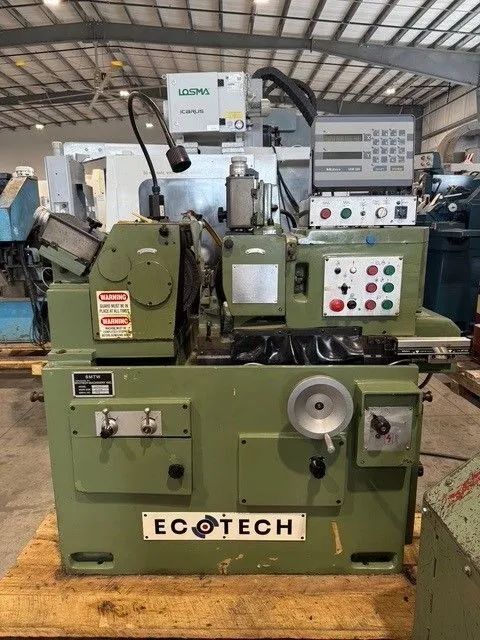

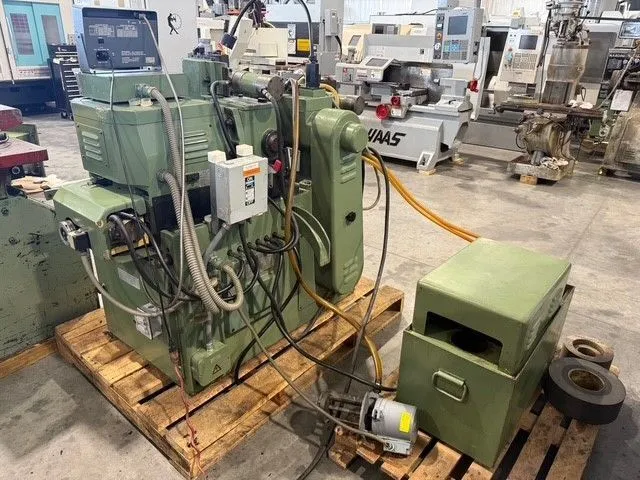

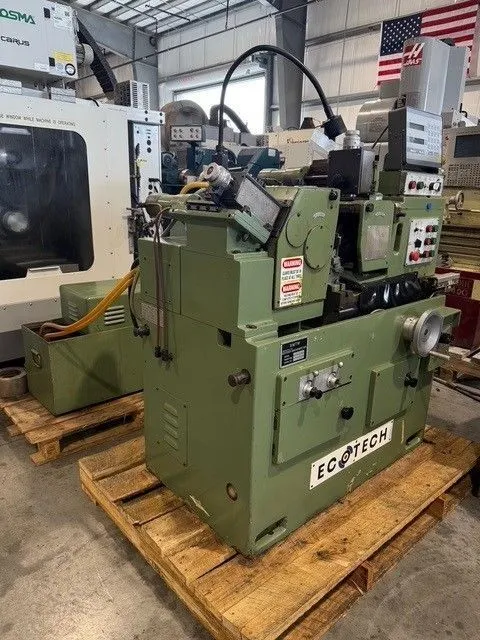

SMTW ECOTECH M1020 Centerless Grinder #7123 Stock # 7123 Model # M1020 Serial # 760 Minimum grinding diameter- 0.02” Maximum grinding diameter- .80” Max plunge grinding length with standard steady rest- 3.15” Grinding wheel- 12” x 4” x 5” Grinding wheel speed- 2,100 R.P.M. Surface speed- 6,600 S.F.M. Regulating wheel- 8” x 4” x 3” Regulating wheel speed- 20 – 210 R.P.M. Hand wheel infeed per division- 0.0001” Hand wheel infeed per revolution- 0.012” Max travel of regulating wheel- 3.00” Adjustment angle on vertical plane- -2° - +4° Adjustment angle on horizontal plane- -1°- +3° Wheel dresser diamond infeed resolution- 0.0004” Wheel dressing speed range- 20 – 60 I.P.M.

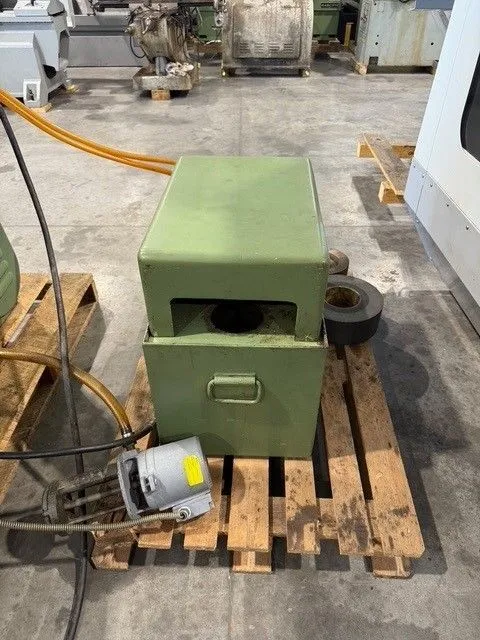

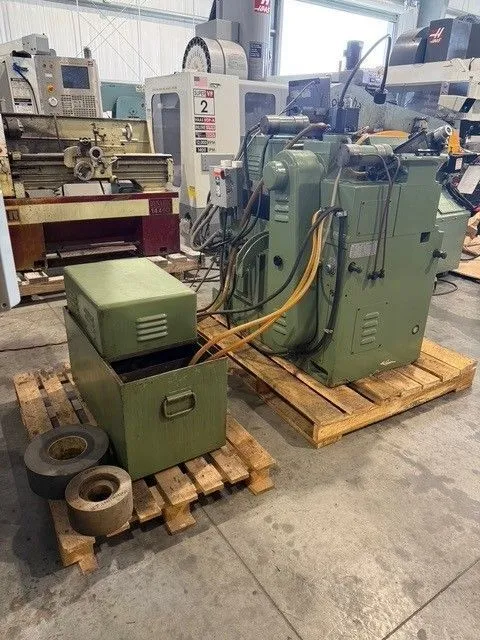

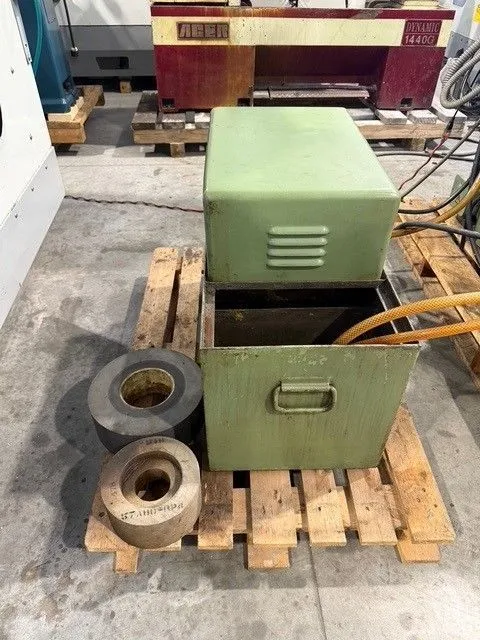

Equipped With Mitutoyo DRO Single axis Coolant tank & Pump 1 H.P. Regulating wheel 5.4 H.P. Main spindle motor Machine is wired for 230 volt / 3 phase / 60 H.Z. Machine weight- 4,500 Lbs. Machine dimensions- 70” x 50” x 60” H Machine location- F.O.B. Sarasota, Florida
*All are approximations and are subject to verification, The GT 610M is designed to grind spool valves, bar stock, pins, bushings, metals, hard and green ceramics, polymers, and engineered materials, all within a smaller footprint than comparable systems. It s independent upper and lower slides and a blade height ramp ...more
