Description

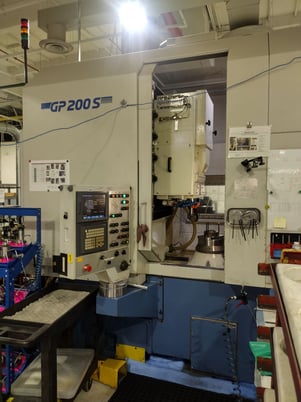

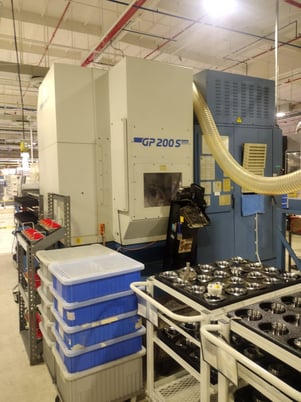

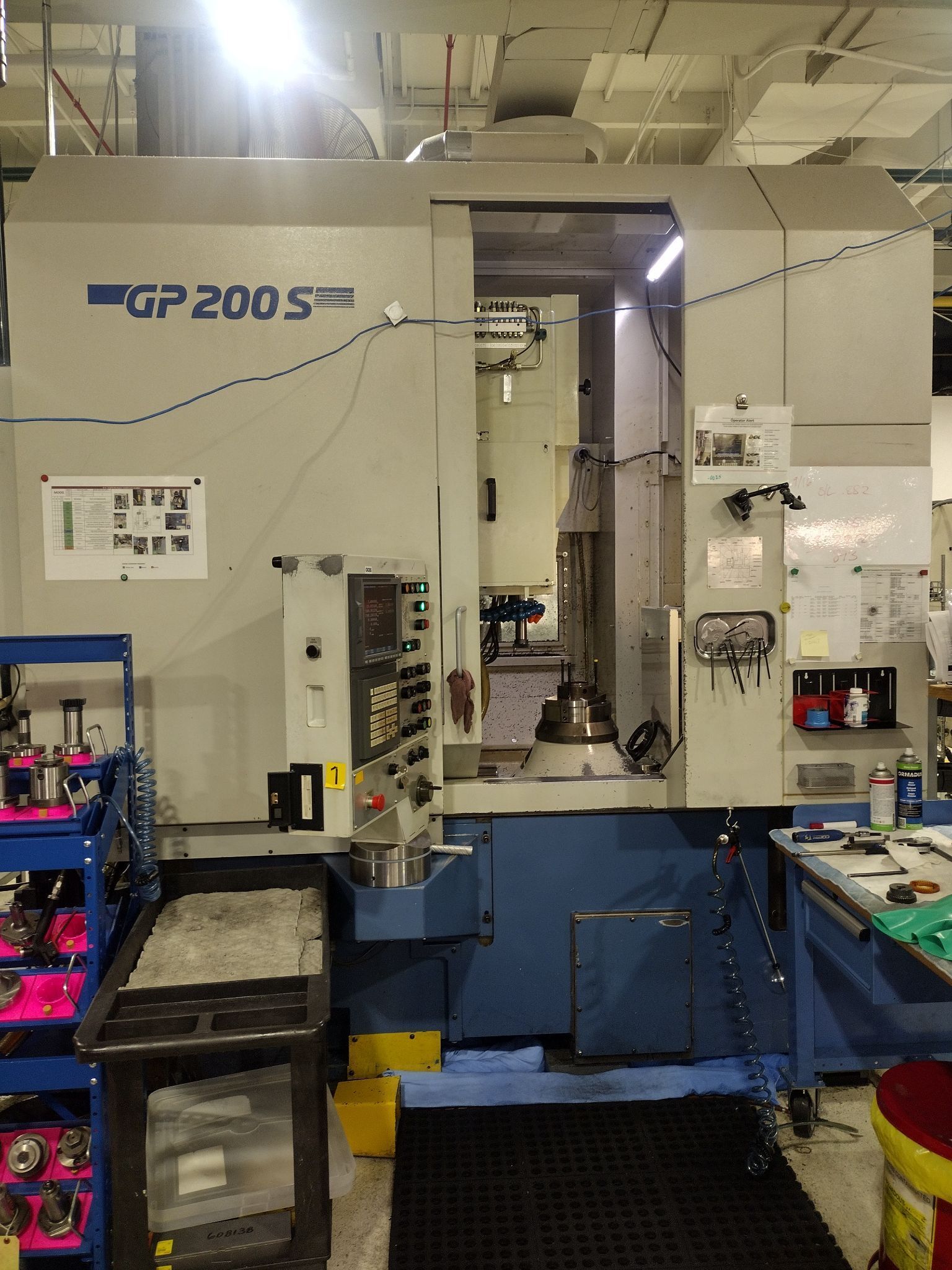

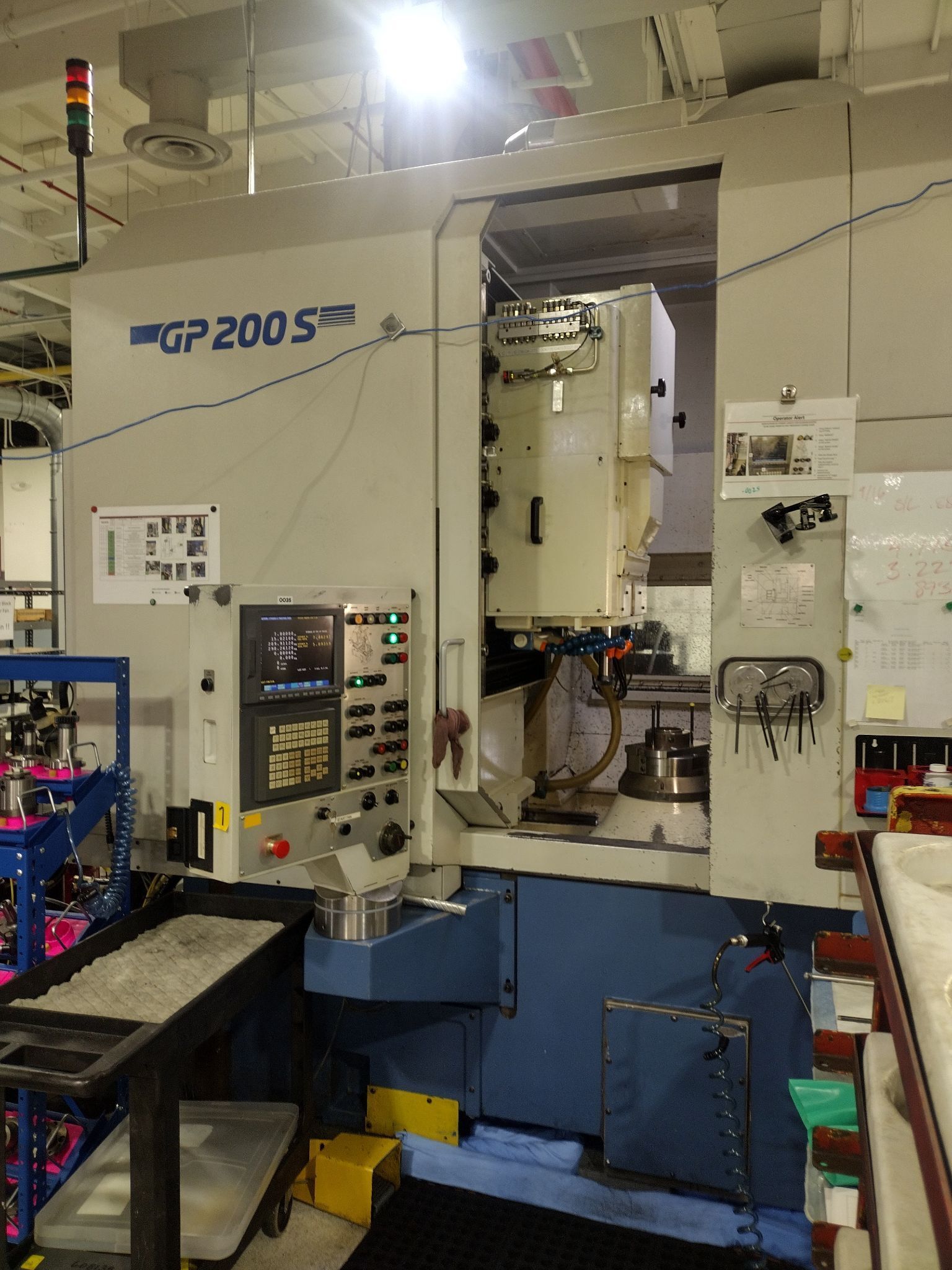

The Gleason Pfauter GP200S is a high-performance CNC gear shaping machine designed for the precise production of internal and external spur and helical gears. Part of the Gleason GP series, it is engineered for flexibility and high productivity in a compact design, making it suitable for both large-batch manufacturing and small-lot production in industries like automotive and aerospace.
Specifications:
Nominal Workpiece Diameter: 200 mm
Maximum Workpiece Swing: 350 mm
Maximum Face Width: 50 mm
Nominal Module: 6 mm
Maximum Stroke Length: 55 mm
Cutter Spindle Diameter: 85 mm
Maximum Cutter Spindle Stroke Speed: 1,500 1/min
Radial Slide Position Range: -50/+225 mm
Axial Slide Position Range: 350 mm
Tool Taper: B63 HSK
Maximum Feed and Rapid Traverse Rates:
-Axial: 2,000 mm/min
-Radial: 5,000 mm/min
Cutter Spindle Drive Motor: 12 kW
Approximate Dimensions (L x W x H): 112" x 91" x 115"
Approximate Machine Weight: 10,000 Kg
Specifications:
Nominal Workpiece Diameter: 200 mm
Maximum Workpiece Swing: 350 mm
Maximum Face Width: 50 mm
Nominal Module: 6 mm
Maximum Stroke Length: 55 mm
Cutter Spindle Diameter: 85 mm
Maximum Cutter Spindle Stroke Speed: 1,500 1/min
Radial Slide Position Range: -50/+225 mm
Axial Slide Position Range: 350 mm
Tool Taper: B63 HSK
Maximum Feed and Rapid Traverse Rates:
-Axial: 2,000 mm/min
-Radial: 5,000 mm/min
Cutter Spindle Drive Motor: 12 kW
Approximate Dimensions (L x W x H): 112" x 91" x 115"
Approximate Machine Weight: 10,000 Kg
Get Your Price from Gibbs Machinery Co!
