For Sale by Gibbs Machinery Co
Surplus Record Dealer Since 1956
Sales Dept.
586-75...> Show Seller's Phone Number 586-755-5353 Let the seller know you found their listing on Surplus Record!
Description

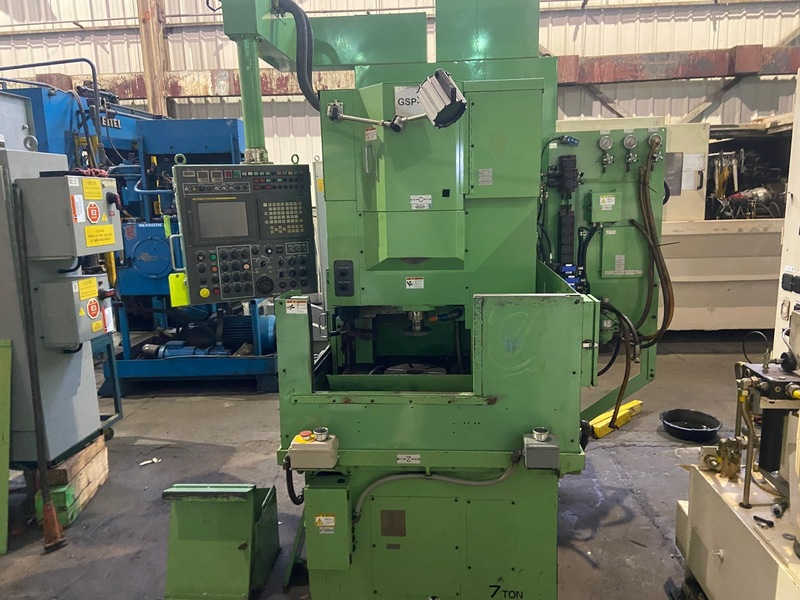

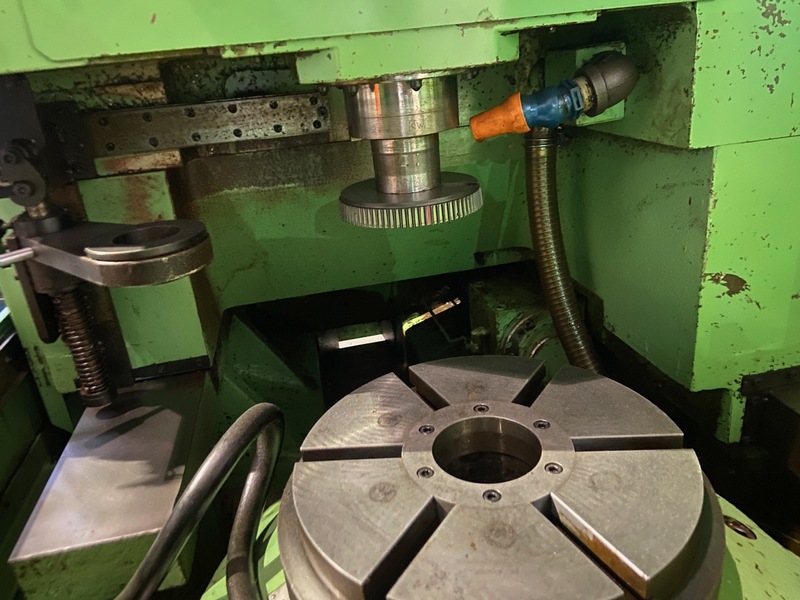

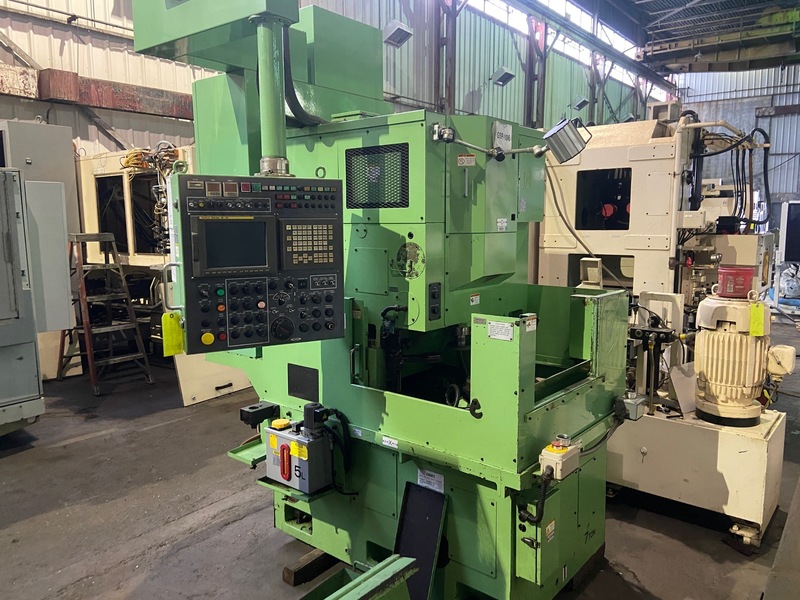

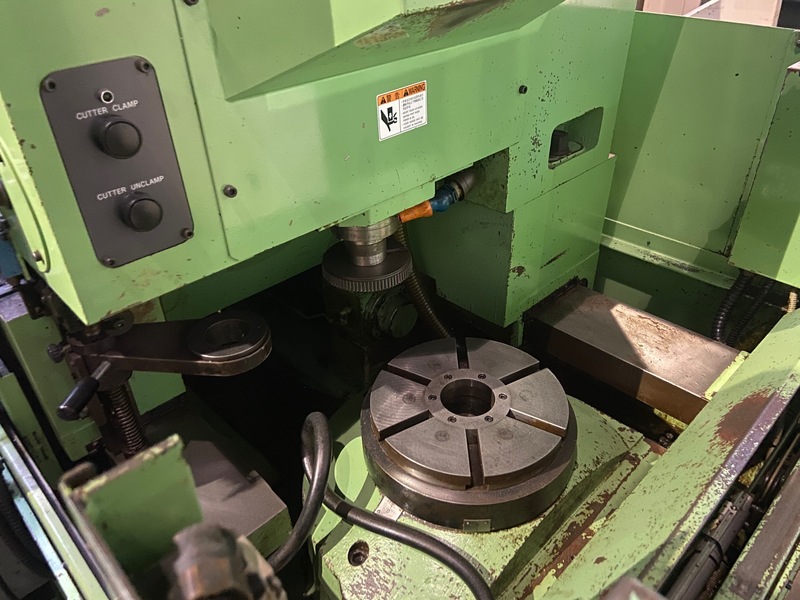

History of Karats gear technology started from production of a turbine pinion hobbing machine in 1921. For 100 years Karats Precision has succeeded to produce many models and large numbers of gear processing machines. This model is one of the master pieces.The cutter head supports the cutter spindle assembly with hydrostatic bearings, guide and stroke guide, assuring higher rigidity as well as vibration damping ability for the stable cutting strokes. The large-sized master worm wheel made of special material keeps its high precision for prolonged use.
Specifications:
Diameter of Work Table: 250 mm
Maximum Module: m4
Maximum Width of Gear Face: 40 mm (50mm) with conditions
Diameter of Hole Through Work Table: 70 mm
Diameter of Cutter Spindle: 90 mm
Taper Hole in Cutter Spindle Diameter: 45 (1/12 Taper)
Number of Cutter Strokes: 300 - 1500 Strokes/Minute
Rotary Feed Rate of Cutter (Dia. 100 cutter): 1.5 - 2250 mm/min
Radial Infeed Rate (Including rapid feed) 1 - 3000 mm/min
Rated Capacity: 20 kVA
Main Drive Motor (Continuous Rating): AC 5.5 kW
Overall Dimensions (L x W x H): 2200 x 2210 x 2875 mm
Net Weight: 7000 kg
Specifications:
Diameter of Work Table: 250 mm
Maximum Module: m4
Maximum Width of Gear Face: 40 mm (50mm) with conditions
Diameter of Hole Through Work Table: 70 mm
Diameter of Cutter Spindle: 90 mm
Taper Hole in Cutter Spindle Diameter: 45 (1/12 Taper)
Number of Cutter Strokes: 300 - 1500 Strokes/Minute
Rotary Feed Rate of Cutter (Dia. 100 cutter): 1.5 - 2250 mm/min
Radial Infeed Rate (Including rapid feed) 1 - 3000 mm/min
Rated Capacity: 20 kVA
Main Drive Motor (Continuous Rating): AC 5.5 kW
Overall Dimensions (L x W x H): 2200 x 2210 x 2875 mm
Net Weight: 7000 kg
Get Your Price from Gibbs Machinery Co!
