For Sale by Adams Machinery
Surplus Record Dealer Since 1924
Location: Libertyville, IL
Contact Mark Sonneborn
Phone Number: 847...> Show Phone Number 847-673-0556
Let the seller know you found their listing on Surplus Record!
Description

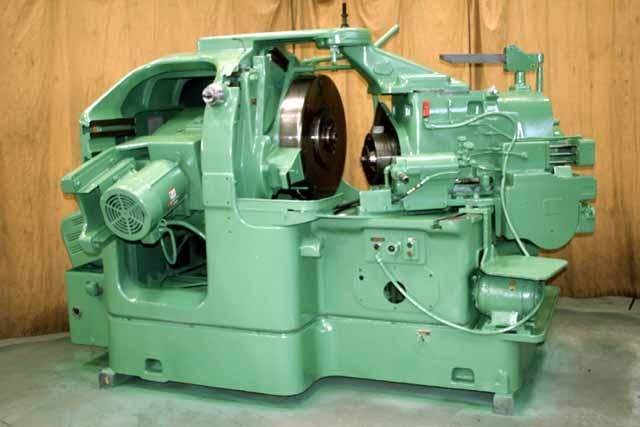

SPECIFICATIONS
EQUIPPED WITH
Hydraulic Clamping. Index Plates. Change Gears. Coolant.
This machine is being offered cleaned, and cycled. It is being offered with a 30-Day Return Privilege and may be inspected under power.
| Longest Cone Distance | 11" |
| Largest Pitch Angle | 90° |
| Smallest Pitch Angle (without chamfering or burring attachments) | 45° |
| Largest Pitch Diameter:-1 to 1 Ratio | 15.5" |
| Largest Pitch Diameter:-12 to 1 Ratio | 22" |
| Largest Pitch (diametral) | 1.5 DP |
| Maximum Face Width | 4" |
| Index Range(number of teeth) | 31 to 78 |
| Feed (seconds per tooth) | 5 to 40 |
| Diameter of Tapered Nose (large end) | 6-7/8" |
| Length of Tapered Nose | .75" |
| Taper Per Foot | .5" |
| Diameter of Hole Through | 2" |
| Spindle Nose to Center Line of Machine | 4.5" to 8" |
| Cutter Diameter | 9", 12", 18" |
| Cutter Speeds | 100 to 150 |
| Main Motor | 10 HP, 1800 RPM |
| Floor Space | 84" x 103" |
| Weight | 18,500 lbs |
EQUIPPED WITH
Hydraulic Clamping. Index Plates. Change Gears. Coolant.
This machine is being offered cleaned, and cycled. It is being offered with a 30-Day Return Privilege and may be inspected under power.
Get Your Price from Adams Machinery!
Buyers Who Viewed This Listing Also Viewed:

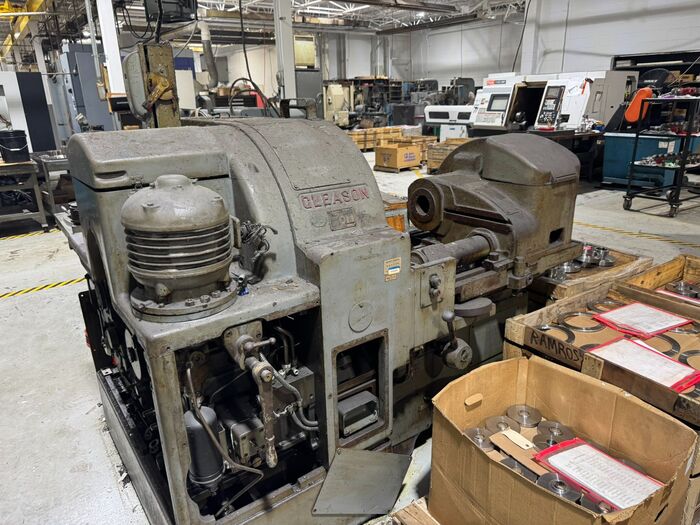

Gleason #14-Coniflex, Straight Bevel Gear Generator, 24" max. gear diameter, 12" max. cone distance, 3.5" max. face width, 4.25" max. stroke length, 64-495 SPM
