Description

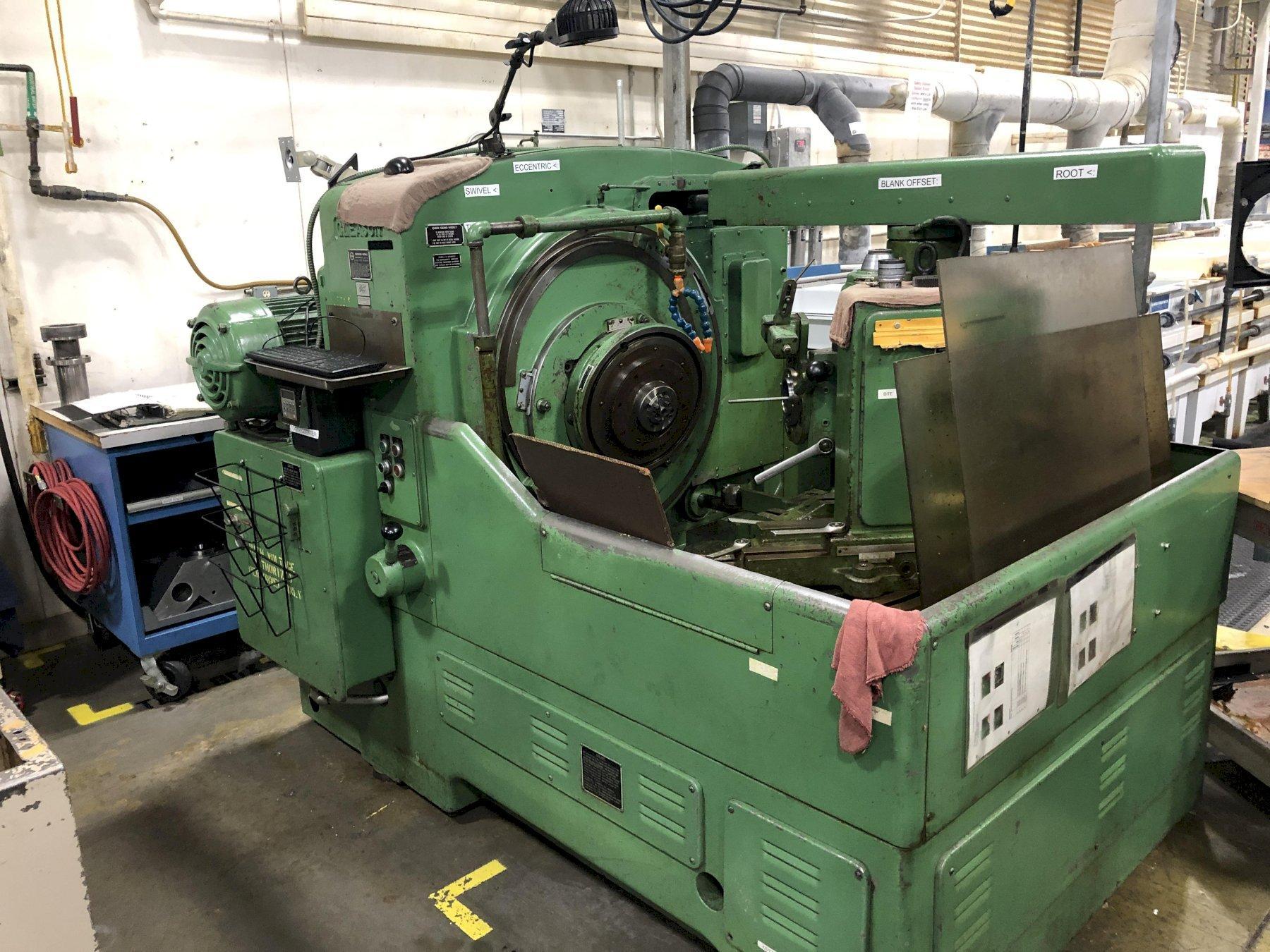

Gleason model 108 Hypoid Gear Generator
GLEASON 108 Hypoid Gear Generator
Specifications:
Diametral pitch (coursest) DP 4 6.34 mod Cone distance maximum (30 spiral angle and 7 cutter) 5 133 mm Workhead angle -12 to 90 Extreme ratio any practical ratio Minimum ratio for pinions to operate with formate gears 2 to 1 Maximum gear pitch dia (30 spiral angle) * 10 to 1 ratio 8 216 mm 2 to 1 ratio 7 190 mm 1 to 1 ratio 6 152 mm **Face width maximum 1 32 mm Number of teeth 5 to 97 and most numbers up to 175 WORK SPINDLE: Diameter of taper hole at large end 3.29/32 100 mm Taper per foot 39/64 15 mm Depth of taper 6 150 mm Diameter of hole through spindle 2.7/16 62 mm CUTTER DIAMETER : 3, 6 and 7 89 mm, 150 mm and 190 mm FEEDS AND SPEEDS : Cutter speeds (feet per minute) 74 to 380 22.5 to 115.3 meters per minute Feeds (seconds per tooth) 3 to 68.6 ELECTRICAL EQUIPMENT: Main motor 3 Hp 1800 rpm Hydraulic motor Hp 1800 rpm Coolant motor Hp 3600 rpm MISCELLANEOUS: Floor space 62 x 85 1600 x 2200 mm Net weight 16000 lbs 7800 kgs
GLEASON 108 Hypoid Gear Generator
Specifications:
Diametral pitch (coursest) DP 4 6.34 mod Cone distance maximum (30 spiral angle and 7 cutter) 5 133 mm Workhead angle -12 to 90 Extreme ratio any practical ratio Minimum ratio for pinions to operate with formate gears 2 to 1 Maximum gear pitch dia (30 spiral angle) * 10 to 1 ratio 8 216 mm 2 to 1 ratio 7 190 mm 1 to 1 ratio 6 152 mm **Face width maximum 1 32 mm Number of teeth 5 to 97 and most numbers up to 175 WORK SPINDLE: Diameter of taper hole at large end 3.29/32 100 mm Taper per foot 39/64 15 mm Depth of taper 6 150 mm Diameter of hole through spindle 2.7/16 62 mm CUTTER DIAMETER : 3, 6 and 7 89 mm, 150 mm and 190 mm FEEDS AND SPEEDS : Cutter speeds (feet per minute) 74 to 380 22.5 to 115.3 meters per minute Feeds (seconds per tooth) 3 to 68.6 ELECTRICAL EQUIPMENT: Main motor 3 Hp 1800 rpm Hydraulic motor Hp 1800 rpm Coolant motor Hp 3600 rpm MISCELLANEOUS: Floor space 62 x 85 1600 x 2200 mm Net weight 16000 lbs 7800 kgs
Get Your Price from Machnet!
Buyers Who Viewed This Listing Also Viewed:

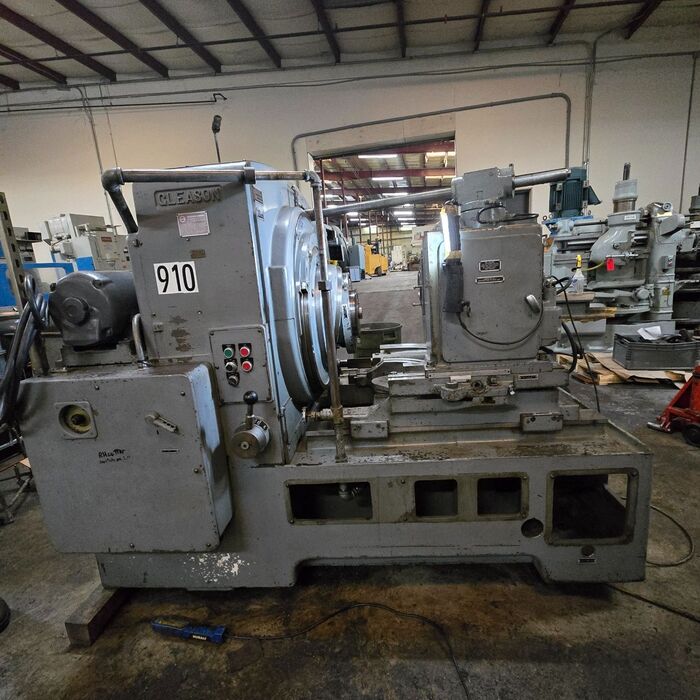

Gleason #106, Hypoid gear generator with helical motion, very good mechanical condition
