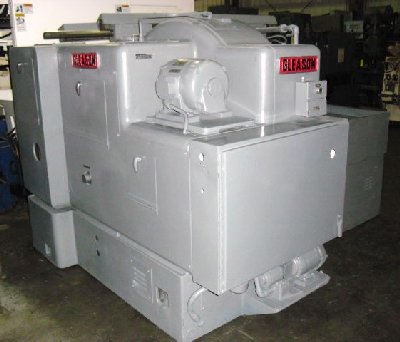

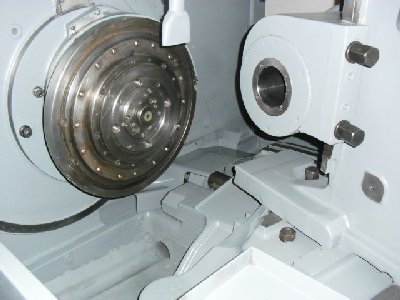

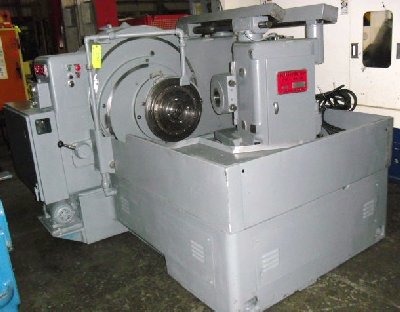

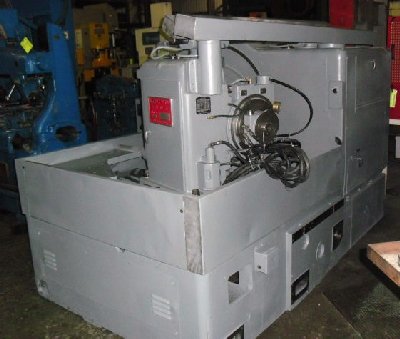

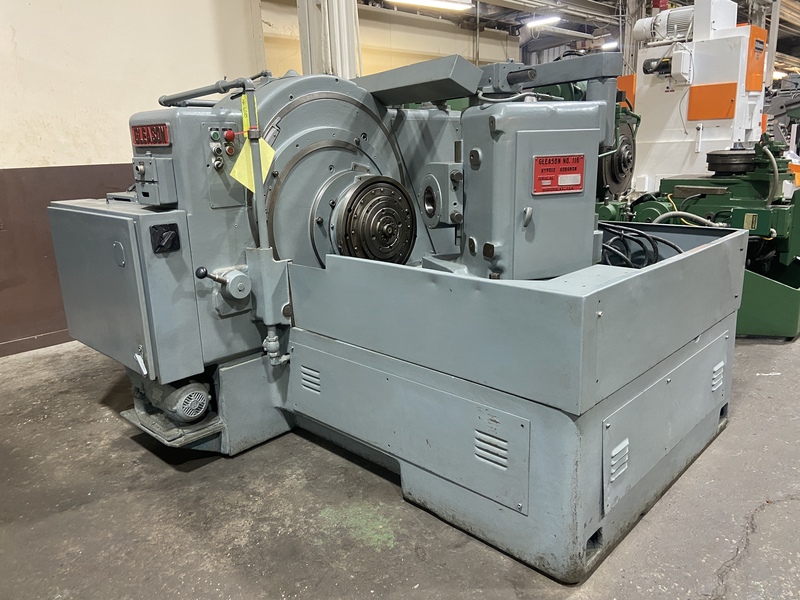

Gleason #116, gear generator rougher, conventional Control, modified roll, coolant system, 1964

The No. 116 Hypoid Generator is a completely automatic, highspeed machine for cutting spiral bevel, Zero bevel and hypoid gears. The machine is outstanding for its range of work-capable of roughing and finishing both gears and pinions. It handles diameters up to 18 inches, and gears of 2 diametral pitch and finer.This new generator offers many advantages: improved quality of product, increased production rates, longer cutter life, easier setup and operation, simplified development of tooth bearing and the use of the Unitool method.
Specifications:
Maximum Pitch Diameter: 18"
Maximum Rate: 10/1
Maximum Cone Distance: 9"
Work Head Angle: 5 degrees - 84 degrees
Diametral Pitch, Coarsest: 2
Face Width, Maximum: 2-3/4"
Number of Teeth: 5-175
Spindle:
Diameter Of Taper Hole, Large End: 3-29/32"
Taper Per Foot: 39/64"
Depth Of Taper: 6"
Diameter Of Hole Thru: 3-1/16"
Spindle Nose To Centerline: 5-1/2"
Speeds and Feeds:
Cutter Speeds, Feet Per Minute: 20-115 RPM
Feeds, Seconds Per Tooth: 9-80 Seconds
Electrical Equipment:
Feed Motor: 5 HP, 1800 RPM
Hydraulic Pump Motor: 3/4 HP, 1800 RPM
Coolant Motor: 1/2 HP, 3600 RPM
Floor Space: 75" x 114"
Net Weight: 23,400 lbs
Shipping Weight, Boxed for Export:
1 Case - 10'6" x 8'9" x 6'5": 26,100 lbs
