Description

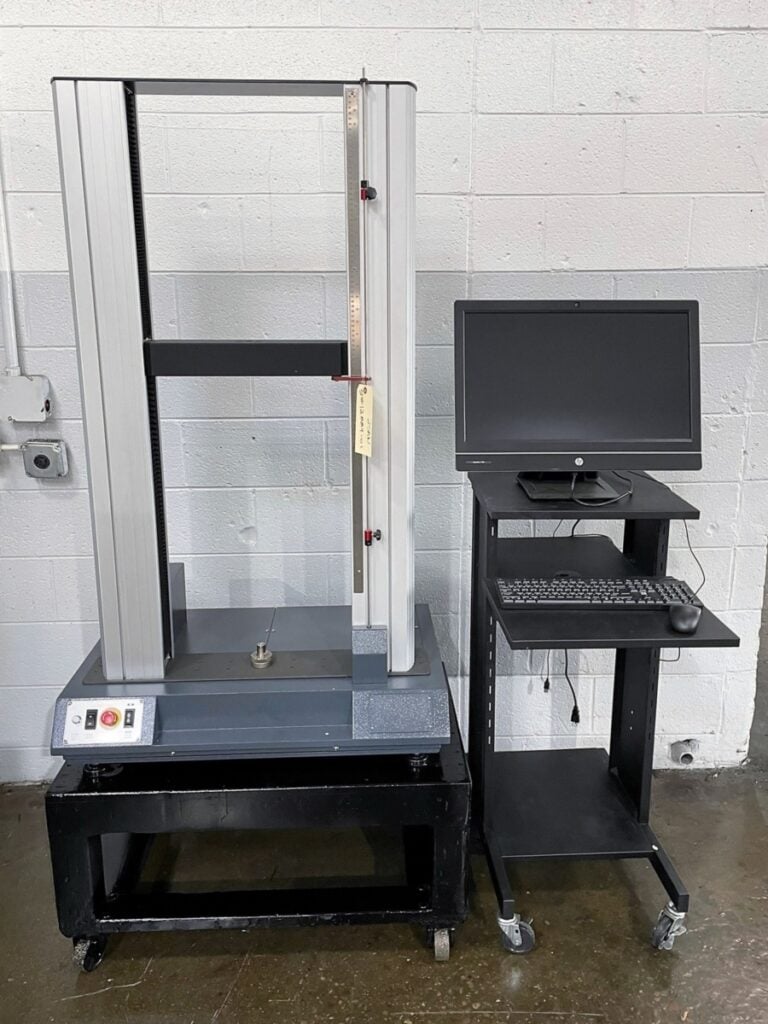

Frank Bacon SAE J379 Brake Lining Testing System
NEW Frank Bacon 25kN
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 38"
Compression Testing Opening (Less Tooling): 38"
Distance Between Columns/Screws: 16"
Table Size: 16" x 5.5"
Testing Stroke: 36"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Load Frame Dimensions: 35" x 23" x 58"
Weight: 350lbs
Electrical Requirements (V,Hz,PH): 200-230, 60, 1
EQUIPPED WITH:
- Computer with Keyboard & Mouse
- 24" LED-Backlit LCD Color Monitor or Better & Manual
- Microsoft Windows 10 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Precision AC Servo Motor and Drive
- Machine pre set to SAE J379 standards for brake lining testing.
- Indenter
FOB Warren, MI
NEW, Calibrated and Certified
2 Year Parts and Labor Warranty 30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification
| #FB-J379B
DOWNLOAD SPEC SHEET
