Ficep #Energy-3202GDX, CNC Plate Drilling & Milling Machine, 1102.36" L x 125.98" width max. plate capacity, 5.51" plate thickness, 11.81" max. milling cutter diameter, 53.6 HP, 5000 RPM, 400 Volt, 2022

Manufacturer: Ficep
Year: 2022
Stock # 8077304

For Sale by KD Machinery

Surplus Record Dealer Since 2026
Gold Level Dealer
Location: Scottsdale, AZ
Contact Sales Dept.
Let the seller know you found their listing on Surplus Record!

Description

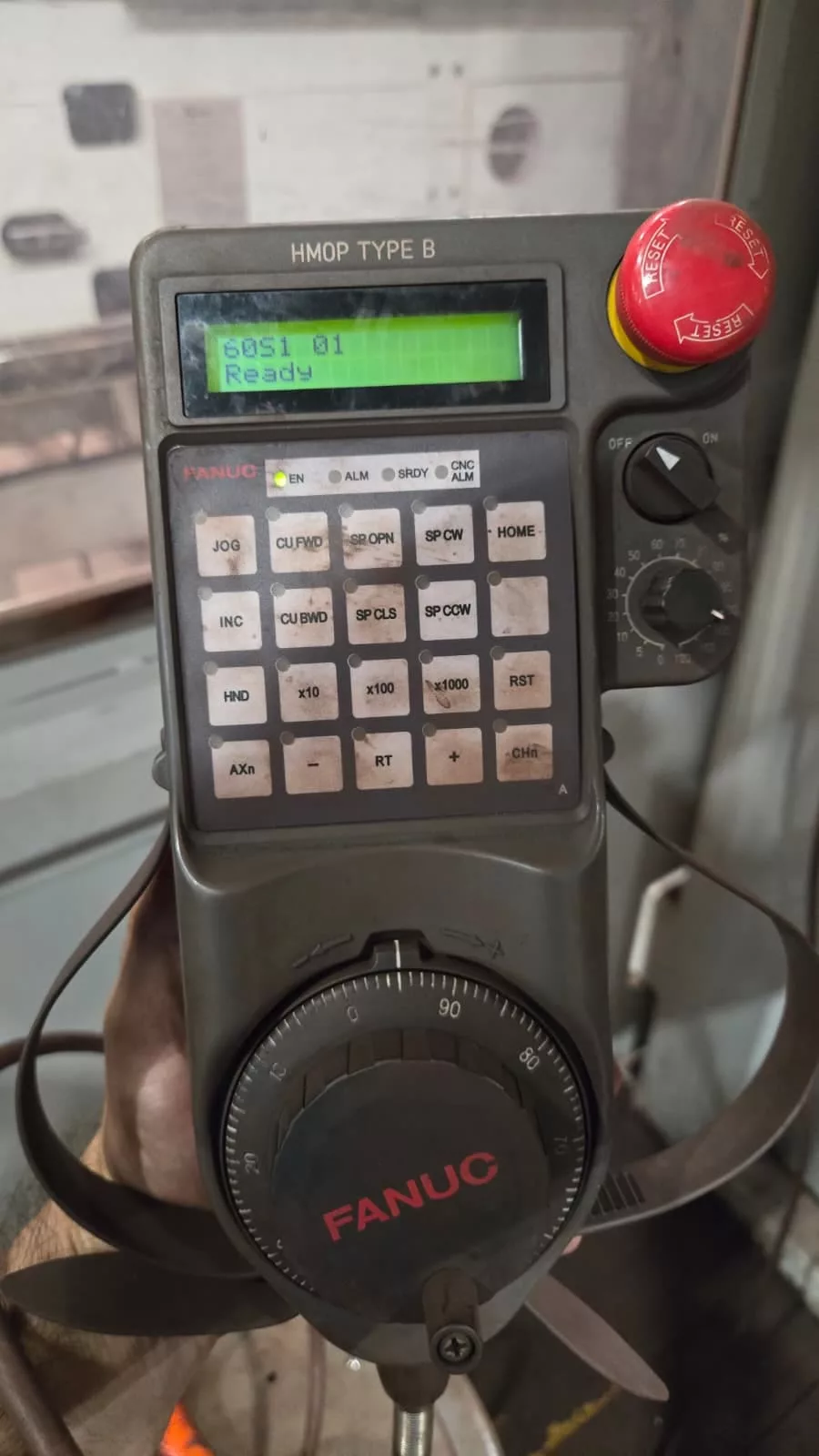

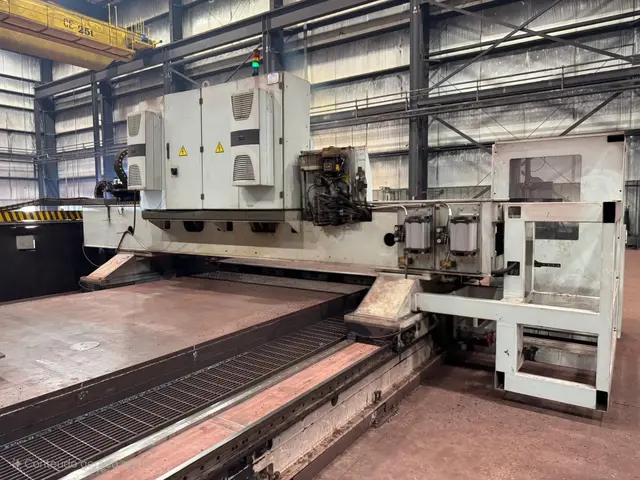

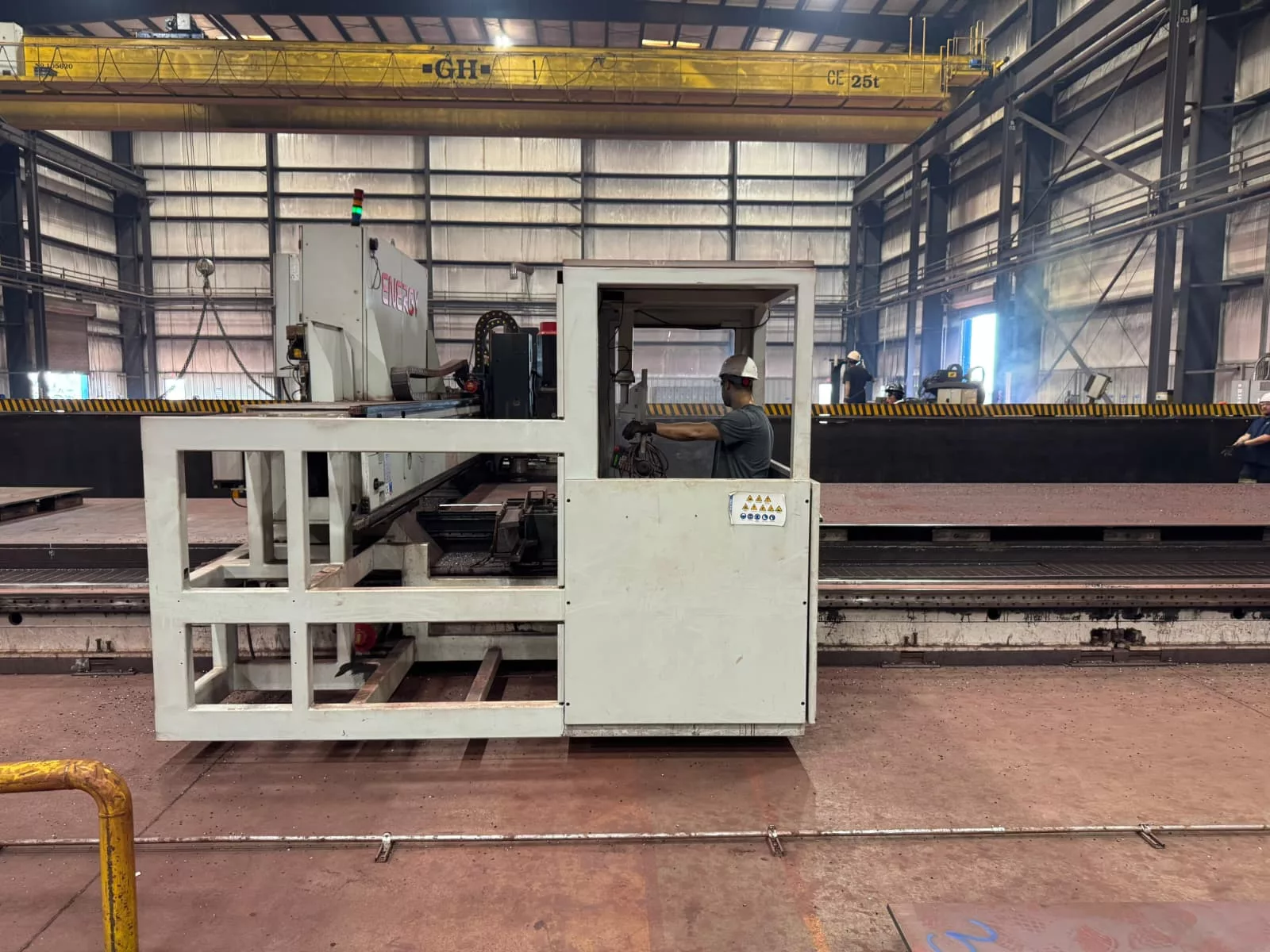

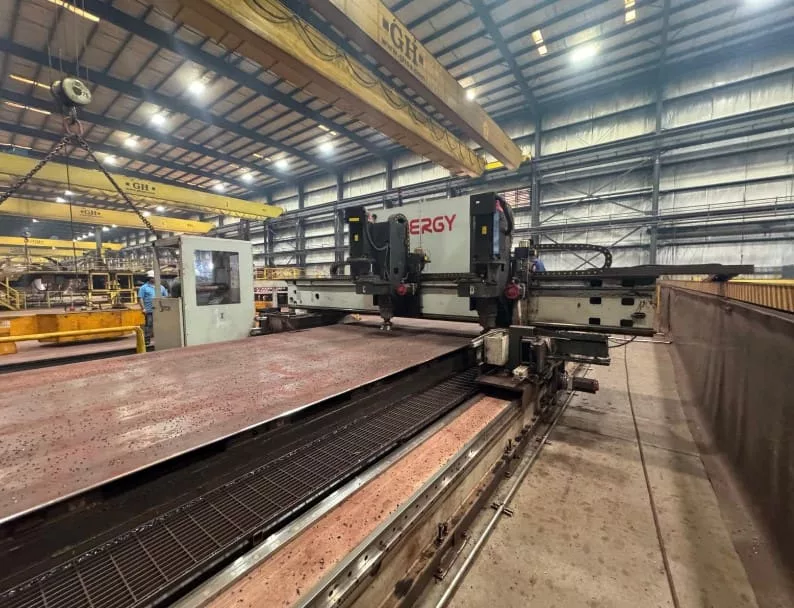

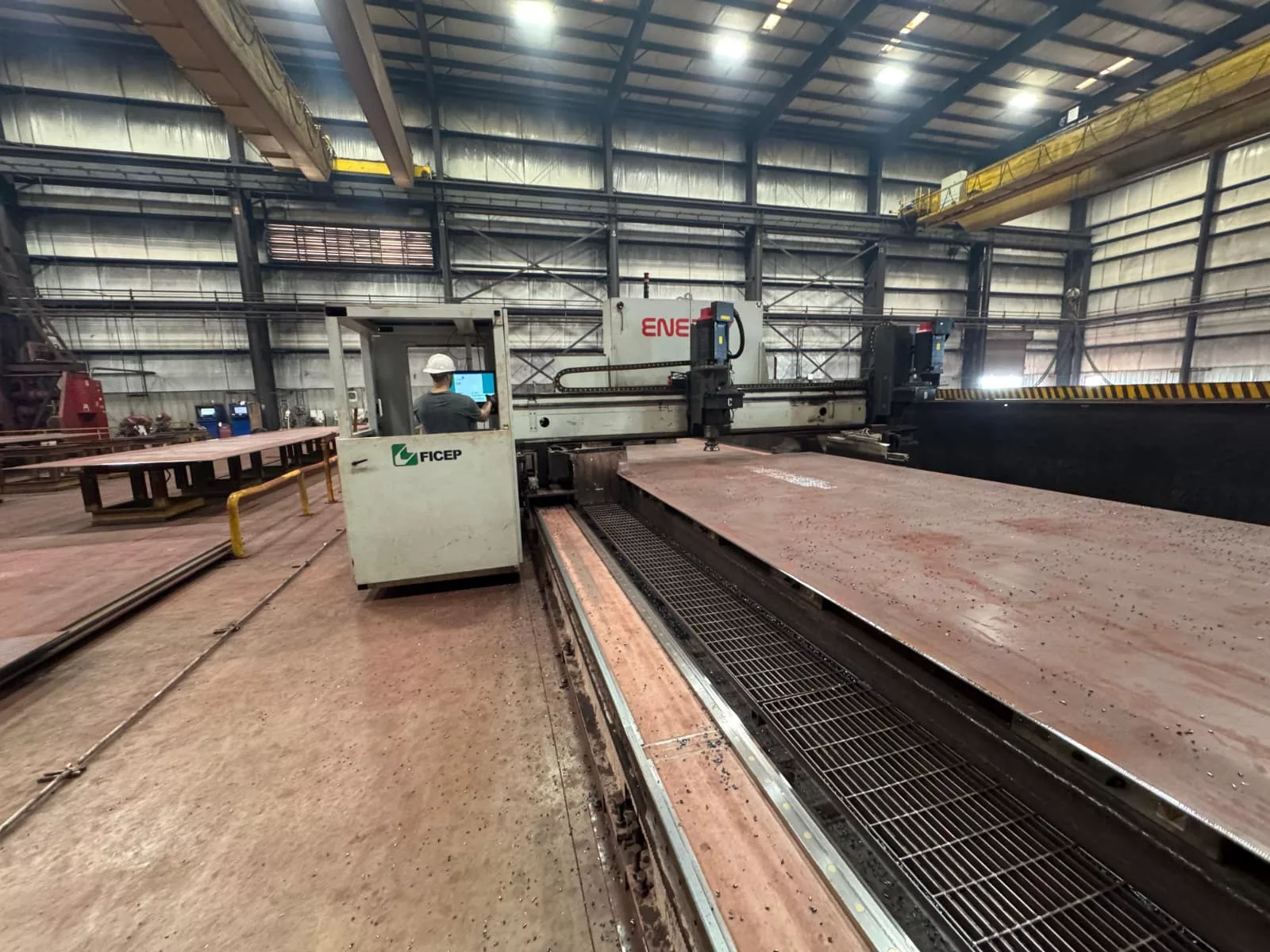

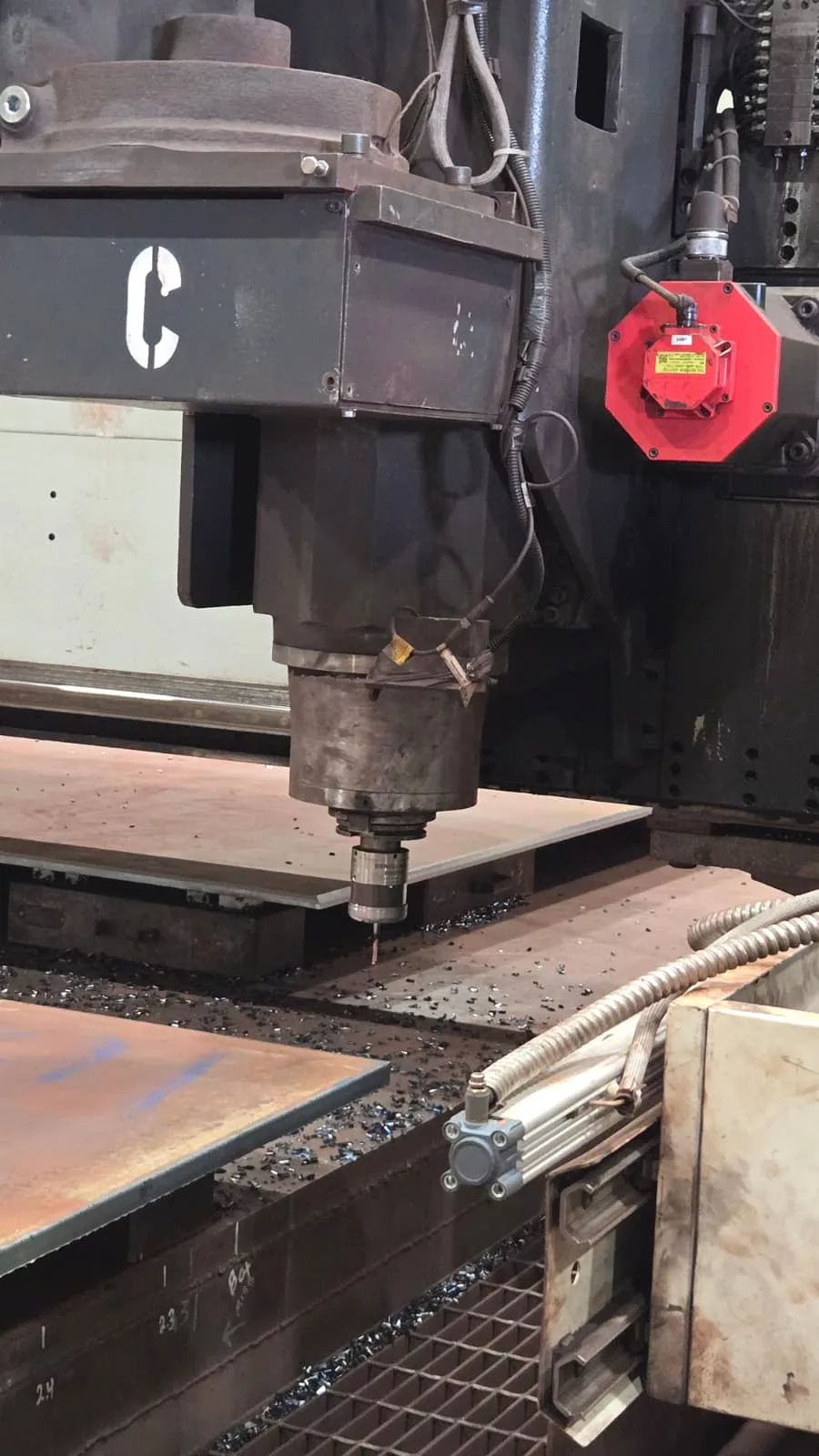

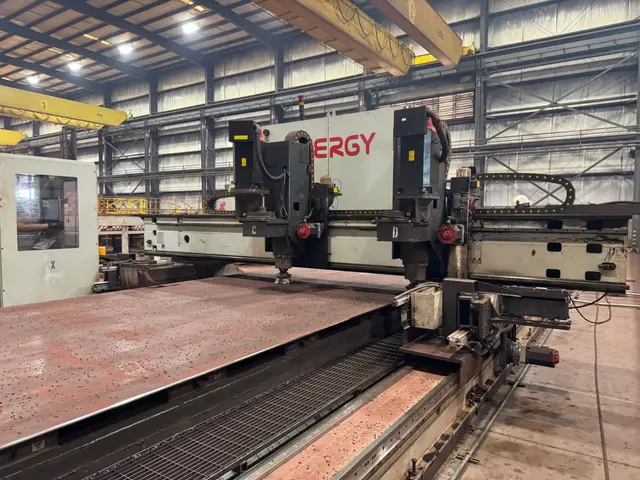

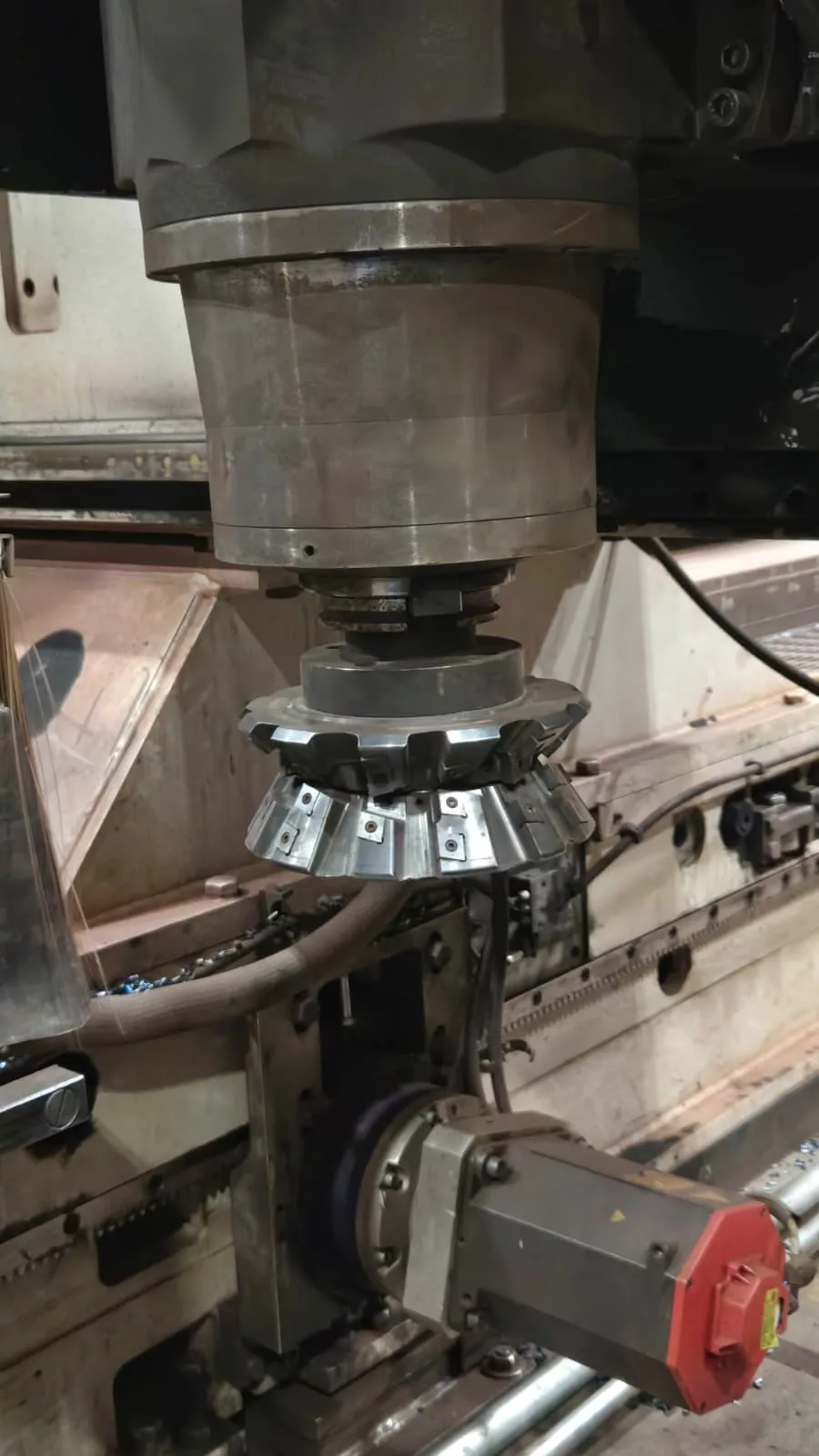

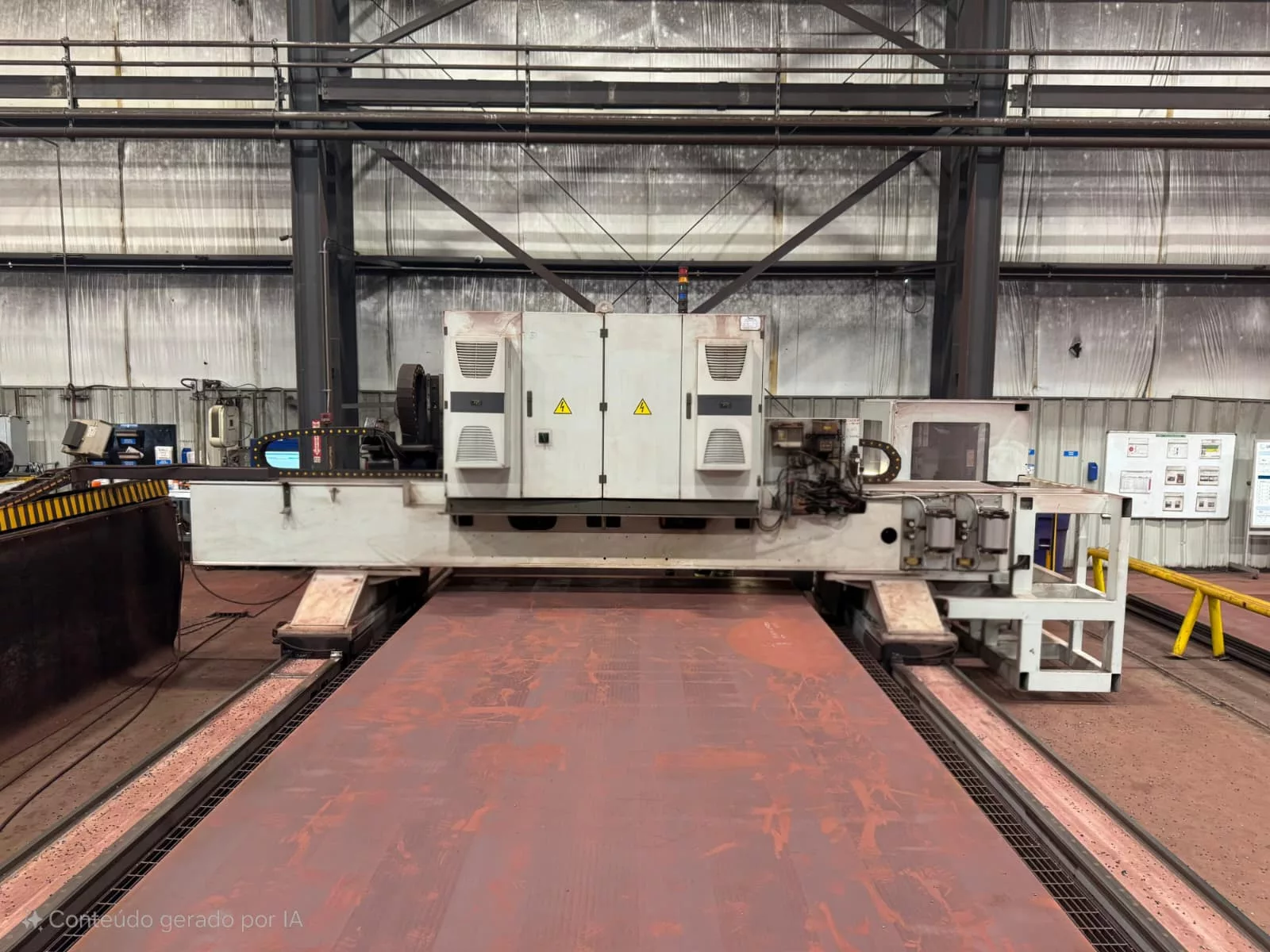

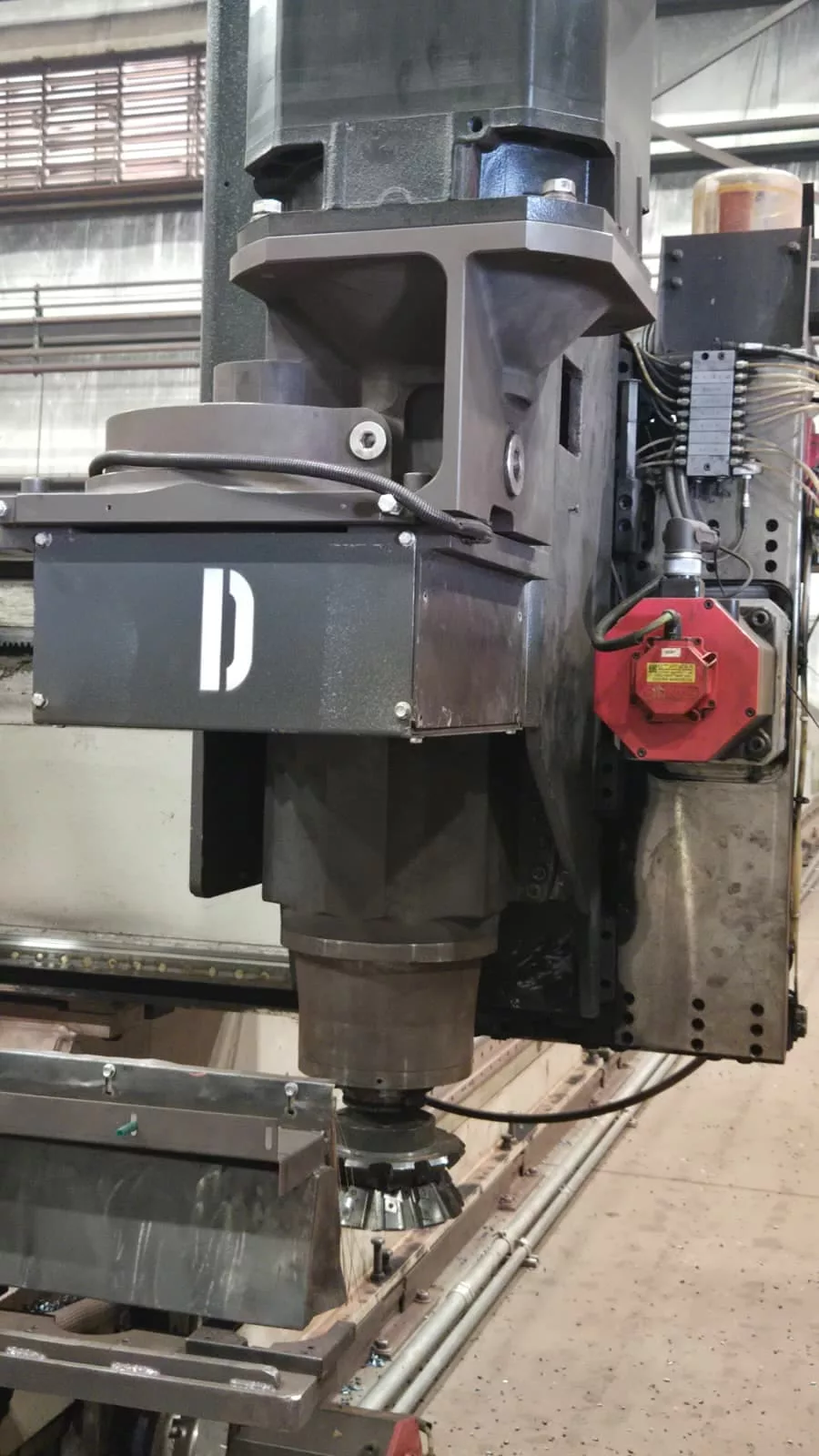

Used Ficep Energy 3202GDX (2022) Beam/Drill Line for Sale. This plate drilling and milling line handles plate thickness from 10 to 140 mm, widths from 100 to 3200 mm, and lengths up to 28000 mm, with a maximum drilling thickness of 140 mm and milling tools up to 300 mm diameter. Spindle drive performance (S1) is 40 kW with rotation speeds to 5000 RPM, drill feed rates of 40 to 1000 mm/min, and fast approach/return at 20 m/min. C-frame longitudinal and mill head cross positioning speeds are both 30 m/min. Equipped with two vertical milling/drilling heads, one spindle per vertical drill head, a three-position tool change system, ISO 50 Big Plus toolholder, on board distribution system, automatic plate orientation detection, drilling programming, 3D graphics, and Ficep Pegaso control on Windows 10. Machine weight 25000 Kg; 400V, 50Hz, 3 Ph. Available to view under power for inspection. Request a Quote for further details.


Plate Thickness10 - 140 mm
Plate Width100 - 3200 mm
Plate Max Length28000 mm
Max Diameter of Milling Tools300 mm
Max Drilling Thickness140 mm
Spindle Drive Performance (S1)40 kW
Spindle Rotation Speed5000 RPM
Spindle Drill Feed Rate40 - 1000 mm/min
Spindle Fast Approach/Return Speed20 m/min
C-Frame Max Longitudinal Speed30 m/min
Mill Heads Cross Positioning Speed30 m/min
Machine Weight25000 Kg
Power Requirement400V - 50Hz - 3 Ph

Get Your Price from KD Machinery!
