For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description

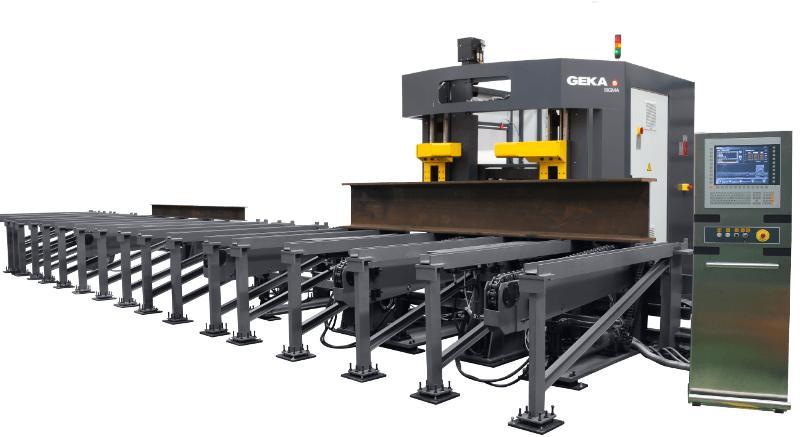

NEW GEKA SIGMA 110 CNC LINE FOR DRILLING, TAPPING, MILLING, AND SCRIBING BEAMS, TUBES, FLAT BARS AND ANGLES
Geka’s Sigma 110 is a CNC solution for drilling, tapping, milling, and scribing beams, angles, U-profiles, tubes, and flat bars with heights of up to 39 3/8″. An optional rotation system is also available to be mounted on the Sigma 110, which allows the CNC line to flip profiles without using a crane.
This CNC solution can drill up to 20 H.P., 3,000 RPM, and an automatic 5-tool changer.
| FEATURES | SIGMA 110 |
|---|---|
| Maximum working height | 39-3/8″ |
| Maximum length of profiles | 472″ |
| Type of profiles | Beams, Angles, Channels, Square Tubes, Rectangular Tubes, and Plates |
| Operations | Drilling, Tapping, Milling, Scribing and Marking |
| Spindle power | 20(peak)/14.75 Nominal Hp |
| Number of tools | 5 |
| Maximum diameter | 1-9/16″ |
| Tool holder | SK40 / ISO 40 |
| Profile rotating system | Yes |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Main Features of the Sigma 110 CNC Line for Beams
DRILLING UNIT.
Powerful and reliable drilling head. 20 HP peak power. Extra strong double column guided movement. Spindle and rack and pinion X axis travelling. Ultra fast X axis acceleration.HOLD DOWN.
The profile is clamped to the table by means of a vertical hold-down. Each hold-down is guided by 2 ridged linear guides.TOOL CHANGER.
5 Tools. Internal lubrication system.PC-CONTROL.
Windows based PC control. Touch screen. Remote assistance over the internet. USB Port.Get Your Price from Blumberg Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
Ganesh #Gen-Mill-T500, CNC Drilling & Tapping Machine, 21 ATC, 20.1" X, 16.9" Y, 13" Z, 7.5 HP, 12000 RPM, Chip Conv., 2018
Category: CNC Drilling and Tapping Centers
Seller: Source Machinery Sales
Location: Fridley, MN
Mfr: Ganesh
Model: GEN-MILL-T500
Year: 2018
Make/Model: Ganesh Gen Mill T500, Year: 2018, Table Size: 22.04" x 15.75", Travels: 20.08" x 16.93" x 12.99", Rapid Traverse: 2362 IPM, Spindle Taper BT30, Spindle Speed: 12,000 RPM, Spindle Motor: 7.5 HP, 21 ATC, Chip Conveyor, Price $9,950.
JUST ADDED!

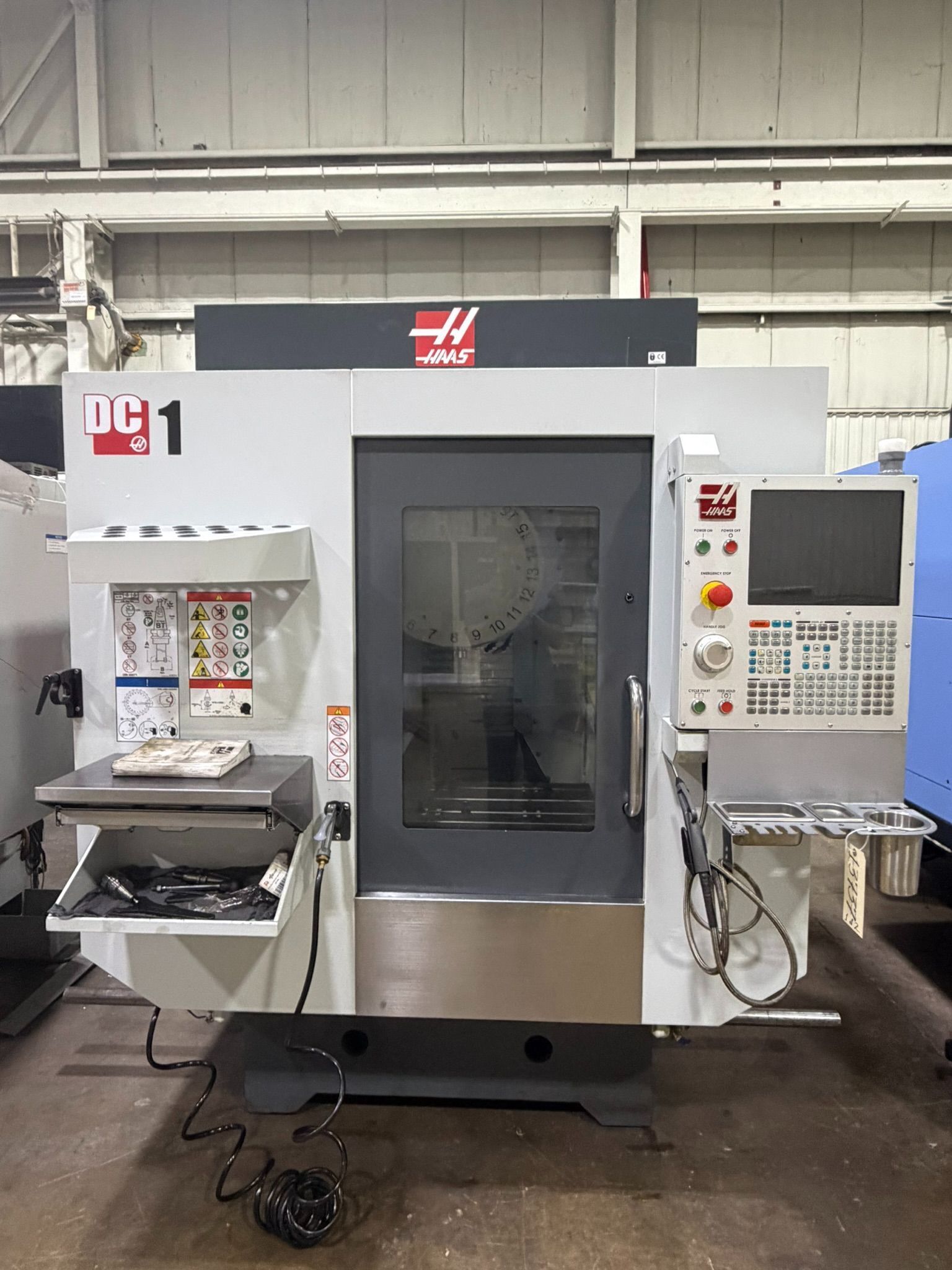

Haas #DC-1, CNC Drilling & Tapping Center, 23.6" X, 17.7" Y, 13" Z, 27.6" x 16.5" table, 15 HP, 10,000 RPM, 21 ATC, 2024
