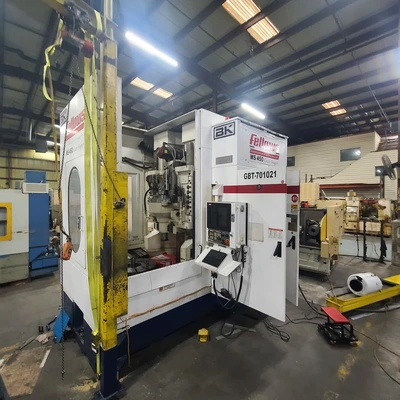

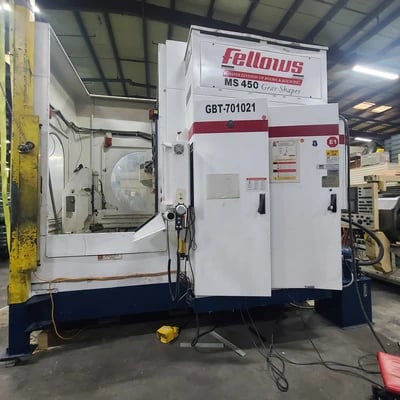

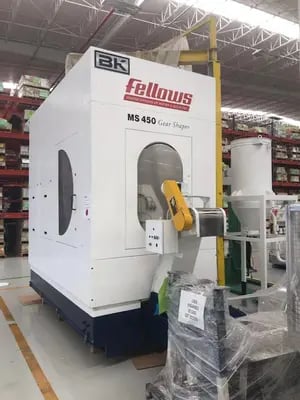

Fellows #MS450-650/125, 6-Axis guideless CNC gear shaper, 25.5" dia., 5" stroke, in plant, 2007

Description
Fellows Model MS-450/650 optional GUIDELESS CNC Gear shaper, 450 mm / 650 mm optional Diameter, 5" stroke length, 11.8" max vertical saddle travel (z-axis), 3 DP, 45* max helix angle, 31.5" max swing , 2000 lbs max table load , Fanuc CNC Controls , Delivered New 2007
Specifications
Fellows (B&K) 6-Axis CNC Vertical GUIDELESS Gear shaper
Model MS-450/125 , Delivered and installed New 2007/2008
This machine Features the CNC Guideless Gear shaping option. It Has many of the finest
features you could use for a precision Gear shop or production house.
Machine standard specifications:
Max Diameter both internal & External 450 mm / 650 mm optional
Max Face Width 5"
Max Pitch 3 DP
Max Pitch Helical 3 DP
Max Helix angle 45*
Max Swing Diameter 31.5"
Vertical slide , saddle travel 11.8"

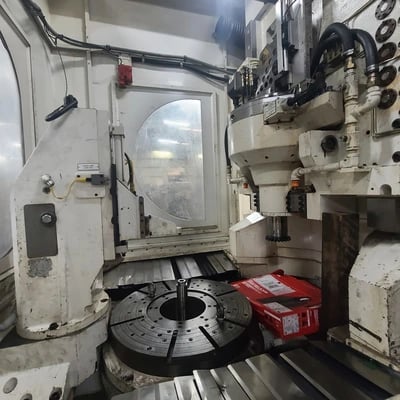

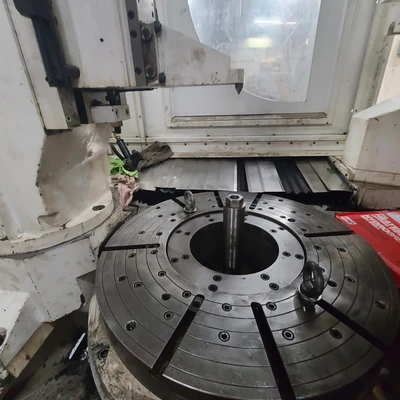

Work Table Diam 19.68"
Max Table load 2000 Lbs
Cutter Spindle Diam 4.72"
Cutter Spindle speed range 20-750 SPM
Main Stroking Motor 20 HP
Machine weight 37,000 Lbs
Machine Dimensions 78" wide X 166" High X 123" Deep
Machine is equipped with the following:
CNC Guideless shaping option
Swing-away hydraulic Tailstock

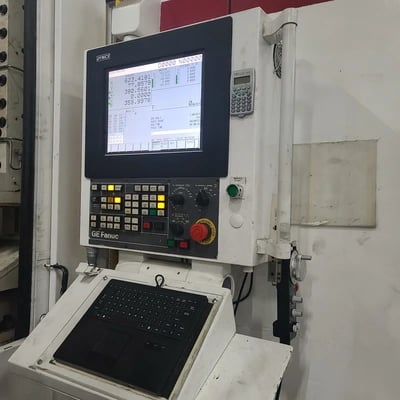

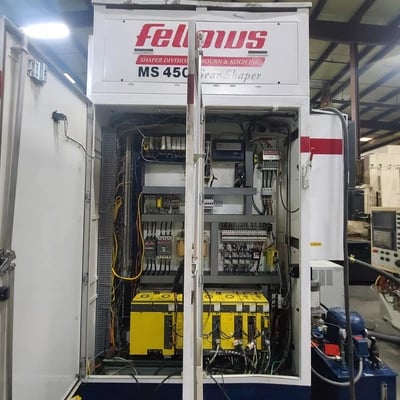

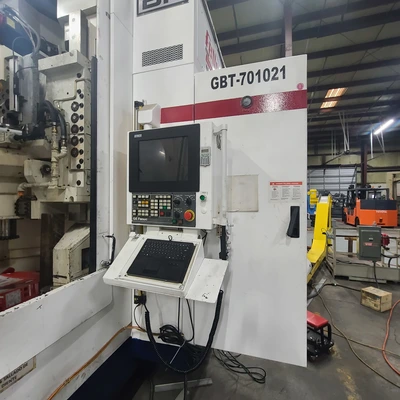

GE-Fanuc 31i 6 Axis CNC control motors & Drives ( New PC installed w/ windows)
Vertical Slide Positioning ( stroke positioning )
Remote Hand held station
New Chiller
Quick change cutter mechanism
New Chip conveyor
Full Enclosure
Books and Manuals
Note: this Model MS450 has been built on the larger 650mm model Machine base.
It is presently equipped with software to handle 450mm as originally shipped from OEM
and we will try to extend its capacity to 650 mm to utilize its full capacity at
additional charge. we can not guarranty the extended version but will try to extend
and price accordingly to machines full capacity.!!
Visit WWW.PiselliEnt.com to receive a formal quote and pricing
of the different options , installation & Software !!
or contact Rich Piselli at Rich@piselliEnt.com to discuss machine further
