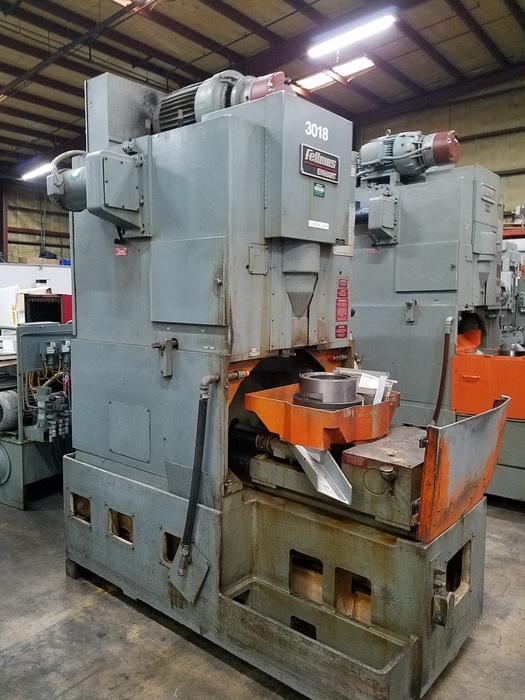

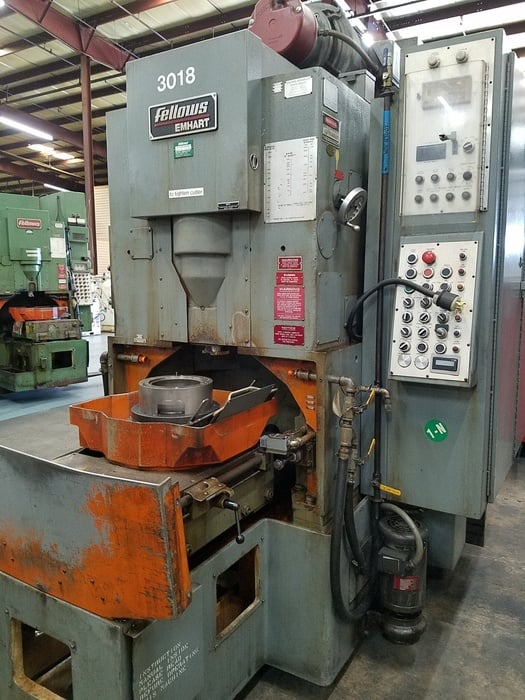

Fellows #10-4, gear shaping machine, 10" pitch diameter, 4" face, 3.5" spindle diameter, 4" stroke, AB PLC-2

Description
Fellows model 10-4 Gear shaping machine, 10" diameter, 4" stroke capacity, Cutter at top, A/B PLC 2 control, Plumbed & wired for a tailstock, new cutter spindle & Bushing inspect in NC.
Specifications
FELLOWS Gear shaping machine
Model 10-4, S/N 36790
Machines are to be gone through by Piselli Enterprises and delivered in
excellent working condition. Machine will be equipped with new Cutter
spindle & bushing. Contact us regarding the work to be done on these
machines and checked for accuracy.
Machine specifications are as follows:
Max. External & Internal Pitch Dia.......................................10"
Max. Face Width, External.................................................4"
Max. Diametral Pitch, Spur.............................................4 DP
Max. Diametral Pitch, Helical..........................................5 DP
Bore through work spindle.............................................5.875"
Spindle Diameter......................................................3.543"
Distance between work table and cutter spindle...........................10"
Max. Helix Angle with Standard Guides............................45 degrees
Max. OD of Fixture.......................................................19"
Dimensions..............................................119"L x 97"H x 53"D
Approx. weight...................................................11,000 lbs.
MACHINE IS EQUIPPED WITH:

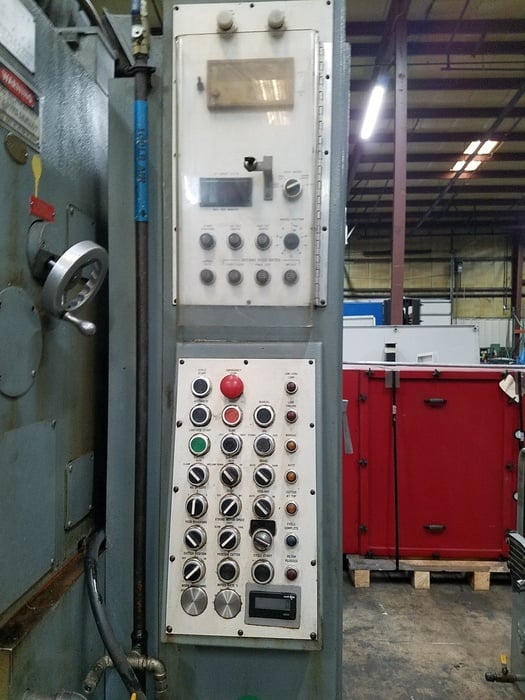

A/B PLC-2 Control
0" Riser
4" Stroke Capacity
Cutter at Top
Hydraulic Tank
1 Cutter Adapter
Misc. Change Gears
Note: Machine has been plumbed and wired for Tailstock
Machine can be inspected in excellent condition with proper notice.
Give us a call today for more info and to learn about our refurbishing
program.
