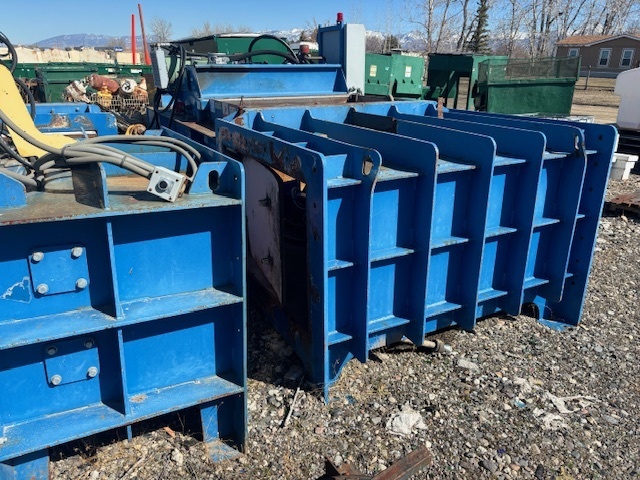

Excel #2R63, 2-ram automatic tie used baler, 60" W x 29.5" H chamber, 54" x 40" opening, 95 psi

The 2R63 is constructed of four solid steel sheets (top, bottom, and both sides), providing seamless construction from end to end. Combine this innovative engineering with our use of only the highest quality components, and the result is the very best in durability and function.
HEIGHT: 62” (158cm) Loading 52.5” (135cm) Frame
LENGTH: 16’ 2” (493cm)
WIDTH: 16’ 11” (516cm)
CHAMBER: 60” (153cm)W x 29.5” (75cm)H
FEED OPENING: 54” (138cm)W x 40” (102cm)L
SHIPPING WEIGHT: 32,730 lbs. (14,846kg) (as shown)
__________________________________________________
Performance Data
MAIN CYLINDER: 2 - 6” (15cm) Bore x 74” (188cm) Stroke x 4” (10cm) Hard Chrome Rod
EJECT CYLINDER: 6” (15cm) Bore x 66” (168cm) Stroke x 3.5” (9cm) Hard Chrome Rod
OIL RESERVOIR: 105 gal. (399 liters)
INDEPENDENT PUMPS: 34 Gal. (130 liters) Pressure Compensated Horse Power Limited Piston Pump
MOTORS: 20 HP TEFC 230-460 V 3 PHASE
SYSTEM PRESSURE: 3,000 PSI Automatic Mode (3,250 Maximum)
OVERALL PLATEN FORCE: 159,467 lbs.
PLATEN PSI: 95 PSI
CYCLE TIME: 29 Seconds - 21 Sec. Short Stroke
ESTIMATED BALE SIZE: 60”L x 48”W x 30”H (152cm L x 122cm W x 76cm H)
DIRECTIONAL VALVE: Hi-Flow Cushion Shift Design
ENCLOSURE: NEMA 12 RATED
CONTROLS: UL/CSA/CE Approved NEMA 12 Rated
_____________________________________________
Bale Weights
OCC: 1,200 lbs. (544kg) 4.2 TPH
MAGAZINES: 2,000 lbs. (907kg) 9.4 TPH
NEWSPAPER: 1,500 lbs. (680kg) 8.0 TPH
OFFICE PAPER: 1,600 lbs. (726kg) 8.0 TPH
HDPE: 1,100 lbs. (499kg) 3.3 TPH
PET: 800 lbs. (363kg) 2.1 TPH(May vary with percent of capped bottles
ALUMINUM CANS: 625 lbs. (284kg) 3.0 TPH
TIN CANS: 1,200 lbs. (544kg) 5.6 TPH
