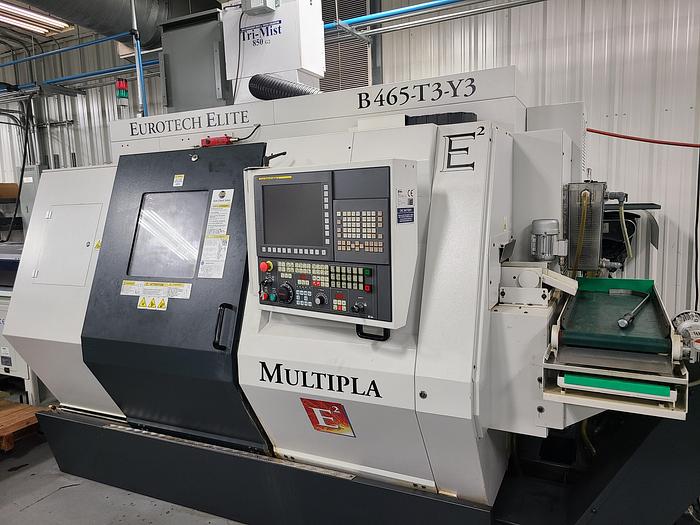

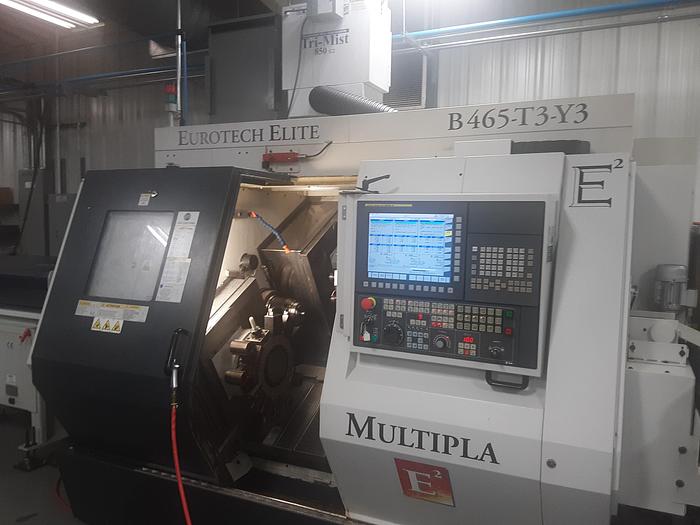

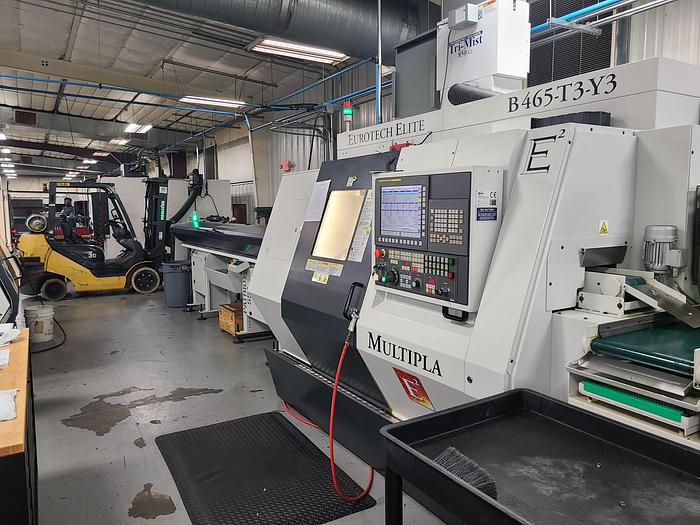

Eurotech #B465-T3-Y3-Multipla, CNC Lathe, 20" swing, 8" chuck, 2.5" bar, 37.5" centers, Fanuc 31iB, 2020

Power: 35 hp
Control: Fanuc 31iB
Bar Capacity: 2.56″
Chuck Diameter: 8″
Distance Between Centers: 37.5″
Swing Over Diameter: 20″ Main Spindle

Main Spindle
Spindle Speed: 4,000 RPM
Spindle Nose: 6″
Spindle Bore: 3.15″
Chuck Diameter: 10″
Motor Power: 35 HP
C-Axis Min. Programmable value: 0.001 Degrees

Sub-Spindle
Spindle Speed: 5,000 RPM
Spindle Nose: 5″
Spindle Bore: 2.17″
Chuck Diameter: 6/8″
Motor Power: 15 HP
C-Axis Min. Programmable value: 0.001 Degrees
Offset Stroke: 4.72″
B-Axis Stroke (Rapid Traverse): 26.35 – 1181 IPM

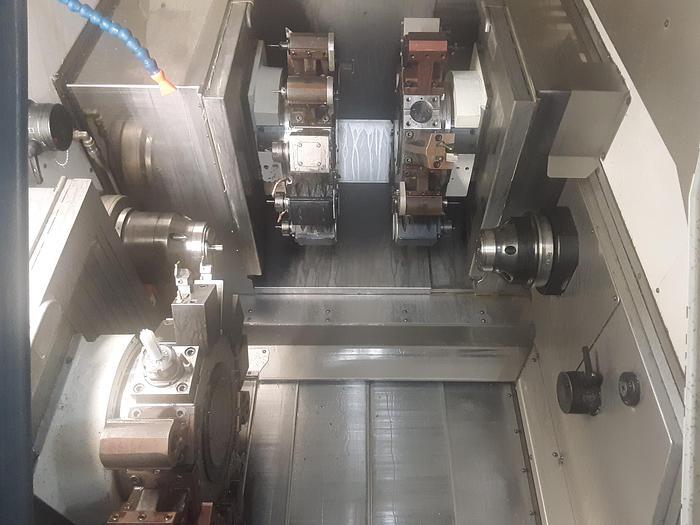

Turrets:
Number of Turrets: 3
Number of Stations: 12
Number of Tools: 192
Turret Indexing: 15 Seconds
Number of Live Tool Stations: 36
Number of Live Tools: 72
Live Tool Speed: 4,000 RPM
Motor Powered: 5 Geared
Rapid Traverse (X1/X2/X3): 708 IPM
Rapid Traverse (Z1/Z2/Z3): 1181 IPM
Rapid Traverse (Y1/Y2/Y3): 3.54 (-1.57/+2.32) – 354 IPM

Hours
Power on: 11707 hrs
Run time: 3837 hrs
Cutting time: 1076 hrs

Dimensions
Machine with Chip Conveyor: 173″ x 85″ x 89″
Spindle Center Height: 42″
Machine Weight with Chip Conveyor: 18,500

Equipped With:
Fanuc 31iB CNC Control
Tri-Mist 850 G2 Mist Collector

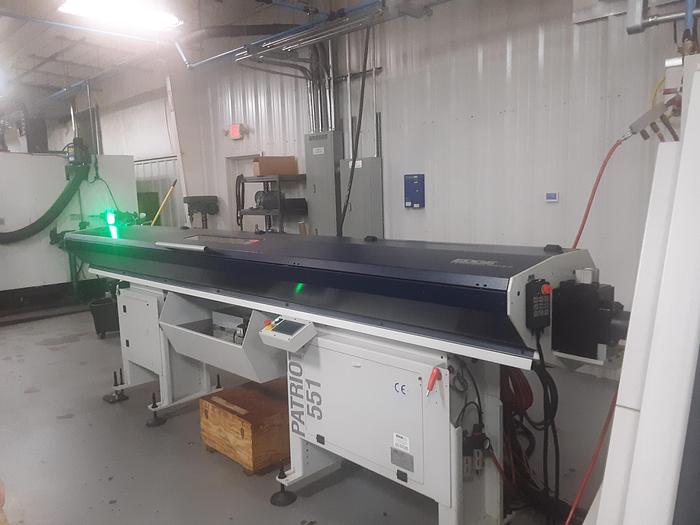

12 Foot Top X-Files Magazine Barfeed
LNS Magnetic Chip Conveyor in addition to Standard Chip Conveyor (2 chip conveyors included)
EU-1000-2 HP Coolant System
Royal QC-80 Main Spindle Collet Chuck
Royal QC-42 Sub-Spindle Collet Chuck
200mm Ejector Option
Fargo DA 51XN1/FE Transformer
