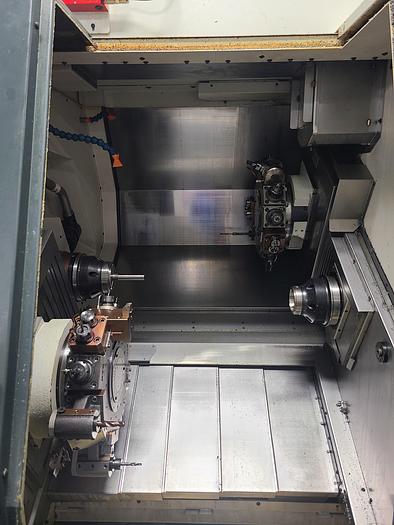

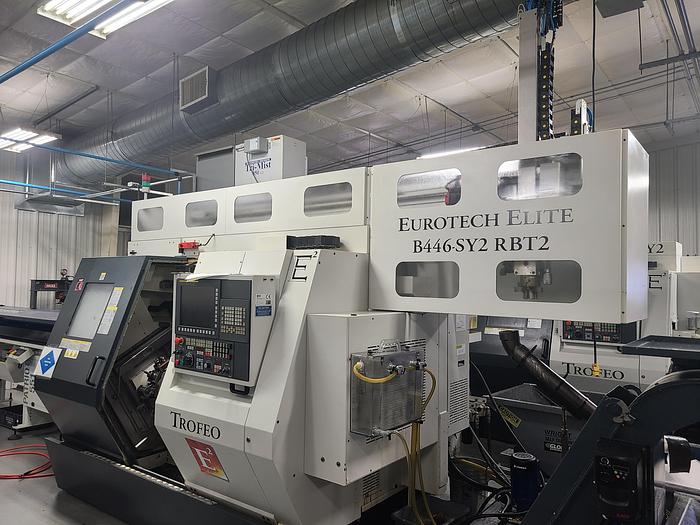

Eurotech #B446-SY2 RBT2 Trofeo, CNC lathe, 20" swing, 8" chuck, 2.5" bar, 37.5" centers, Fanuc 31iB, Tri-Mist 850 G2 mist collector, 12' Edge Patriot magazine barfeeder, 2020

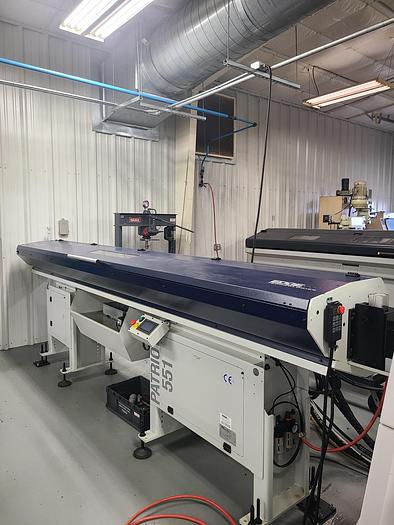

2.56” X 37.5” CNC Lathe with Fanuc 31iB Control, Tri - Mist 850 G2 Mist Collector, 12’ Edge Patriot Magazine Barfeeder, LNS Magnetic Chip Conveyor, 1000 PSI HP Dual Pump Coolant System Coolant Thru Sub-Spindle, Royal QG-65 Main Spindle Collet Chuck, Royal QG-42 Sub-Spindle Collet Chuck, 200mm Ejector Option and Fargo DA 51XN1/FE Transformer
GENERAL SPECIFICATIONS
Bar Capacity: 2.56”
Chuck Diameter: 8”
Distance Between Centers: 37.5”
Swing Over Diameter: 20”
Main Spindle Speed: 4,000 RPM
Main Spindle Nose: 6”
Main Spindle Bore: 3.15”
Main Spindle Chuck Diameter: 10”
Main Spindle Motor: 35HP
Main Spindle C - Axis Min. Programmable Values: 0.001°
Sub - Spindle Speed: 5,000 RPM
Sub - Spindle Nose: 5”
Sub - Spindle Bore: 2.17”
Sub - Spindle Chuck Diameter: 6/8”
Sub - Spindle Motor: 15 HP
Sub - Spindle C - Axis Min. Programmable Values: 0.001°
Sub - Spindle Offset Stroke: 4.72”
B - Axis Stroke (Rapid Traverse): 26.35 - 1181 IPM
Number of Turrets: 3
Number of Stations: 12
Number of Tools: 192
Turret Indexing: 15 Seconds
Number of Live Tool Stations: 36
Number of Live Tools: 72
Live Tool Speed: 4,000 RPM
Motor Powered: 5 Geared
Rapid Traverse (X1 / X2 / X3): 708 IPM
Rapid Traverse (Z1 / Z2 / Z3): 1181 IPM
Rapid Traverse (Y1 / Y2 / Y3): 3.54 (-1.57 / +2.32) - 354 IPM
INCLUDES: Fanuc 31iB Control, Tri - Mist 850 G2 Mist Collector, 12’ Edge Patriot Magazine Barfeeder, LNS Magnetic Chip Conveyor, 1000 PSI HP Dual Pump Coolant System Coolant Thru Sub-Spindle, Royal QG-65 Main Spindle Collet Chuck, Royal QG-42 Sub-Spindle Collet Chuck, 200mm Ejector Option and Fargo DA 51XN1/FE Transformer

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
