Eurotech #710SLL, 8" chuck, 2.7" bar, 27.5" centers, 7.87" dia., 11.81" lgth, A2-6, GE Fanuc 18i-T, twin turrets, sub spindle, live tool, 2000

Eurotech 710SLL Lathe, Twin Turrets, Sub Spindle, Live Tooling/Milling. 8.25" Chuck, 2.75" Bar Cap, 28" Between Spindles, 12" Length, 5K RPM, C-Axis, Live Holders, Coolant, & More

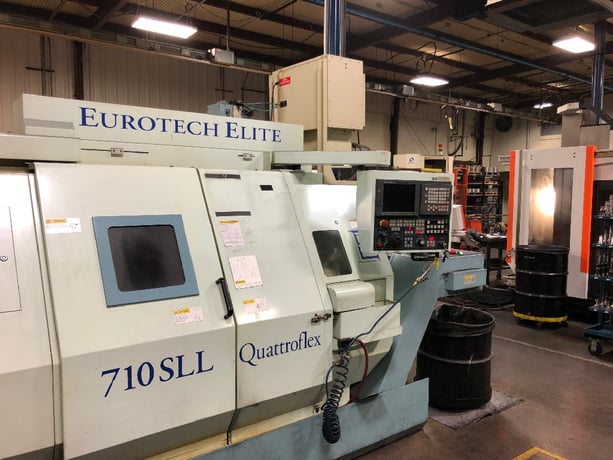

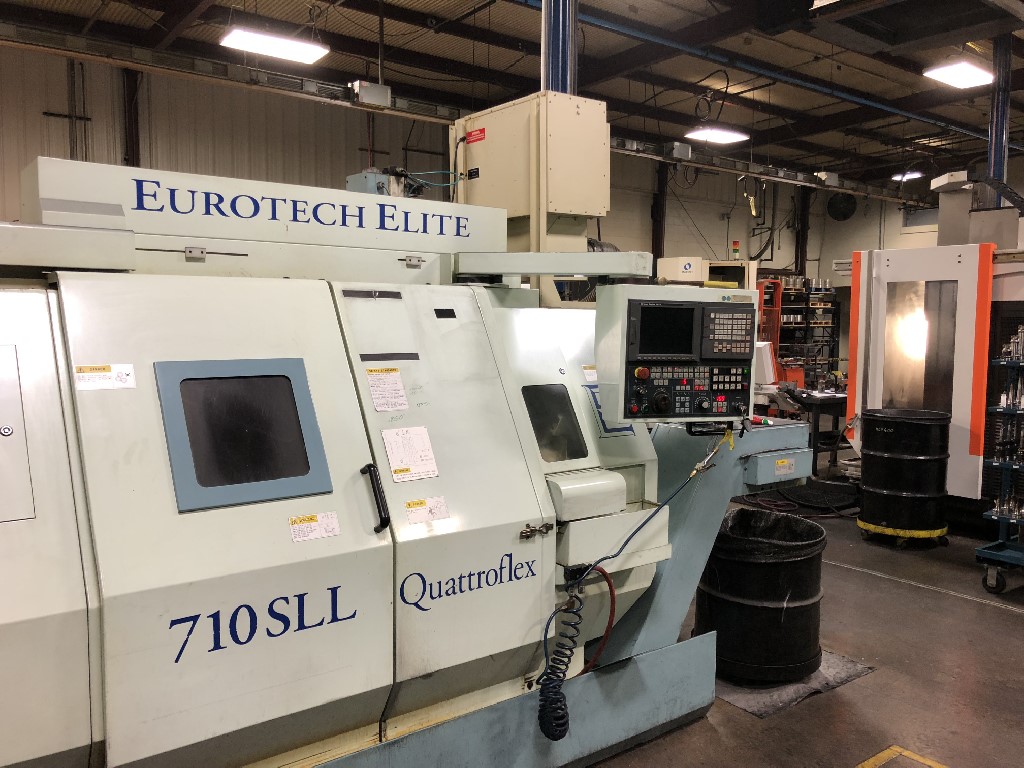

Eurotech 710SLL CNC Turning Center with Twin Turrets, Sub Spindle, Live Tooling

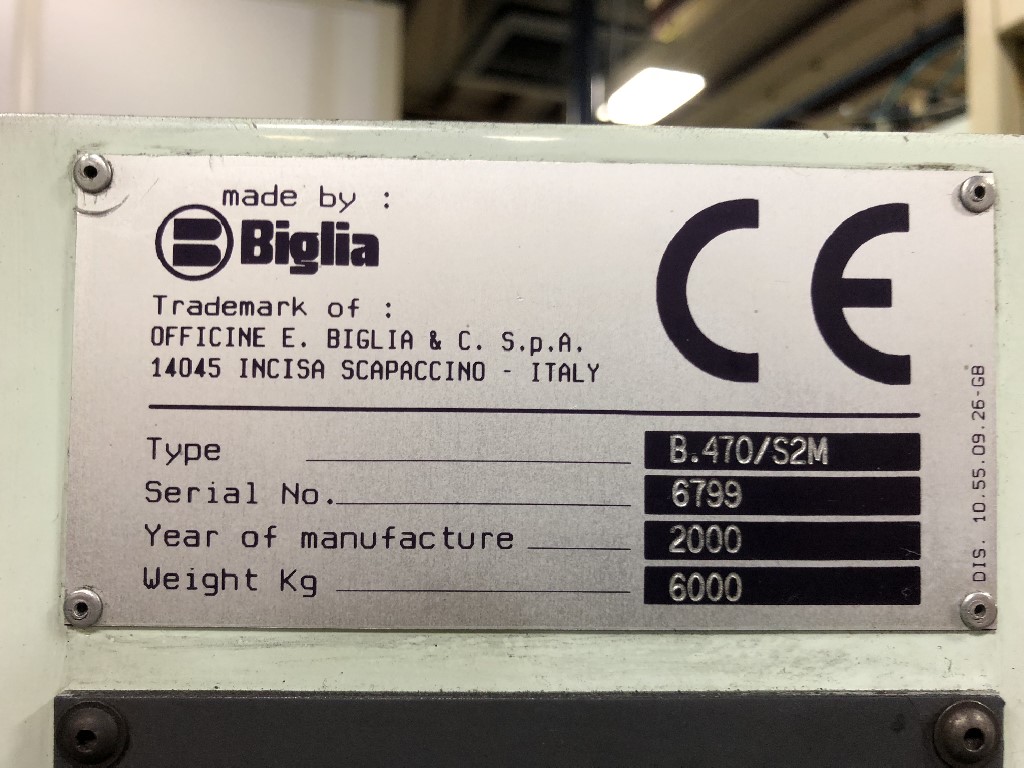

New: 2000; Installed: 2001
Specifications:
Chuck Size 8.25"
Max Diameter Bar Capacity 2.75"
Max Turning Diameter (Main / Sub Spindle) 7.87" / 6.3"
Distance Between Spindles 27.55"
Max Machining Length (Main / Sub) 11.81" / 7.87"
Spindle Motor 35 / 30 HP
Spindle Speed 100 - 5000 RPM
Spindle Bore 3.15"
Spindle Nose A2-6
Spindle Torque 160 ft. lbs.

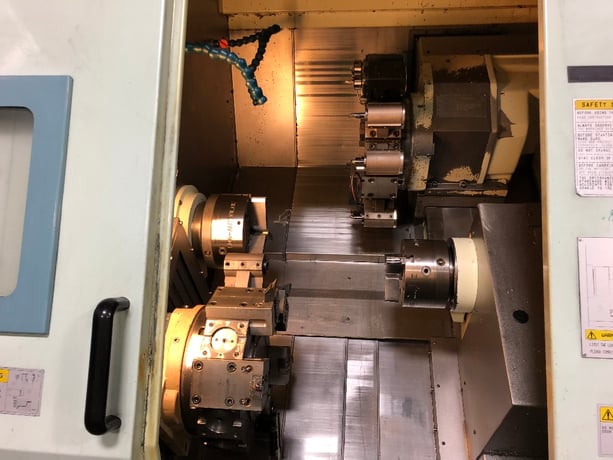

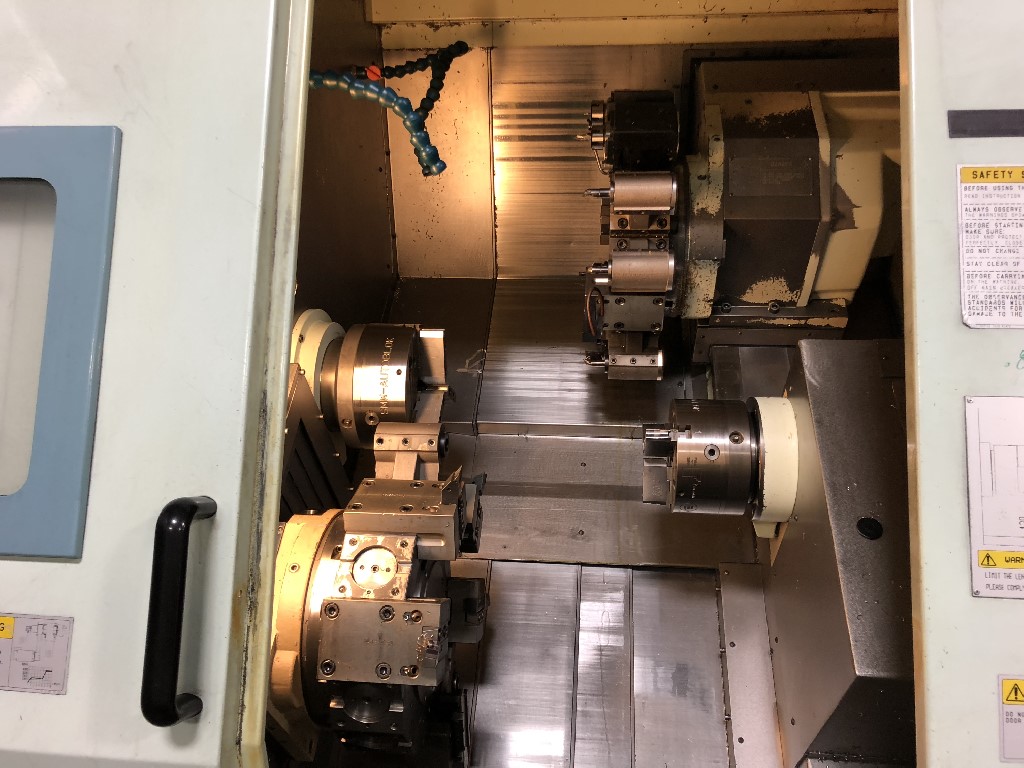

Tools (Upper / Lower Turret) 12 (All Live)
Milling Speed 100 - 4000 RPM
Milling Motor 5 HP
Sub Spindle Chuck 6.5"
Sub Spindle Bore 2.2"
Sub Spindle Nose A2-5
Sub Spindle Speed 100 - 5000 RPM
Sub Spindle Motor 15 / 12 HP
Sub Spindle Travel (X / Z) 4.72" / 16.53"
Rapid Traverse Rates (X / Z) 472 / 787 IPM
X-Axis Travel (Upper / Lower Turret) 6.5" / 6.22"
Z-Axis Travel (Upper / Lower) 14.96" / 9.45"
C-Axis Index (Main & Sub Spindle) .001 Degree
Machine Dimensions (L x W x H) 161.7" x 83.8" x 86.8"
Machine Weight 8690 lbs.
Equipped With:

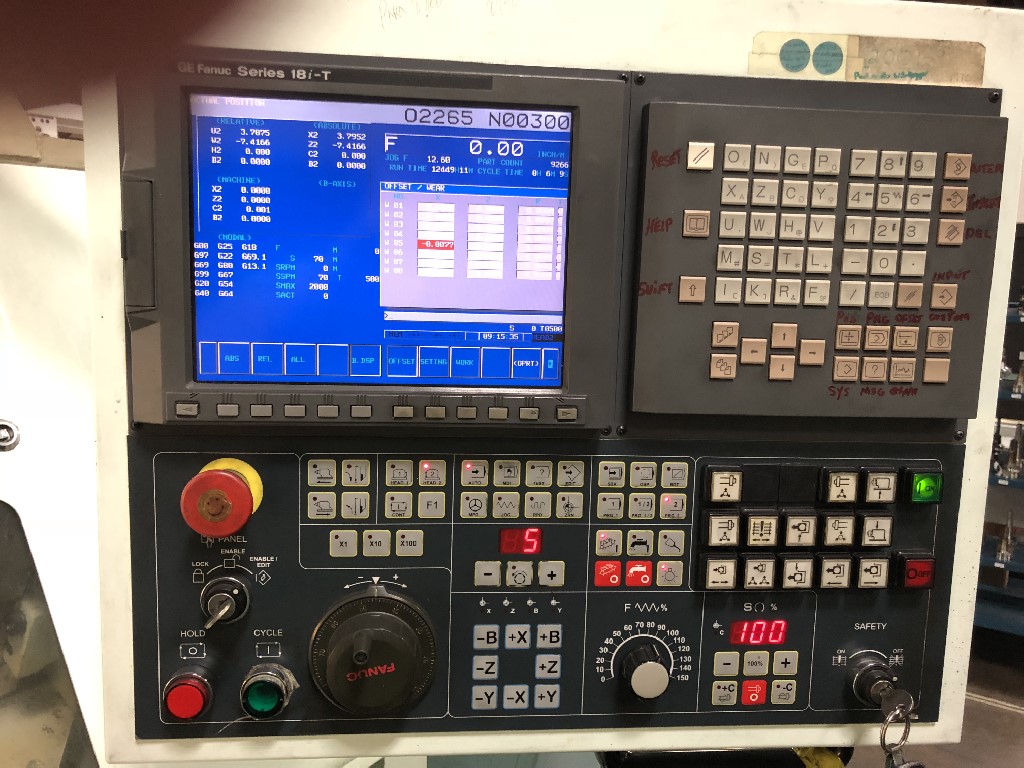

GE Fanuc 18i-T CNC Control w/ 10.4" Color LCD
C-Axis Milling Capability
Programmable Sub Spindle Moves in X- and Z-Axes

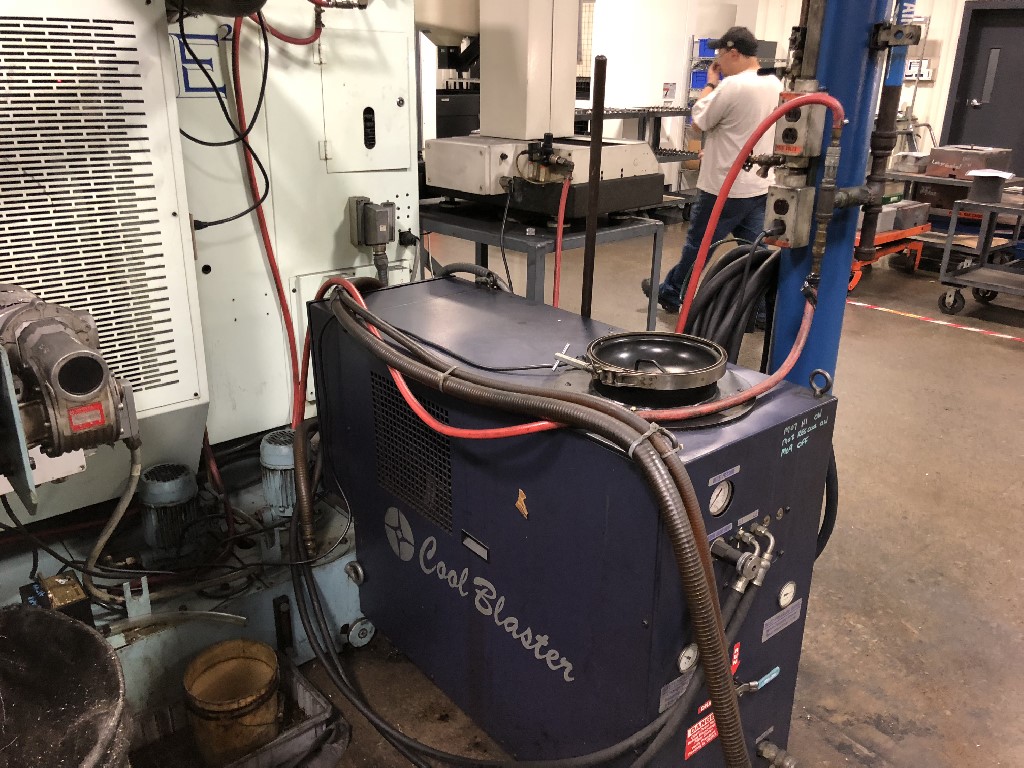

High Pressure Coolant

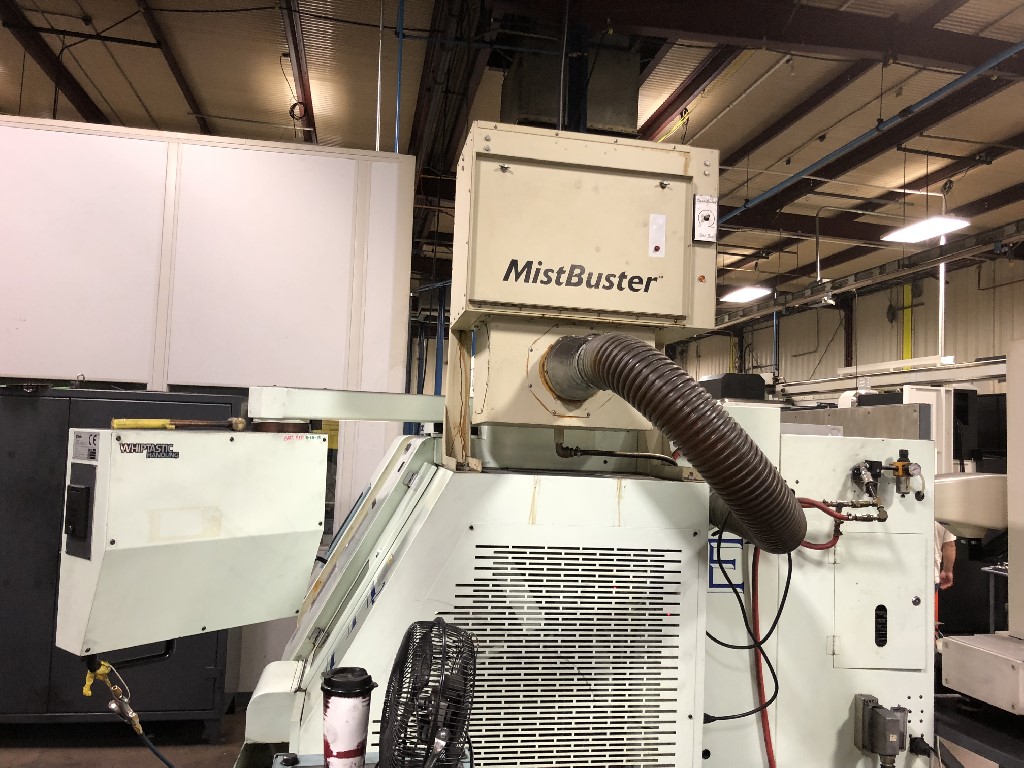

Mist Collector
SMW Autoblock Chucks
Collet Chucks
Live Tool Holders (Approx 9)
Parts Catcher
Bar Feeder Interface
Tool Eye
& More
Operating Time: 12,555 hours
Cutting Time: 5,244 hours
