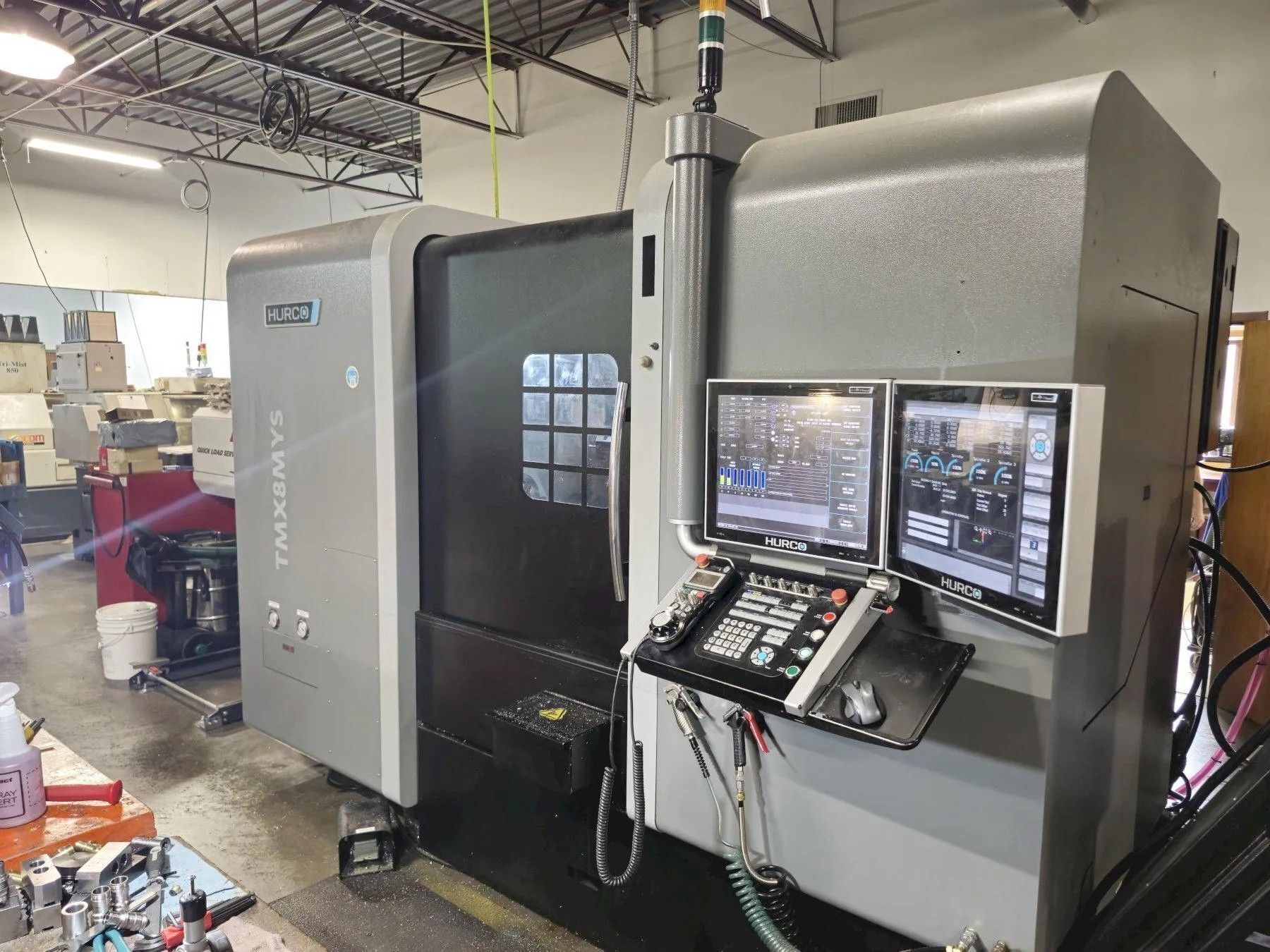

Hurco #TMX8MYSI, CNC mill/turn center, 22" swing, 8" chuck, 2.6" bar, 28.5" centers, 13.22" dia., 22" lgth, Y-axis, sub spindle, live tooling, LNS Quick Load Servo Short magazine barfeed, 2023

HURCO TMX8MYSI CNC Mill Turn Center 2023, used. Features 22" swing over bed, dual spindles, Y-axis, live toolholders, chip conveyor, high-pressure coolant, barfeed, and manual. Ideal for complex precision tasks. Equipped with dual screen and pendant control.
2023 HURCO TMX8MYSI
SPECIFICATIONS:
Swing Over Bed..................... 22"
Turning Diameter................... 13.22"
Turning Length..................... 22"
Distance Between Spindles.......... 28.5"
Chuck Size 1....................... 8"
Spindle Nose 1..................... A2 - 6
Spindle Bore Diameter 1............ 3.1"
Bar Capacity 1..................... 2.6"
Spindle Speeds 1................... 5,000 RPM
Spindle Horsepower 1............... 33 hp
Chuck Size 2....................... 6"
Spindle Speeds 2................... 6,000 RPM
Spindle Horsepower 2............... 20 hp
X1 - Axis Travel................... 11.4"
Z1 - Axis Travel................... 22"
Y1 - Axis Travel................... 4.4"
C - Axis Indexing 1................ 0.001
C - Axis Indexing 2................ 0.001
W - Axis Travel Sub Spindle........ 25.2"
Rapid Traverse Rate - X1........... 945 ipm
Rapid Traverse Rate - Z1........... 1181 ipm
Rapid Traverse Rate - Y1........... 4.4 ipm
Turret Tool Positions 1............ 1265 station
Turret Rotary Tool Speeds 1........ 5,000 RPM
Turret Rotary Tool Horse Power 1... 8.4 hp
Control............................ CNC (HURCO DUAL SCREEN TECHNOLOGY)
Weight............................. 0.00
EQUIPPED WITH:
Hurco Dual Screen Display
LNS Quick Load Servo Short Magazine Barfeed
All-digital drives and motors and absolute encoders on all linear axes
Hand Pendant Control
Live Toolholders - Axial & Radial
Chip Conveyor
Coolant System - High Pressure
Parts Catcher
Manuals
