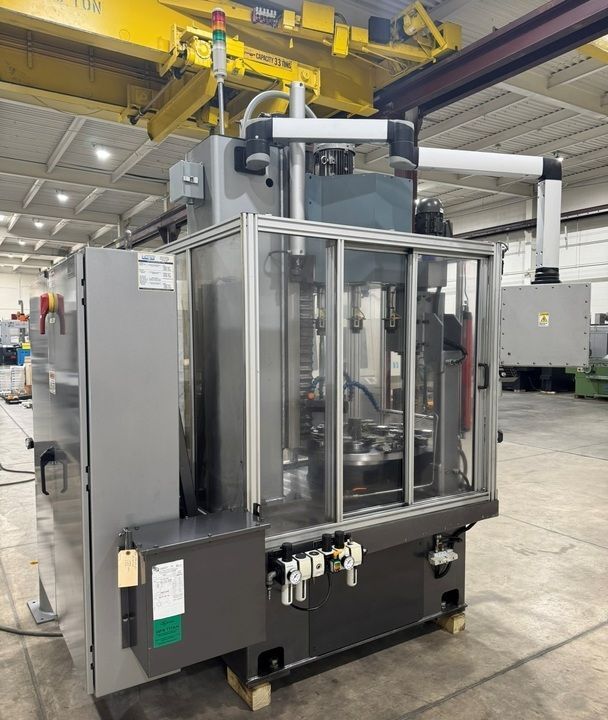

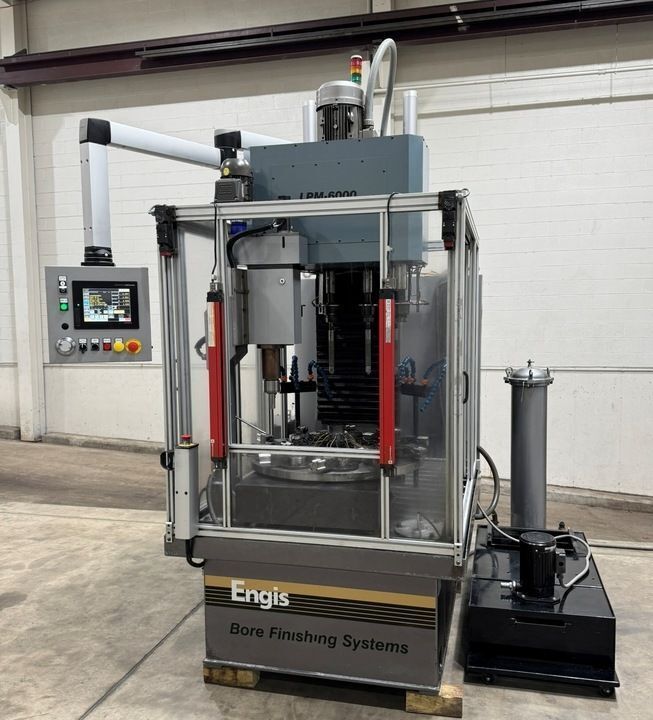

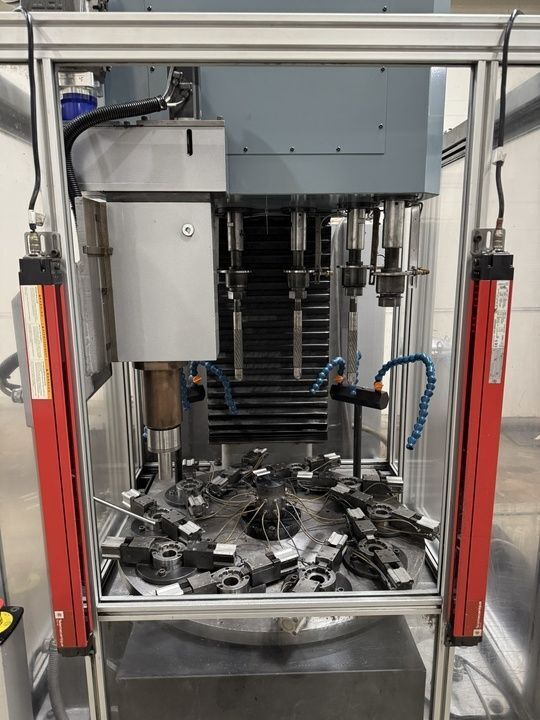

Engis #LPM-6000, up to 6" ID, 6 spindle + chamber, 10 pos table, coolant filter, Mitsubishi Control, 2013

New - 2013
Serial No. 2012339
SPECIFICATIONS:
Bore diameter range............up to 6"
Head travel (Z-Axis) servo feed............25"
Spindle nose to table - maximum............29"
Able to process..............2 parts/cycle

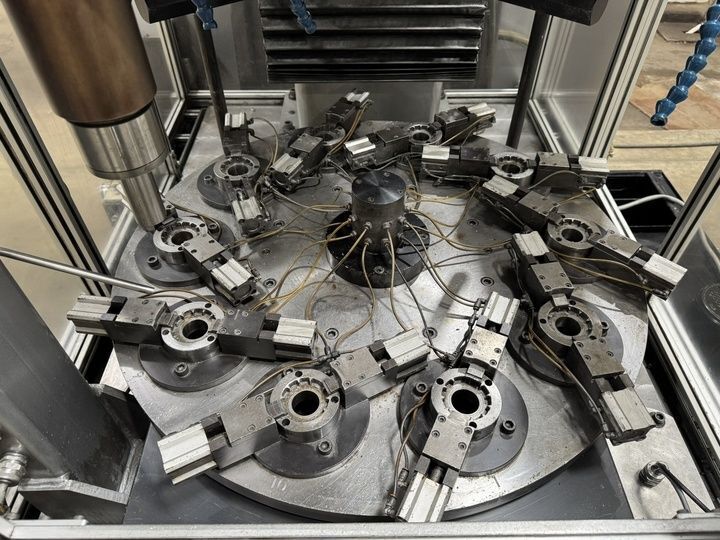

Indexing Table:
- Number of stations............10
- Diameter............34"

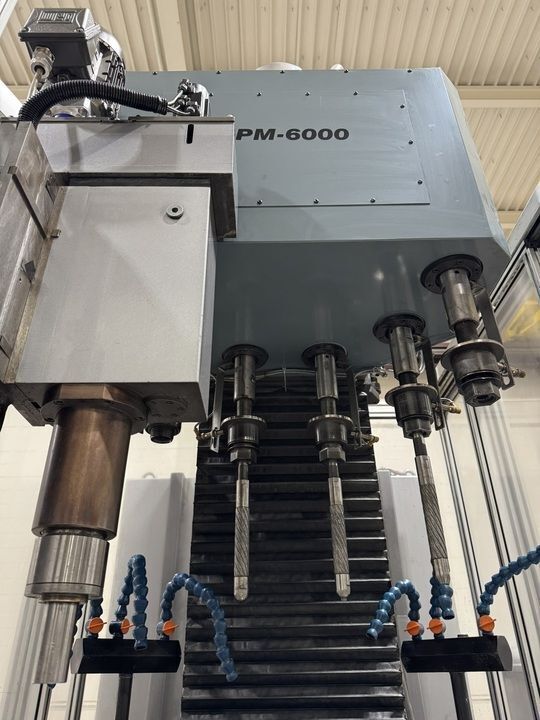

Spindles:
- Number............6
- Speeds - infinitely variable............100 - 1,500 RPM
- Motor............7.5 HP
- Size.............1-3/8" ASA
- Feed rate - maximum............350 in/min

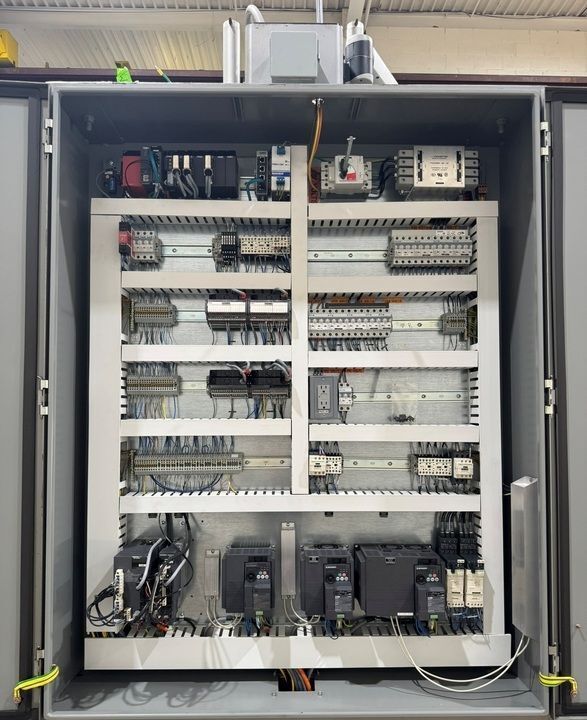

Electrics............380-480VAC, 3Ph, 50/60Hz, 30FLA
Machine dimensions - catalog............58"(L-R) x 85"(F-B) x 110"(H)
Coolant tank dimensions - actual............54" x 24" x 24"(H)
Canister filter dimensions - actual............20" x 15" x 52"(H)
Weight - catalog............5,550 Lbs.
EQUIPPED WITH:

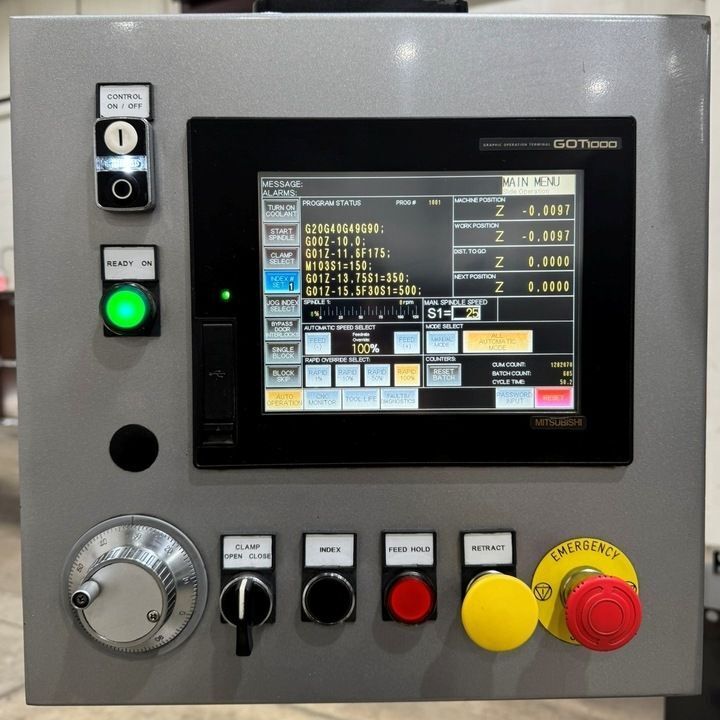

Mitsubishi GOT1000
Chamfer station
Manifold for pneumatic activated clamping
Coolant tank

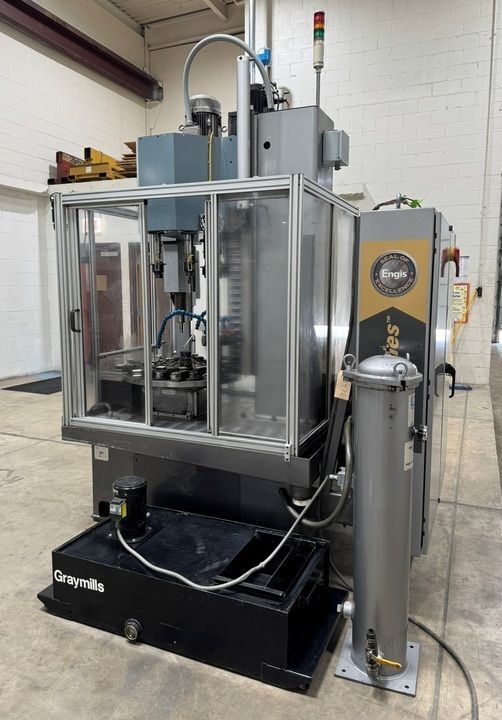

Canister filter for coolant
*Preliminary specifications, pending confirmation.
