Elumatec #DG-244, automatic double end miter saw, 2016

Estimated monthly payment valid upon approved credit.

Request Formal Quote

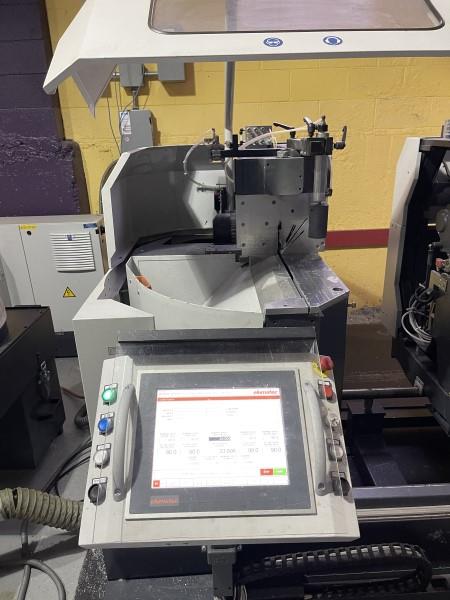

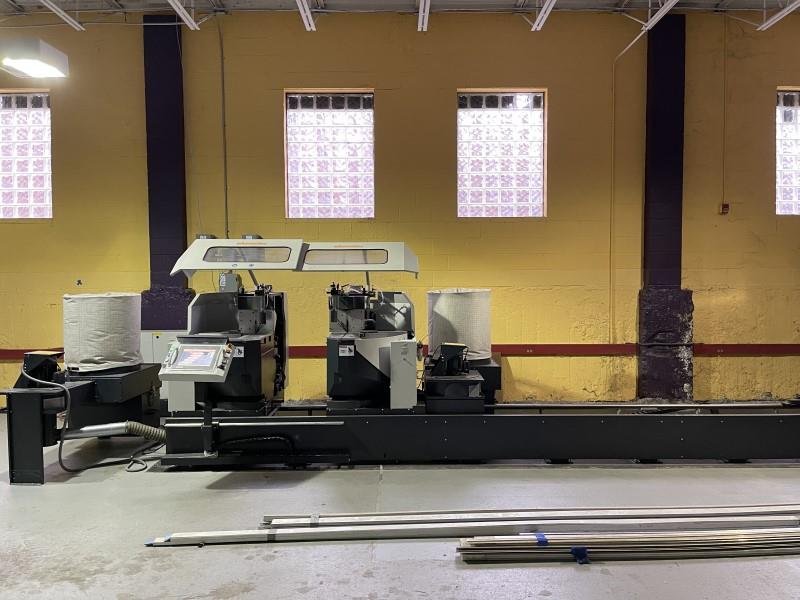

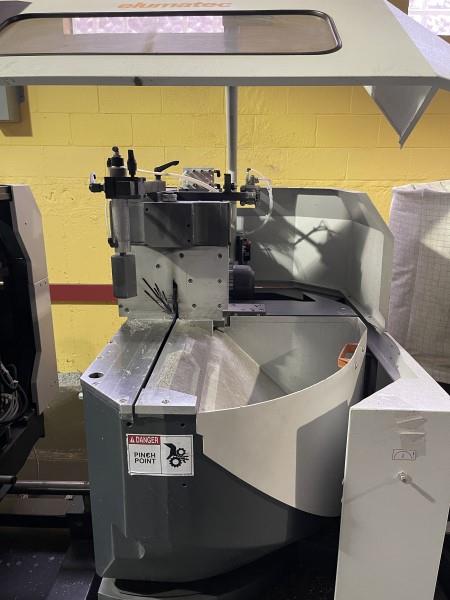

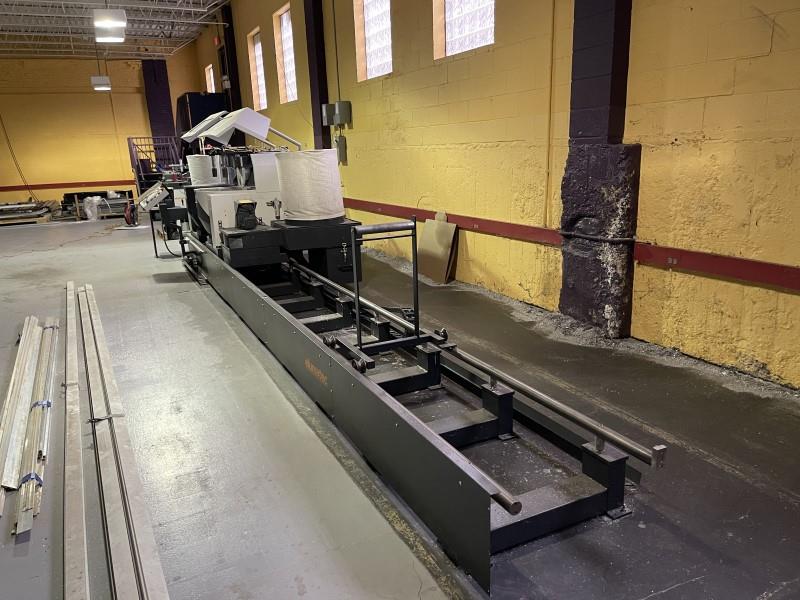

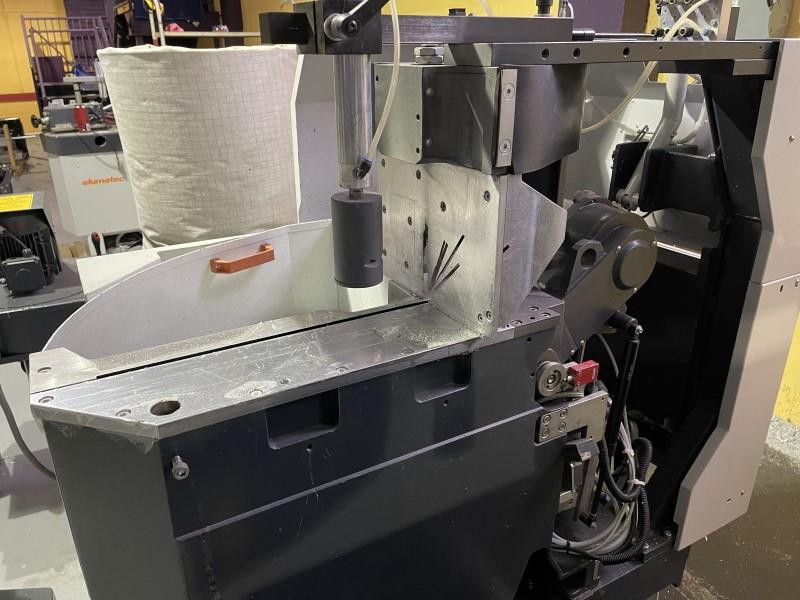

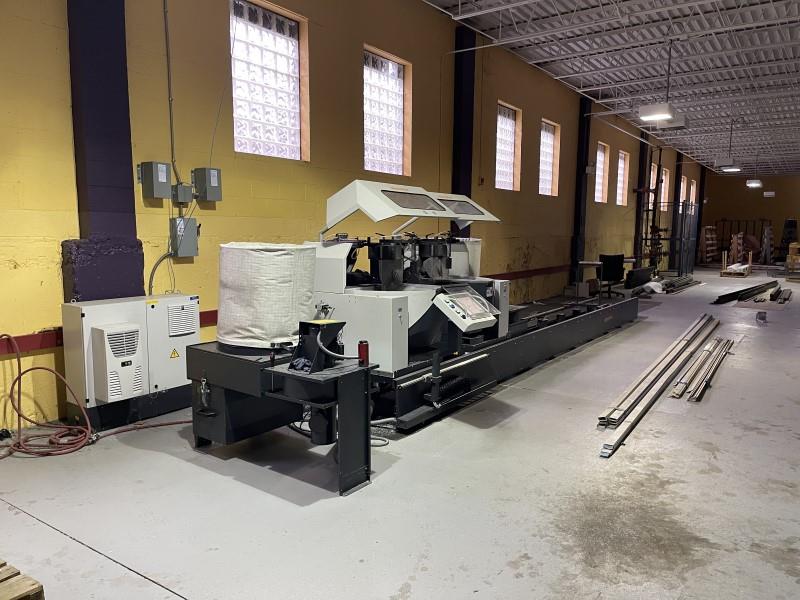

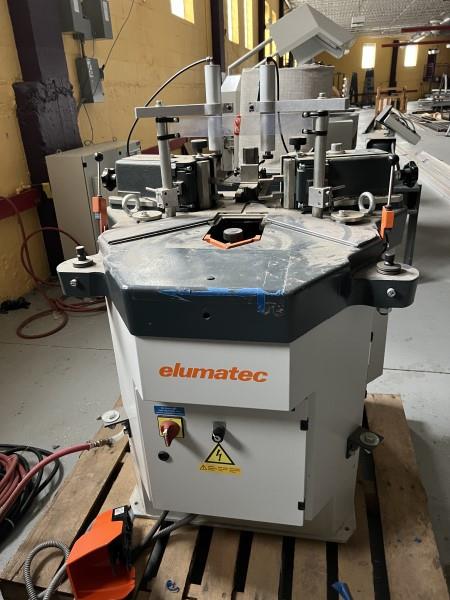

ELUMATEC DG 244 Twin Head Double Miter Saw For Window Profile Fabrication - 6 Meter+ ELUMATEC EP 124 Corner Crimper + ELUMATEC AS 70 Copy RouterCNC double-head miter saw with Elumatec reliable principle “Cutting from below"; provides unhindered access to support table with a large saw blade diameter and optimal use of the saw blade offers an ideal cutting capacity for all cutting variations.External dimension cuts at all angle positions. This means no length calculations are necessary when cutting profiles of different heights. The universal pivoting and tilting of both saw units allow cutting of high and wide profiles as well as every type of compound miter. Consequently, many profiles can be cut without support blocks.External-dimension cuts are possible for all cutting variations. Consequently, no complicated length calculations are necessary.This Offering Includes [3] Machines: ● ELUMATEC DG 244 Twin Head Double Miter Saw ● ELUMATEC EP 124 Corner Crimper ● ELUMATEC AS 70 Copy Router ● ELUMATEC DG 244 Twin Head Double Miter SawSpecifications: Cutting bed length: 6000 mm (19.7')Min. cutting length at 90: 375 mm (13-3/4")Min. cutting length tilted at 45: 375 mmPivoting range inwards: 90 - 45 (up to 22.5 manual with digital display)Tilting range inwards pneumatically: 90 - 45Saw blade diameter: 550 mmSaw blade speed: 2,250 RPMPower output per motor: 4 kW (5.5 HP)Compressed air supply: 7 bar (95 PSI)Features: Capability for series production as well as for special applicationsUniversal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound miterExternal-dimension cuts are possible for all cutting variants. Consequently, no complicated length calculations are necessaryPivoting range with digital angle displaySafety hoodsEquipped with digital display as standardPulsed coolant systemHydro-pneumatic saw feedAdvanced E555 (Windows) Computer(2) Vertical Pneumatic ClampsUninterruptible Power SupplyWorkpiece Support - MoveableChip Extraction System CompleteTransformer● ELUMATEC EP 124 Corner CrimperSpecifications:Pressing height 140 mmPressing force 70 kN (7 t)Pneumatic driveCompressed air supply: 7 barAir consumption per working cycle 35 lDimensions: 1100 x 950 x 1230 mmWeight: 545 kGFeatures:For pressing profiles with large dimensions with the highest quality requirementsEasy to adjust and operate and has short changeover times Extremely high pressing force due to large-volume bellows cylinder (maintenance free)With retractable, hydro-pneumatically controlled counter bearingThe specially-designed counter bearing head allows the pressing of frames with an inner dimension starting at 150 mm (clear dimension)The pressing depth can be set separately for each tool carriageAn adjustable pressing blade is also available to compensate for the profile chamber offset (-5 to 15 mm as standard, 15 to 35 mm as an option)Support arms and pressing blades are included as
