AMP T400 Double Miter Saw Alphamaccine - Industrial Vertical Drop Saw - Excellent Condition

Estimated monthly payment valid upon approved credit.

Request Formal Quote

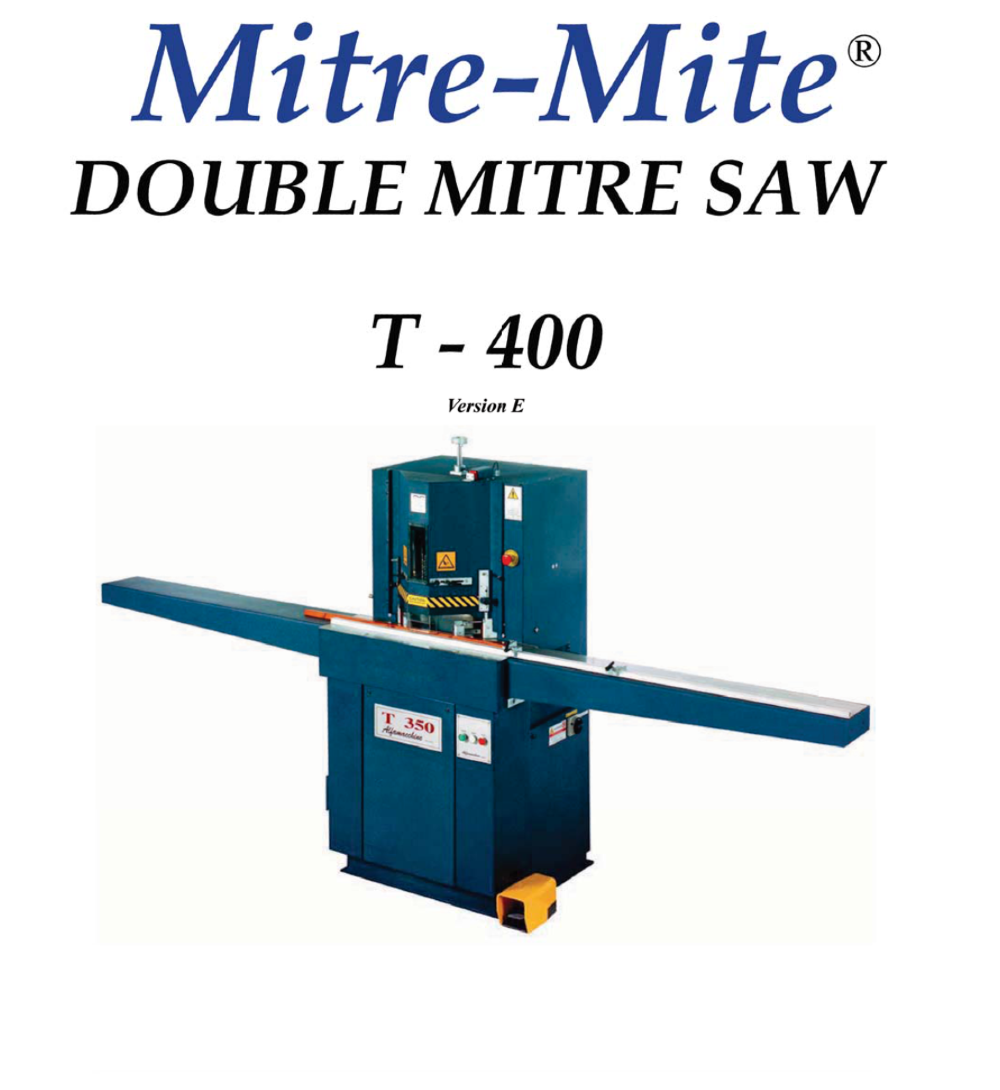

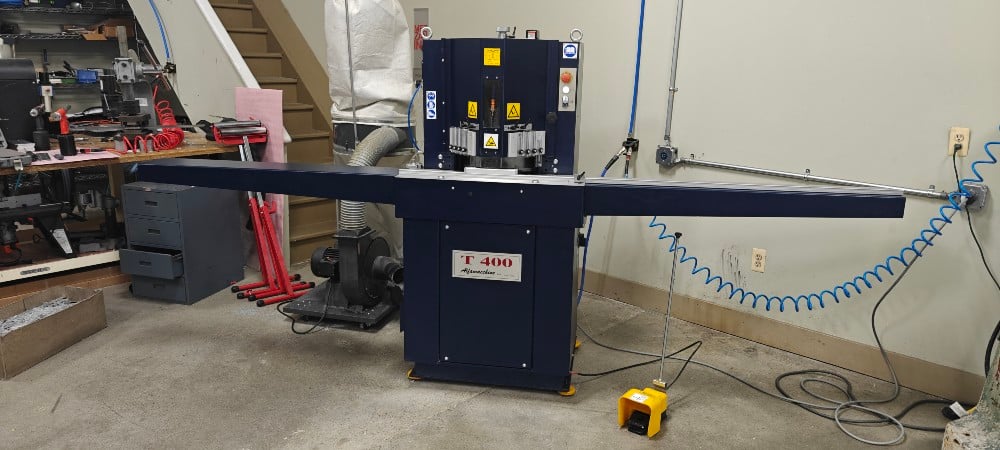

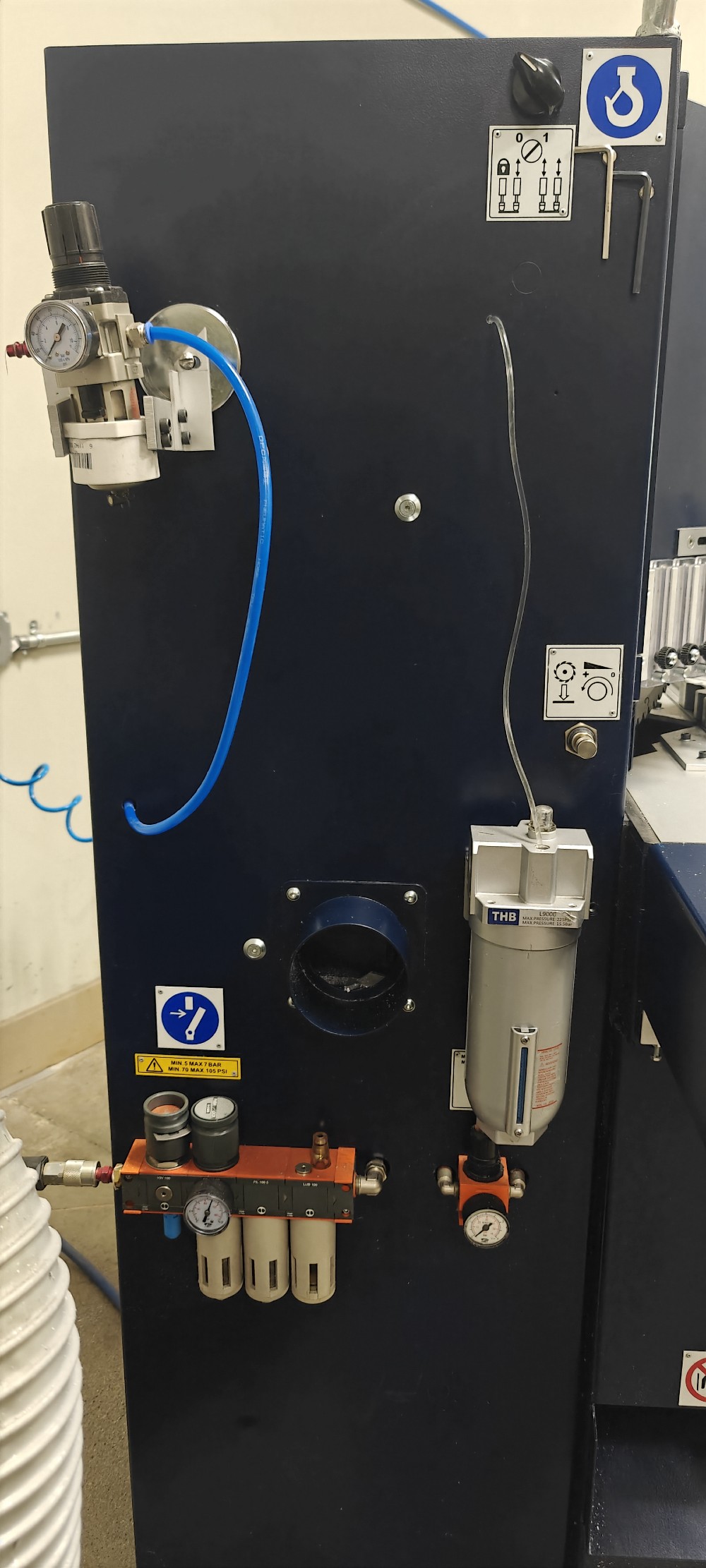

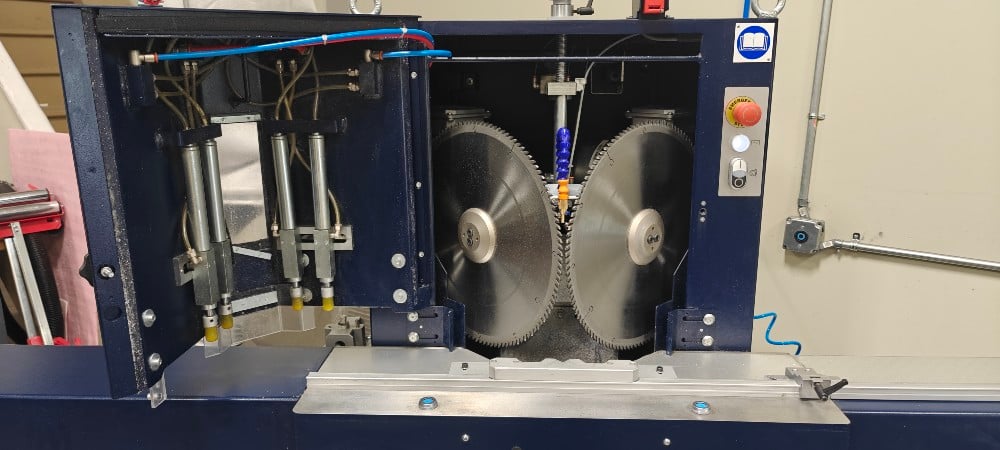

This AMP / Alphamachines T‑400 is a heavy‑duty double‑miter production saw designed for precision cutting of picture frames, furniture components, window and door profiles, and loom frames. It uses a vertical drop‑saw system with both blades fixed at 45°, delivering clean, accurate miters for high‑volume shops. The machine features a pneumatically controlled blade descent, with dual cylinders that clamp the moulding securely on the working bench for vibration‑free cuts. A low‑air‑consumption pneumatic return system lifts the blades quickly for efficient cycle times. This unit is mounted on a solid floor stand with extended left and right benches, making it ideal for long mouldings and production environments. It includes integrated dust‑collection ports, a lockable air filter/lubricator set, and full electrical and pneumatic systems. Technical Specifications (From Manufacturer Manual) Working Bench & Dimensions Right bench extension: 1200 mm Left bench extension: 1200 mm Working bench length: 800 mm Working bench height: 950 mm (floor to bench) Total machine weight: 380 kg Cutting Capacity Profile width: 15–60 mm Profile height: 10–80 mm Motors & Performance Motor power: 2 × 1.5 kW Max blade speed: 2800 RPM Total power consumption: 3 kW Pneumatics Pneumatic feed: 5–7 bar Pneumatic blade descent + clamping Pneumatic rapid blade return (low air consumption) Electrical Power supply: 220V, 3‑phase Dust Collection Dust collector ports: 100 mm Main Components Floor stand + working bench assembly Dual 45° vertical‑drop blade system (Z‑axis descent) Lockable air filter/lubricator Pneumatic system Electrical control system
