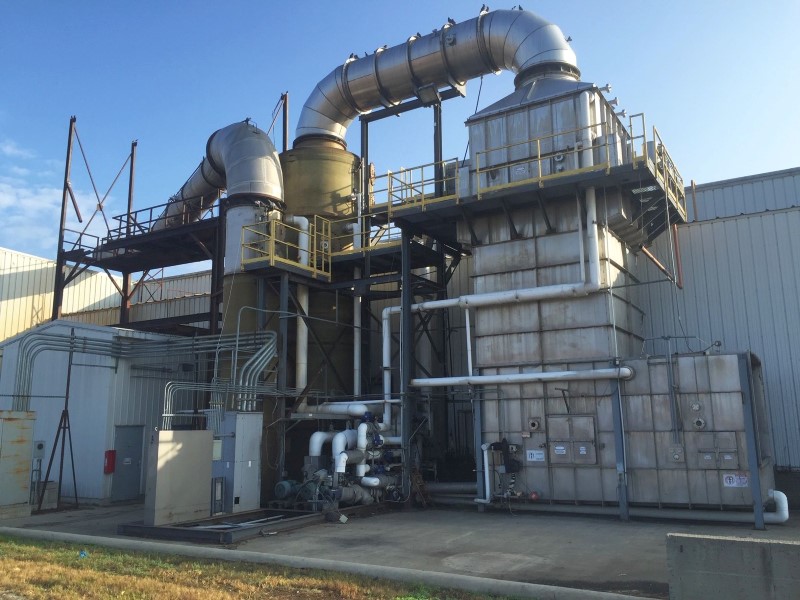

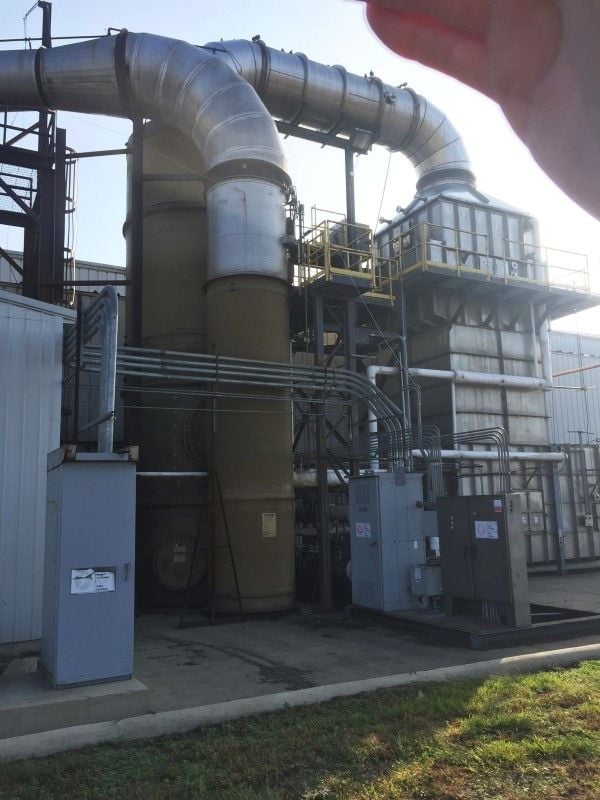

Eisenmann #110,000-CFM, Wet Electrostatic Precipitator, Total Inlet Gas Stream Flow Rate Wet Basis 52000 & 62000 (ACFM), Square tube, Down flow, 2007

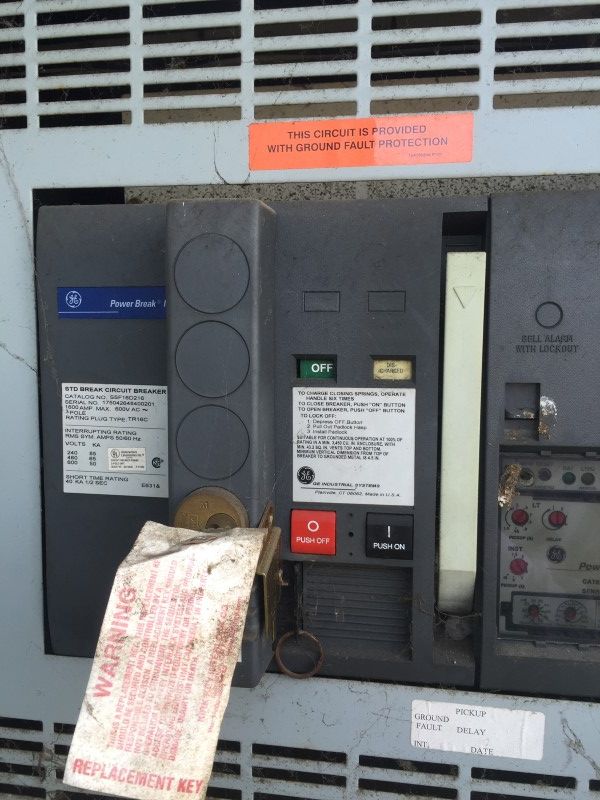

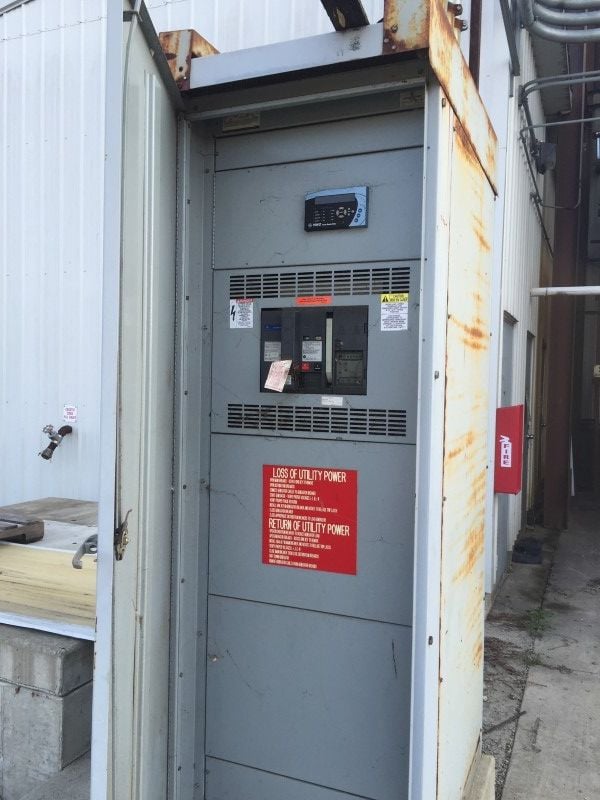

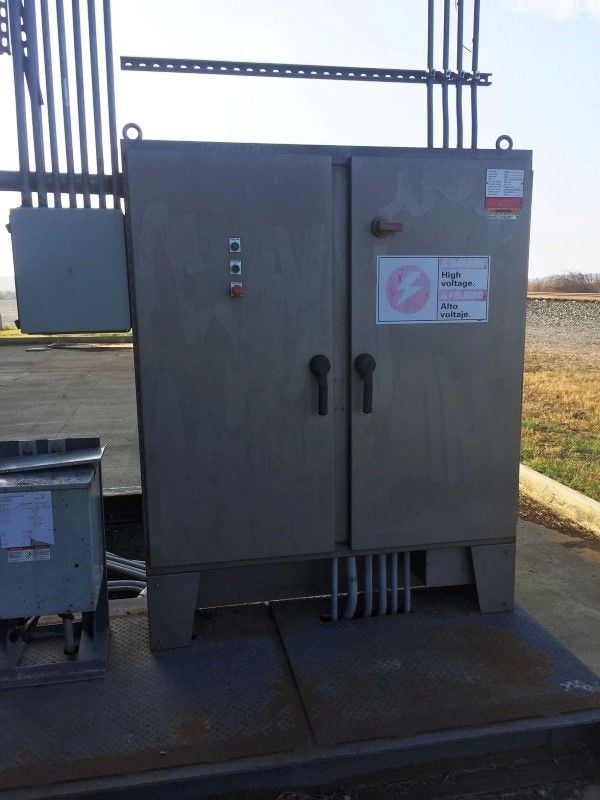

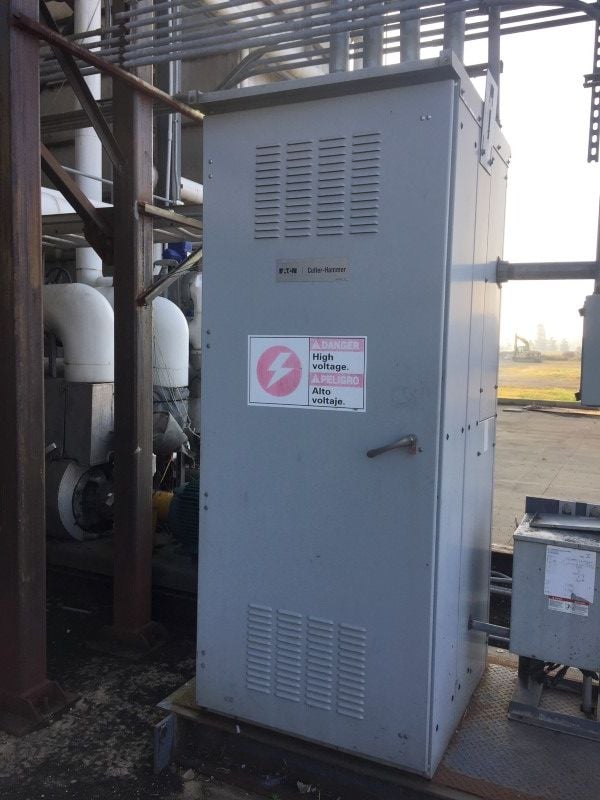

EISENMANN Dual Stream WET ELECTROSTATIC PRECIPITATOR (WESP) System for Gas Cleaning with Adjustable Venturi Type and Spray Tower Scrubber section: Complete with the following major components and features: -- Instrumentation including pressure, flow, temperature, level and pH sensors. -- Complete control panel including Man-Machine Interface, motors starters, relays, power supplies and disconnect. -- Pump skid package including: 1500 GPM re-circulation pump, bleed pump and VFD, interconnecting piping and valves. -- Platforms and ladders WESP System Design: --Total Inlet Gas Stream Flow Rate Wet Basis 52,000 and 62,000 (ACFM) -- Type: Square Tube -- Direction of Flow: Down Flow -- System Weight (dry): 24 tons -- System Weight (wet, operating): 47 tons -- System Weight: 47 tons -- Footprint of WESP Box (L x W x H): 11’ x 11’ x 24’ -- Overall Footprint (L x W x H): 39’ x 12’ x 35’ -- Material of Construction -- WESP: 304 SS -- Spray Tower: FRP -- Venturi Adjustable Rod Deck Scrubber: AL6XN, Hastelloy, FRP -- Piping: PVC, PP
