Manufacturer: Dn Solutions
Model: PUMA-DNT-2600LM
Year: 2024
Swing: 25.6
Chuck: 12
Bar Capacity: 3.2
Centers: 45.0
Stock # 10283
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

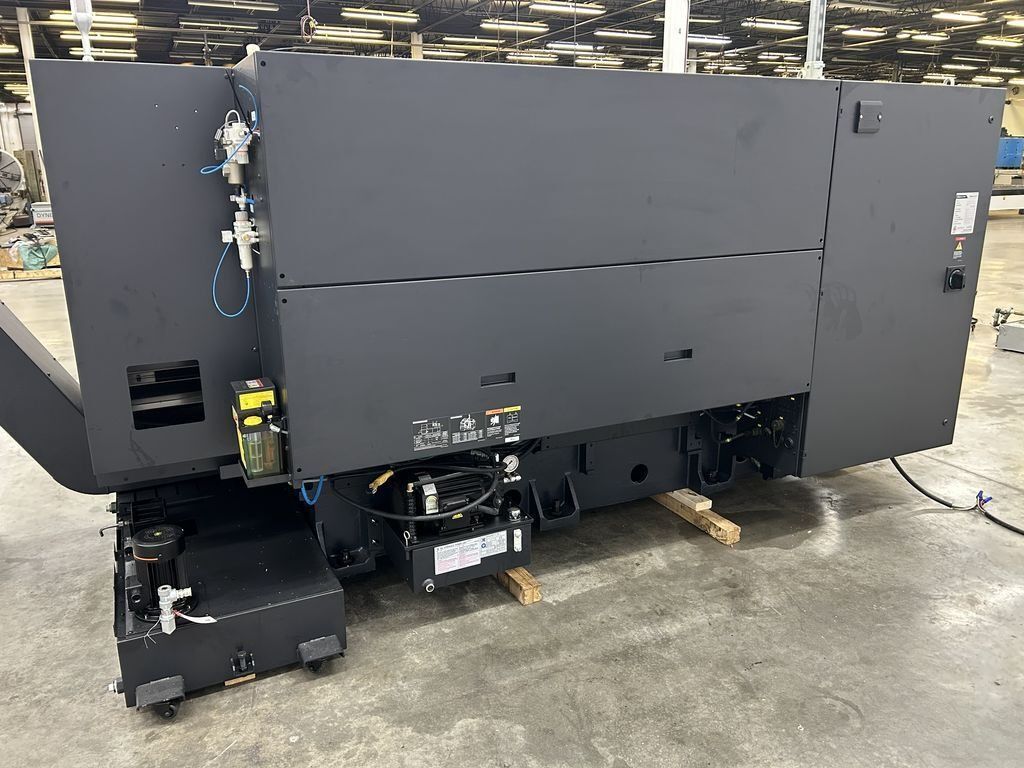

DN SOLUTIONS PUMA DNT 2600LM available, a 2024 model CNC universal turning and milling center. This hardly used 3-axis lathe from renowned manufacturer DN SOLUTIONS is ideal for precise and efficient machining tasks.
2024 DN SOLUTIONS PUMA DNT 2600LM
SPECIFICATIONS:
Swing Over Bed....................... 25.6"
Machining Length..................... 42.4"
Distance Between Centers............. 45"
Turning Diameter, Shaft Diameter..... 18.1"
Distance Between Spindles............ 0"
Chuck Size 1......................... 12"
Spindle Nose 1....................... A2 - 8
Spindle Bore Diameter 1.............. 3.6"
Spindle Bar Capacity 1............... 3.2"
Spindle Speeds 1..................... 3,500 RPM
Spindle Horsepower 1................. 34.9 hp
X1 - Axis Travel..................... 10.2"
Z1 - Axis Travel..................... 43.3"
C1 - Axis Travel..................... .001
W - Axis Travel Sub Spindle.......... 0
Rapid Traverse Rate - X1............. 945 in/min.
Rapid Traverse Rate - Z1............. 1,181 in/min.
Spindle Torque....................... 542
Gear Ranges.......................... 2
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 6,000 RPM
Turret Rotary Tool Horse Power 1..... 7.5 hp
Tailstock Quill Diameter............. 3.9"
Tailstock Taper...................... MT 5
Tailstock Quill Travel............... 3.9"
Programmable Tailstock............... YES
Tailstock Travel..................... 43.3"
# Axis............................... 3
Bar Capacity......................... 3.2"
Tailstock............................ YES
Live Tooling......................... 'No'
Sub Spindle.......................... NO
Control.............................. CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Weight............................... 0.00
EQUIPPED WITH:
FANUC SERIES I CNC CONTROL
STANDARD STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
12" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
2024 DN SOLUTIONS PUMA DNT 2600LM
SPECIFICATIONS:
Swing Over Bed....................... 25.6"
Machining Length..................... 42.4"
Distance Between Centers............. 45"
Turning Diameter, Shaft Diameter..... 18.1"
Distance Between Spindles............ 0"
Chuck Size 1......................... 12"
Spindle Nose 1....................... A2 - 8
Spindle Bore Diameter 1.............. 3.6"
Spindle Bar Capacity 1............... 3.2"
Spindle Speeds 1..................... 3,500 RPM
Spindle Horsepower 1................. 34.9 hp
X1 - Axis Travel..................... 10.2"
Z1 - Axis Travel..................... 43.3"
C1 - Axis Travel..................... .001
W - Axis Travel Sub Spindle.......... 0
Rapid Traverse Rate - X1............. 945 in/min.
Rapid Traverse Rate - Z1............. 1,181 in/min.
Spindle Torque....................... 542
Gear Ranges.......................... 2
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 6,000 RPM
Turret Rotary Tool Horse Power 1..... 7.5 hp
Tailstock Quill Diameter............. 3.9"
Tailstock Taper...................... MT 5
Tailstock Quill Travel............... 3.9"
Programmable Tailstock............... YES
Tailstock Travel..................... 43.3"
# Axis............................... 3
Bar Capacity......................... 3.2"
Tailstock............................ YES
Live Tooling......................... 'No'
Sub Spindle.......................... NO
Control.............................. CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Weight............................... 0.00
EQUIPPED WITH:
FANUC SERIES I CNC CONTROL
STANDARD STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
12" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
Get Your Price from Used CNC LLC!
