Manufacturer: Daewoo Doosan
Model: PUMA-DNT-2600L
Year: 2024
Swing: 25.6
Chuck: 12
Bar Capacity: 3.2
Centers: 45.0
Stock # 10219
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description
DN SOLUTIONS PUMA DNT 2600L available, a 2024 model CNC universal turning and milling center. This hardly used 2-axis lathe from renowned manufacturer DN SOLUTIONS is ideal for precise and efficient machining tasks.
2024 DN SOLUTIONS PUMA DNT 2600L
SPECIFICATIONS:
Swing Over Bed..................... 25.6"
Machining Length................... 42.4"
Distance Between Centers........... 45"
Turning Diameter, Shaft Diameter... 18.1"
Distance Between Spindles.......... 0"
Chuck Size 1....................... 12"
Spindle Nose 1..................... A2 - 8
Spindle Bore Diameter 1............ 3.6"
Spindle Bar Capacity 1............. 3.2"
Spindle Speeds 1................... 3,500 RPM
Spindle Horsepower 1............... 34.9 hp
X1 - Axis Travel................... 10.2"
Z1 - Axis Travel................... 43.3"
C1 - Axis Travel................... .001
W - Axis Travel Sub Spindle........ 0
Rapid Traverse Rate - X1........... 945 in/min.
Rapid Traverse Rate - Z1........... 1,181 in/min.
Spindle Torque..................... 542
Gear Ranges........................ 2
Turret Configuration 1............ 12
Tailstock Quill Diameter........... 3.9"
Tailstock Taper.................... MT 5
Tailstock Quill Travel............. 3.9"
Programmable Tailstock............. YES
Tailstock Travel................... 43.3"
Bar Capacity....................... 3.2"
Tailstock.......................... YES
Live Tooling....................... 'No'
Sub Spindle........................ NO
Control............................ CNC
Weight............................. 0.00
EQUIPPED WITH:

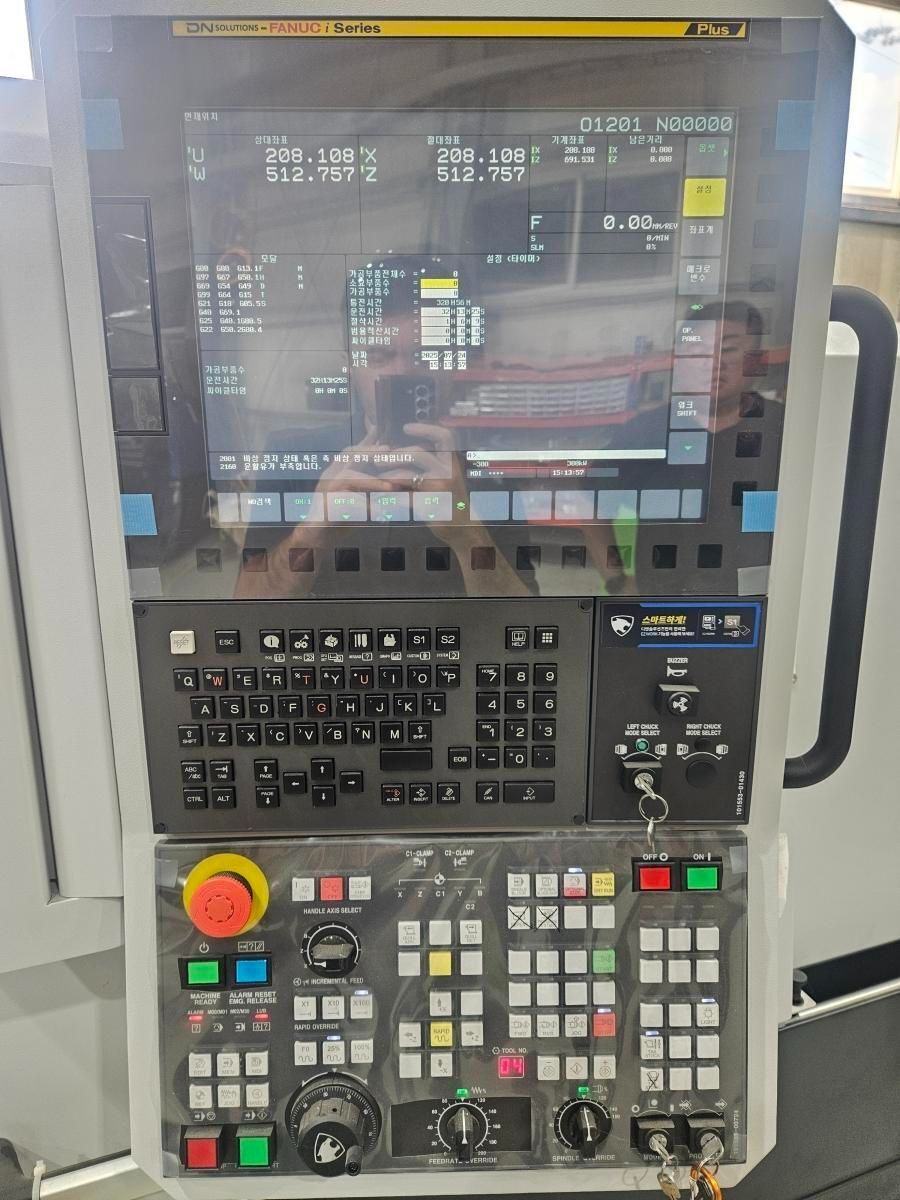

FANUC SERIES I CNC CONTROL
STANDARD STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
12" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
2024 DN SOLUTIONS PUMA DNT 2600L
SPECIFICATIONS:
Swing Over Bed..................... 25.6"
Machining Length................... 42.4"
Distance Between Centers........... 45"
Turning Diameter, Shaft Diameter... 18.1"
Distance Between Spindles.......... 0"
Chuck Size 1....................... 12"
Spindle Nose 1..................... A2 - 8
Spindle Bore Diameter 1............ 3.6"
Spindle Bar Capacity 1............. 3.2"
Spindle Speeds 1................... 3,500 RPM
Spindle Horsepower 1............... 34.9 hp
X1 - Axis Travel................... 10.2"
Z1 - Axis Travel................... 43.3"
C1 - Axis Travel................... .001
W - Axis Travel Sub Spindle........ 0
Rapid Traverse Rate - X1........... 945 in/min.
Rapid Traverse Rate - Z1........... 1,181 in/min.
Spindle Torque..................... 542
Gear Ranges........................ 2
Turret Configuration 1............ 12
Tailstock Quill Diameter........... 3.9"
Tailstock Taper.................... MT 5
Tailstock Quill Travel............. 3.9"
Programmable Tailstock............. YES
Tailstock Travel................... 43.3"
Bar Capacity....................... 3.2"
Tailstock.......................... YES
Live Tooling....................... 'No'
Sub Spindle........................ NO
Control............................ CNC
Weight............................. 0.00
EQUIPPED WITH:
FANUC SERIES I CNC CONTROL
STANDARD STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
12" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
Get Your Price from Used CNC LLC!
