For Sale by T R Wigglesworth Machinery
Description
Specifications
| Table-W | 10" | 254 mm |
| Table-L | 54" | 1,371.6 mm |
| Travel-Long | 36" | 914.4 mm |
| Travel-Cross | 15.74" | 399.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,300 RPM | 4,300 RPM |
| Taper | R-8 | R-8 |
| Weight | 3,595 lbs. | 3,595 lbs. |
Model: 3VS08
S/N: P234617
New: 2014
Voltage: 460
Specifications

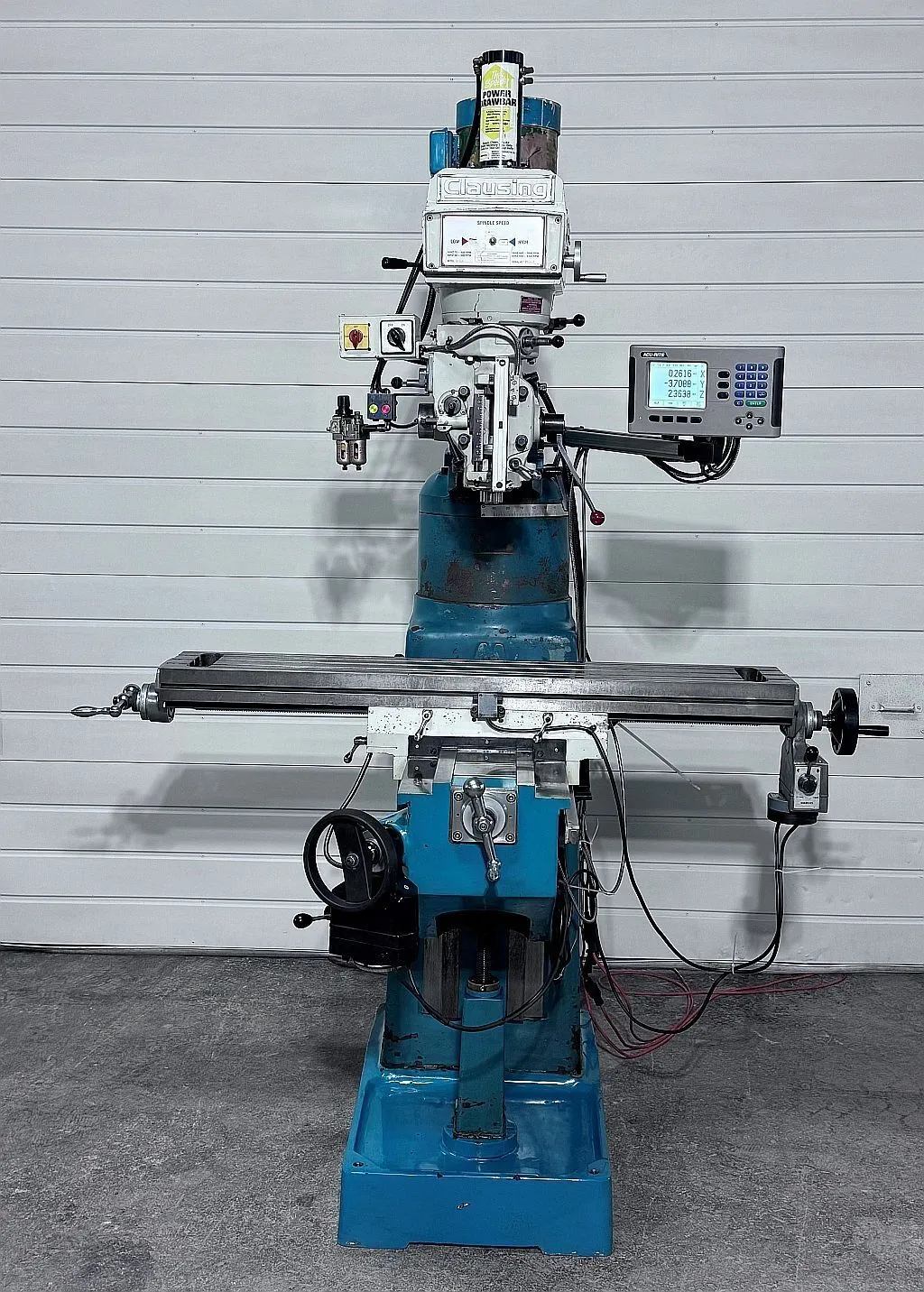

Machine Style.......... Knee Mill
Spindle Speed Control.......... Manual Variable Speed
Spindle (Hp).......... 3
Total Amp Draw @208V 3Ph 11
Total Amp Draw @230V 3PH 10
Total Amp Draw @460V 3Ph.......... 5

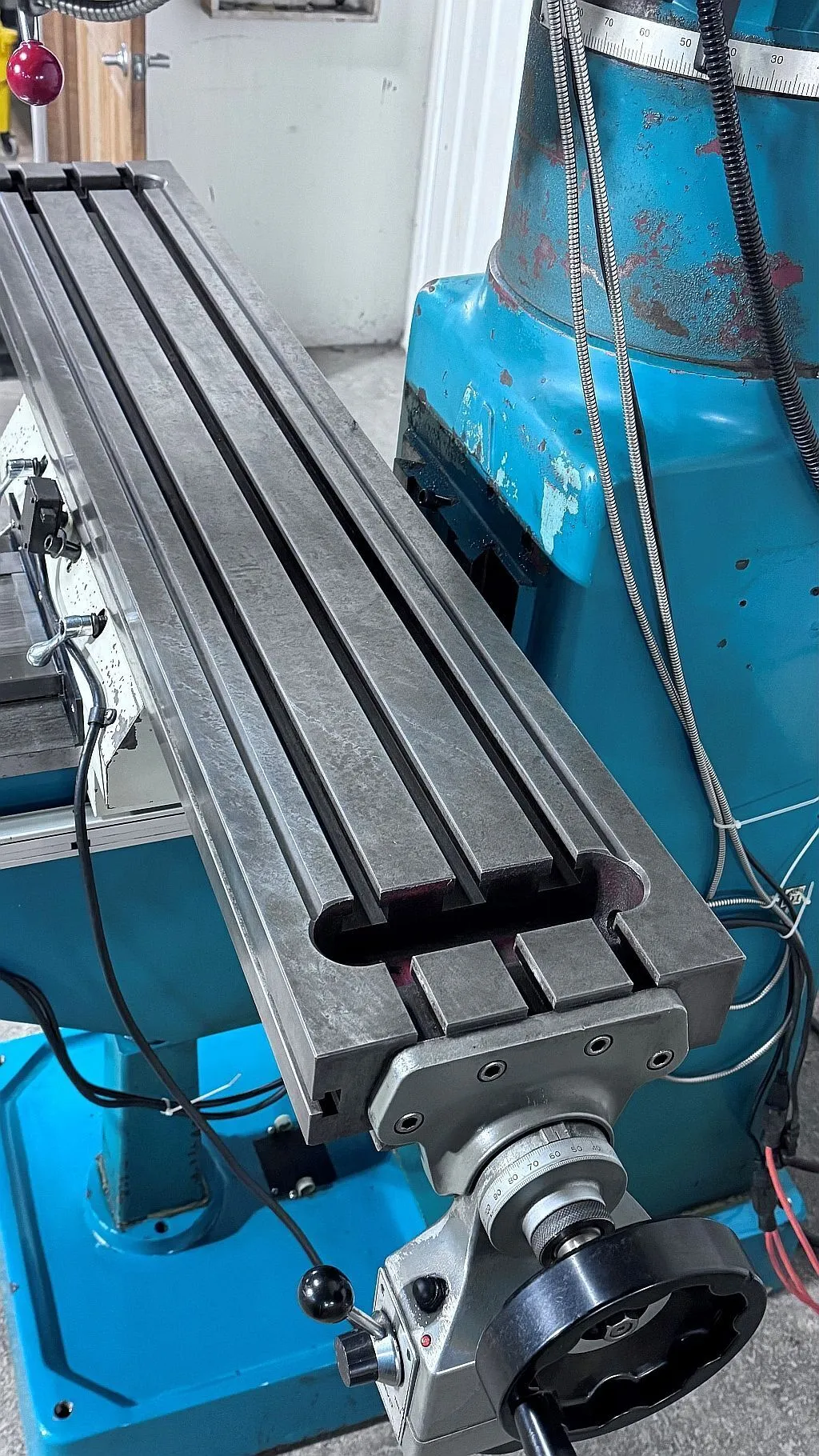

Table Size (inch).......... 10 x 54
Number T-Slots.......... 3
T-Slot Width (inch).......... .638
T-Slot Center Distance (inch).......... 2.08
Table Way Design.......... Dovetail

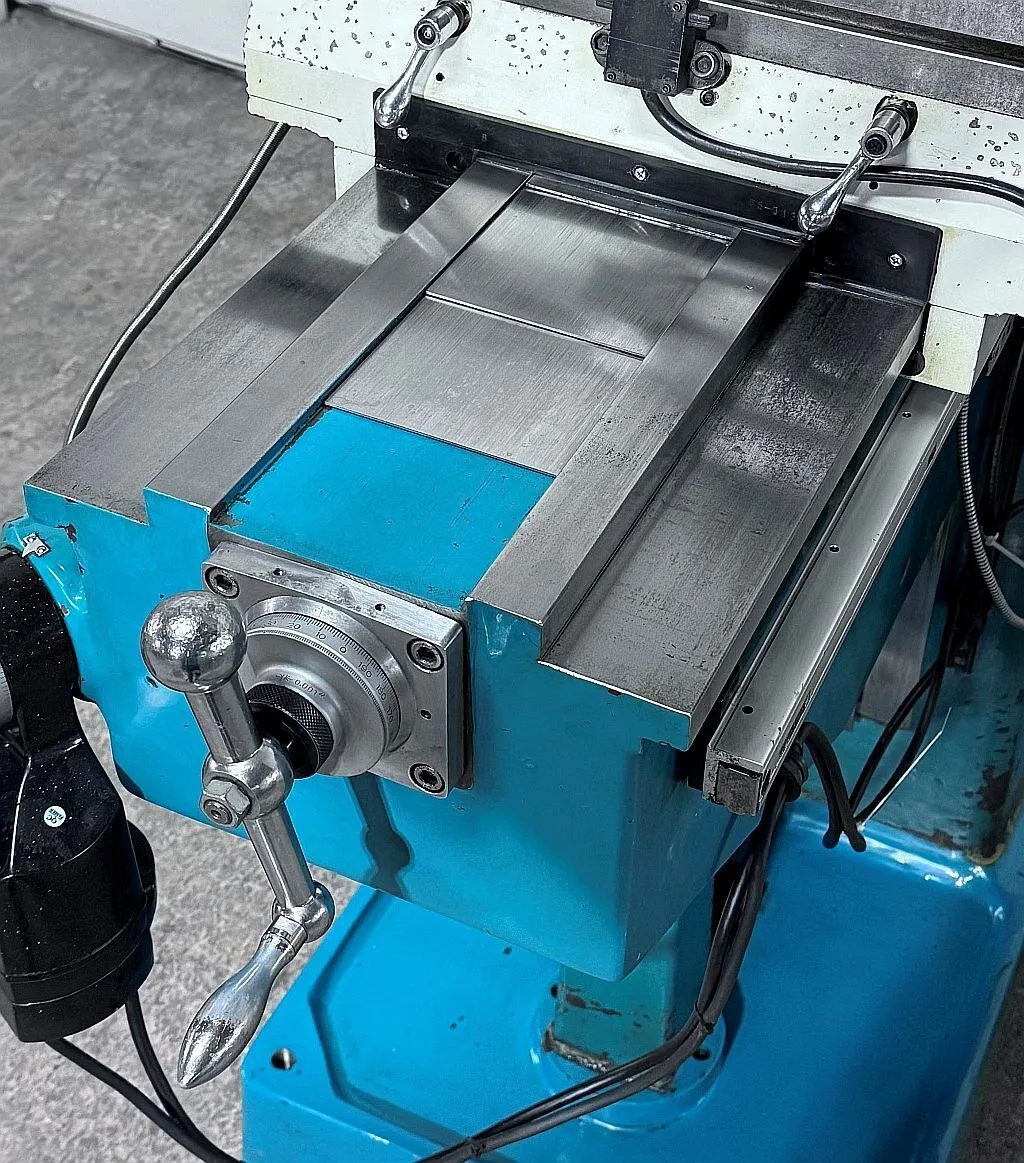

Cross Feed Way Design.......... Square
Knee Way Design.......... Dovetail
X Longitudinal Travel Manual (inch).......... 39.6
Y Cross Travel Manual (inch).......... 15.6
Knee Travel Manual (inch).......... 15
Ram Travel Manual (inch).......... 22
Variable Spindle Speed (rpm).......... 60 – 4300
Variable Spindle Speed Low Range (rpm).......... 60 – 500
Variable Spindle Speed High Range (rpm).......... 550 – 4300
Spindle Taper.......... R8

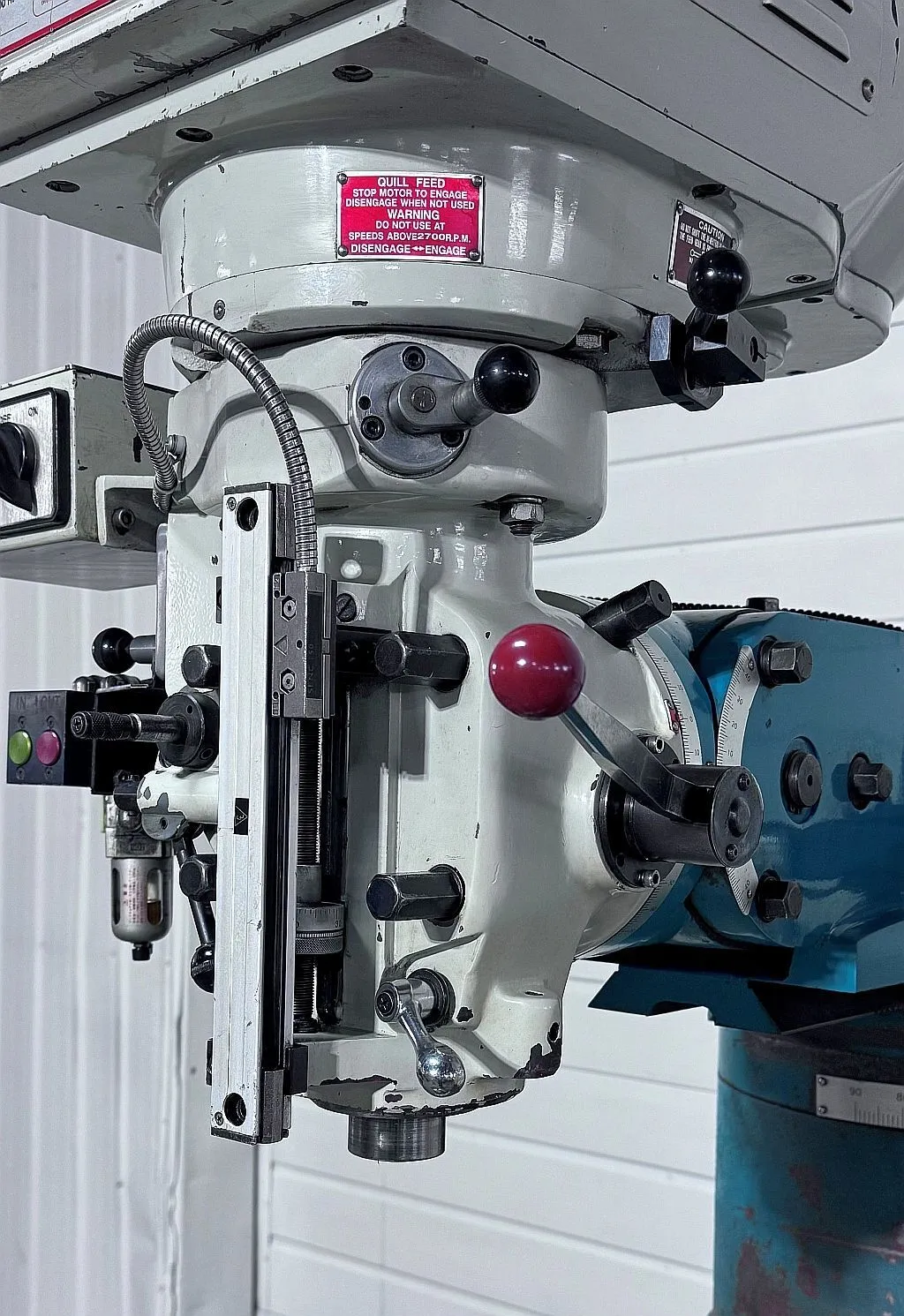

Spindle quill Travel (inch).......... 5
Quill Feed (in/rev).......... (.0015/.0031/.006)
Quill Diameter (inch).......... 3.38
Column Turret Diameter (inch).......... 14.96
Knee Width (inch).......... 12.99
Column Bearing Length (inch).......... 17.91
Saddle/Table Bearing Length (inch).......... 20.28
Ram/Turret Bearing Length (inch).......... 17.32
Ram Length (inch).......... 32.68
Table Load (lbs.).......... 665
Machine Weight (lbs.).......... 3,595lbs.
Voltage Required.......... 460
Phase.......... 3
Machine Foot Print (LxWxH) (inch).......... 101 x 78 x 87
Equipped with:

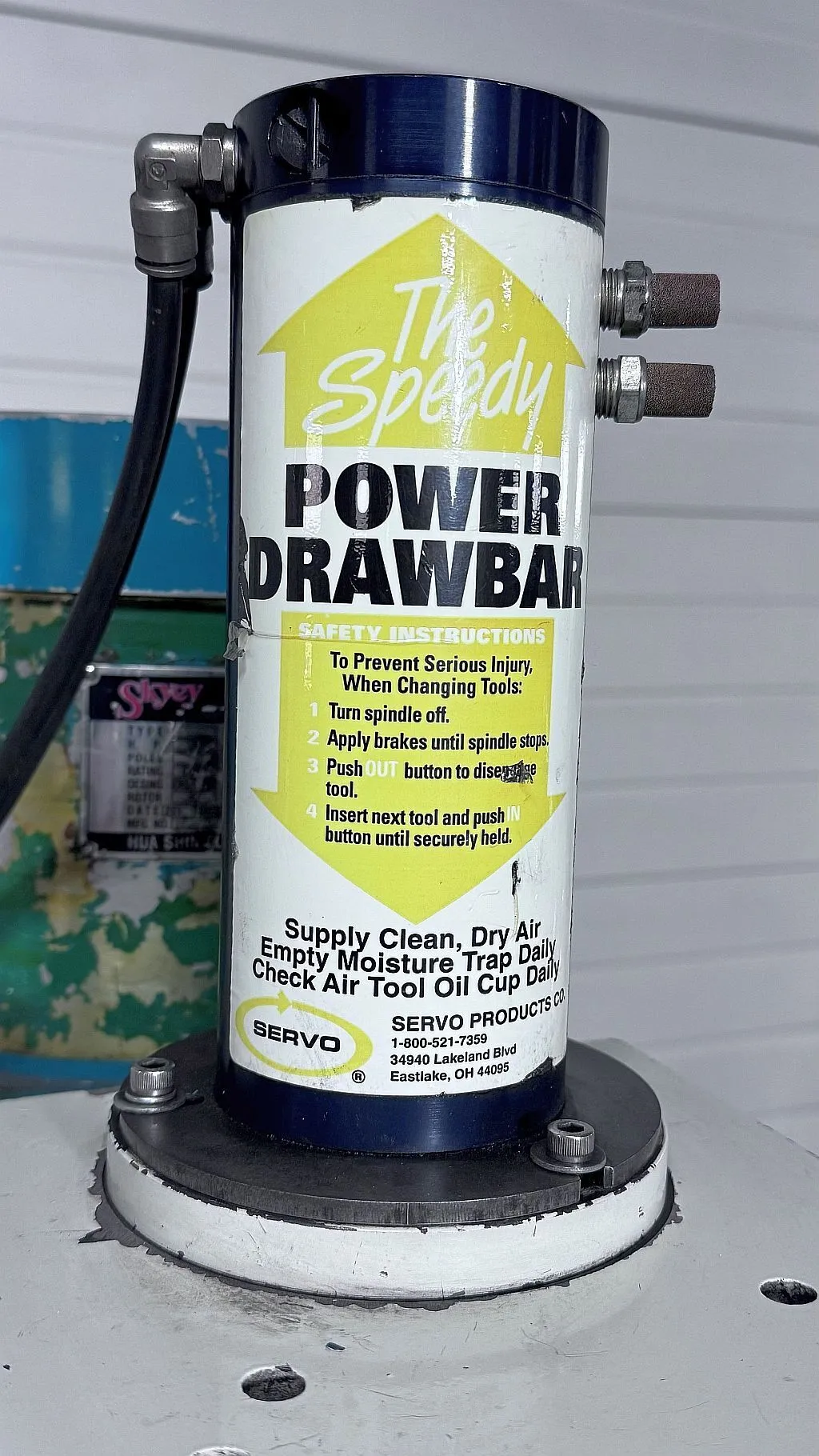

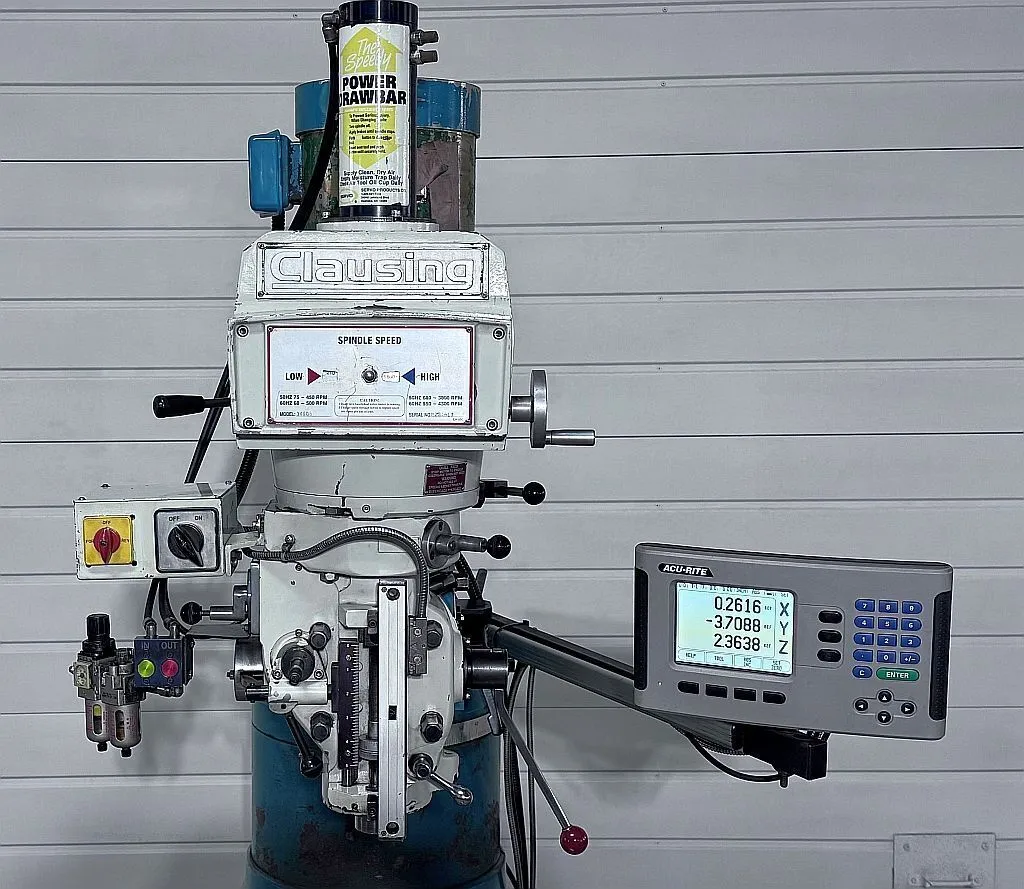

• Air operated power drawbar

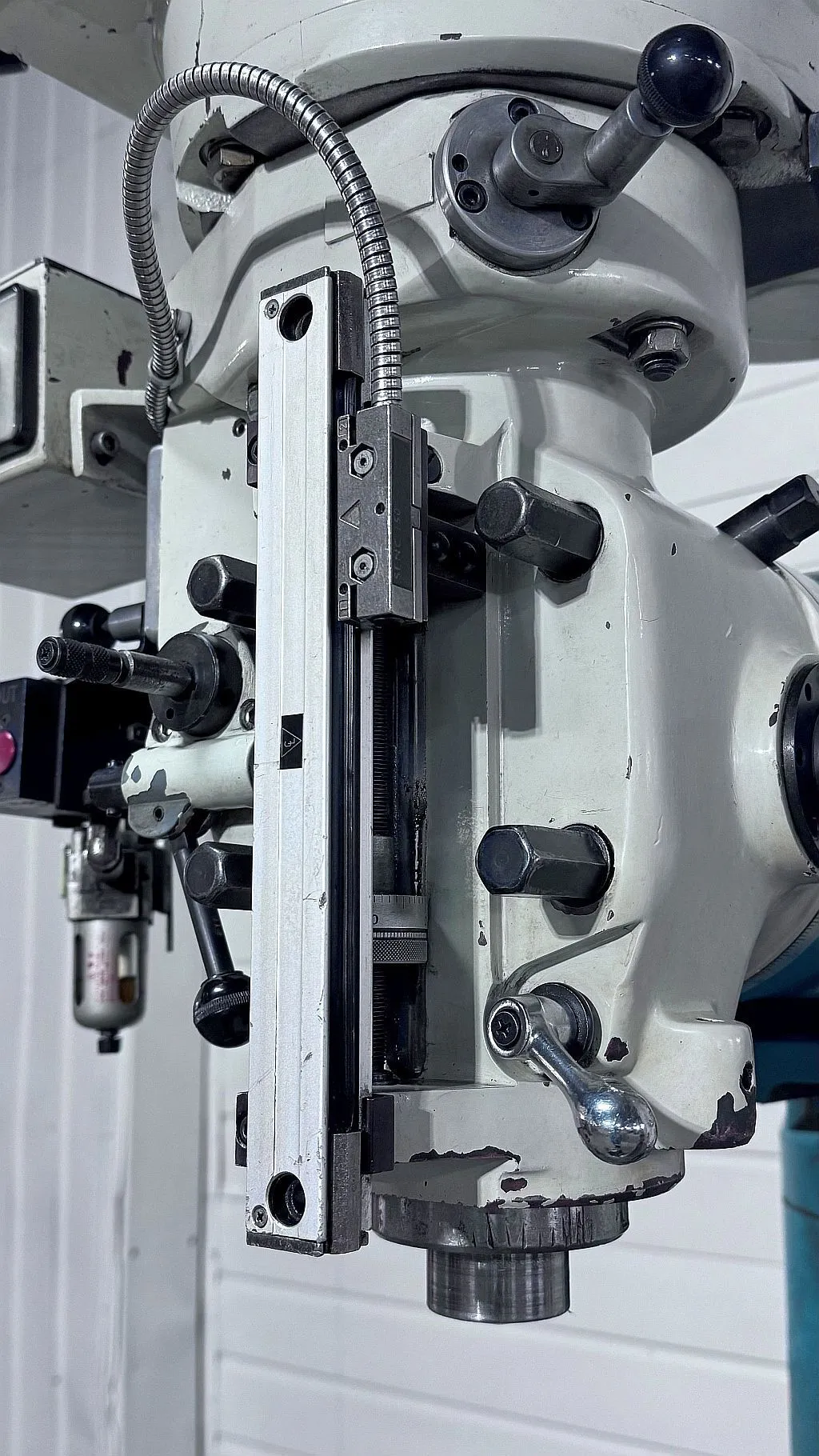

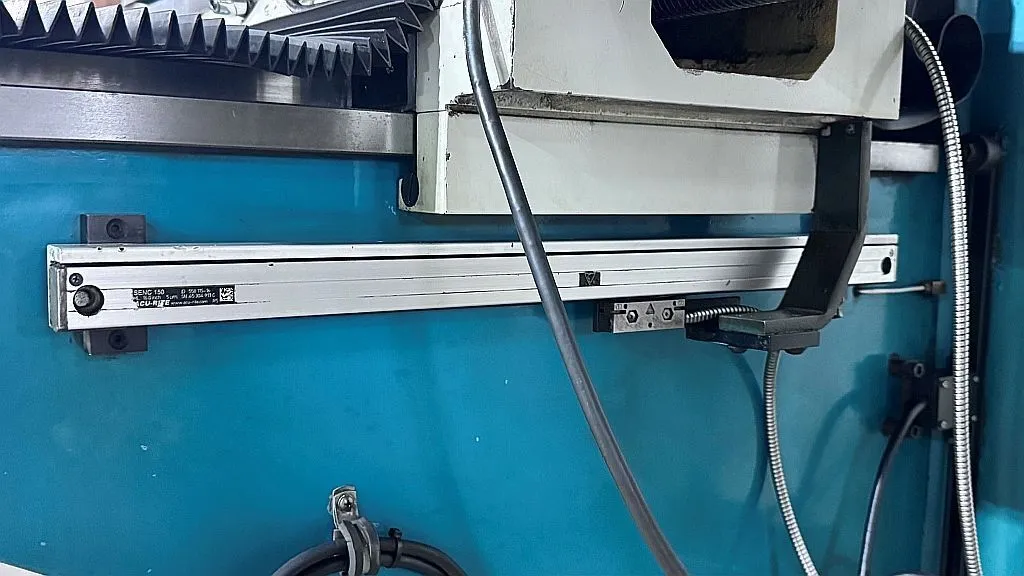

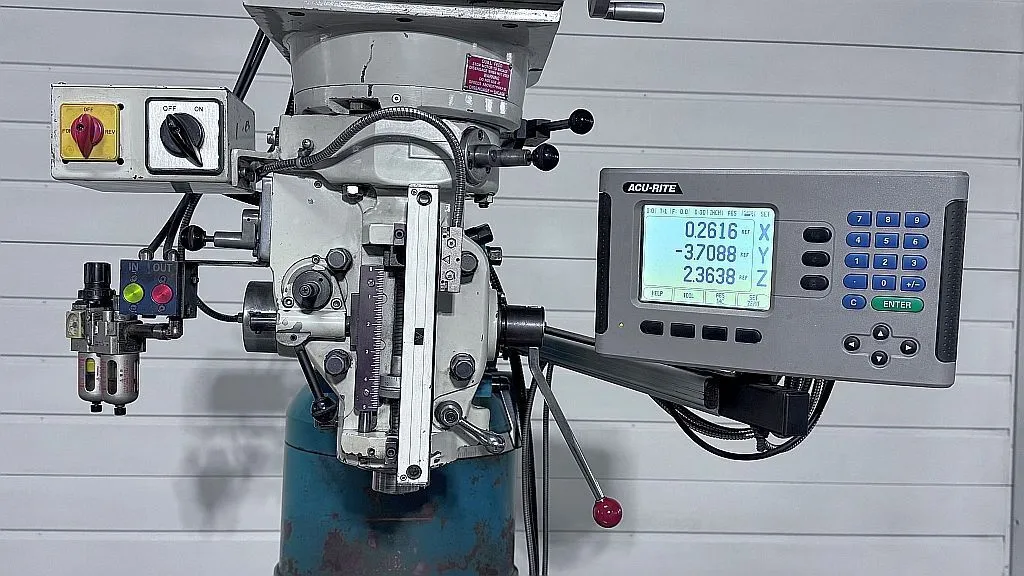

• Acu-rit 3 axis (quill DRO)

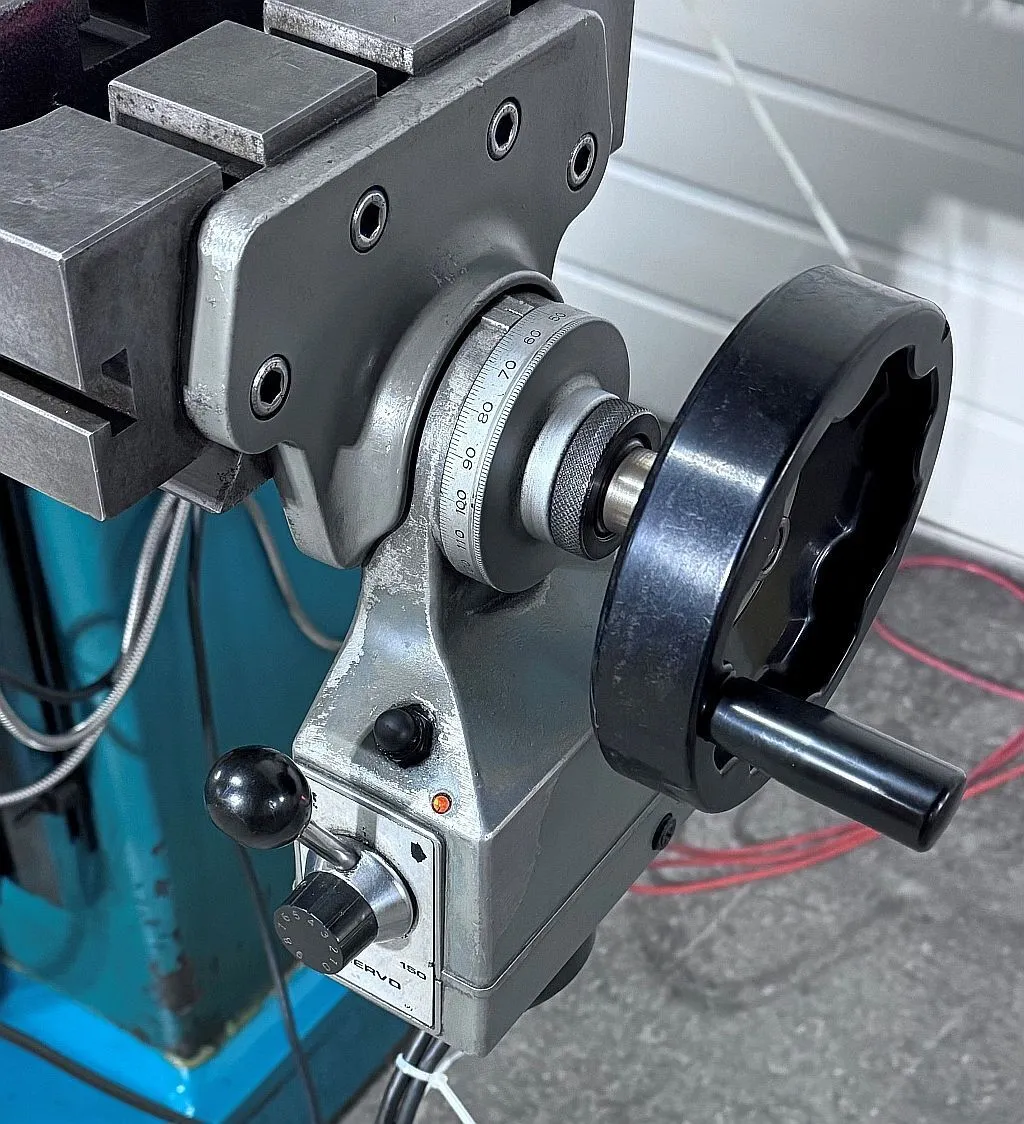

• X-axis Servo brand: power feed
• Y-axis Serve brand: power feed
• Accordion style rubber way covers
• 8” Riser Block
• Coolant Mist System 1 Gal
Machine is sold "as is, loaded on truck".
