For Sale by Wisconsin Metalworking Machinery
Surplus Record Dealer Since 1986
Location: Waukesha, WI
Contact J.R. Kraemer
Phone Number: 262...> Show Phone Number 262-548-6080
Let the seller know you found their listing on Surplus Record!
Description
GENERAL SPECIFICATIONS:

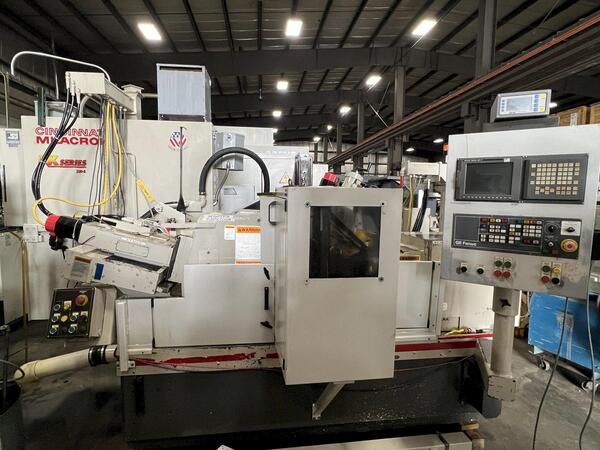

MAKE....................... CINCINNATI
MODEL...................... RK220-8
SERIAL NUMBER.............. 9163A0194-0011
AGE (YEAR APPROX).......... 1992
(YEAR REBUILT)............. 2002
SPECIFICATIONS PER STANDARD 220-8 MODEL:

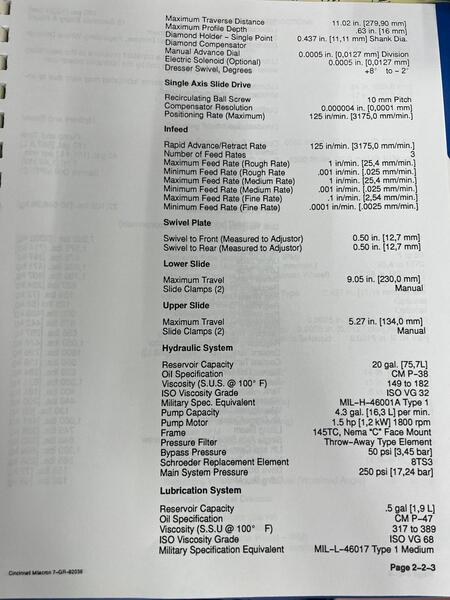

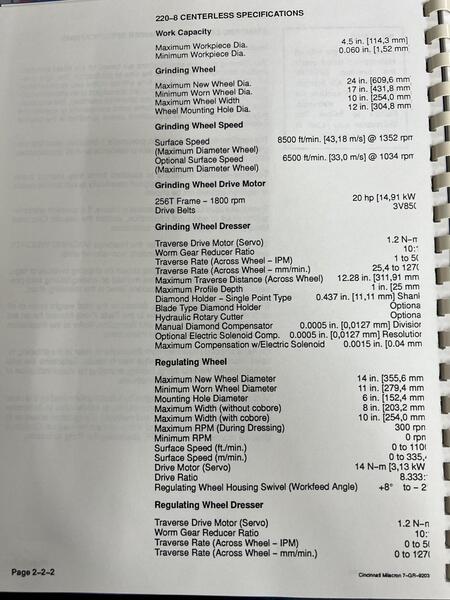

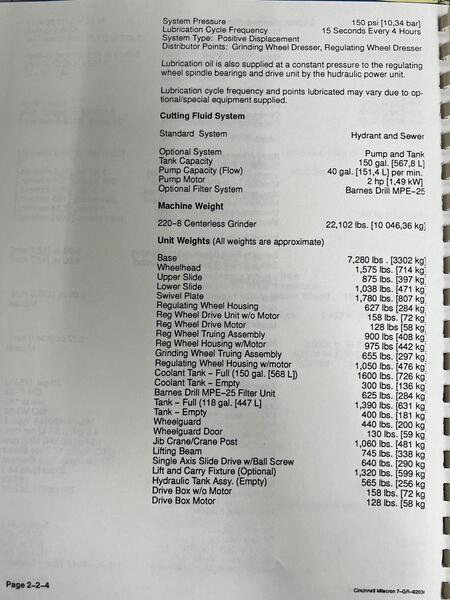

SEE ATTACHED PHOTOS FROM MANUAL *
WORK CAPACITY:
MAX. WORKPIECE DIAMETER.... 4.5" (114.3 MM)
MIN. WORKPIECE DIAMETER.... 0.060" (1.52 MM)

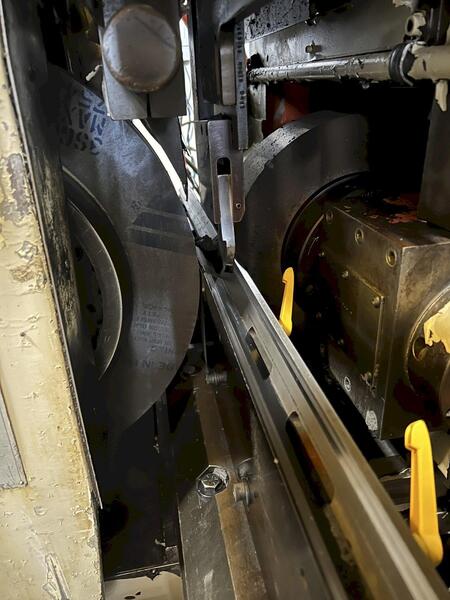

GRINDING WHEEL:
MAX. NEW WHEEL DIAMETER.... 24" (609.6 MM)
MIN. WORN WHEEL DIAMETER... 17" (431.8 MM)
MAX. WHEEL WIDTH........... 10" (254.0 MM)
WHEEL MOUNTING HOLE DIA.... 12" (304.8 MM)
GRINDING WHEEL SPEED:
SURFACE SPEED.............. 8500 FT/MIN @ 1352 RPM
(MAX DIAMETER WHEEL)
GRINDING WHEEL DRIVE MOTOR:
256T FRAME - 1800 RPM - 20 HP
GRINDING WHEEL DRESSER:
SEE SCANNED IMAGE*
REGULATING WHEEL:
MAX. NEW WHEEL DIAMETER.... 14" (355.6 MM)
MIN. WORN WHEEL DIAMETER... 11" (279.4 MM)
MOUNTING HOLE DIAMETER..... 6" (152.4 MM)
MAX. WIDTH W/O COBORE...... 8" (203.2 MM)
MAX. WIDTH W/ COBORE....... 10" (254.0 MM)
MAX. RPM DURING DRESSING... 300 RPM
MIN. RPM................... 0 RPM
SURFACE SPEED.............. 0 - 1100 FT/MIN
DRIVE MOTOR (SERVO)........ 14 N-m (3.13 KW)
REGULATING WHEEL HOUSING SWIVEL (WORKFEED ANGLE)
........................... + 8 DEG TO - ...

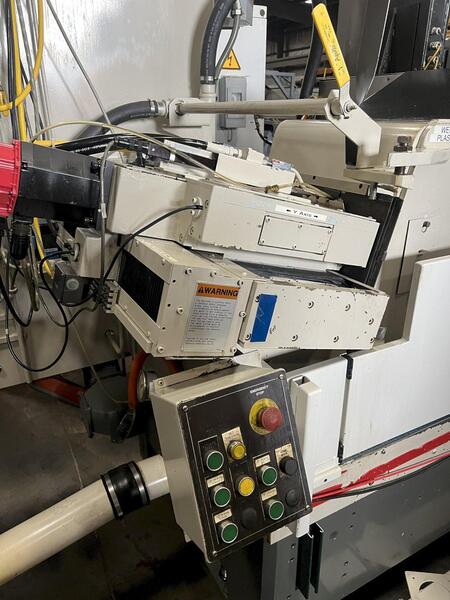

REGULATING WHEEL DRESSER:
SEE SCANNED IMAGE *

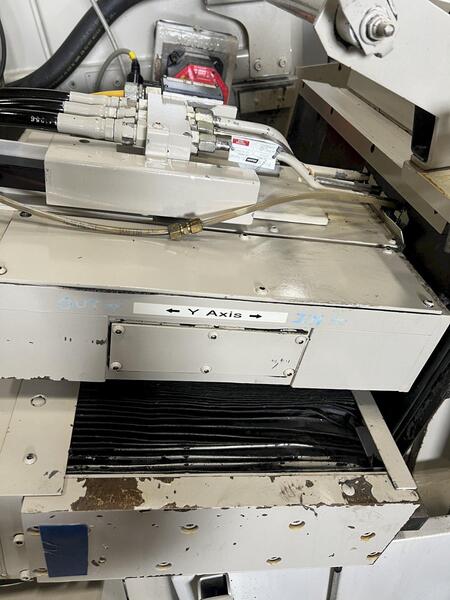

SINGLE AXIS SLIDE DRIVE:
SEE SCANNED IMAGE *
INFEED:
SEE SCANNED IMAGE*
SWIVEL PLATE:
SWIVEL TO FRONT
MEASURED TO ADJUSTOR....... 0.50" (12.7 MM)
SWIVEL TO REAR
MEASURED TO ADJUSTOR....... 0.50" (12.7 MM)
LOWER SLIDE:
MAXIMUM TRAVEL............. 9.05" (230 MM)
SLIDE CLAMPS (2)........... MANUAL
UPPER SLIDE:
MAXIMUM TRAVEL............. 5.27" (134 MM)
SLIDE CLAMPS (2)........... MANUAL
HYDRAULIC / LUBE SYSTEM
SEE SCANNED IMAGES *
MACHINE WEIGHT (APPROX..... 22,500 LBS
ELECTRICS.................. 480V / 3 PH
EQUIPPED WITH:

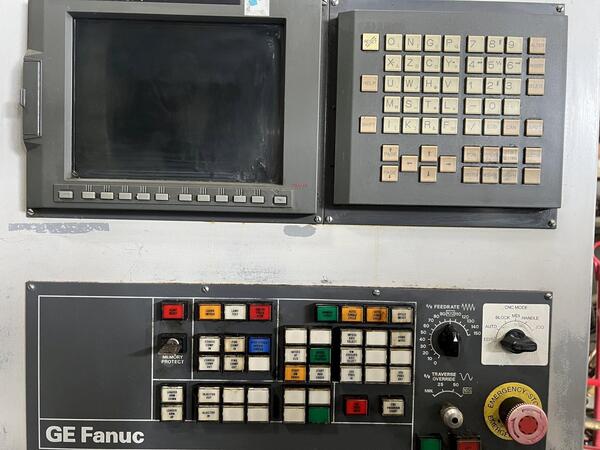

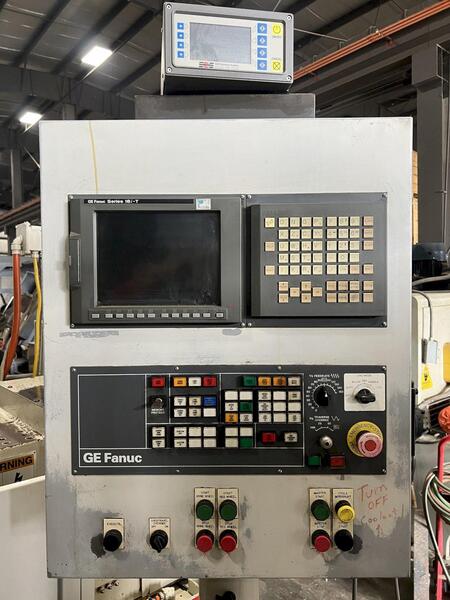

FANUC 18i-T CONTROL
SBS BALANCE SYSTEM MODEL SB-5500
ETAMIC PART CONVEYOR SYSTEM
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
MAKE....................... CINCINNATI
MODEL...................... RK220-8
SERIAL NUMBER.............. 9163A0194-0011
AGE (YEAR APPROX).......... 1992
(YEAR REBUILT)............. 2002
SPECIFICATIONS PER STANDARD 220-8 MODEL:
SEE ATTACHED PHOTOS FROM MANUAL *
WORK CAPACITY:
MAX. WORKPIECE DIAMETER.... 4.5" (114.3 MM)
MIN. WORKPIECE DIAMETER.... 0.060" (1.52 MM)
GRINDING WHEEL:
MAX. NEW WHEEL DIAMETER.... 24" (609.6 MM)
MIN. WORN WHEEL DIAMETER... 17" (431.8 MM)
MAX. WHEEL WIDTH........... 10" (254.0 MM)
WHEEL MOUNTING HOLE DIA.... 12" (304.8 MM)
GRINDING WHEEL SPEED:
SURFACE SPEED.............. 8500 FT/MIN @ 1352 RPM
(MAX DIAMETER WHEEL)
GRINDING WHEEL DRIVE MOTOR:
256T FRAME - 1800 RPM - 20 HP
GRINDING WHEEL DRESSER:
SEE SCANNED IMAGE*
REGULATING WHEEL:
MAX. NEW WHEEL DIAMETER.... 14" (355.6 MM)
MIN. WORN WHEEL DIAMETER... 11" (279.4 MM)
MOUNTING HOLE DIAMETER..... 6" (152.4 MM)
MAX. WIDTH W/O COBORE...... 8" (203.2 MM)
MAX. WIDTH W/ COBORE....... 10" (254.0 MM)
MAX. RPM DURING DRESSING... 300 RPM
MIN. RPM................... 0 RPM
SURFACE SPEED.............. 0 - 1100 FT/MIN
DRIVE MOTOR (SERVO)........ 14 N-m (3.13 KW)
REGULATING WHEEL HOUSING SWIVEL (WORKFEED ANGLE)
........................... + 8 DEG TO - ...
REGULATING WHEEL DRESSER:
SEE SCANNED IMAGE *
SINGLE AXIS SLIDE DRIVE:
SEE SCANNED IMAGE *
INFEED:
SEE SCANNED IMAGE*
SWIVEL PLATE:
SWIVEL TO FRONT
MEASURED TO ADJUSTOR....... 0.50" (12.7 MM)
SWIVEL TO REAR
MEASURED TO ADJUSTOR....... 0.50" (12.7 MM)
LOWER SLIDE:
MAXIMUM TRAVEL............. 9.05" (230 MM)
SLIDE CLAMPS (2)........... MANUAL
UPPER SLIDE:
MAXIMUM TRAVEL............. 5.27" (134 MM)
SLIDE CLAMPS (2)........... MANUAL
HYDRAULIC / LUBE SYSTEM
SEE SCANNED IMAGES *
MACHINE WEIGHT (APPROX..... 22,500 LBS
ELECTRICS.................. 480V / 3 PH
EQUIPPED WITH:
FANUC 18i-T CONTROL
SBS BALANCE SYSTEM MODEL SB-5500
ETAMIC PART CONVEYOR SYSTEM
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
