Description

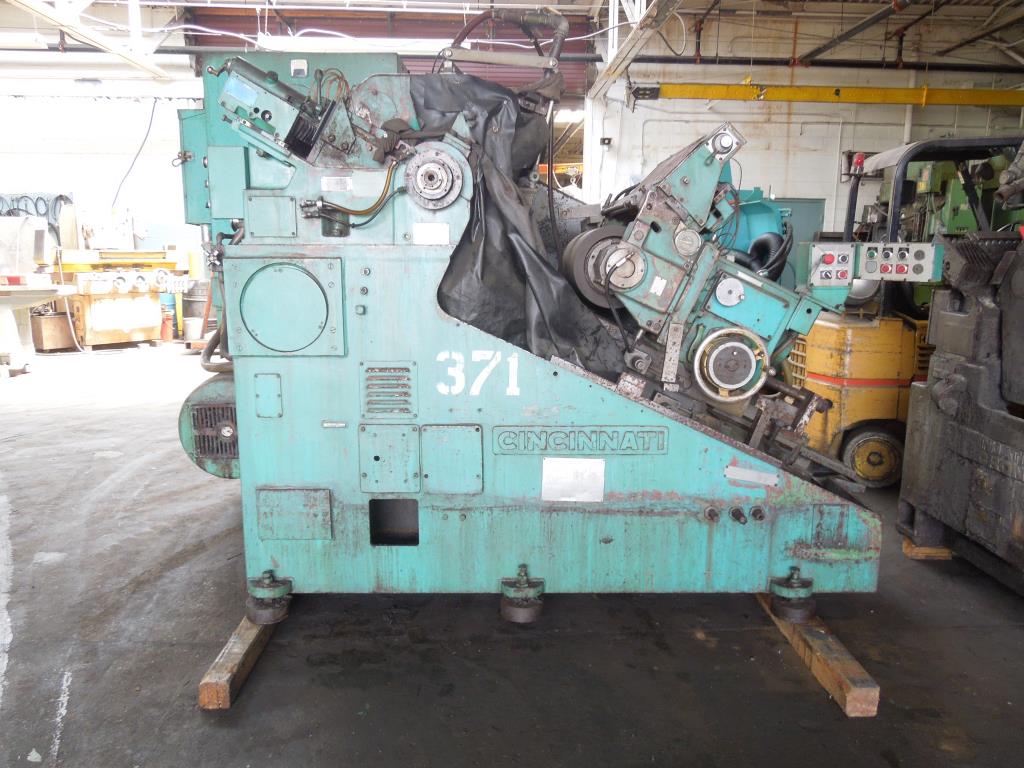

440‑20CINCINNATITWIN GRIP CENTERLESS GRINDER S/N350720H5T-5 Year: 1967 STANDARD CATALOG SPECIFICATIONS CAPACITY Standard thru feed and in feed work rests Accommodate work from..........................1 ‑ 4 dia. Maximum diameter machine will grind................ 10 Minimum diameter machine will grind................... 1 WHEELS(Not included as standard equipment.) Grinding WheelRegulating Wheel 12 Hole 6 Hole 20 Width only 15 Width only 24 Maximum diameter 14Maximum diameter 17 Minimum diameter 101/4 Minimum diameter GRINDING WHEEL SPEEDS Number: Infinite Range: 60 cycle: 12‑300RPM, Low Range: 60 cycle: 12‑56RPM, High Range: 60 cycle: 56‑300RPM, GRINDING WHEEL DRIVE Enclosed motor on end ofmachine................... 40 HP Constant speed: N.E.M.A. dim.,50 or 60 cycle, 3 phase, 220 to 550 volts A.C. Power transmission.................................12V‑belts REGULATING WHEEL DRIVE Enclosed motor on upper slide..................... 40 HP Constant speed: N.E.M.A. dim.,50 or 60 cycle, 3 phase, 220 to 550 volts A.C. 60 HZ.......................... @1200RPM Power transmission................................ V‑belts chain Speed changes ............variable pitch sheaves and gear shifts GRINDING WHEEL SPINDLE High grade steel forging, ground, bearing surfaces are metallized. Five shoe, cartridge type.Filmatic spindle bearings.Automatic circulating pressure lubrication. REGULATINGWHEEL SPINDLE High grade steel forging, ground, bearing surfaces metallized. Three piece plain bronze bearing each side of wheel, plus arear support bearing, and an anti‑friction thrust bearing on rear end of the spindle.Automatic pressure lubrication. CUTTING FLUIDS Hydrant and sewer connections. WHEEL TRUING Independent hydraulic profile truing on both the grinding and regulating wheels. Both units include one hardened straight flat cam.Diamond not included as standard equipment. SIZING ADJUSTMENT Accurate adjustment of regulating wheel slide by in feed handwheel graduated in fifty millionths of an inch. APPROXIMATE WEIGHTSANDSHIPPINGDATA Net weight........................................ 19,200 lbs. Domestic shipping weight........................... 23,400 lbs. Export shipping weight.............................26,200 lbs. Approx. crate size (in)...........................144x 86 x 102 Cubic content to crate............................ 731Cu. Ft. EQUIPMENT FEATURES Cincinnati standard transmission. Attached electrical. Specifications are deemed accurate, however, subject to verification or prior sale. All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs. If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
Grinding Capacity, Standard Thru-Feed/In-Feed Work Rest Capacity: ½" to 3" diameter, Maximum Grinding Diameter: Up to 6" (depending on work rest configuration), Bar Grinding Fixtures:, Type V (Solid Bars): ½" to 1½", Type V (Modified for Light-Walled or Similar Work): 1½" to 2½" ...more
