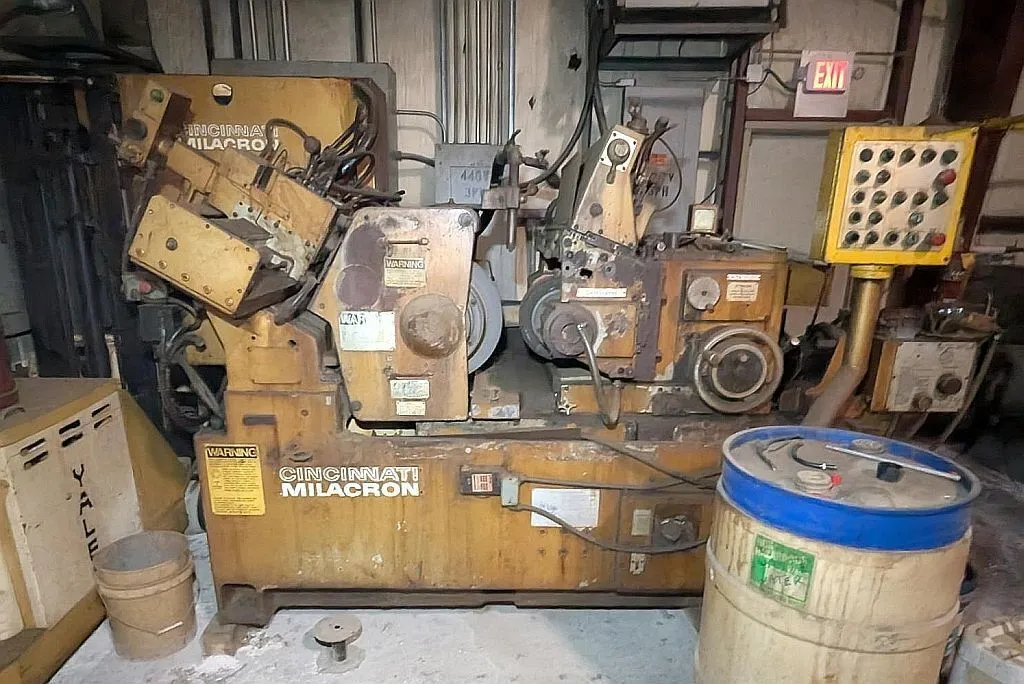

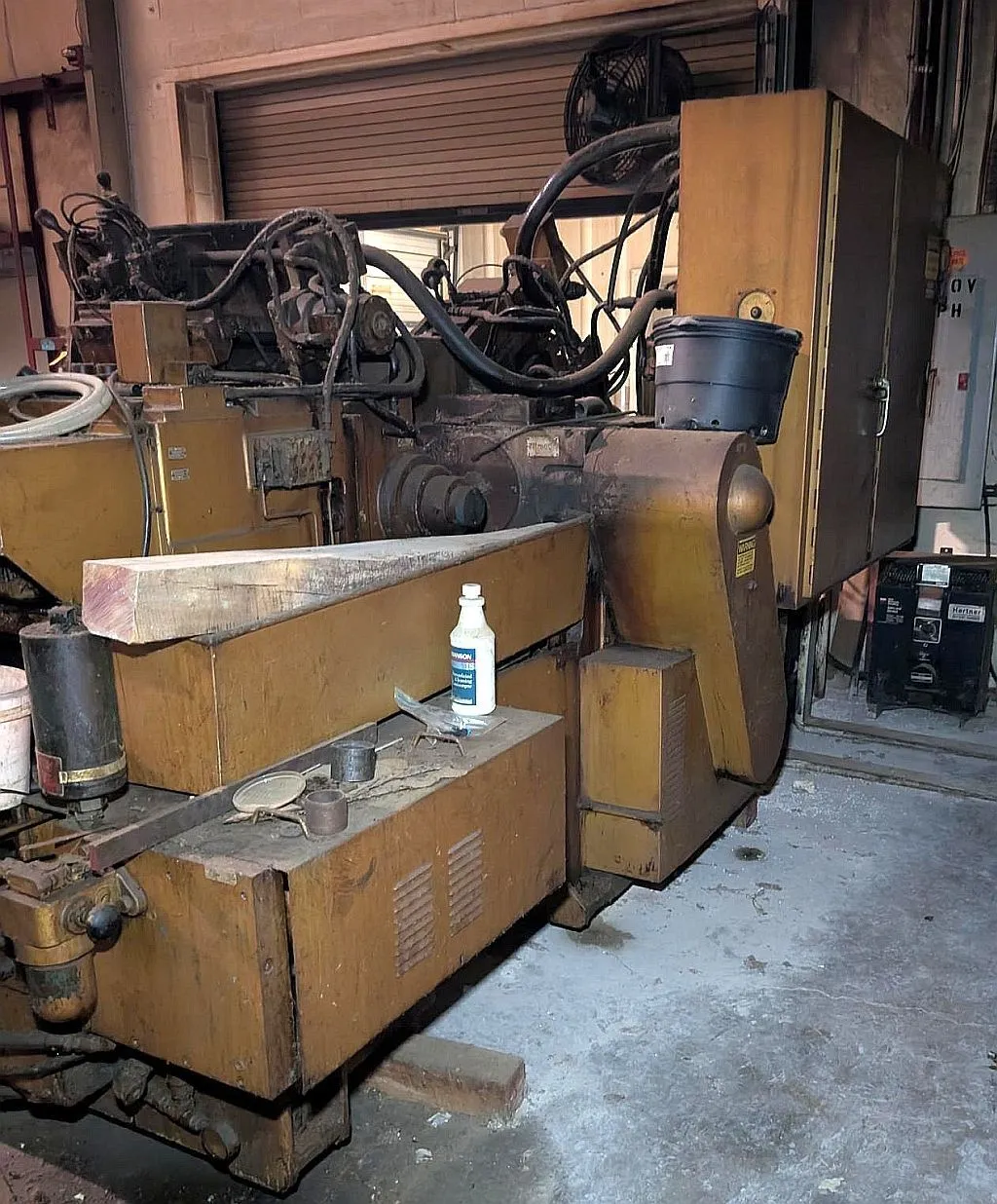

Cincinnati Milacron No. 330-15 Mdl. DE, centerless grinder, 24" x 12" x 15" wheel, coolant, 1977

Grinding Capacity
Standard Thru-Feed/In-Feed Work Rest Capacity: ½" to 3" diameter
Maximum Grinding Diameter: Up to 6" (depending on work rest configuration)
Bar Grinding Fixtures:
Type V (Solid Bars): ½" to 1½"
Type V (Modified for Light-Walled or Similar Work): 1½" to 2½"
Type C (Solid Bars up to 24" Length): ½" to 2"

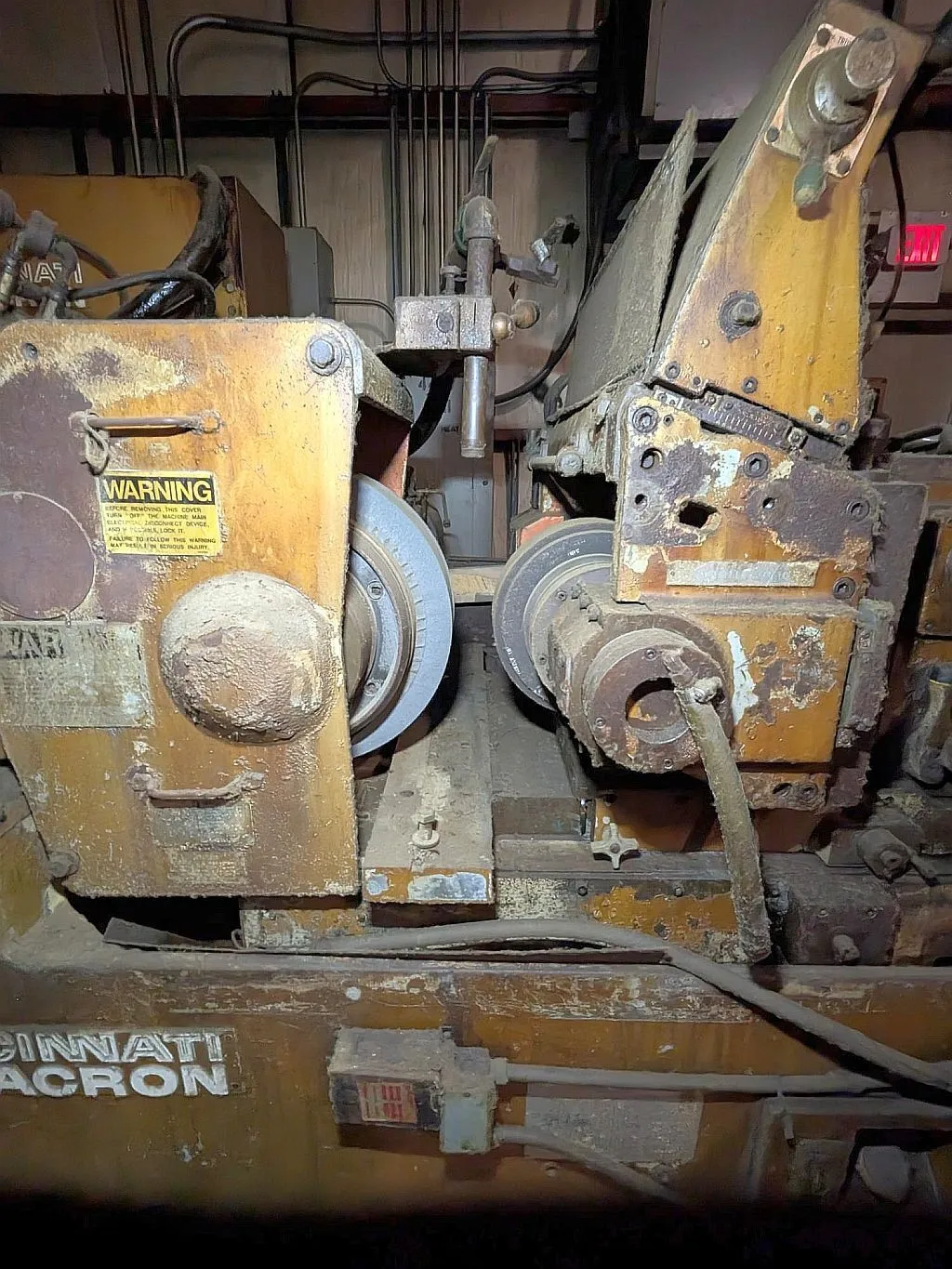

Grinding Wheel Specifications
Maximum Diameter: 24"
Minimum Diameter: 17"
Hole Diameter: 12"
Maximum Width: Up to 15"
Drive Motor: 30 HP, 1170 RPM, 230/460V, 3-phase, 60 Hz
Power Transmission: 8 V-belts

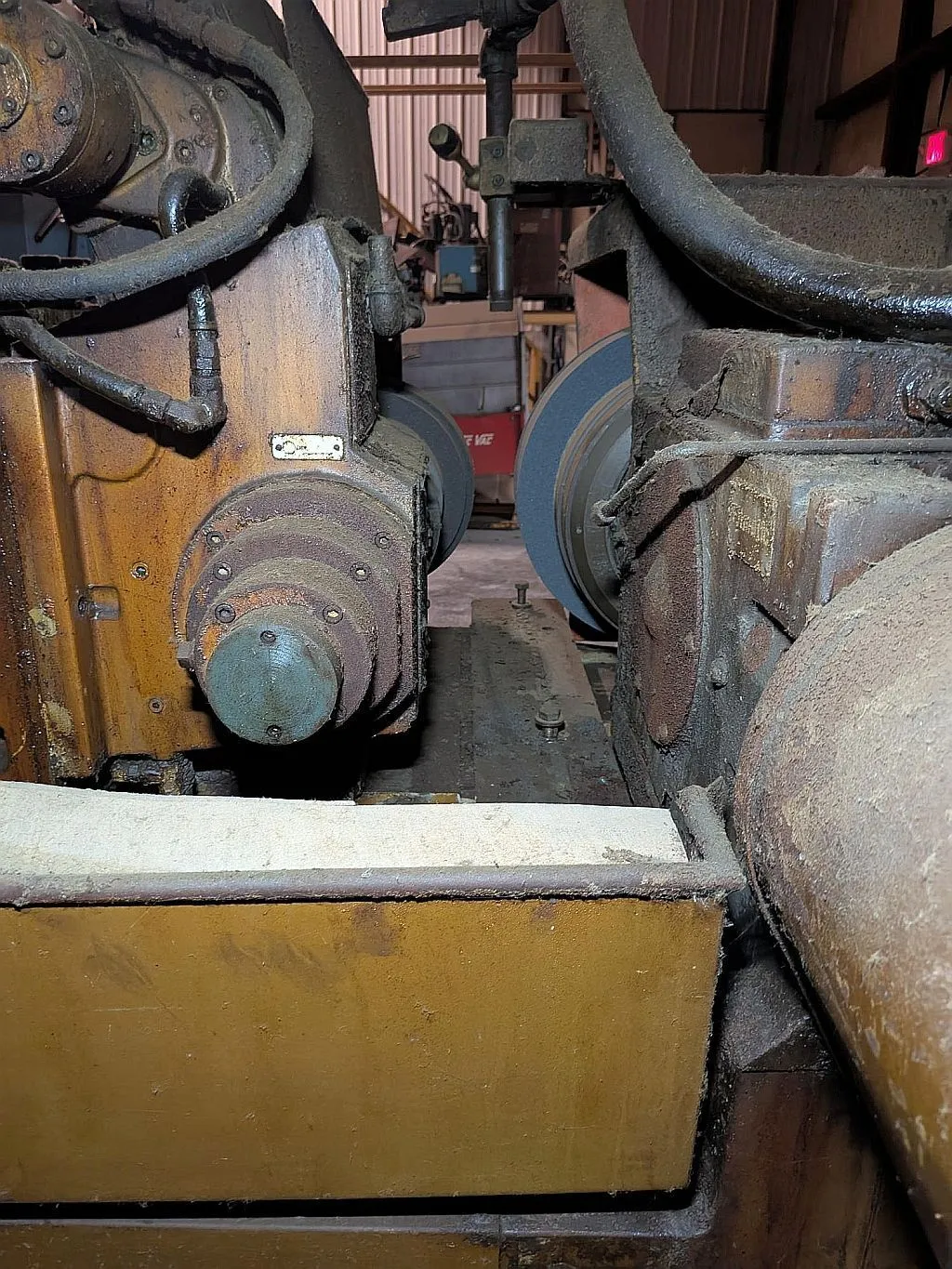

Regulating Wheel Specifications
Maximum Diameter: 14"
Minimum Diameter: 10"
Hole Diameter: 6"
Maximum Width: Up to 15"
Drive Motor: 2 HP, 1200 RPM, 230/460V, 3-phase, 60 Hz

Speed Range:
Low Range: 12–56 RPM (60 Hz)
High Range: 56–300 RPM (60 Hz)
Total Range: 12–300 RPM (60 Hz)

Coolant System
Coolant Tank Capacity: 150 gallons

Machine Specifications
Dimensions (L x W x H): 12' x 8.9' x 7'
Weight: Approximately 16,700 lbs
