Description

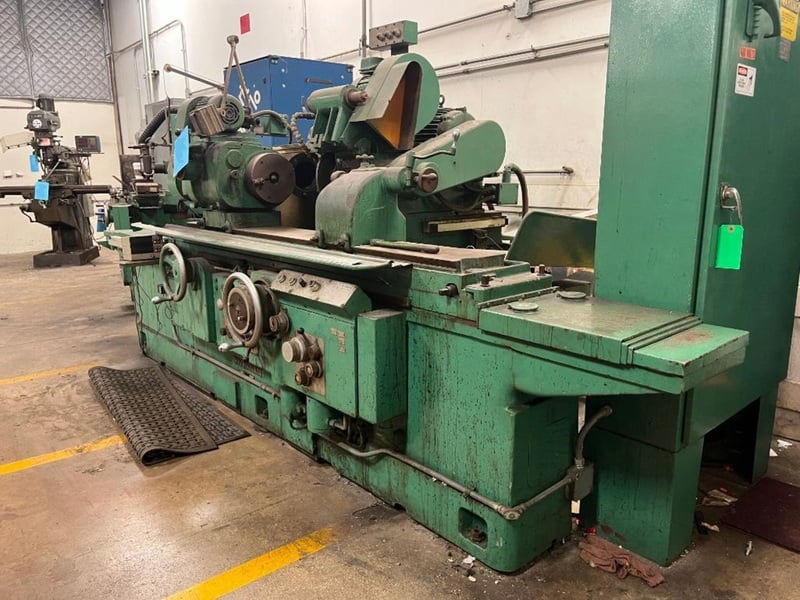

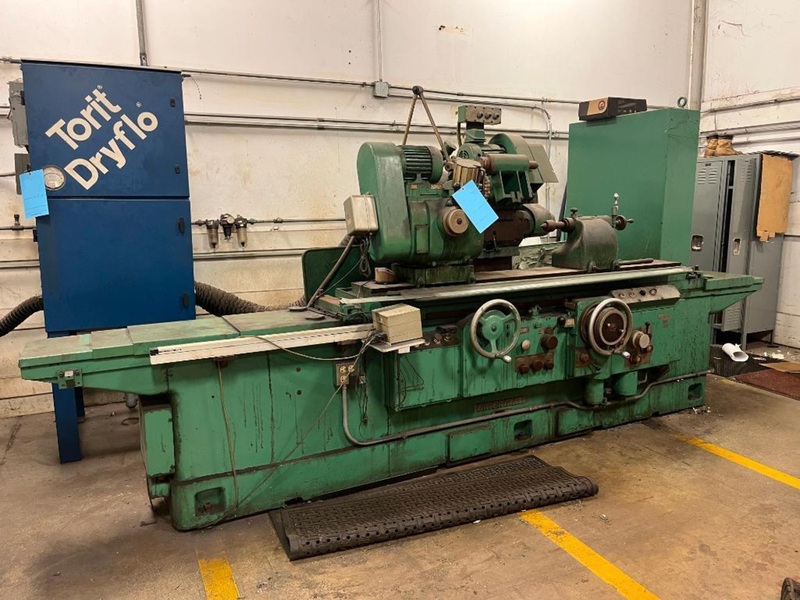

18" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
W/SWING DOWN I.D. GRINDING ATTACHMENT W/SPINDLE
MODEL: DE… S/N:″5326E5Z-1… NEW: 1972
SWING OVER TABLE ........................ 18-15/16"
DISTANCE BETWEEN CENTERS .................. 48"
TABLE SWIVEL, TOWARD WHEELHEAD ............ 9 DEGREES
AWAY FROM WHEELHEAD .......... 2 DEGREES

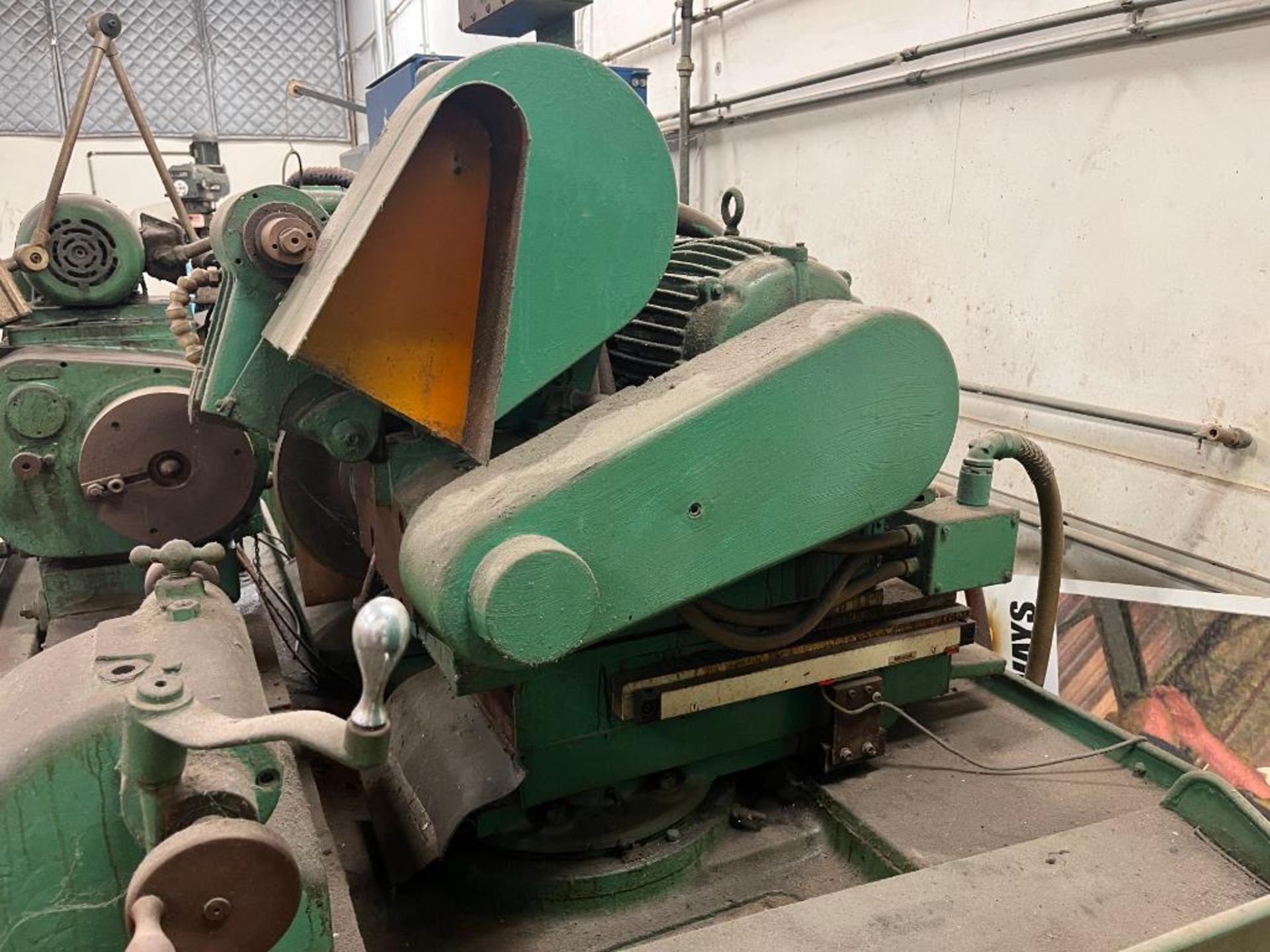

GRINDING WHEELHEAD:
LOWER SWIVEL LEFT… RIGHT OF CENTER ....... 90 DEG.
UPPER SWIVEL, RIGHT… LEFT ................″0 DEG.
MOTOR ..................................... 7.5 HP
GRINDING WHEEL SIZE ....................... 14" DIA.…

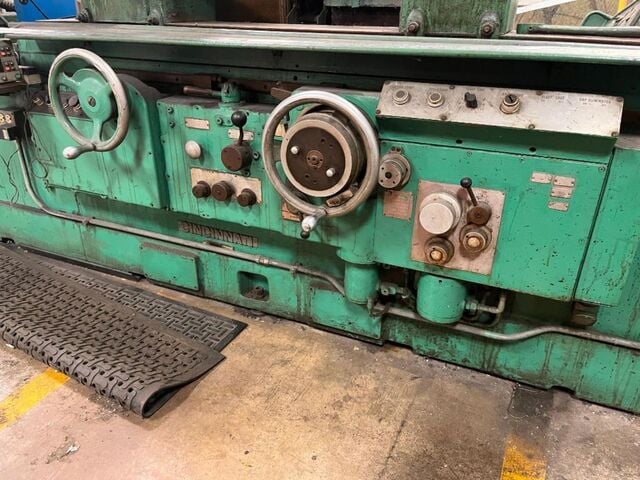

TABLE TRAVERSE:
INF. VARIABLE TABLE SPEEDS ...............″" TO 220" IPM
HAND TABLE TRAVERSE PRE REVOLUTION
OF HANDWHEEL (RAPID/SLOW) ............... 15/16" / 0.2"
CROSS FEED:
AUTOMATIC INFEED AT TABLE REVERSAL:
LOW .................................. 0.0002" TO .0005"
HIGH ................................. 0.0005" TO .0125"
WHEELHEAD MOVEMENT PER TURN OF HANDWHEEL:
LOW ..................................... 0.050"
HIGH .................................... 0.250"
MINIMUM INFEED ON DIAMETER .............. 0.00005"

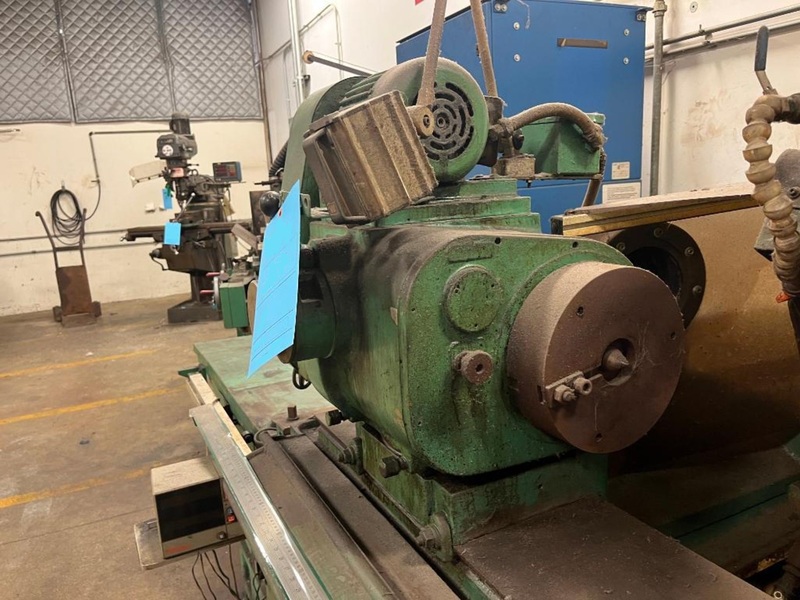

HEADSTOCK:
MOTOR ................................... 1 H.P.
TAPER HOLE IN SPINDLES .................. #9 B&S
INF. VARIABLE WORKHEAD SPEEDS ........... 50 T0 500 RPM
SPINDLE NOSE, AMERICAN STANDARD ......... 5"
HEADSTOCK SWIVEL, TOWARD WHEELHEAD ...... 90°
AWAY FROM WHEELHEAD ..″0°
FLOOR SPACE FOR OPERATION:............... 72" X 185"
APPROX. DIMENSIONS:................ 166" L-R, 72" F-B, 66" H
APPROX. MACHINE WEIGHT .................. 12,800 LBS
FULL HYDRAULIC OPERATION FEATURING:
-POWER TABLE TRAVERSE
-PICK FEED (AUTO INFEED)
-AUTO DUAL RATE PLUNGE INFEED
-POWER RAPID ADVANCE… RETRACTION OF WHEEL
-SPARKOUT TIMER
SWING DOWN I.D. ATTACHMENT W/SPINDLE

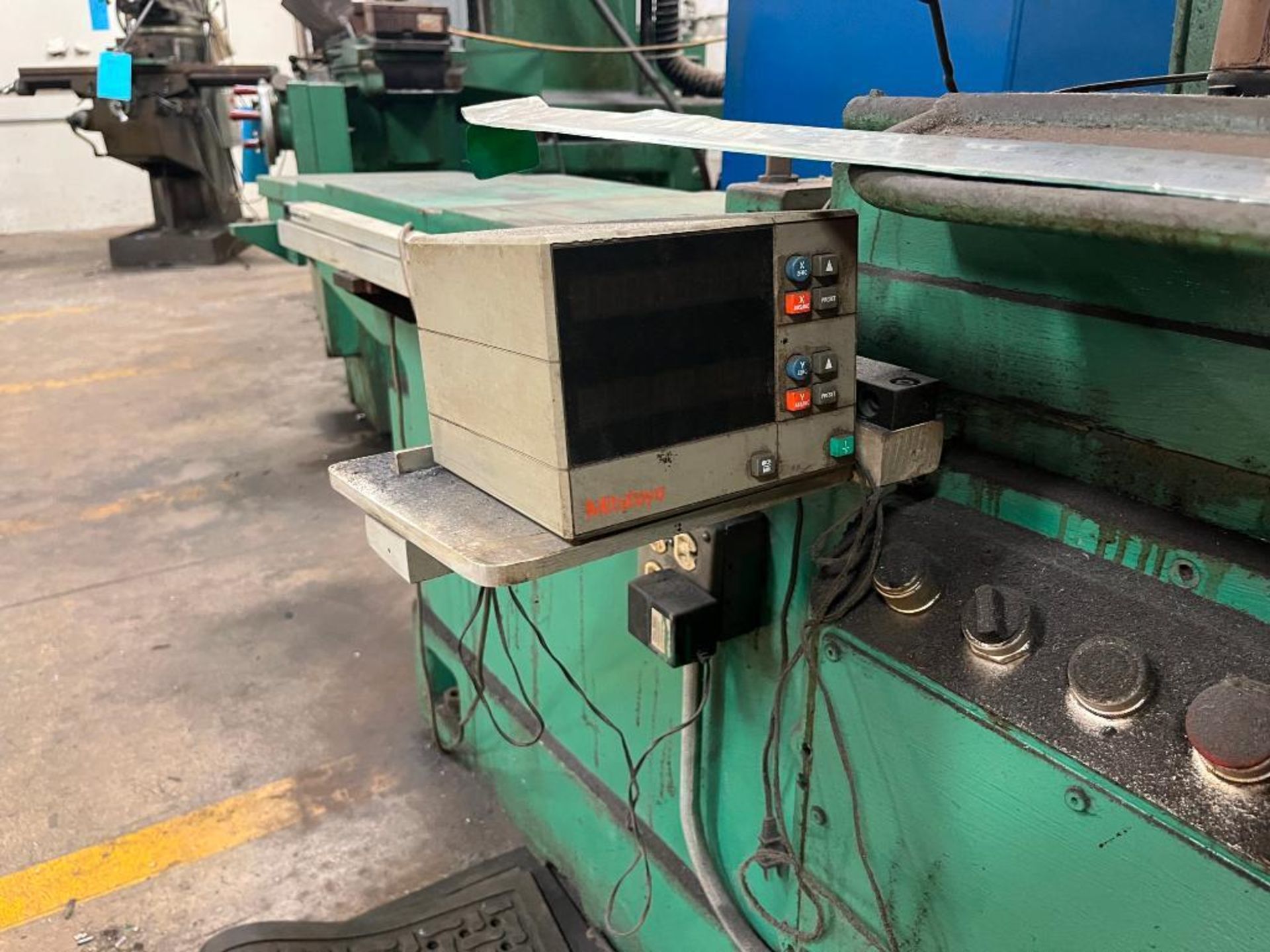

MITUTOYO 2-AXIS DIGITAL READOUT DISPLAY
INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
WORKHEAD SPINDLE IS BOTH LIVE… DEAD
SEPARATE ELECTRICAL CABINET…
SELF-CONTAINED COOLANT SYSTEM
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
PRESENTLY WIRED FOR″/60/460 VOLTS, 23 FLA
** MACHINE HAS ARRIVED TO OUR HARRISON, NJ WAREHOUSE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ FACILITY **
** EXCELLENT CONDITION… APPEARANCE **
