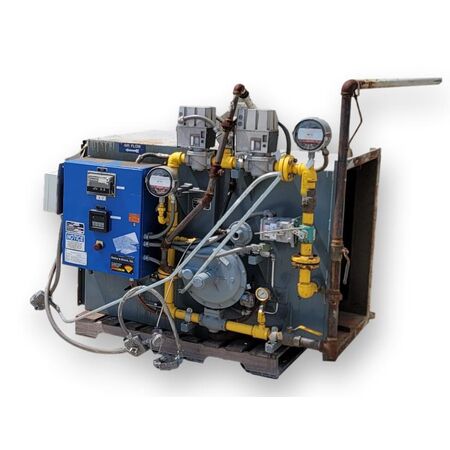

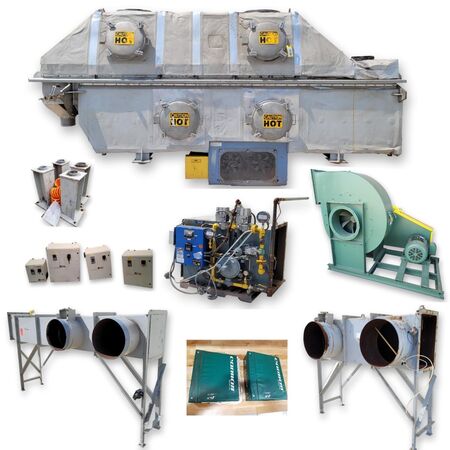

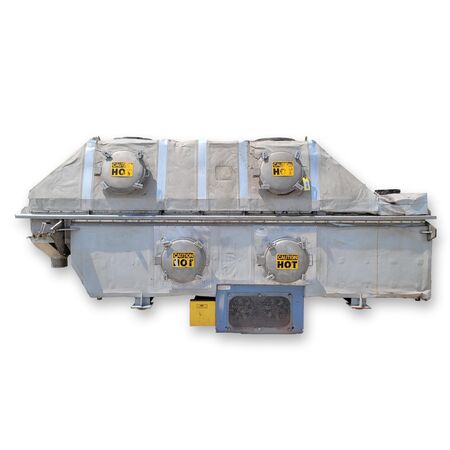

Used Carman Industries Vibrating Fluid Bed Dryer Cooler Processor Processor Design Data: 5,000 LBS/hr 1/8" peppercorns (35 PCF) Product Moisture: 14% max. in / 9% max. out Product Temperature: 180 F max. in / 100 F max. out Dryer bed is 40" wide with an 8'-0" long drying zone & 6'-3" long cooling zone Max. operating temperature: 250 F 7.5HP force vector drive with 1/8" operating stroke Electrical Supply: 230/460V, 60Hz, 3ph Required Natural Gas Supply: 2,500CFH @ 2-5 PSIG Included Components: Direct fired, natural gas air heater with a 2.5mm BTU/Hr output using a Honeywell AH-MA v2 series burner Valve train assembly Drying and Cooling Zone process air inlet headers HEPA filter housing for cooling fan PLC based controls Installation, operation and maintenance manuals (original copies)
Used Carman Industries Fluid Bed, model FBP-302M, 34" wide x 144" long drilled stainless steel deck, stainless steel top plenum, carbon steel bottom plenum and duct work, dual 1.8 kw vibration motors on stand, with Stelter & Brinck recirculating air heater system, natural gas fired, with blower, Carman serial# ...more
one(1) used Carman Fluid Bed Dryer, 40" wide perforated bed, 15' long, 304 stainless steel Three zones - 5'9", 5'9", last zone is 2'9" last used as a cooling zone. 304 stainless steel bed with holes not slots, 9/64" diameter drilled holes Dryer has (2) 2 hp motors, 3 phase ...more
Dryer, fluid bed, Bowen, stainless steel, 18" diameter x 4' bed chamber, lab size, direct gas fired, complete unitized system including 2 HP Buffalo infeed blower, firebox, exhaust to stainless steel cyclone to 2 HP Buffalo draft blower, complete with control panel with 3 temperature probes. Unit can be converted ...more
Used Carrier Fluid Bed Dryer, Model FCAC1860S, Stainless Steel 24" x 120" 814 RPM 8" Dia. Inlet, 6" Dia. Outlet, 10" Dia. Opening Heating And Cooling Ducts 1/4 Stroke 2 HP Motor S/N: 23370 New in 1995 Vintage Dryer Only, Does Not Include Burner/Heating Element.
used- barr rosin fluid bed dryer. design rate 4,244 lb/hr with infeed moisture at 20% by wt, and final product output at 3% by wt; 744 lb/hr evaporation capacity; carbon steel construction; comenco systems model dh-65-4-0-npo natural gas duct heater/burner and control panel, maximum input 4,000,000 btu/hr; 3 x 12 ...more
