For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Location: Lincolnshire, IL
Contact Peter Sonneborn
Phone Number: 847...> Show Phone Number 847-276-2761
Let the seller know you found their listing on Surplus Record!
Description
New - 2008
SPECIFICATIONS:
Table Diameter - Maximum............36"
Swing Diameter - Maximum............38"
Top of chuck to bottom of rotating assembly (spindle)............32-3/4"
Part Height - Maximum............24" (Arbor Dependent) and Approach Dependent, Angular or Straight Approach
X-Axis............36"
Z-Axis............36"
Main Grinding Spindle (Setco)............30 HP / 7200 RPM
Spindle Speeds............1,500 to 7,200 RPM
Spindle Taper............HSK-80
B-Axis (Spindle Swivel)............+/- 180 Degrees
Table Drive Motor (A.C. Digital Servo "Whisper Drive")............7.5 HP
C-Axis Table Drive............0 - 150 RPM
Table Run-Out, Radial & Axial............0.0001"
Rotary Dresser Spindle Motor............1.0 HP / 3600 RPM
Electrics............480/3/60 (114 FLA)
Floor Space Required............161" F-B x 142" L-R x 141" H
Weight - approximate............21,000 Lbs.
EQUIPPED WITH:

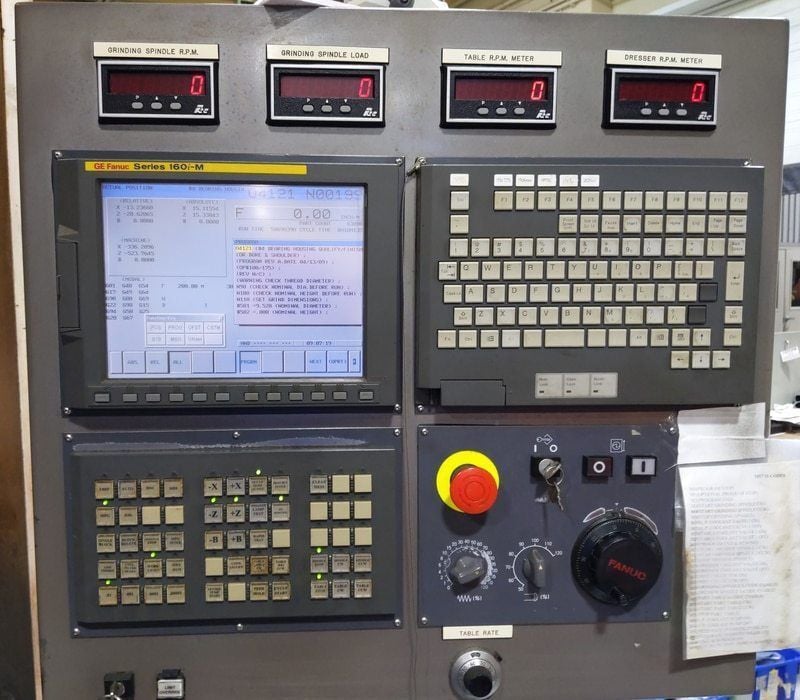

Fanuc 160i-M CNC controller

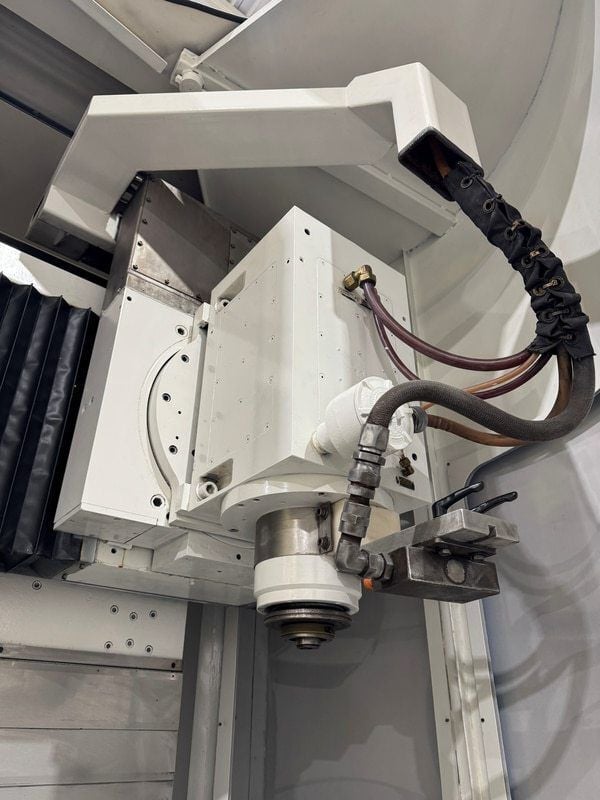

Setco U30HP7200SM80.55772R liquid cooled spindle w/auto draw bar
Servo driven rotary axis for spindle swivel up to 180° allowing for light turning as well as grinding

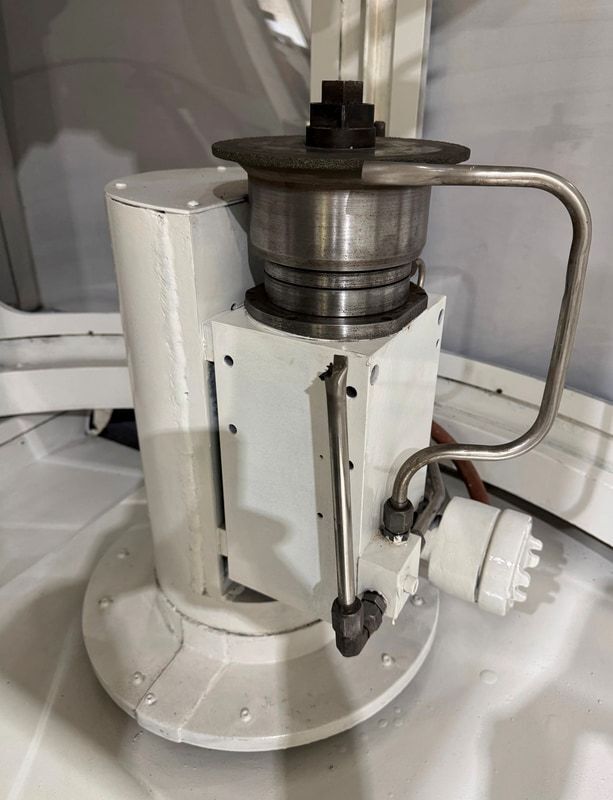

Rotary dresser
Single point dresser

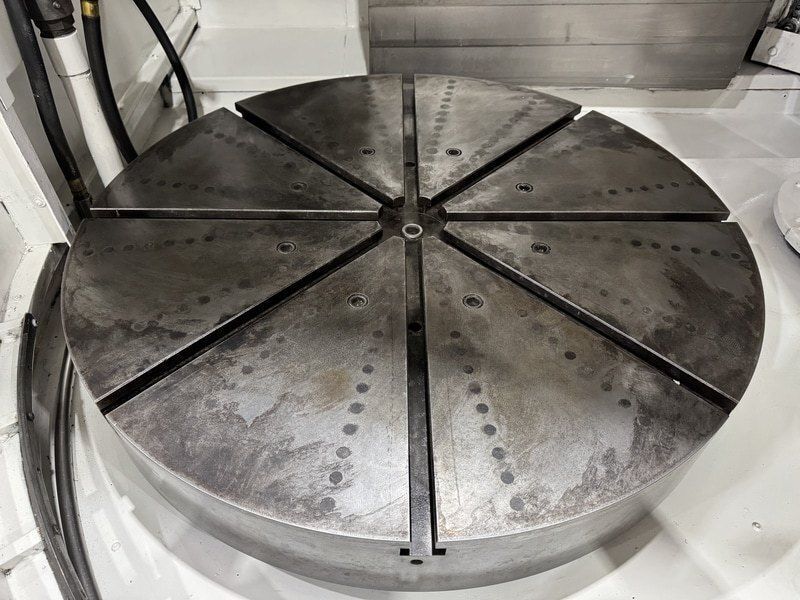

36"Ø x 5"H T-Slotted rotary table
X, Z, B Axes equipped w/Absolute Position Feedback Scales (Linear Glass)
Precision roller ways - all axes
Full machine enclosure

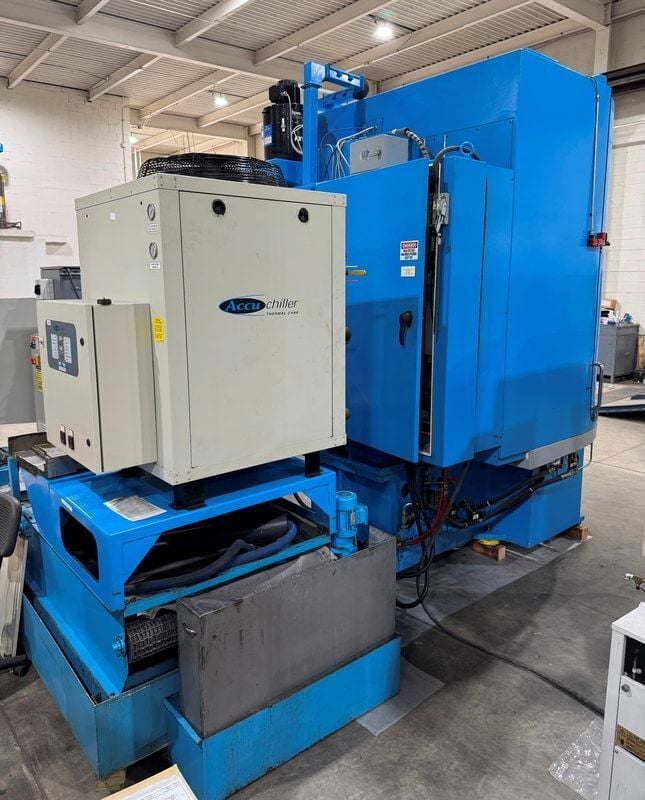

Thermal Care Accu-Chiller

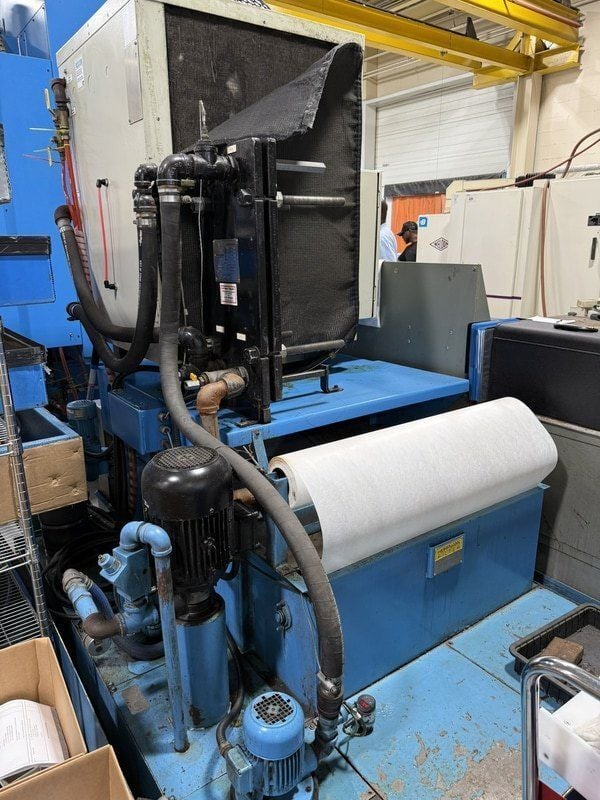

Gravity bed coolant filtration system w/disposable media filter
Royal mist collector
*Preliminary specifications, pending confirmation.
SPECIFICATIONS:
Table Diameter - Maximum............36"
Swing Diameter - Maximum............38"
Top of chuck to bottom of rotating assembly (spindle)............32-3/4"
Part Height - Maximum............24" (Arbor Dependent) and Approach Dependent, Angular or Straight Approach
X-Axis............36"
Z-Axis............36"
Main Grinding Spindle (Setco)............30 HP / 7200 RPM
Spindle Speeds............1,500 to 7,200 RPM
Spindle Taper............HSK-80
B-Axis (Spindle Swivel)............+/- 180 Degrees
Table Drive Motor (A.C. Digital Servo "Whisper Drive")............7.5 HP
C-Axis Table Drive............0 - 150 RPM
Table Run-Out, Radial & Axial............0.0001"
Rotary Dresser Spindle Motor............1.0 HP / 3600 RPM
Electrics............480/3/60 (114 FLA)
Floor Space Required............161" F-B x 142" L-R x 141" H
Weight - approximate............21,000 Lbs.
EQUIPPED WITH:
Fanuc 160i-M CNC controller
Setco U30HP7200SM80.55772R liquid cooled spindle w/auto draw bar
Servo driven rotary axis for spindle swivel up to 180° allowing for light turning as well as grinding
Rotary dresser
Single point dresser
36"Ø x 5"H T-Slotted rotary table
X, Z, B Axes equipped w/Absolute Position Feedback Scales (Linear Glass)
Precision roller ways - all axes
Full machine enclosure
Thermal Care Accu-Chiller
Gravity bed coolant filtration system w/disposable media filter
Royal mist collector
*Preliminary specifications, pending confirmation.
Get Your Price from Liberty Machinery Co!
