For Sale by Gibbs Machinery Co
Surplus Record Dealer Since 1956
Location: Warren, MI
Contact Sales Dept.
Phone Number: 586...> Show Phone Number 586-755-5353
Let the seller know you found their listing on Surplus Record!
Description

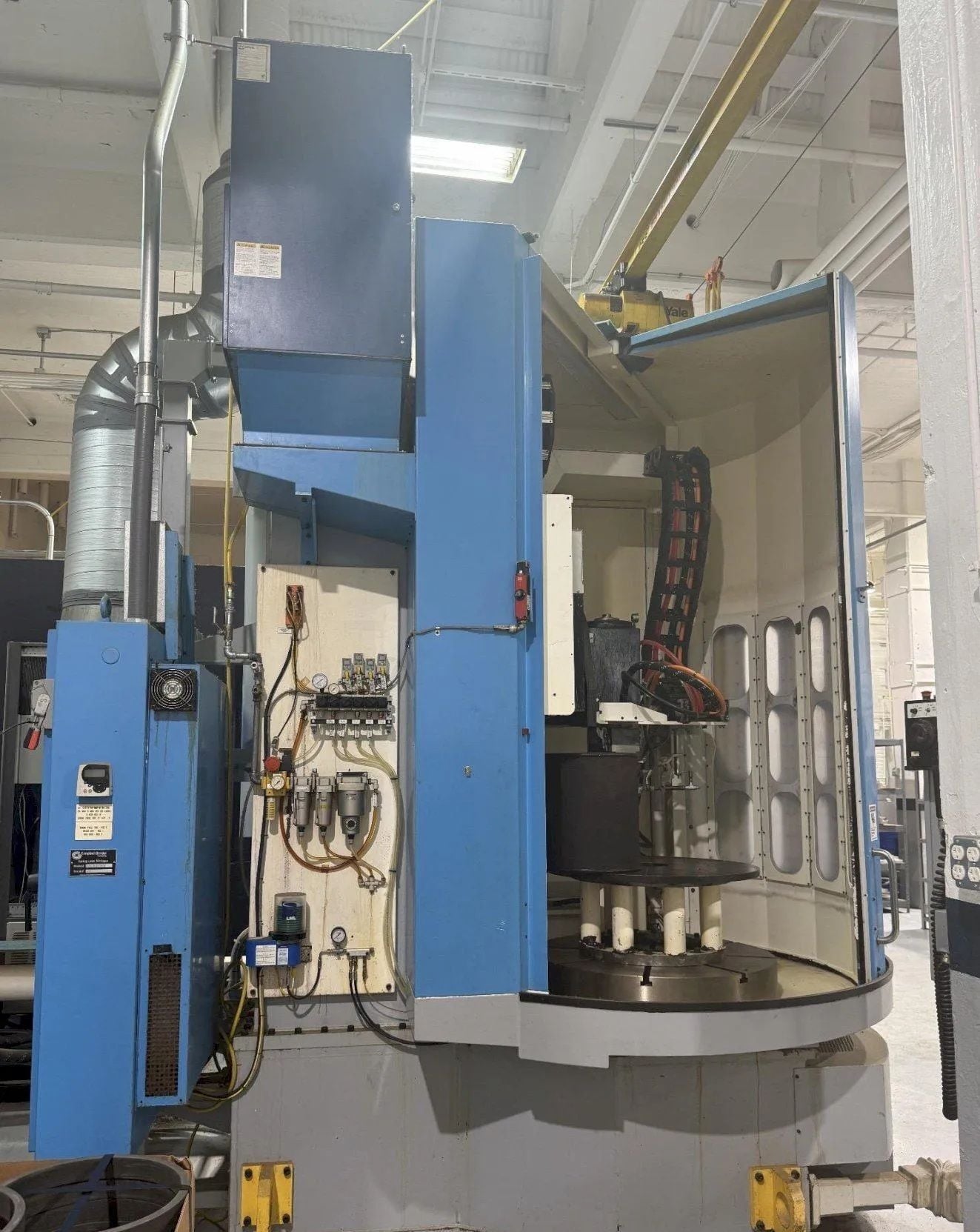

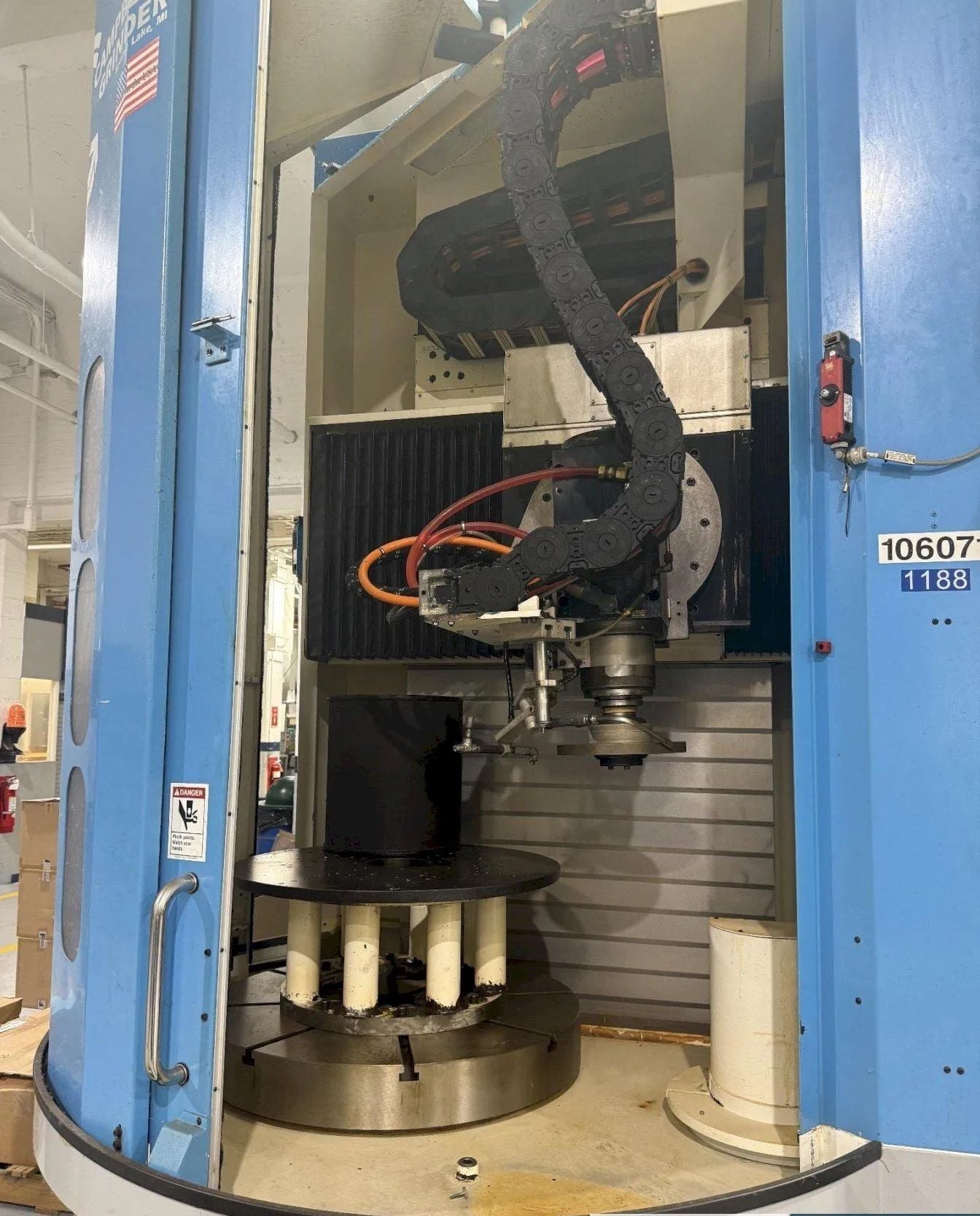

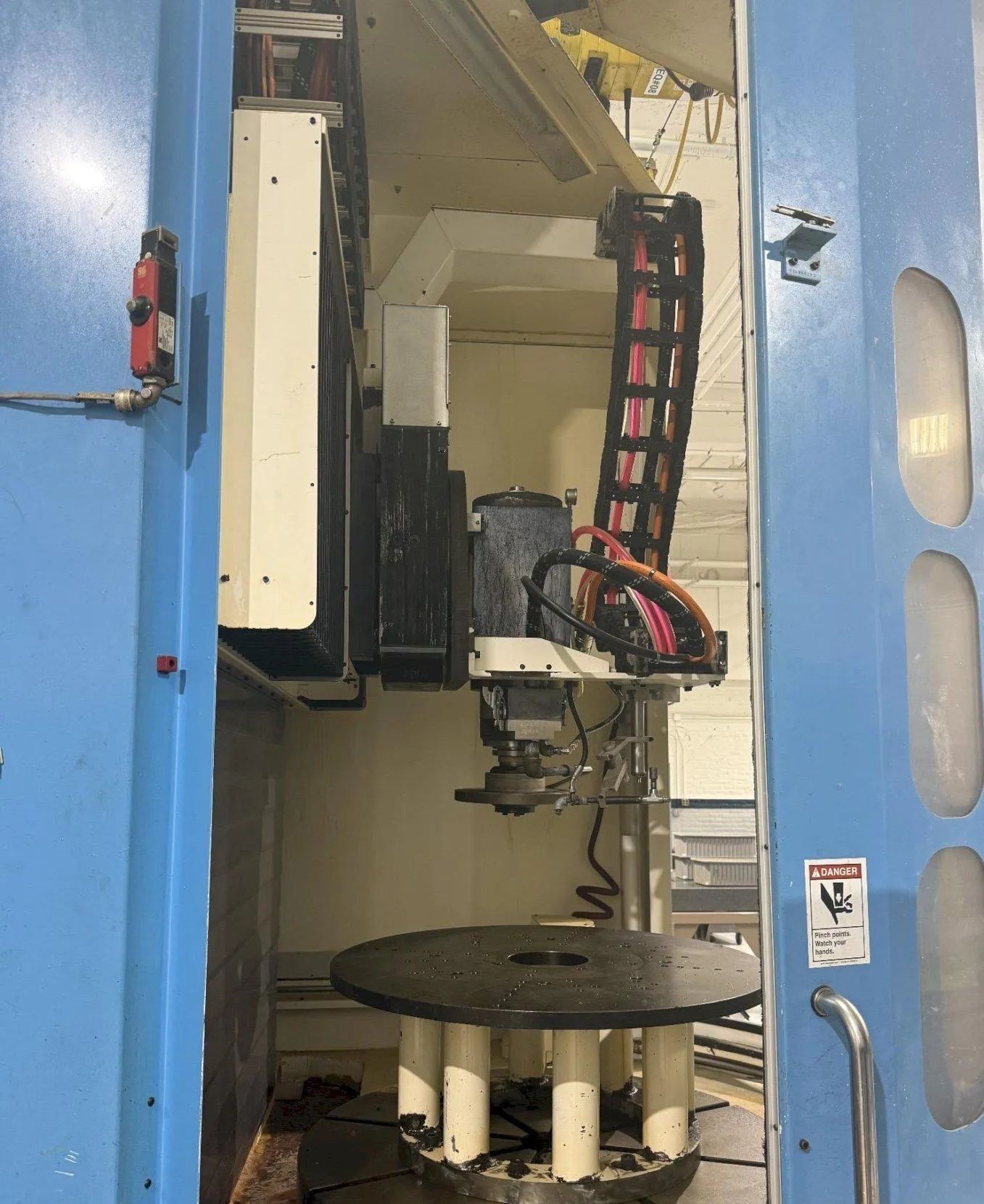

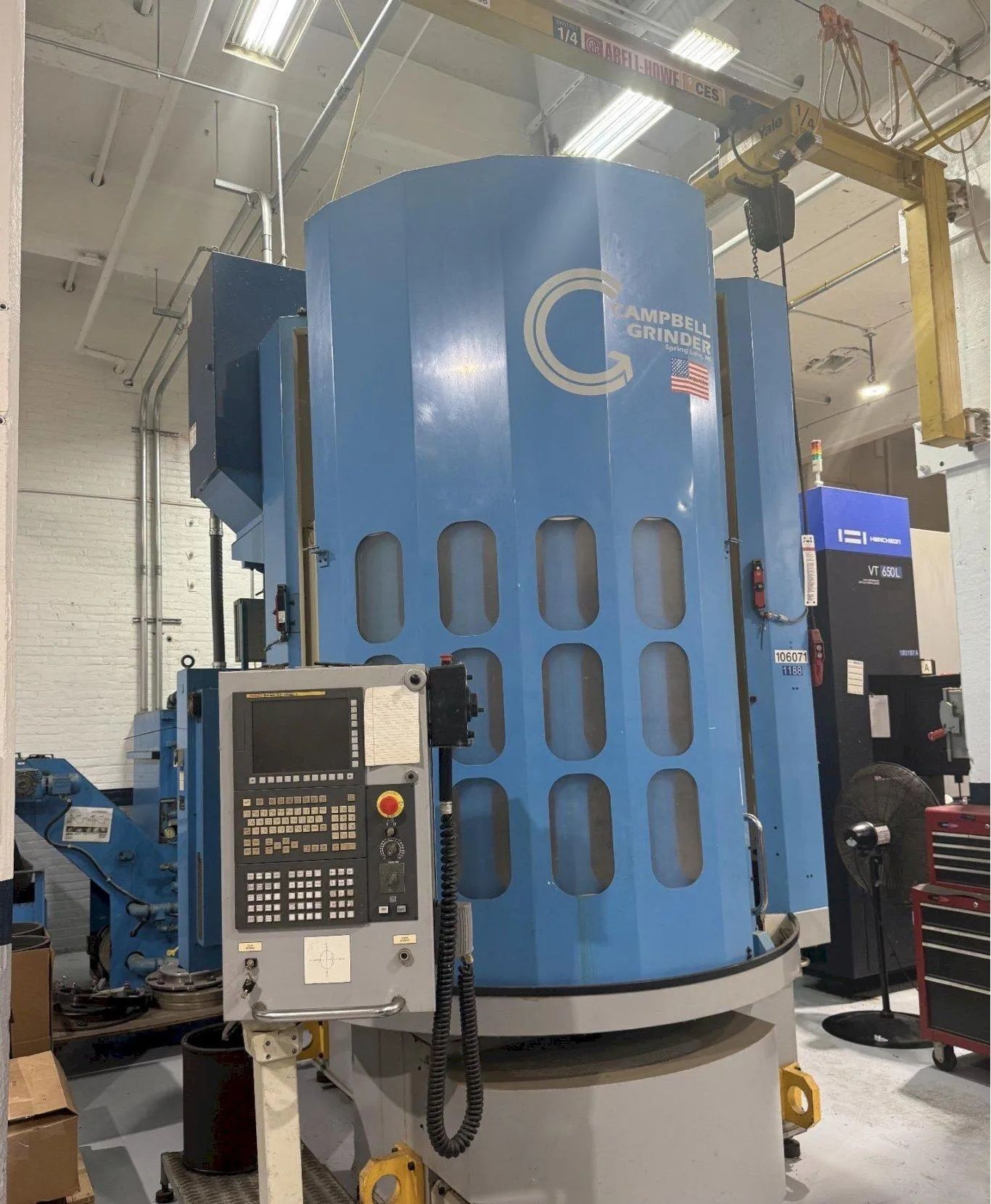

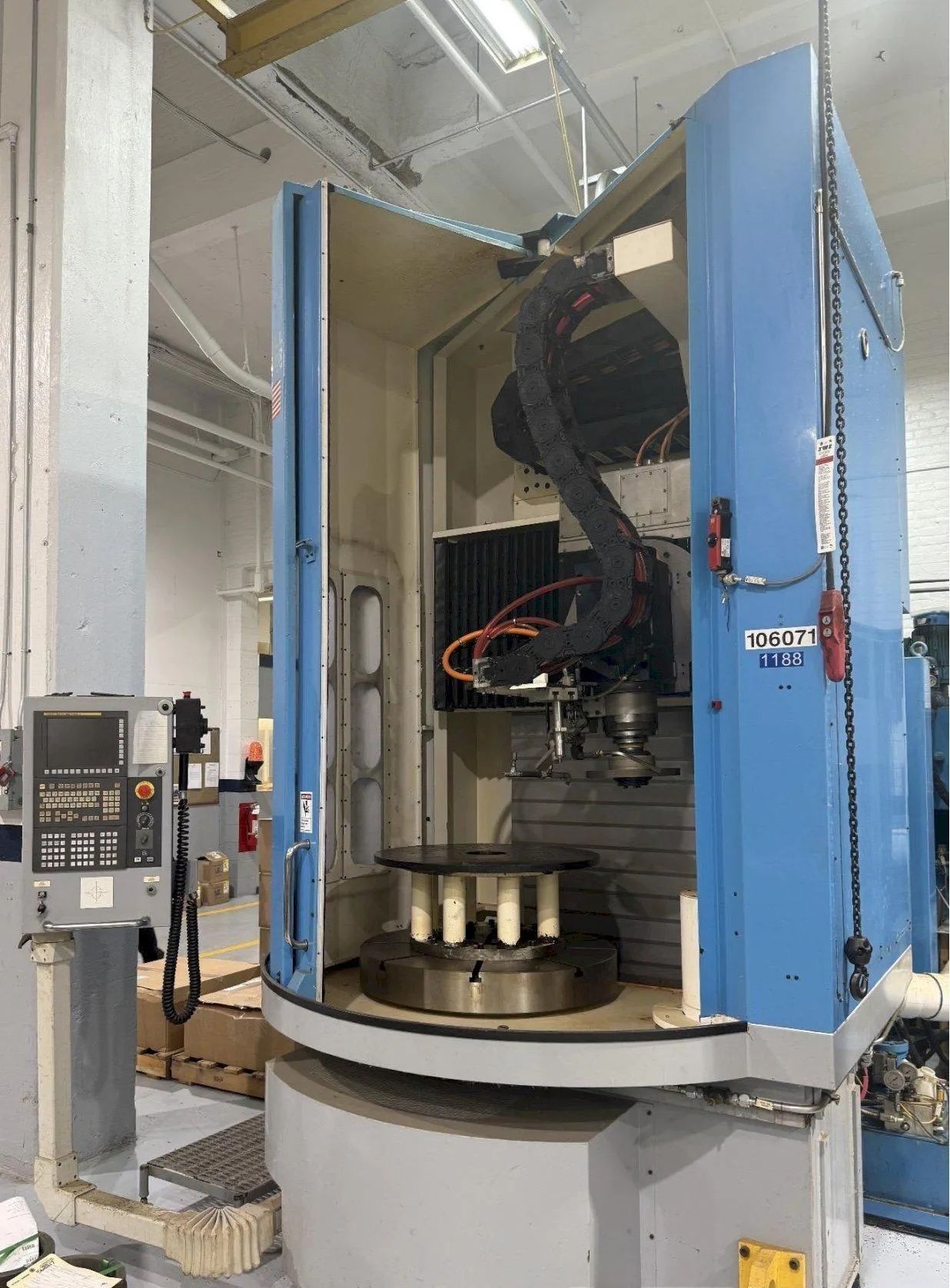

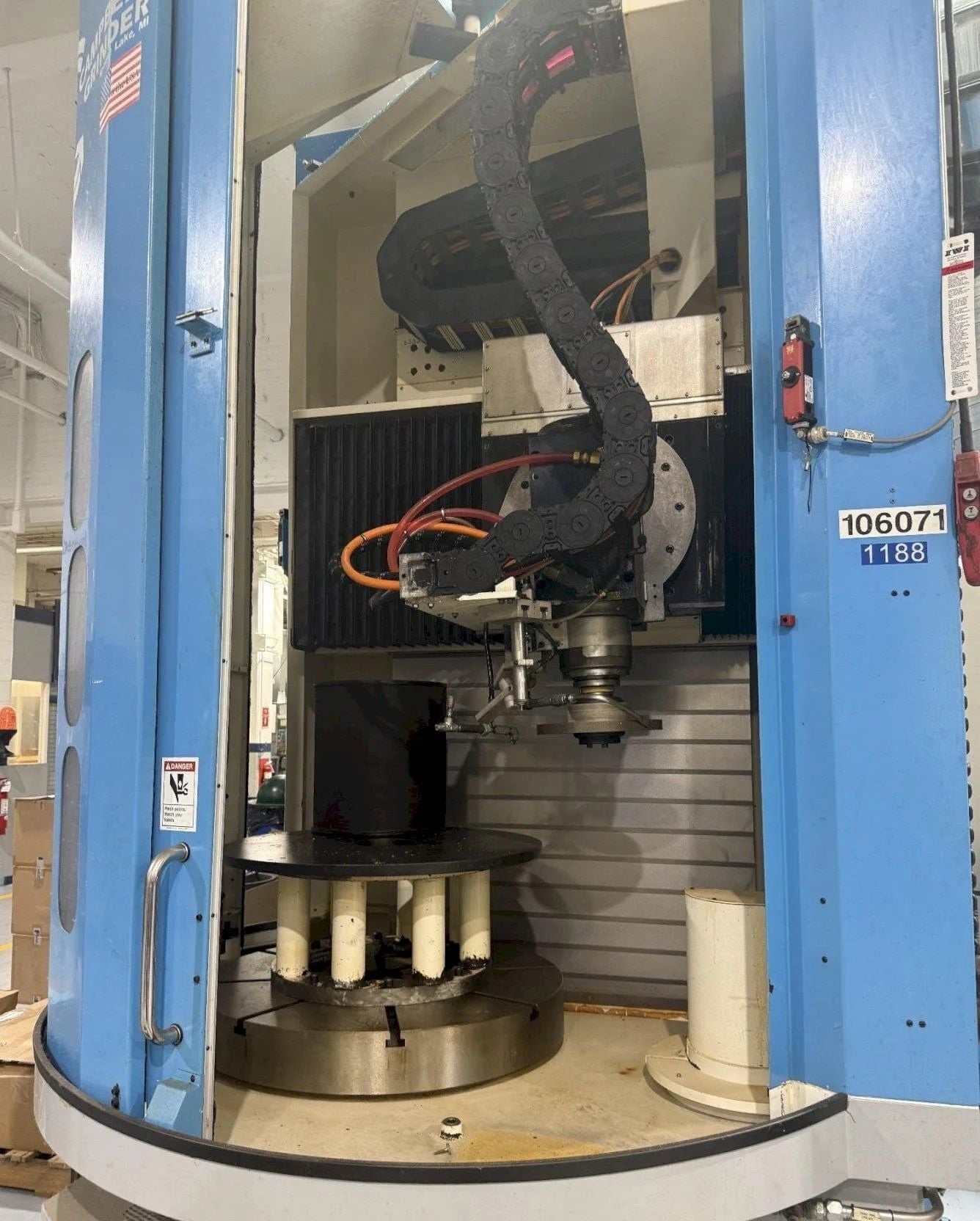

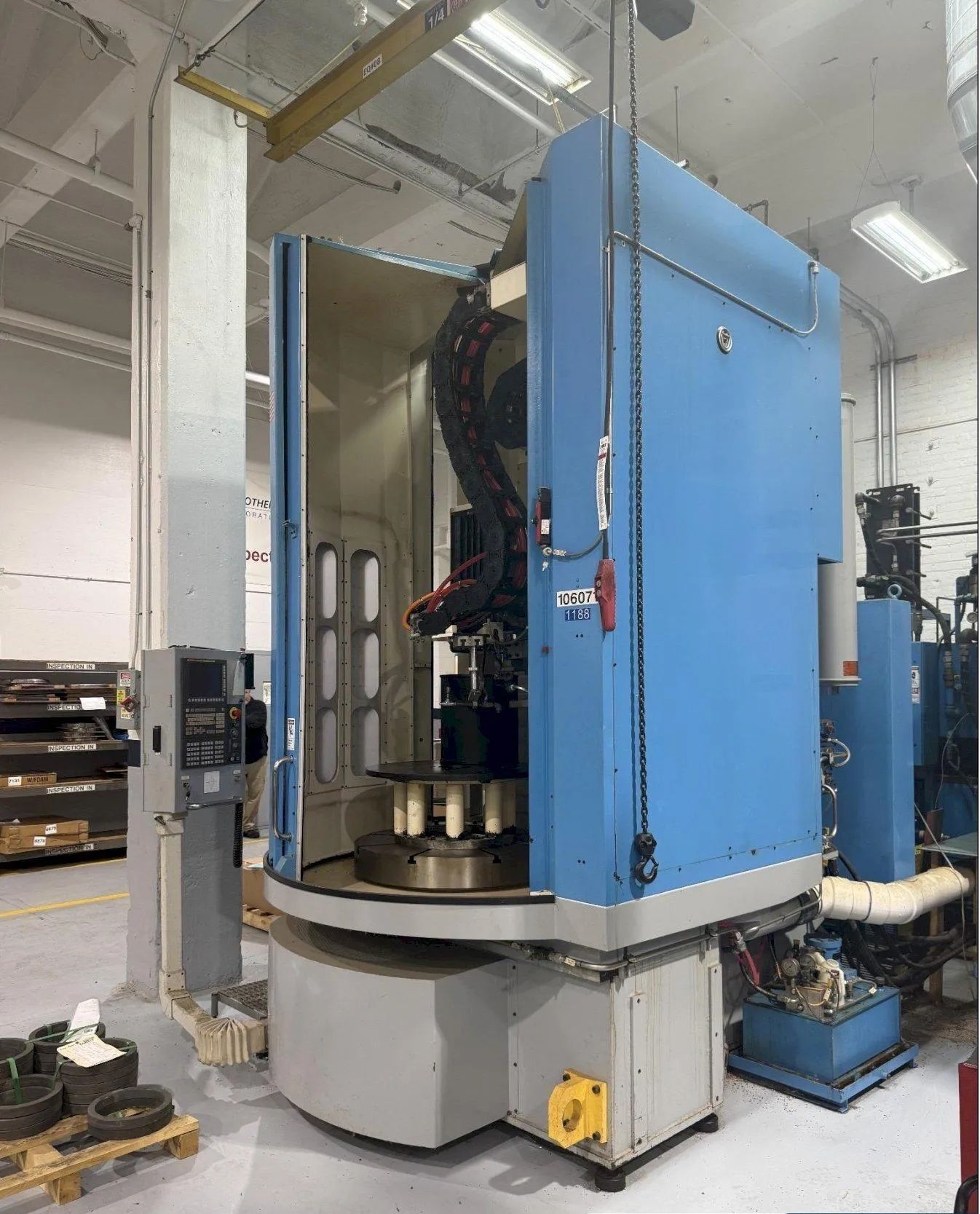

The Campbell Model 750-36-36-36/42 is a heavy-duty, high-precision CNC Vertical Universal Grinder engineered primarily for demanding industrial inner diameter (ID), outer diameter (OD), face, and cylindrical grinding applications. Built by the Campbell Grinder Company, this machine features a robust vertical spindle configuration that allows for highly efficient part loading and precise grinding of flat or cylindrical components.
Specifications:
Swing: 43.3"
Table Diameter: 35.43"
Maximum Part Height: 24"
Table Speeds: 150 RPM
Grinding Wheel Speed: 1,500 - 7,200 RPM
X-Axis Travel: 36"
Z-Axis Travel: 36"
B-Axis Swivel: +/-180 Degrees
C-Axis: Yes
Dimensions: (F-B x L-R x H): 161" x 142" x 141"
Approximate Weight: 21,000#
Specifications:
Swing: 43.3"
Table Diameter: 35.43"
Maximum Part Height: 24"
Table Speeds: 150 RPM
Grinding Wheel Speed: 1,500 - 7,200 RPM
X-Axis Travel: 36"
Z-Axis Travel: 36"
B-Axis Swivel: +/-180 Degrees
C-Axis: Yes
Dimensions: (F-B x L-R x H): 161" x 142" x 141"
Approximate Weight: 21,000#
Get Your Price from Gibbs Machinery Co!
