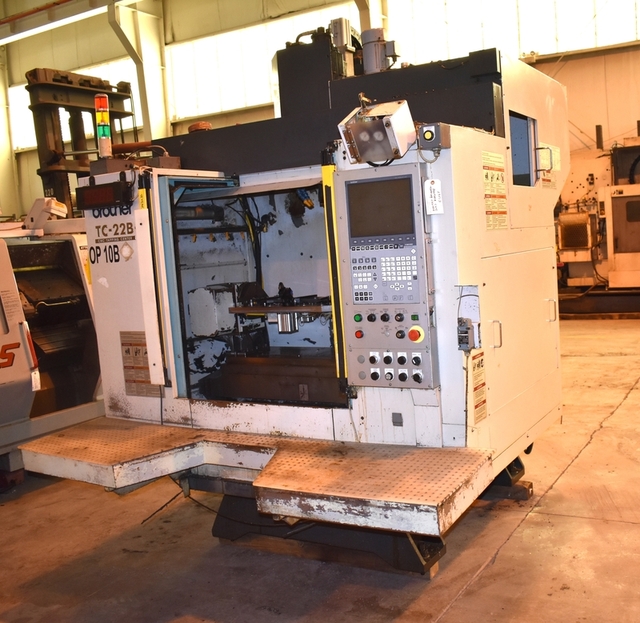

Brother #TC-22B-0, CNC tapping center, 27.5"X, 17.72"Y, 16.14"Z,BT30,18 ATC,Brother 800 CNC Control, 2008

Estimated monthly payment valid upon approved credit.

Request Formal Quote

#TC-22B-0 BROTHER 4-AXIS CNC TAPPPING CENTER

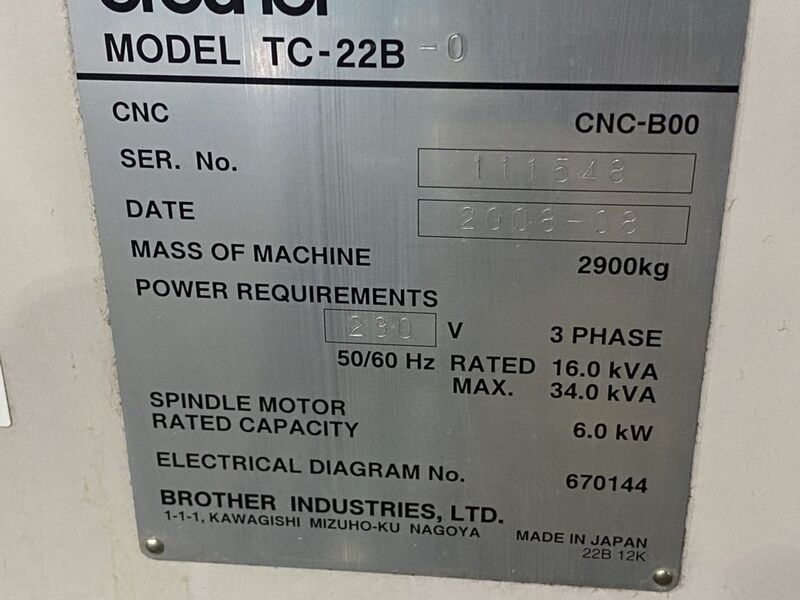

New 2008, Serial No 111548, Model TC-22B-0,
#TC-22B-0 BROTHER 4-AXIS CNC TAPPPING CENTER
New 2008, Serial No 111548, Model TC-22B-0,
EQUIPPED WITH:

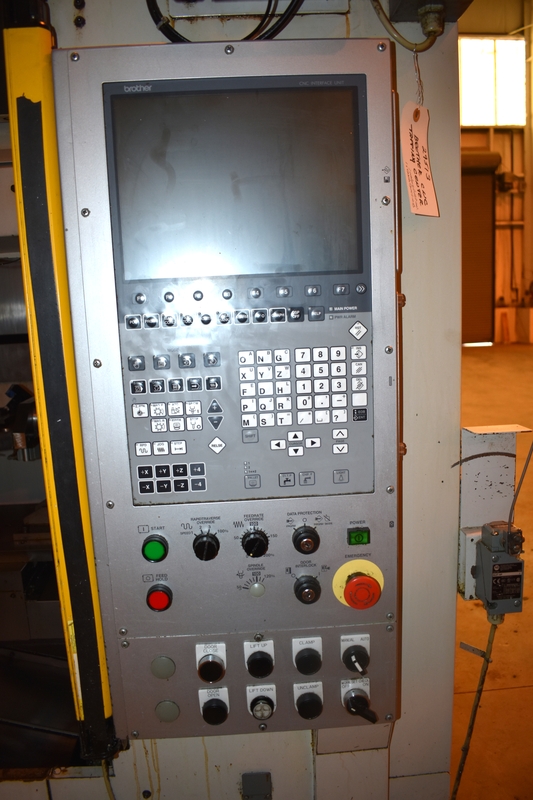

Brother 800-CNC Control

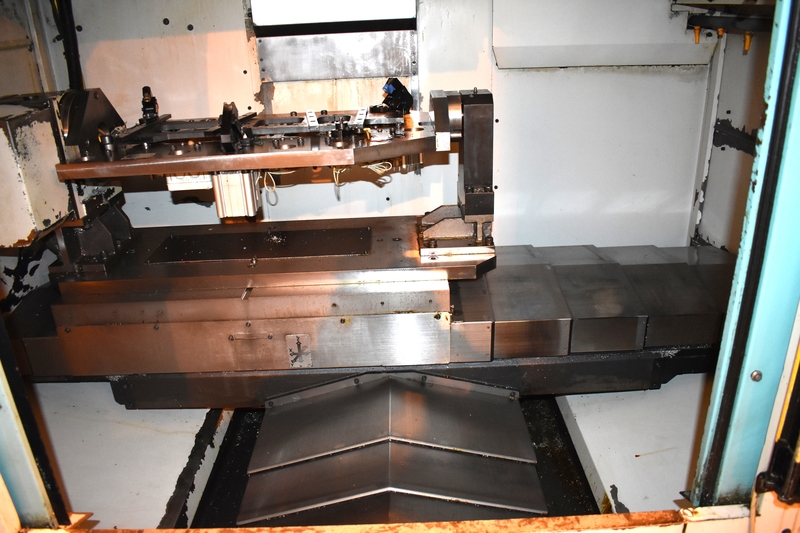

#YNC-200L Yukiwa 4th Axis Rotary Table w/Tailstock
18-Position Automatic Tool Changer

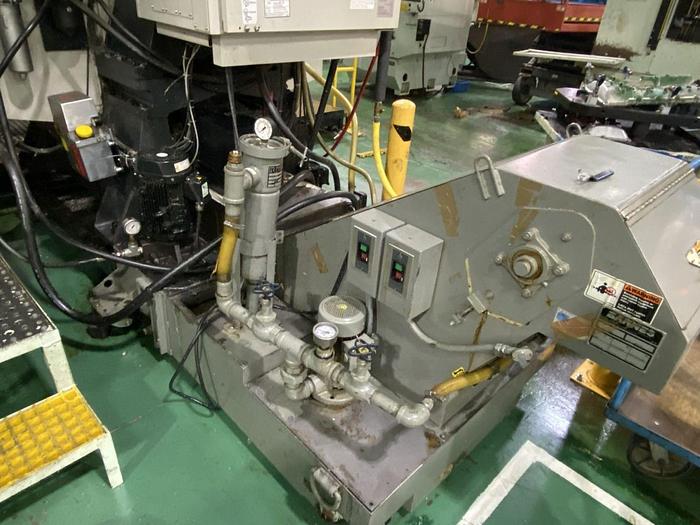

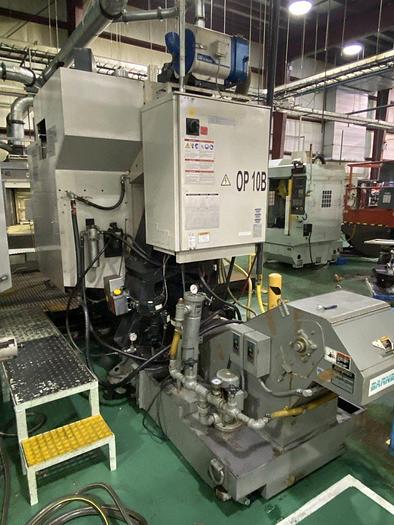

Thru-Spindle Coolant System w/Barnes RDXC 112 LB Permanent
Media Chip Filter (Serial No RD 2752)
CATALOG SPECIFICATIONS:
Table Dimensions, W x L .......... 18" x 33"
Table Longitudinal Travel (X-Axis) .......... 27.5"
Table Cross Travel (Y-Axis) .......... 17.72"
Spindle Head Vertical Travel (Z-Axis) .......... 16.14"
Spindle Taper .......... #BT30
Total Tool Weight, Maximum .......... 40 LBS
Spindle Speeds, Range 12000 RPM
Rapid Traverse Rates, X, Y, Z-Axis' .......... 229 FPM
Floor Space Required, L x W .......... 123" x 74"
F.O.B. OUR WAREHOUSE
Table Longitudinal Travel (X-Axis): 27.5"
Table Cross Travel (Y-Axis): 17.72"
Spindle Taper: #BT30
Total Tool Weight, Maximum: 40 LBS
