Haas #DT-1, CNC Drill & Tapping Center, 20" x16" x15.5" Travels, 12,000 RPM, BT30, 20 ATC, Midaco Pallet Changer, 2012

HAAS DT 1 CNC High Speed Drill & Tapping Center, 2012 model, featuring Midaco Pallet Changer, twin rotary tables, HAAS CNC control, and advanced tool management and probing capabilities. Specs include 12,000 RPM spindle, 20 automatic tool changer, and 20"x16"x15.5" travels.
2012 HAAS DT 1
SPECIFICATIONS:
Number Of Tables / Pallets... 1
Table-L...................... 26"
Table-W...................... 15"
Weight on Table.............. 250 lb
Spindle Nose to Table Top.... 6" ~ 21.5"
X - Axis Travel.............. 20"
Y - Axis Travel.............. 16"
Z - Axis Travel.............. 15.5"
Rapid Traverse Rate - X...... 2,400 in/min.
Rapid Traverse Rate - Y...... 2,400 in/min.
Rapid Traverse Rate - Z...... 2,400 in/min.
Cutting Feed Rate............ 1,200 in/min.
Spindle Speed................ 12,000 RPM
Spindle Taper................ 30 BT
Main Motor................... 15 hp
Automatic Tool Changer....... 20
Tool Diameter................ 2"
Tool Length.................. 7"
Machine Weight............... 5,150 lb
Control...................... CNC (HAAS CNC CONTROL)
EQUIPPED WITH:
HAAS CNC CONTROL
ROTATION & SCALING
DNC, QUICK CODE
SPINDLE ORIENT
MACROS
INTUITIVE PROGRAMMING
ADVANCED TOOL MGMT,
RIGID TAPPING
USB PORT
WIPS WIRELESS INTUITIVE PROGRAMMING SYSTEM
NO PROBE TOOL & TOUCH SETTER
MIDACO MODEL ADT-1SD PROGRAMMABLE DUAL PALLET CHANGER PALLET SIZE 22" x 15"

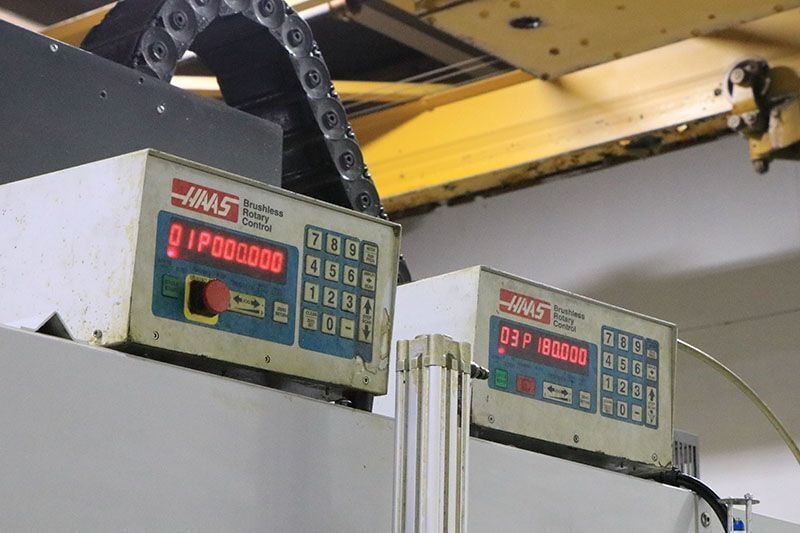

(2) HAAS MODEL HRT 160SP ROTARY TABLES W / HAAS INDEPENDENT ROTARY CONTROL
TOOLING BLOCK SYSTEMS W/ A-FRAME SUPPORT & MOUNTING BLOCK
FIRE SUPRESSION SYSTEM
COOLANT SYSTEMS
ALL AVAILABLE MANUALS
