For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With

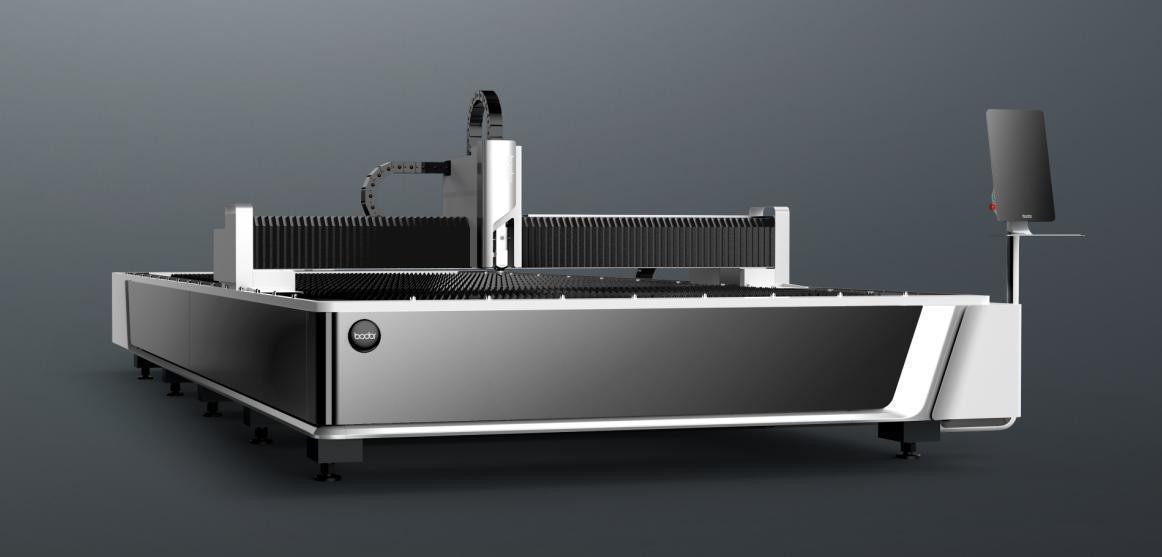

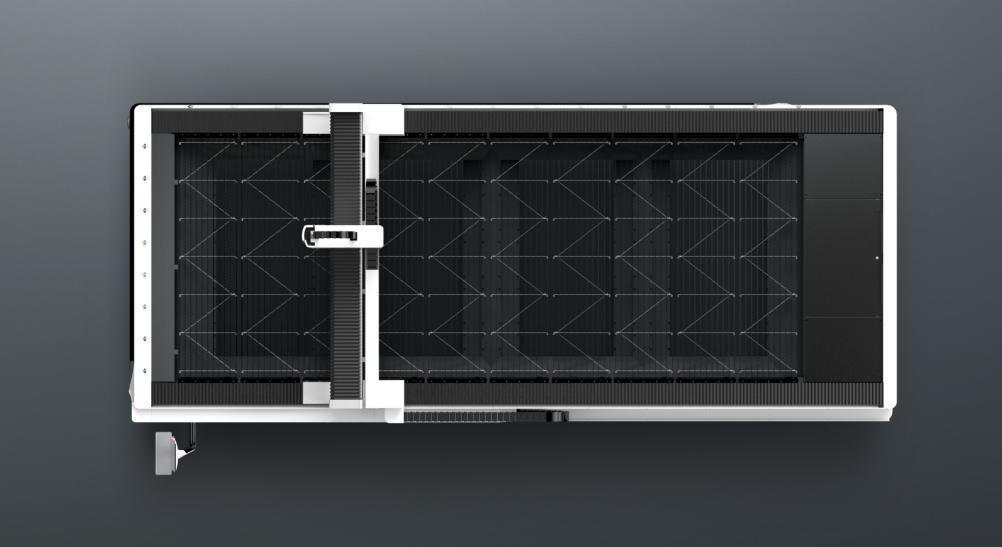

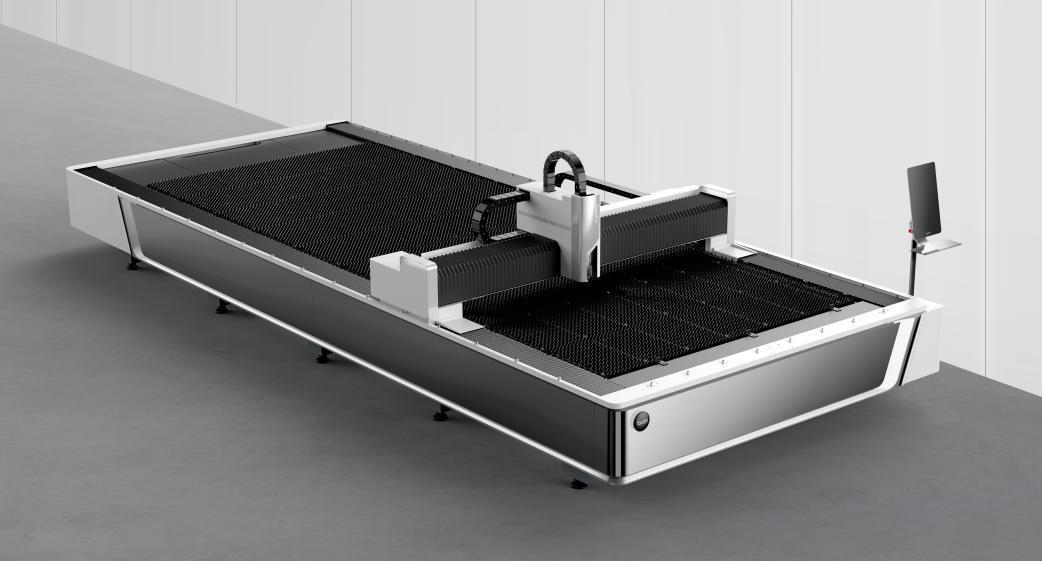

| FIBER LASER CUTTING MACHINE: | ||
| Laser Power | ||
| 12kw | ||
| Freight&Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportantion | By Sea | |
| Loading Container | 1*40'FR+1*20'GP | |
| Payment Terms | 30% down payment, 70% before shipment. | |
| Warranty | Five years limited warranty for main parts. One year free labor. | |
| Optional: | ||
| Centrifugal Fan | ||
| Fume Filter | ||
| Air Compressor | ||
| Flowbox | ||
| Extra Laser Head | ||
| Basic Parameter: | ||
| Working area | 6100mm*1524mm (≈19.96'x4.98') | |
| Max. linkage speed | 100m/min (328ft/min | |
| Intelligent Function: | ||
| Bodor Lightning perforation technology | ||
| High Speed Cutting Expert Database | ||
| Remnant Typesetting | ||
| Air pressure intelligent control | × | |
| Automatic adjustment of cutting gas pressure | 6kW and belowO2 above 6kWO2N2air | |
| Cutting Parameter AutoMatch | 12KW and above (Not available for optional scanning cutting | |
| Auto-focus of laser head | ||
| Laser cutting technology expert database | ||
| Ergonomic Remote Control (Bodor Mango®) | ||
| Touchscreen Display | × | |
| Active anti-collision function | (Not available for optional bevel cutting) | |
| intellgent over-heat adaptation | 12KW and above | |
| Intelligent anti-shake | ||
| High quality Cutting Expert Database | ||
| Mineral casting anti burning | 3KW and above | |
| Gas-saving steady flow nozzle | ||
| Automatic lubrication | ||
| Intelligent maintenance reminder | ||
| WIFI internet connection | ||
| Bodor Cloud sevice | ||
| Performance: | ||
| Requirements for sheet | Plate thickness≥0.8mm | |
| Max. acceleration | 1.5G | |
| Table load bearing | 1824kg1-6kw 2192Kg12KW | |
| Machine overall dimensions | 8108*2910*1755mm | |
| Overall weight | About 3140kg | |
| Z axis travel | 100mm | |
| Positioning accuracy | ±0.05mm/m | |
| Repositioning accuracy | ±0.03mm | |
| Φ30mm roundness | ≤0.15mm | |
| 30mm adjacent side dimension difference | ≤0.06mm | |
| 190mm adjacent side dimension difference | ≤0.15mm | |
| 190mm diagonal size difference | ≤0.20mm | |
| Configuration: | ||
| Laser source | Bodor Power | |
| Laser head | BodorGenius | |
| Machine bed | Mortise-and-tenon structure bed | |
| Gantry structure | Stretched Aluminum gantry | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axisY-axisZ-axisA-axis Servo motor and driver | Bodor | |
| Integral aluminum cantilever for high pressure steel mould casting | Yes | |
| Control system | Bodor Thinker | |
| Display size | 21.5 inches | |
| System identification file format | DXFDWGPLTNCG file | |
| Intelligent alarm | Yes | |
| Water Chiller | Yes | |
| Power Requirements | 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) | |
| Total power capacity/current with 12KW source (380V) | 49.4KW/93.8A | |
| Total power capacity/current with 6KW source (380V) | 29.4KW/55.0A | |
